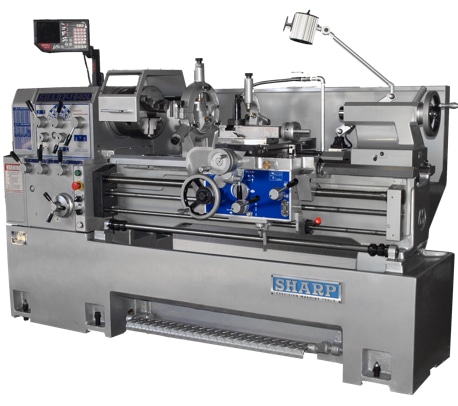

18" x 60" Sharp #1860L, precision lathe, 10.2" swing over cross slide, inch/metric threads, 3-jaw 10" chuck, 7.5 HP

General Info

• Stock #: Sharp-1860L
• Brand: Sharp
• Model: 1860L
• Approx. Shipping Weight: 3,924.22 lbs. / 1,780 Kg
• Approx. Shipping Dimensions: 8.69′ L x 2.66′ W x 4′ H / 2.65m x 0.81m x 2.22m

Specifications

• Swing Over Bed: 18 in. / 457 mm
• Swing Over Cross Slide: 10.2 in. / 259.08 mm
• Swing Over Gap: 27.17 in. / 690 mm
• Gap Width (In Front Of Face Plate): 11.81 in. / 300 mm
• Distance Between Centers: 60 in. / 1,500 mm
• Spindle Speed: 40 – 2,000 RPM

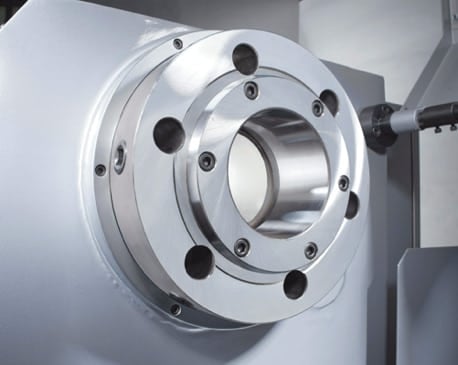

• Spindle Nose: D1-8 Camlock
• Spindle Bore: 3.18 in. / 58 mm
• Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (36 / 17)
• Modular Threads: 0.019 – 0.275 in. / 0.5 – 7 mm (17)
• Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
• Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
• Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
• Leadscrew Pitch, Diameter: 1.37 in. / 35 mm
• Cross Slide Travel: 10.8 in. / 275 mm
• Compound Travel: 4.92 in. / 125 mm
• Compound Width: 5 in. / 127 mm
• Bed Length: 104 in. / 2645 mm
• Bed Width: 11.8 in. / 300 mm
• Quill Diameter: 2.68 in. / 68 mm
• Quill Travel: 5.9 in. / 150 mm
• Quill Center Taper: MT #4
• Spindle Motor: 7.5 HP / 5.625 KW
• Voltage: 220V/440V
• Phase: 3 phase
• Power Consumption (220V): 8 KVA / 25 amps
• Power Consumption (440V): 8 KVA / 12.5 amps
