Description
General Info
- Stock #: Sharp-1860LV
- Brand: Sharp
- Model: 1860LV
- Approx. Shipping Weight: 4,500 lbs. / 2,041.1 Kg
- Approx. Shipping Dimensions: 8.69′ L x 2.65′ W x 4′ H / 2.65m x 0.80m x 1.21m
Specifications
- Swing Over Bed: 18 in. / 457 mm
- Swing Over Cross Slide: 10.2 in. / 259.08 mm
- Swing Over Gap: 27.12 in. / 688.8 mm
- Gap Width (In Front Of Face Plate): 11.75 in. / 298.4 mm
- Distance Between Centers: 60 in. / 1524 mm
- Spindle Speed: 20 – 2000 RPM (variable, high: 235-2000 rpm, low: 20-170 rpm, 12 speeds)

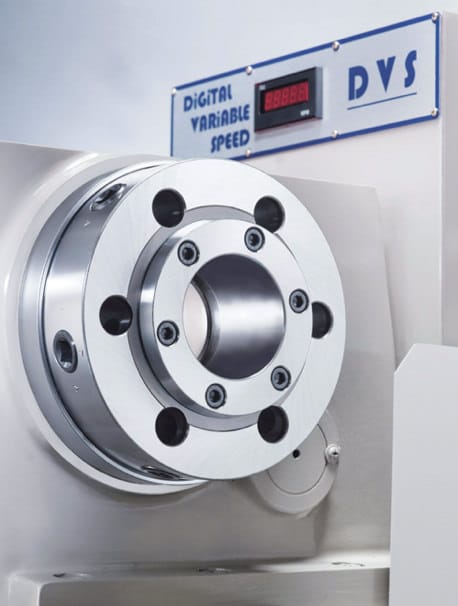

- Spindle Nose: D1-8 Camlock
- Spindle Bore: 3.06 in. / 77.7 mm
- Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (36 / 17)
- Modular Threads: Not provided
- Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
- Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
- Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
- Leadscrew Pitch, Diameter: 4 tpi / 1.37 in.
- Cross Slide Travel: 10.8 in. / 275 mm
- Compound Travel: 4.9 in. / 124.4 mm
- Compound Width: 5 in. / 127 mm
- Bed Length: 79 in. / 2006.6 mm
- Bed Width: 11.75 in. / 298.4 mm
- Quill Diameter: 2.68 in. / 68.07 mm
- Quill Travel: 5.5 in. / 139.7 mm
- Quill Center Taper: MT #4
- Spindle Motor: 7.5 HP / 5.59 KW
- Voltage: 230V/460V
- Phase: 3 phase
- Power Consumption (230V): 8 KVA / 25 amps
- Power Consumption (460V): 8 KVA / 12.5 amps
Get Your Price from Equipment Hub!
