For Sale by Scott Machinery & Supply Inc
Description
Model: SWB09VAII
s/n: 79420269
Year: 1969
Made in Germany
Capacity: 18" x 36"
Wheel: 16"d x 2"w x 5" bore
Distance from chuck to spindle: 24"
Speeds: 3-82 ft/min
Automatic Cross feed continuous: 47 in/min
Automatic Cross feed intemittent: 0.04 - 2.4 in/stroke
Cross feed on handwheel: 0.001"
Cross feed fine adjustment: 0.0005
Automatic Vertical rapid: 6 in/min
Vertical feed on handwheel: 0.0001 1 division ins
Vertical feed on fine setting knob: 0.00005 1 division ins
Dowfeed: 0.0001 - 0.0025 in/impulse
Motor: 14.7 HP
Equipped With:

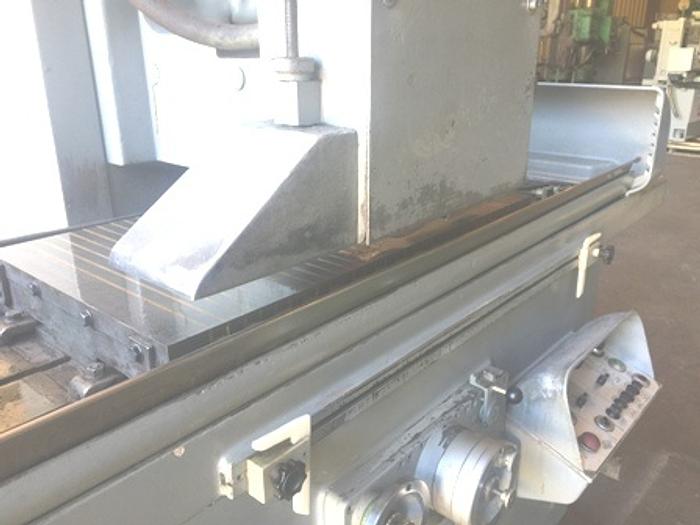

19-3/4" x 35-1/2" Electric Magnetic Chuck
IDF
Coolant
Over the wheel dresser
Overall Size: 112" L x 87" W x 108" H x 14,500 lbs (approx)

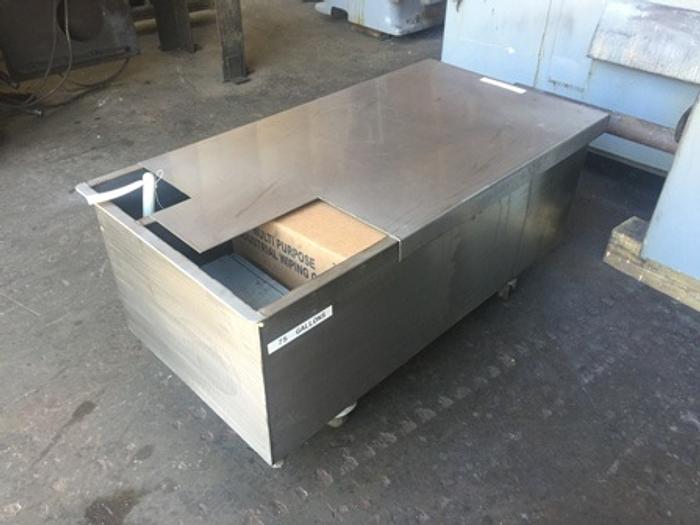

Coolant tank: 27" L x 52" W x 24" H x 500 lbs (approx)
Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.
Specifications
| Manufacturer | Elb |
| Model | SWB09VAII Surface Grinder |
| Year | 1969 |
| Condition | Used |
| Stock Number | 7820 |
