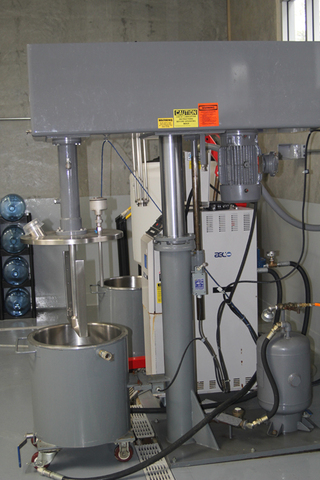

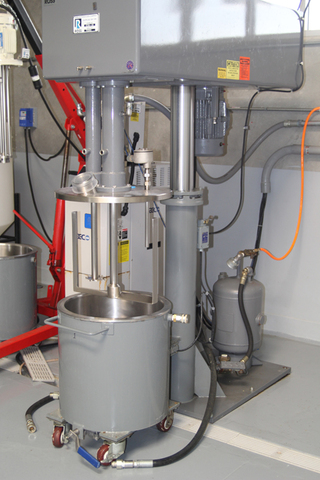

18 gallon Ross #CDA-18, planetary mixer, Stainless Steel, dual agitation, air/oil hydraulic lift

Ross Dual Shaft Mixer Model CDA-18 : SN 755545, change can dual shaft mixer and disperser. Air/oil hydraulic lift. Includes an air/oil supply tank, and hydraulic lift cylinder to raise and lower agitators from mix can. (2) 20-gallon, 18-1/2" diameter X 19" deep mixing vessels/cans. Mix Can 29.5"Hg Vacuum, 15psig Cooling/heating jacket. Agitation and homogenization system consists of two (2) independently driven top-entering agitator/ driven by 3HP TEFC inverter-duty motor for operation on 230/460VAC, 3-phase, 60Hz. Heavy-Duty 316 SS anchor design with triangular blade cross section. High Speed Disperser, driven by 5HP TEFC inverter-duty motor for operation on 230/460VAC, 3-phase, 60Hz. Independent stand-alone NEMA Control Panel; includes control keypads for drives with start/stop, speed control, speed display, Emergency Stop, digital temperature readout, cycle timer, control power, etc.
Offered with Ross Model AEC 48 KW electric heater for heating of jacket, model TCU100U, serial number 36D0557, 230-volt, 1 HP, 150 PSI max pressure.
HP: 3
Type: Air and Oil Hydraulic Lift
Materials of Construction: Stainless Steel
Previous Use: Food Processing
Basis: FOB
