For Sale by GTH Used Machinery Intl
Surplus Record Dealer Since 2017
Location: Pico Rivera, CA
Contact Jairo Gutierrez
Phone Number: 562...> Show Phone Number 562-692-8095
Let the seller know you found their listing on Surplus Record!
$9,500 USD
Description
American Machine Tool Co.

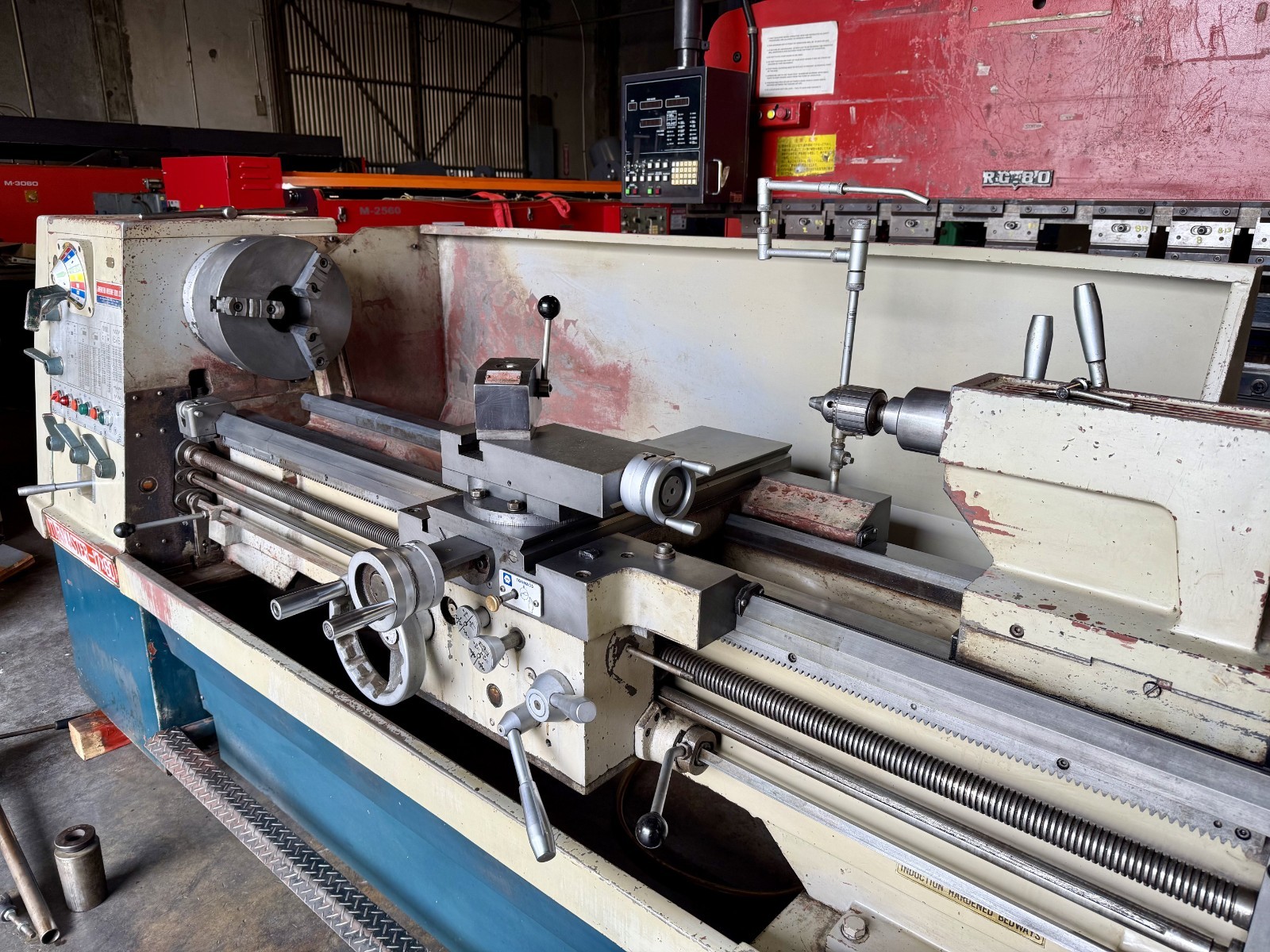

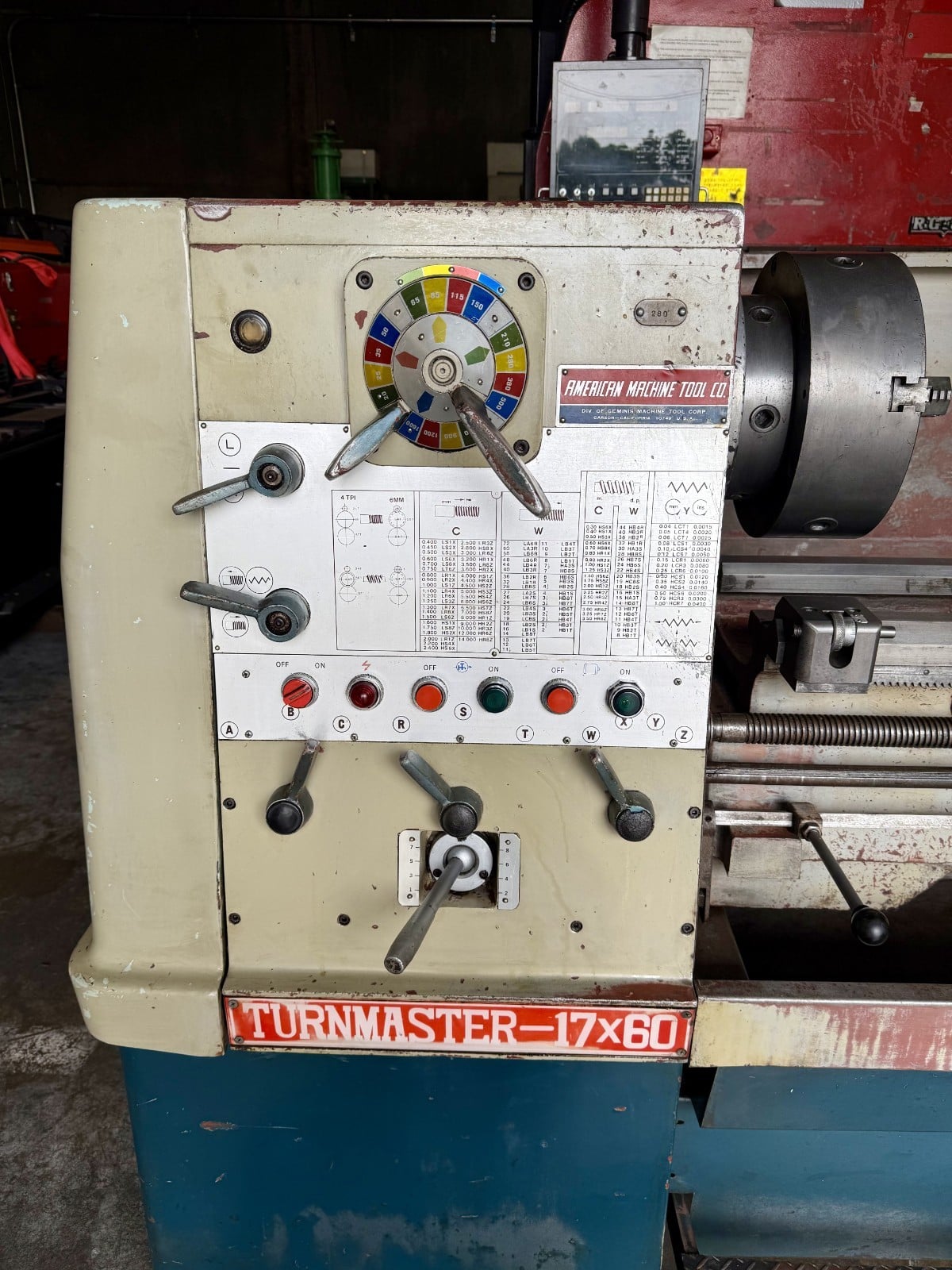

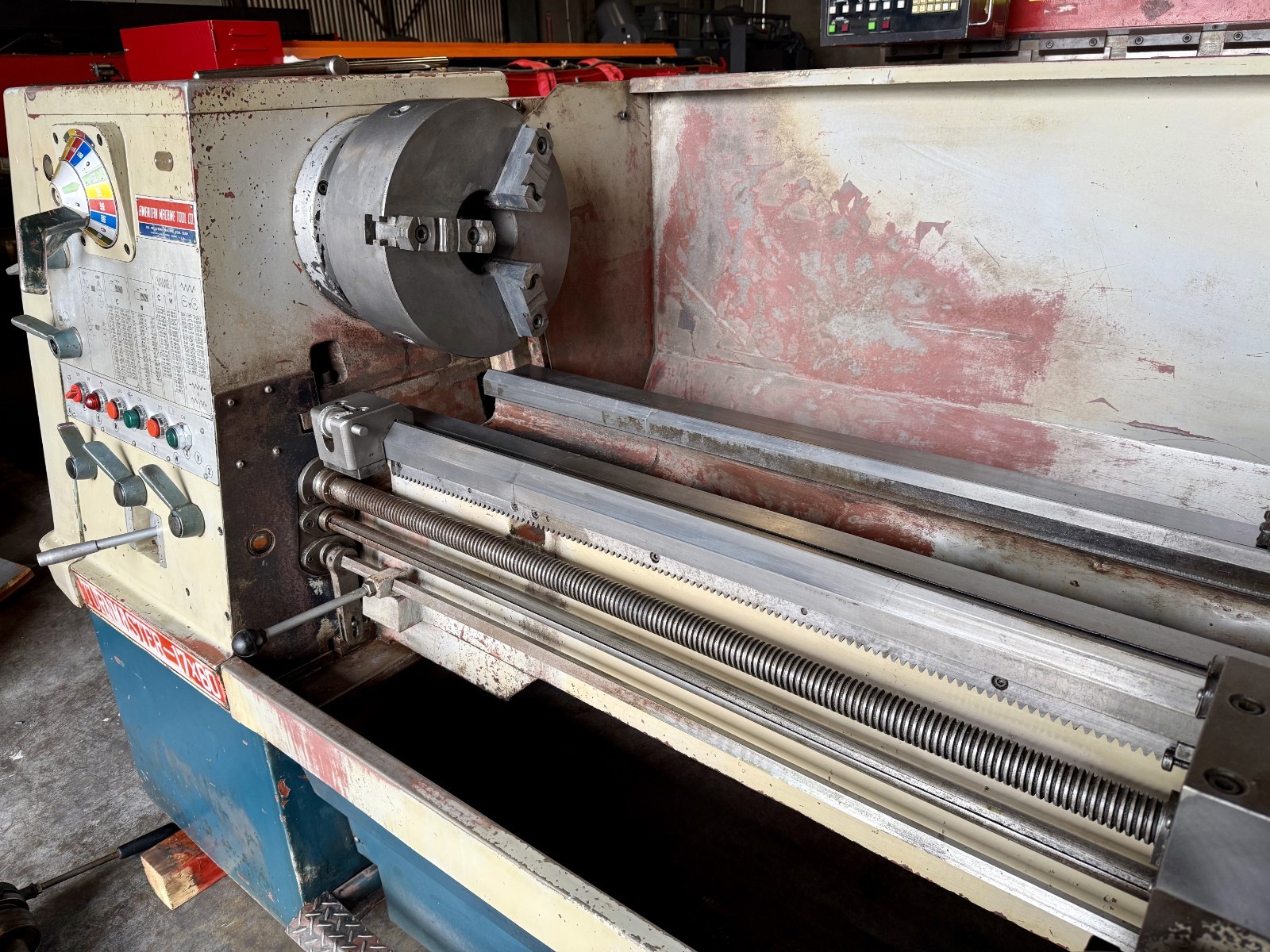

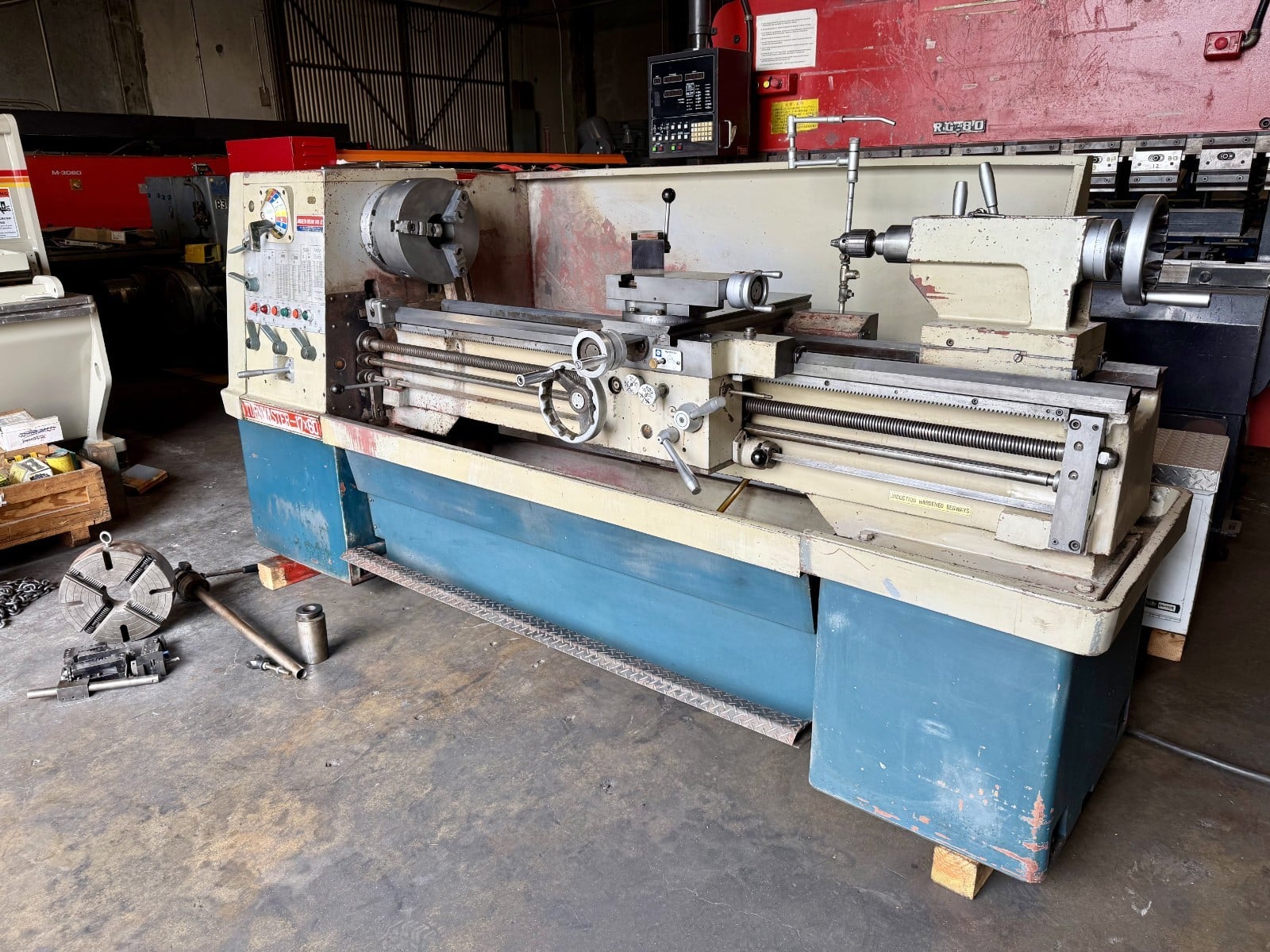

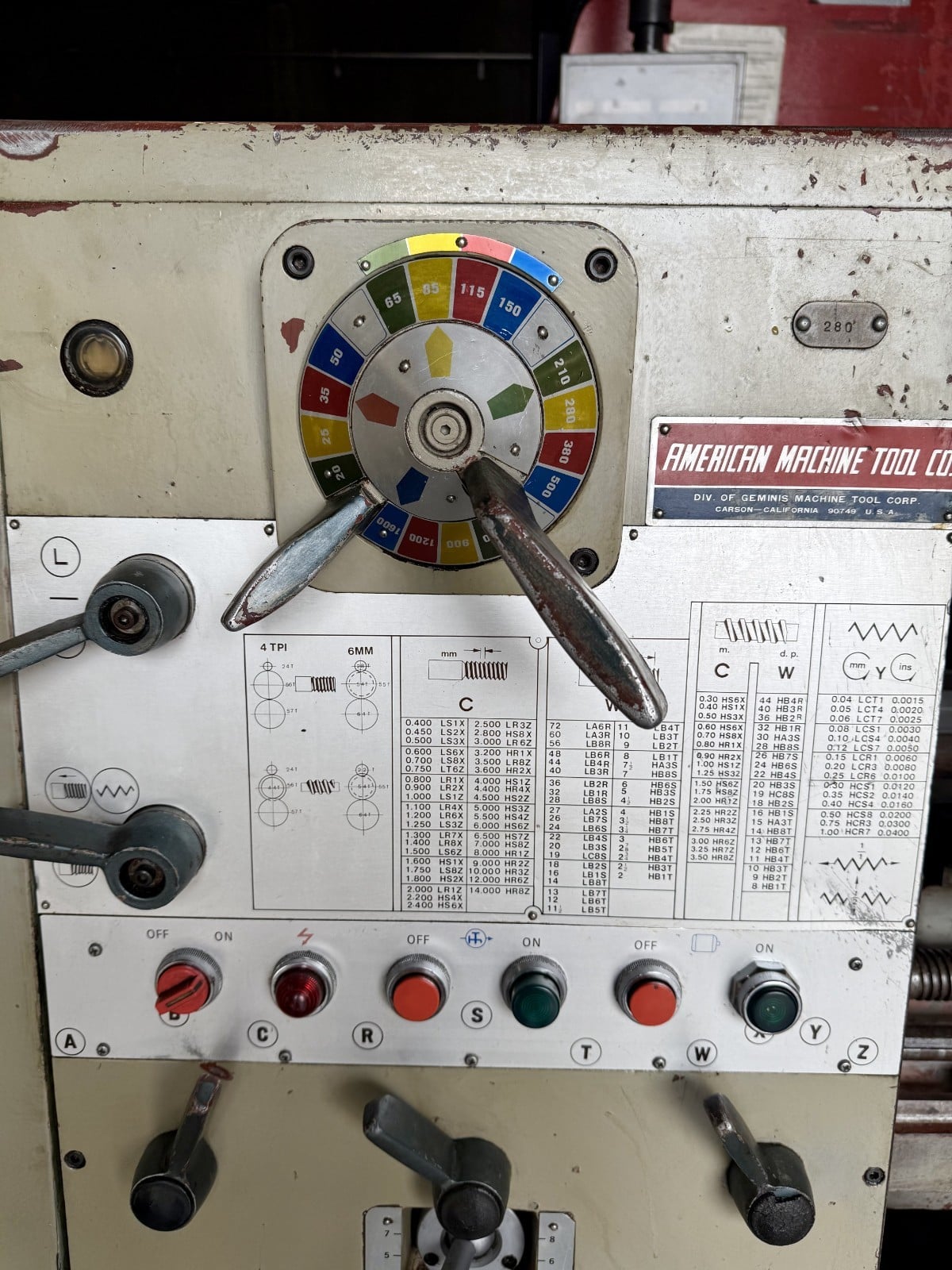

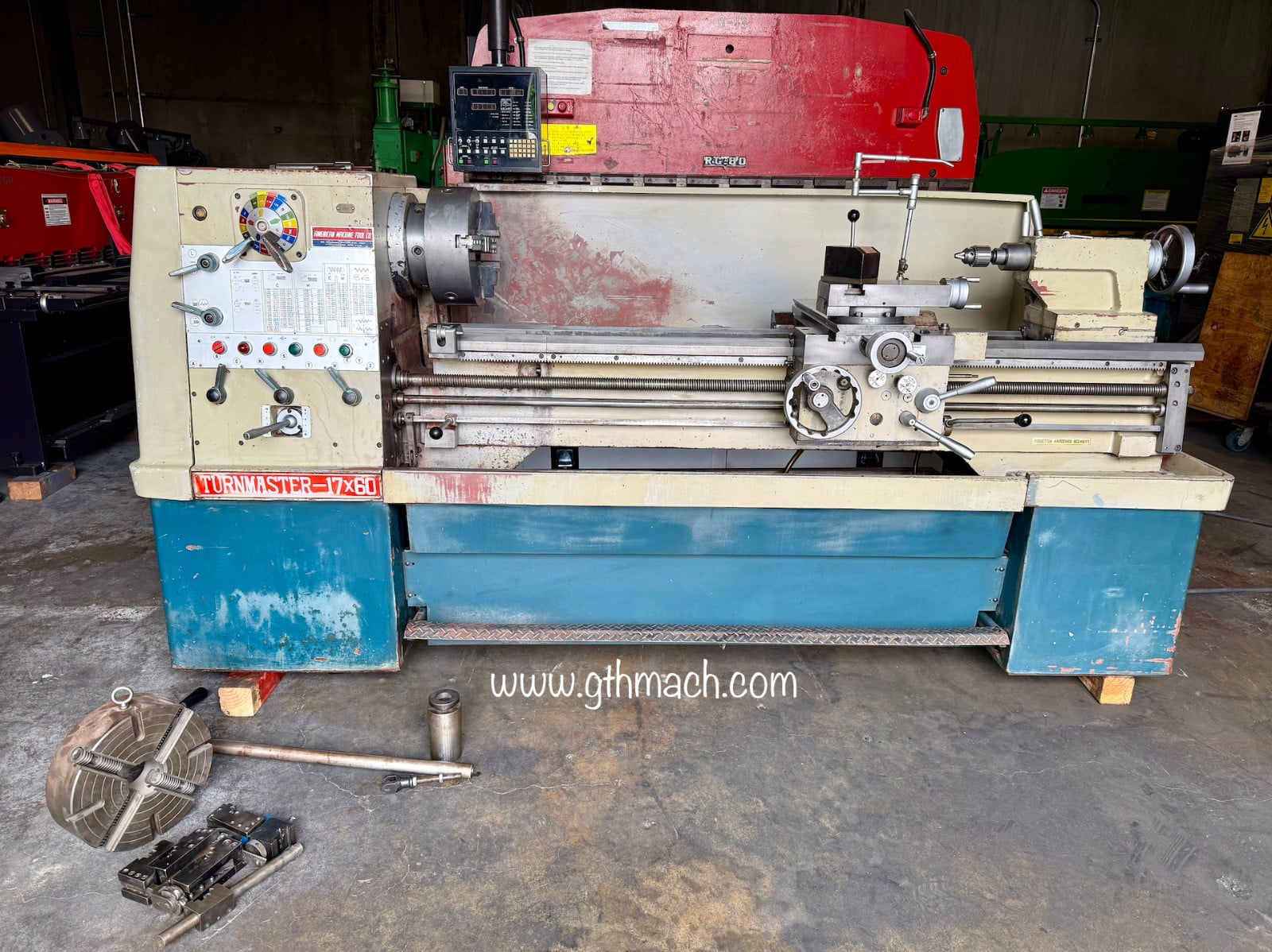

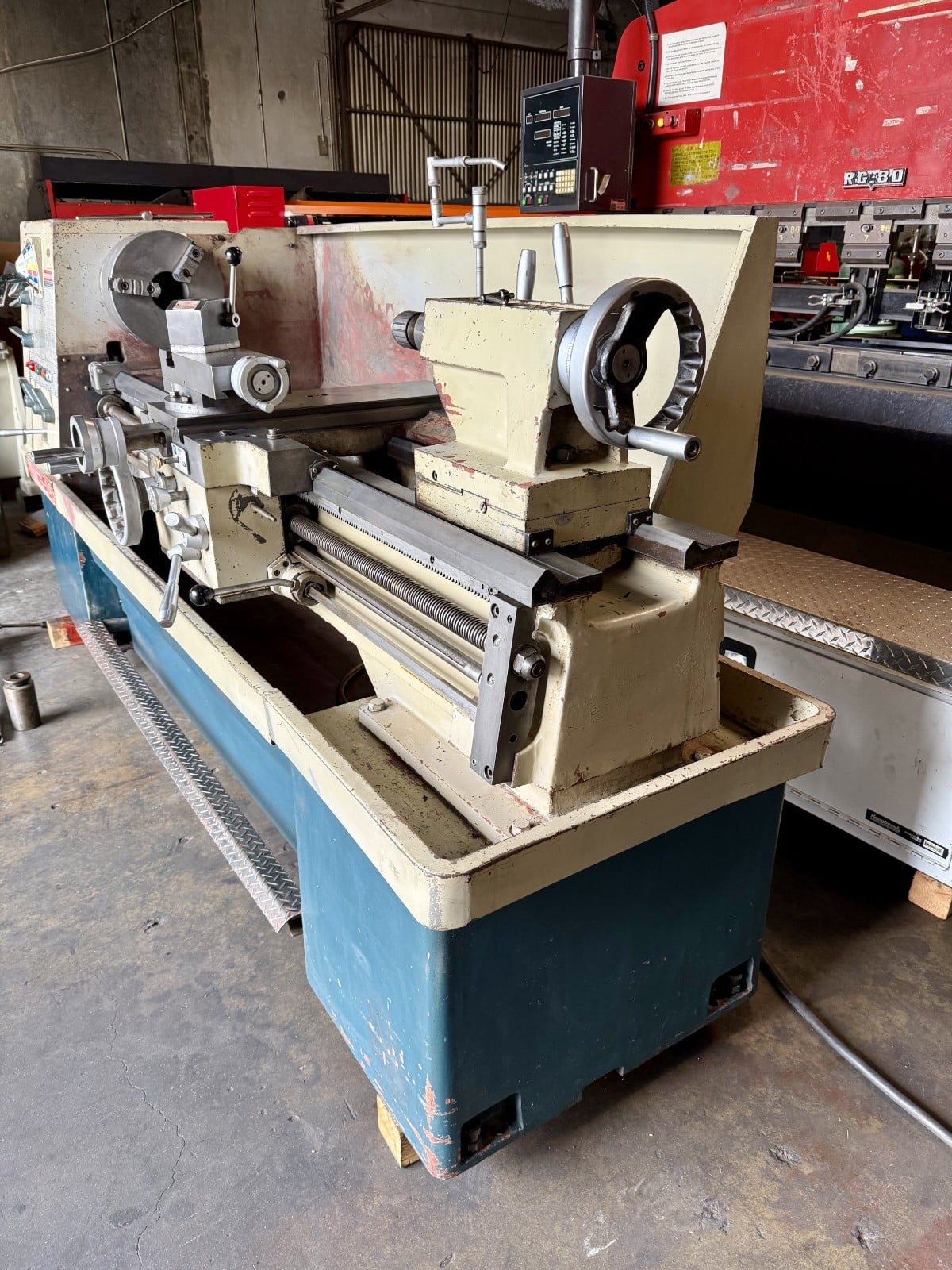

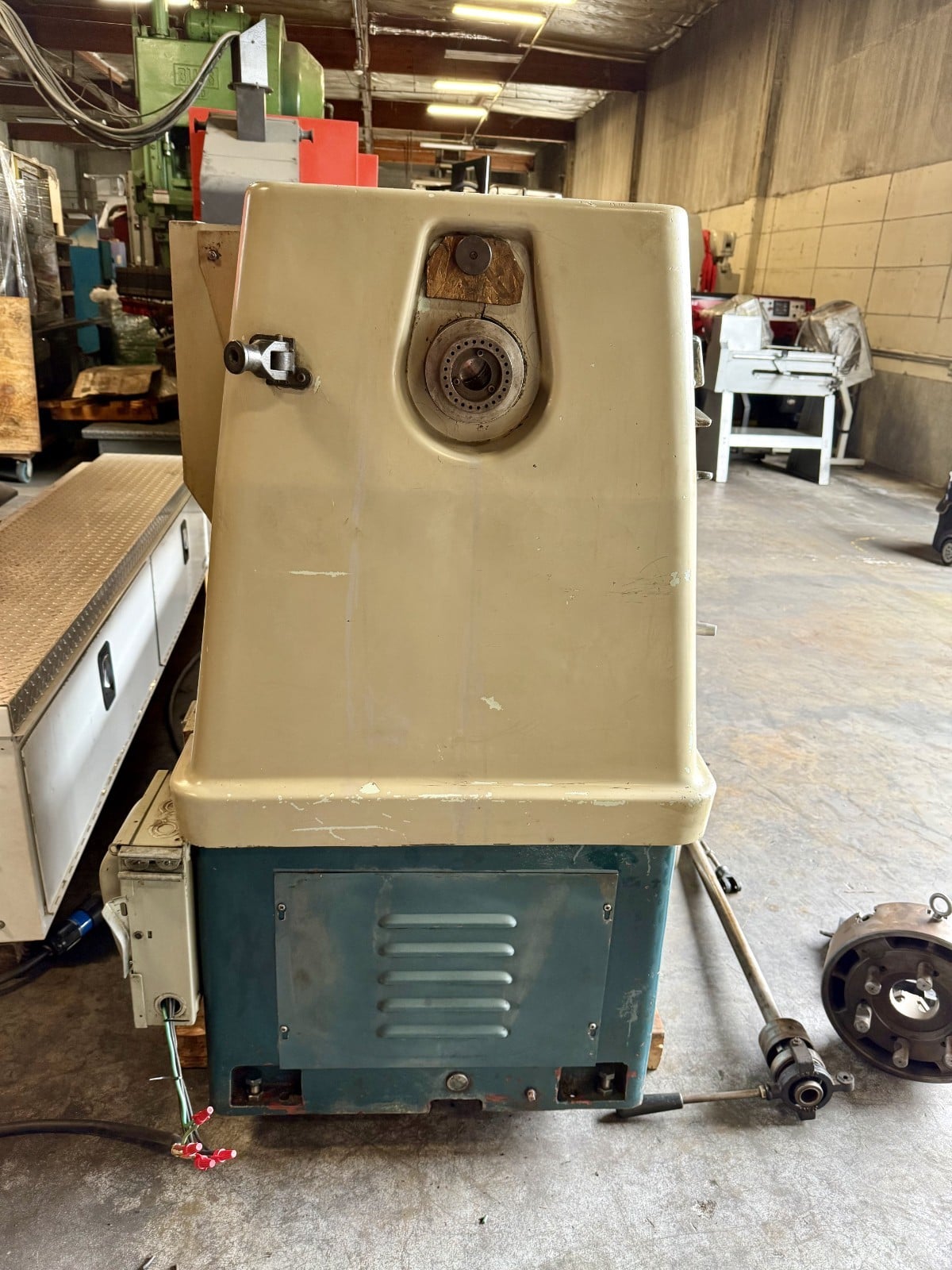

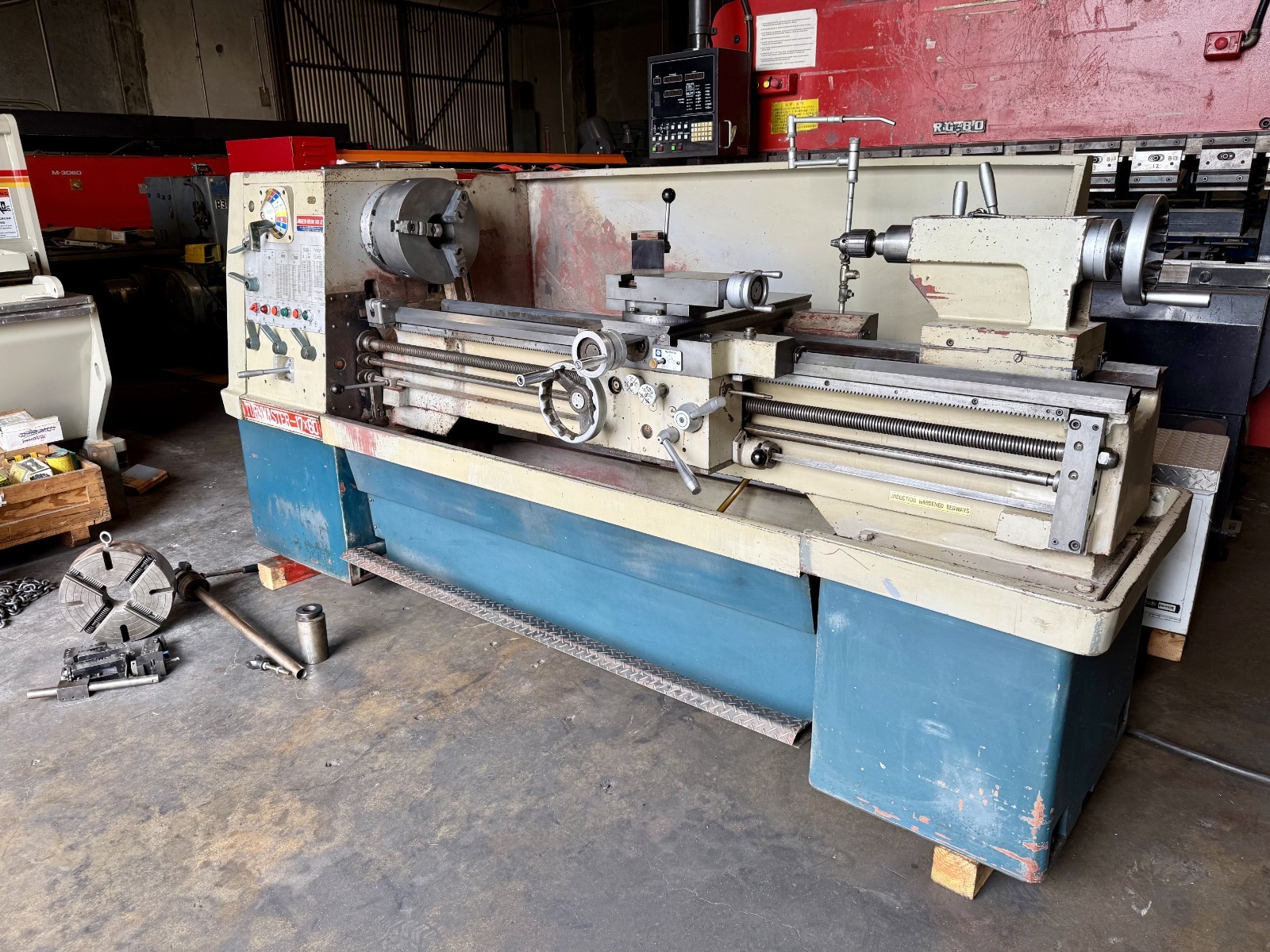

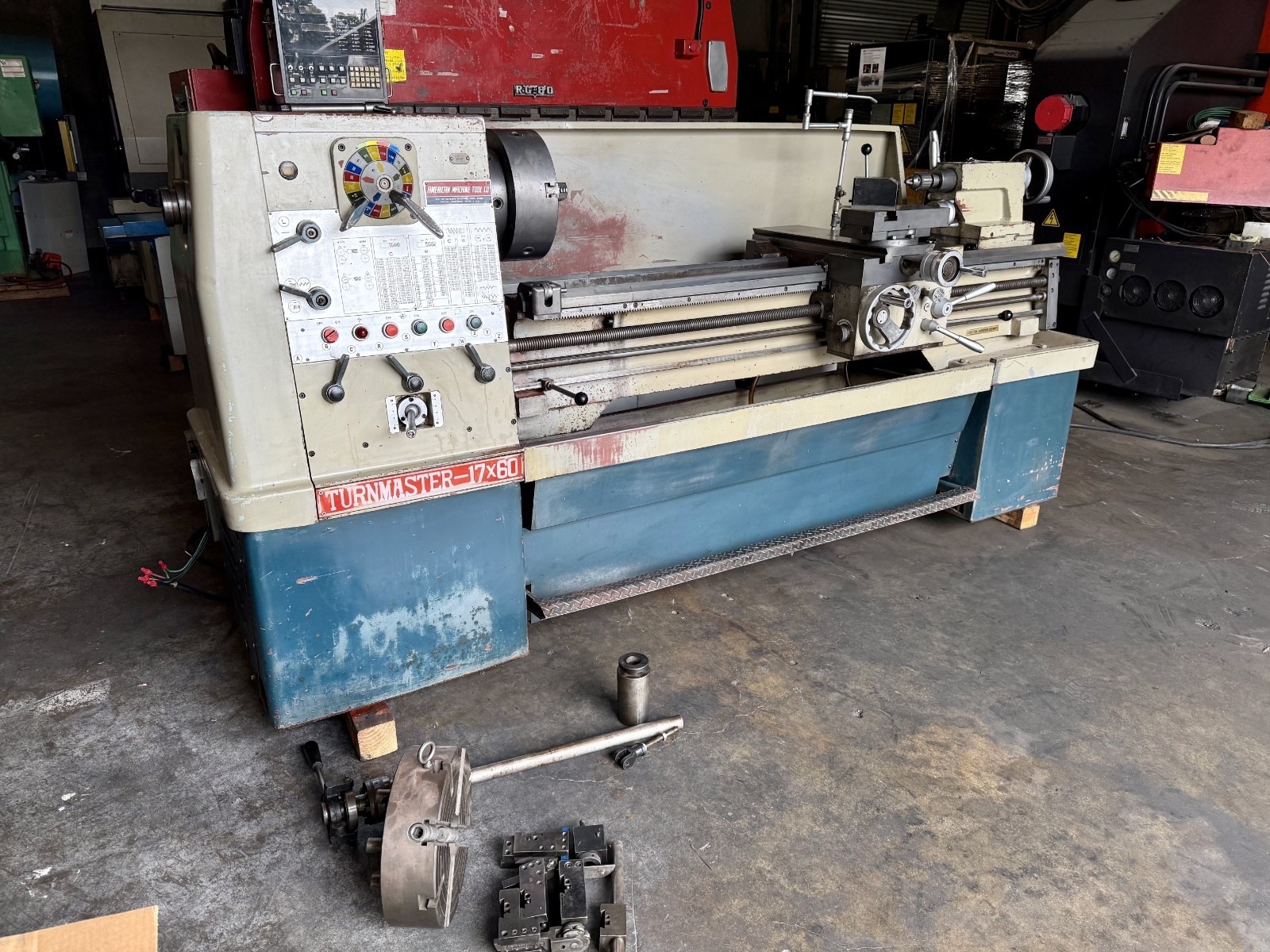

Turnmaster 17" x 60" Gap Bed Engine Lathe
SPECIFICATIONS:
Machine Type: All Geared Head Precision Lathe
Model: 17" x 60" (457mm x 1500mm)
Swing Over Bed: 18 Inches (457mm)
Swing Over Cross Slide: 10-1/2 Inches (267mm)
Swing Over Gap: 28 Inches (711mm)
Distance Between Centers: 60 Inches (1500mm)
Spindle Hole: 3-1/16 Inches
Spindle Nose Camlock: 8" D-1
Spindle Speeds: 16 speeds ranging from 20 to 1600 RPM
Spindle Inner Taper: No. 5 M.T.
Tailstock Quill Diameter: 2-15/16 Inches
Tailstock Quill Taper: No. 5 M.T.
Tailstock Quill Travel: 7 Inches
Main Motor: 10 HP
INCLUDED WORKHOLDING CHUCKS:

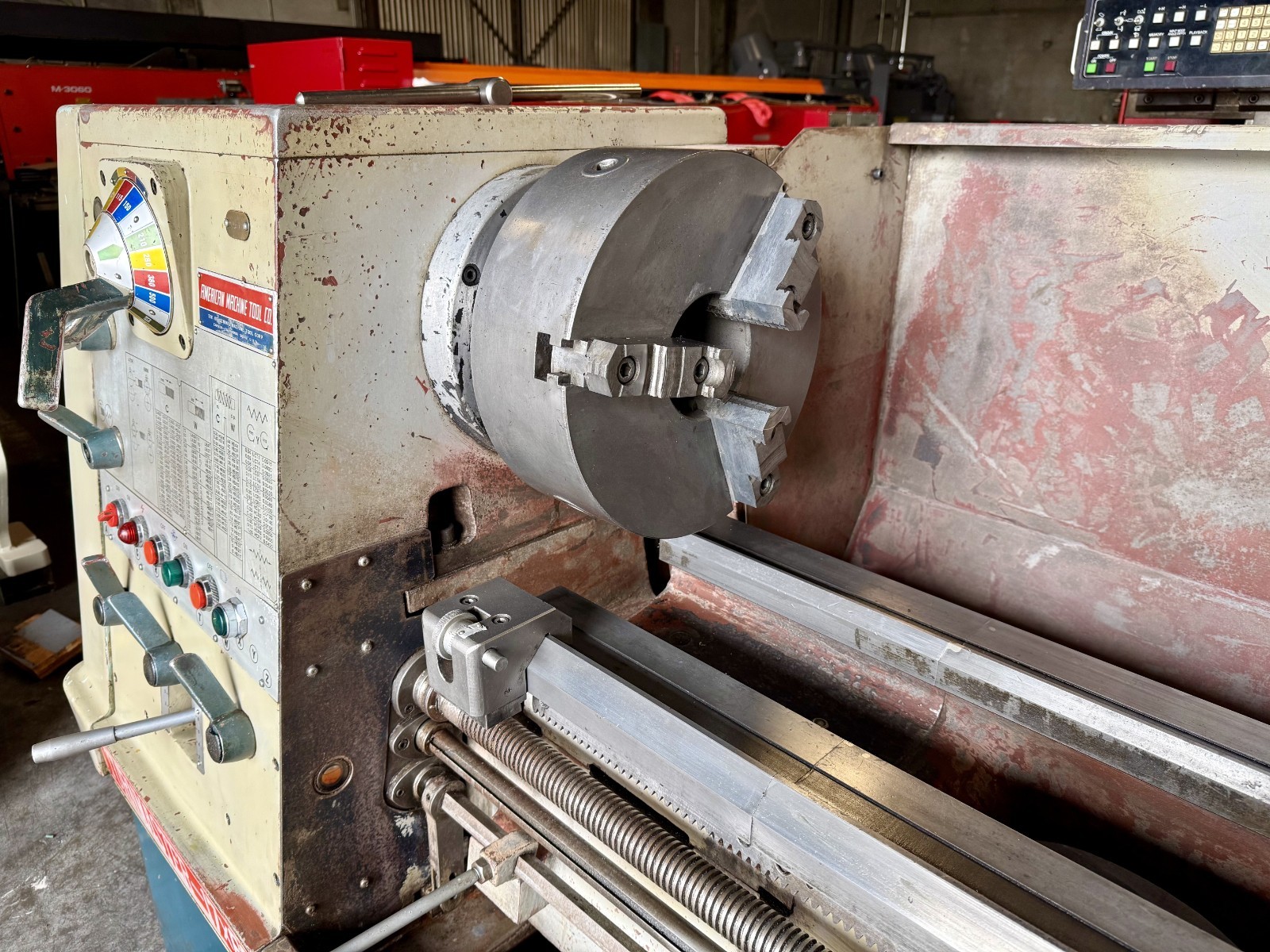

3-Jaw Chuck Currently installed on the lathe spindle
4-Jaw Chuck Included with purchase (not currently installed)
INCLUDED TOOL POST & HOLDERS:
KDK Quick Change Tool Post (No. 207351)
6 tool holders
INCLUDED COLLET CLOSER SYSTEM:
5-C Collet Closer Assembly Included with purchase (not currently installed)
Condition Note
This Turnmaster 17" x 60" all geared head precision lathe is a complete tooling package. It features an installed 3-jaw chuck, an uninstalled 4-jaw chuck, a KDK quick change tool post with 6 holders, and a 5-C collet closer unit. Please refer to the photos to evaluate the exact cosmetic and physical condition of the machine and accessories.
Turnmaster 17" x 60" Gap Bed Engine Lathe
SPECIFICATIONS:
Machine Type: All Geared Head Precision Lathe
Model: 17" x 60" (457mm x 1500mm)
Swing Over Bed: 18 Inches (457mm)
Swing Over Cross Slide: 10-1/2 Inches (267mm)
Swing Over Gap: 28 Inches (711mm)
Distance Between Centers: 60 Inches (1500mm)
Spindle Hole: 3-1/16 Inches
Spindle Nose Camlock: 8" D-1
Spindle Speeds: 16 speeds ranging from 20 to 1600 RPM
Spindle Inner Taper: No. 5 M.T.
Tailstock Quill Diameter: 2-15/16 Inches
Tailstock Quill Taper: No. 5 M.T.
Tailstock Quill Travel: 7 Inches
Main Motor: 10 HP
INCLUDED WORKHOLDING CHUCKS:
3-Jaw Chuck Currently installed on the lathe spindle
4-Jaw Chuck Included with purchase (not currently installed)
INCLUDED TOOL POST & HOLDERS:
KDK Quick Change Tool Post (No. 207351)
6 tool holders
INCLUDED COLLET CLOSER SYSTEM:
5-C Collet Closer Assembly Included with purchase (not currently installed)
Condition Note
This Turnmaster 17" x 60" all geared head precision lathe is a complete tooling package. It features an installed 3-jaw chuck, an uninstalled 4-jaw chuck, a KDK quick change tool post with 6 holders, and a 5-C collet closer unit. Please refer to the photos to evaluate the exact cosmetic and physical condition of the machine and accessories.
Inquire Further with GTH Used Machinery Intl!
Buyers Who Viewed This Listing Also Viewed:
18"/28 x 60" Harrison #M460, gap bed,,8-1/2" gap, length, 9" center height, 3" spindle bore, 5MT, 1-1/2 dia. leadscrew, 20-2000 RPM
Category: Sliding & Gap Bed Lathes
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: Harrison
Model: M460
\nHarrison 18" x 60" Gap Bed Lathe, Model M460, \n\n\n\nSerial # 4M0159/158, Asset # 13970, \n\n\n\n:, Swing over Bed 18", Swing over Cross Slide 10 5/8", Swing in Gap 28 3/4", Length of Gap 8 1/2", Center Height 9", Distance between Centers 60", Spindle Bore 3", Spindle ...more
JUST ADDED!
17" x 60" Acer #E-Lathe-1760, gap bed engine lathe, 26" swing in gap, 8-3/4" swing over cross slide, 2-1/4" bore, 10" 6-jaw chuck, digital read out, 7.5 HP, 2009
Category: Sliding & Gap Bed Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Acer
Model: E-LATHE 1760
Year: 2009
SERIAL. N9110110MODEL. E-LATHE 1760YEAR NEW. 2009SWING OVER WAYS. 17"SWING IN GAP. 26"SWING OVER CROSS SLIDE. 8-3/4"DISTANCE BETWEEN CENTER. 60"SPINDLE SPEEDS. 42 TO 2000 RPMTHREADS (ENGLISH). 4 TO 56 TPITHREADS (METRIC). 0.5 TO 7 MMPIFEEDS (ENGLISH).002 TO 0.028 IPRFEEDS (METRIC). 0.001 TO 0.05 MMPRDIAMETER OF ...more
JUST ADDED!

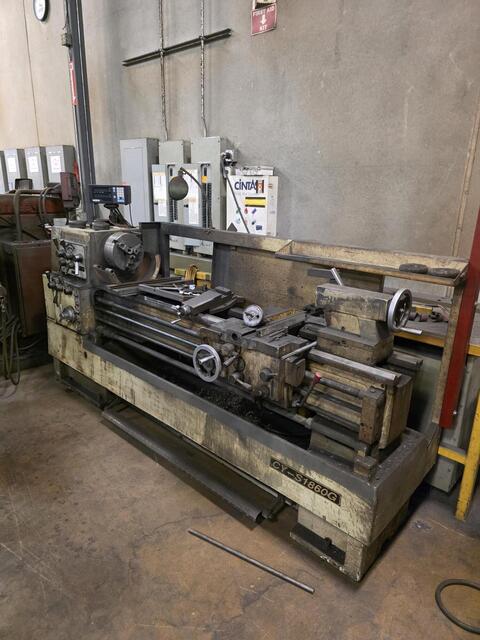

18"/27" x 59" Yunnan #CY-S1860G, High Speed Gap-Bed Lathe, 2.2" bore, 1350 RPM, Fagor digital read out, 3-Jaw Chuck, Tailstock
