For Sale by Aleco Machinery Sales
Description

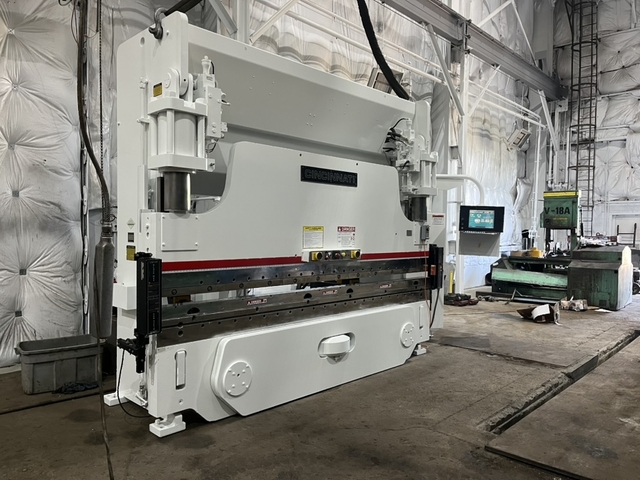

GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 12’
Distance Between Housings 10’ 6 1/2”
Stroke 10”
Open Height 17”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 230 Inch/Minute
Form 1 to 45 Inch/Minute
Return 1 to 250 Inch/Minute
Width At Top Of Bed 5 1/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH
Cincinnati Autoform PC HMI Control
Industrial PC Based Control
15.1” TFT Touchscreen Display
Tool Library
CAD Design Software
Dynamic Thickness Compensation
Adaptive Control Mode
24” Back Gauge ( X1, X2)
Link Black Max Light Curtains
AutoCrown Deflection Compensation
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Presence Sensing Interface
Control Mounted Palm Button Station
Manuals
Interlocked Construction
Approximate Overall Weight 32510 Lbs
Approximate Overall Dimensions 177” L X 72” W X ’123” H
Get Your Price from Aleco Machinery Sales!
Buyers Who Viewed This Listing Also Viewed …
175 Ton, Cincinnati #175AF10, CNC hydraulic press brake, 12' overall, 126.5" between housing, 10" stroke, 12" throat, 17" open, Autoform Control
176 Ton, Ermaksan #CNC-SAP-12X176, cnc press brake, 12' overall, 7" stroke, 128" between housing, 20 HP, 4 axis, Delem DA66W cnc, crowning, 2008
175 Ton, Cincinnati #175PF10-Proform, CNC Press Brake, 12' overall, 126" between housing, 8" throat, 16" stroke, 23" open, 7" Shut Height, 230 V., 2006

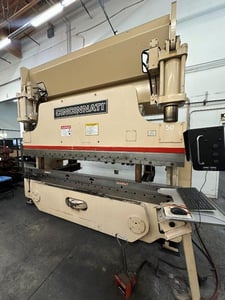

175 Ton Cincinnati #175PF-Proform, CNC press brake, 12' overall, 126" between housing, 16" stroke, 8" throat, 23" open, foot pdeal, 2006
