Ton: 170.0
Stroke: 12.0
Daylight: 16.0
Stock # 1270
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

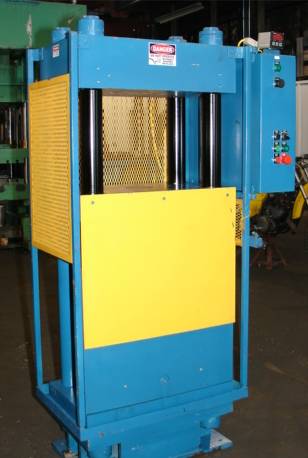

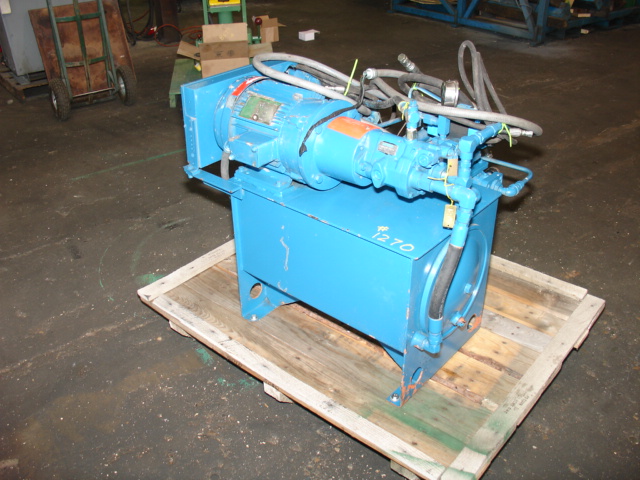

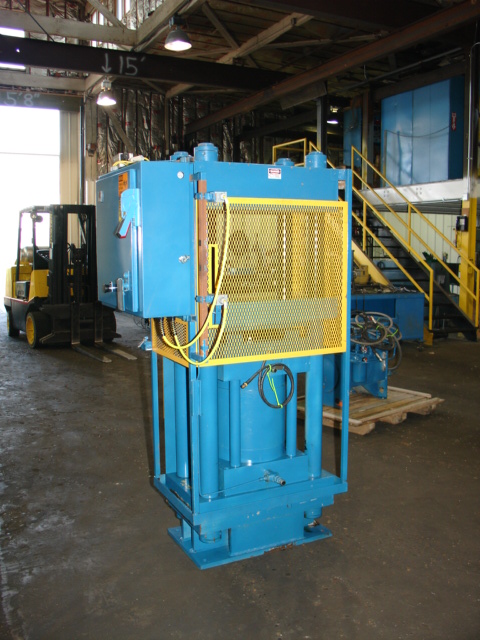

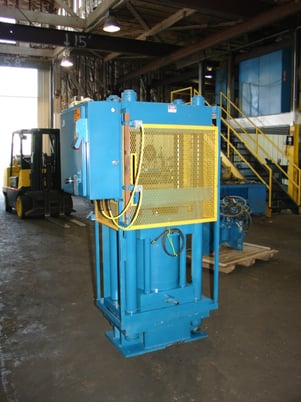

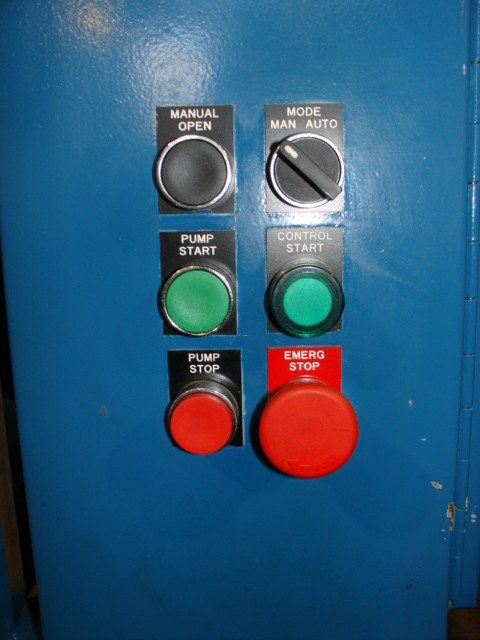

NEW ELECTRICAL CONTROLS AND REFURBISHED HYDRAULIC SYSTEM IN 2002. OVERALL BED SIZE: 29" L TO R X 17" F TO B. DISTANCE BETWEEN POSTS: 19" L TO R X 8" F TO B. NOMINAL BED: 19" X 17". APPROX 16" DAYLIGHT. DOUBLE ACTING RAM WITH APPROX 12" STROKE: 12" BORE; 11" ROD; TWO .75" NPT PORTS; ONE FOUR-BOLT 2" PRE-FILL PORT. FULLY GUIDED WITH 4" BUSHINGS ON 3.5" DIAMETER POSTS. 49" OPERATOR HEIGHT. SIDES AND REAR GUARDED WITH EXPANDED METAL (AND PANEL) FRONT IS SKIRTED. CONTROL PANEL INCLUDING: A.B. MICROLOGIX 1000 PLC; KOYO DIGITAL TIMER; "PALM" BUTTONS; "O.K. TO RELEASE" LIGHT; MANUAL/AUTO SWITCH; ETC… HYDRAULIC SYSTEM: 5 HP; 230/460 VOLTS; 13 GALLON TANK; VICKERS 5 GPM PRESSURE COMPENSATED PISTON PUMP RATED TO 3000 PSI; COOLER ON MOTOR; REMOTE PRESSURE CONTROL AT OPERATOR STATION; HYCON DIGITAL TONNAGE GUAGE. APPROX SPEEDS: 10 IPM CLOSING/PRESSING; 30 IPM OPENING. HYDRAULIC UNIT DIMENSIONS: 32" X 34" X 30" TALL. PRESS DIMENSIONS: 44" X 36" X 77" TALL. APPROX WEIGHT: 7,000 LBS. HYDRAULIC AND ELECTRICAL DRAWINGS. (ITEM #1270)
Get Your Price from Icon Industries, Inc!
