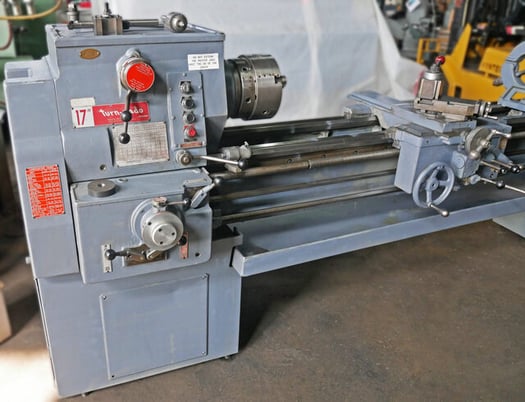

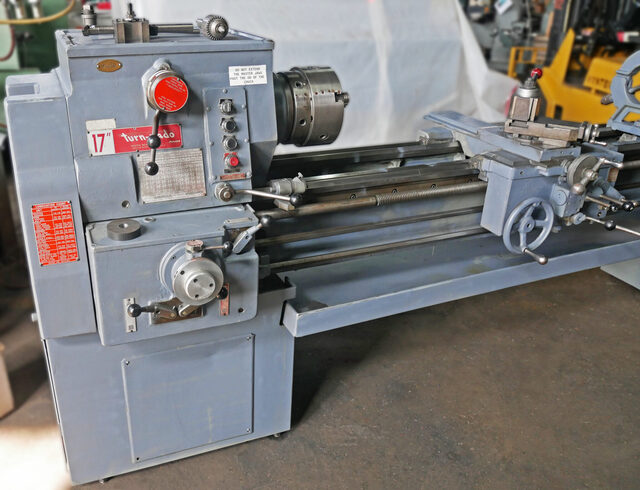

17" x 80" South Bend #Turn-Nado-17", Engine Lathe, 10.5" Cross Slide, D1-8 Camlock, (18) 30-1580 RPM, 7.5 HP, 230/460 V

Description

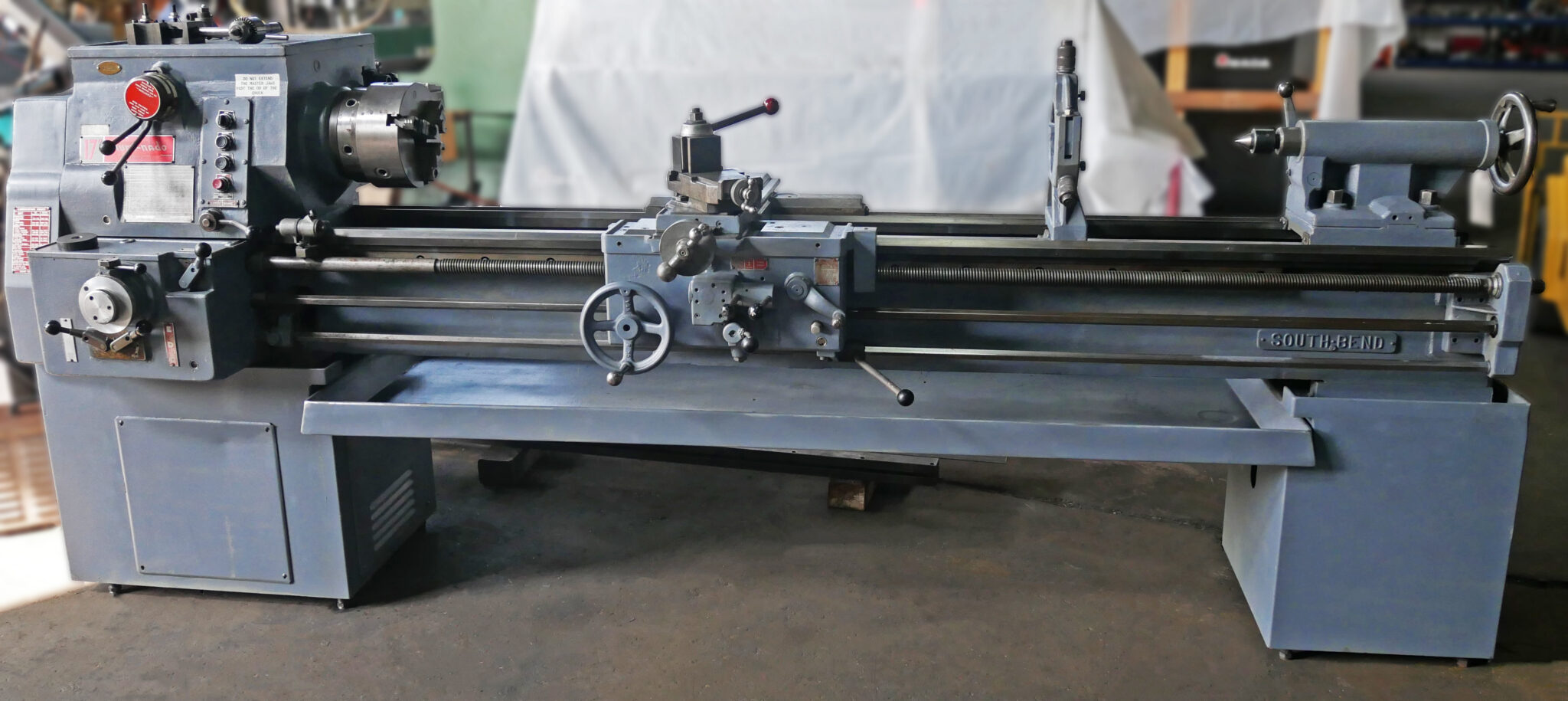

South Bend ‘Turn-Nado’ 17″ x 80″ Engine Lathe

Inventory # 9564

Model: Turn-Nado 17″

S/N: GJ-1547

Specifications:

Capacity:

Swing Over Bed: 17 1/8″

Swing Over Cross Slide: 10 1/2″

Distance Between Centers: 80″

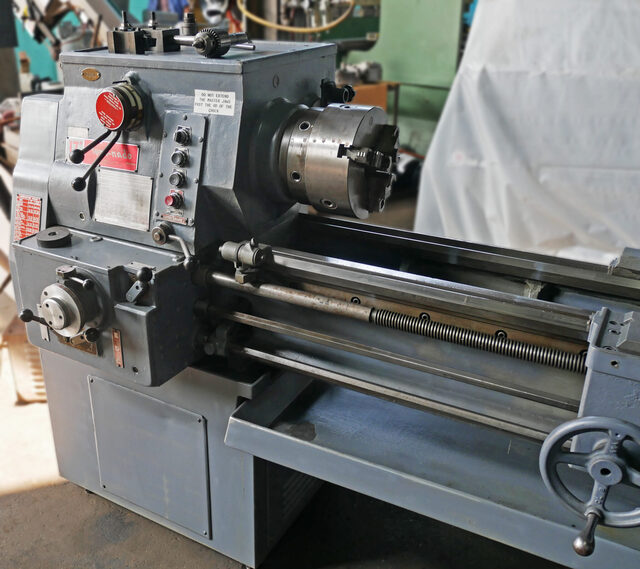

Headstock:

Spindle Nose: D1-8 Camlock

Size of Center: MT #5

Hole Thru Spindle: 2 1/2″

Spindle Speeds: (18) 30 – 1,580 RPM

Threading Capacity:

with 20 Tooth Gear: (60) 2 3/4 – 160 TPI

with 40 Tooth Gear: (10 Extra Threads) 1 3/8 – 2 1/2 TPI

Longitudinal Feeds: (60) 0.0021 – .1242 IPR

Power Cross Feeds: (60) 0.0011 – 0.0678 IPR

Tailstock Spindle: MT #4

Motor: 7.5 HP / 440v / 3ph

Equipment Included:

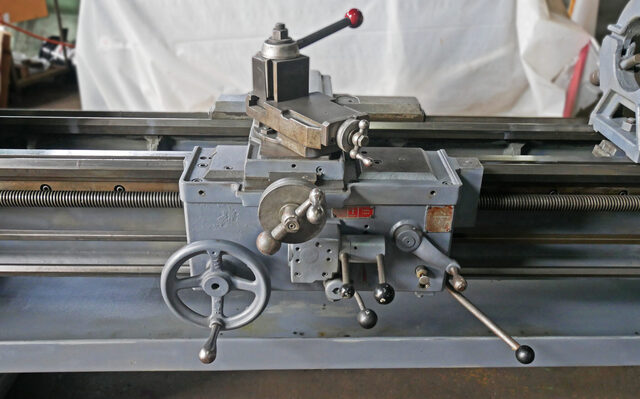

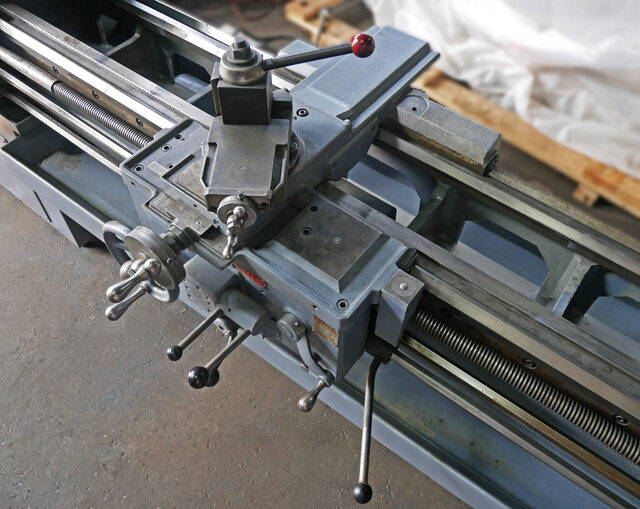

Phase II Quick Change Toolpost with Turning Tool Holder and Boring Bar Holder

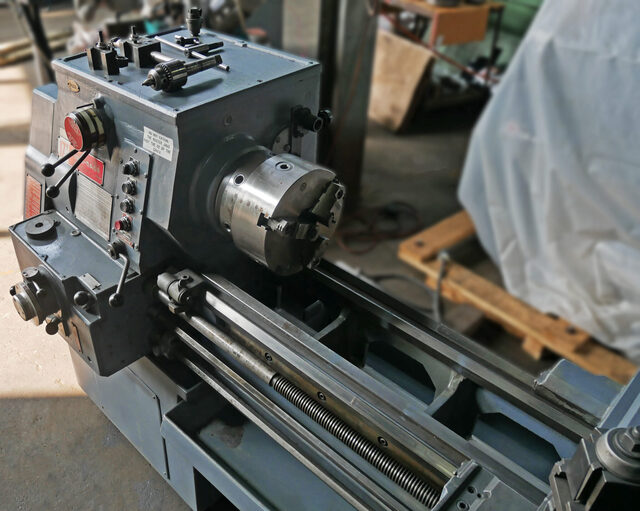

Bison 10″ 3-Jaw Chuck

Carriage Stop

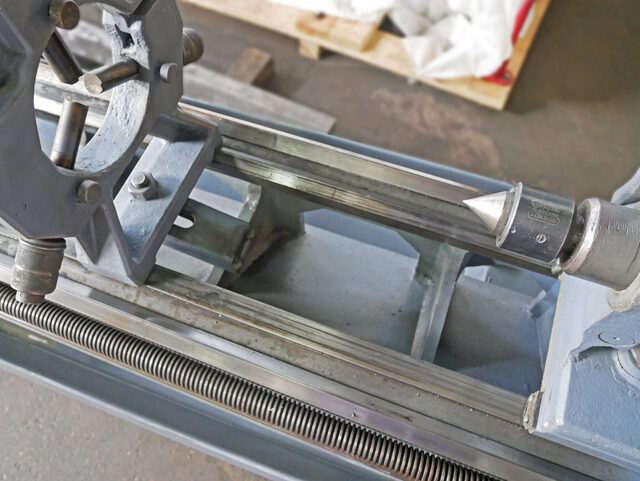

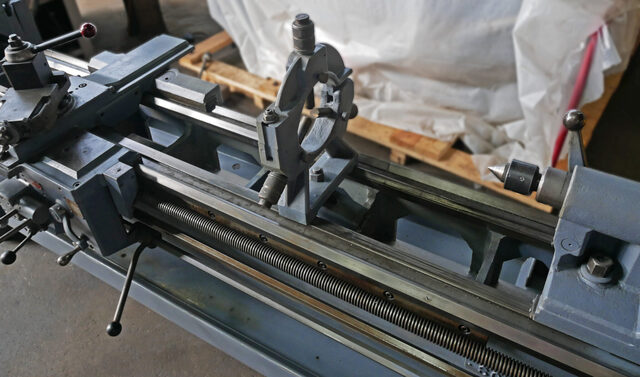

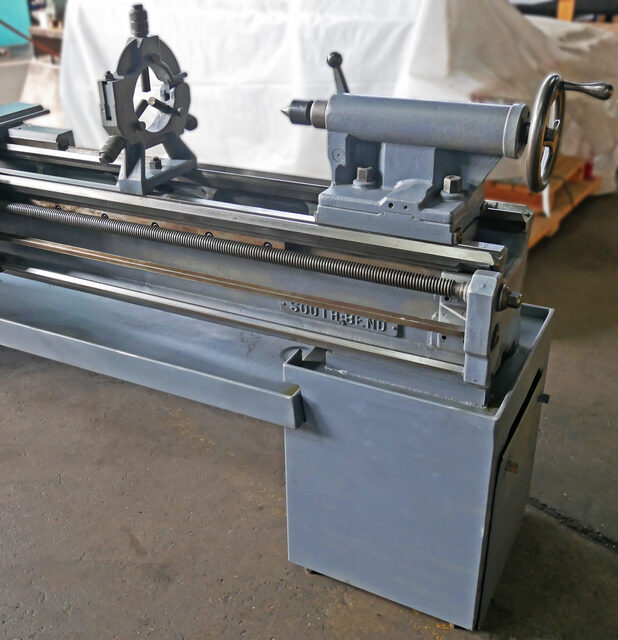

Steady Rest

Skoda Live Center

Jacobs Drill Chuck

Mechanical Specifications:

Dimensions: 135 1/2″ x 39″ x 60″ H

FOB Our Baltimore, MD Warehouse
