For Sale by Southern Fabricating Mchy Sales
Description

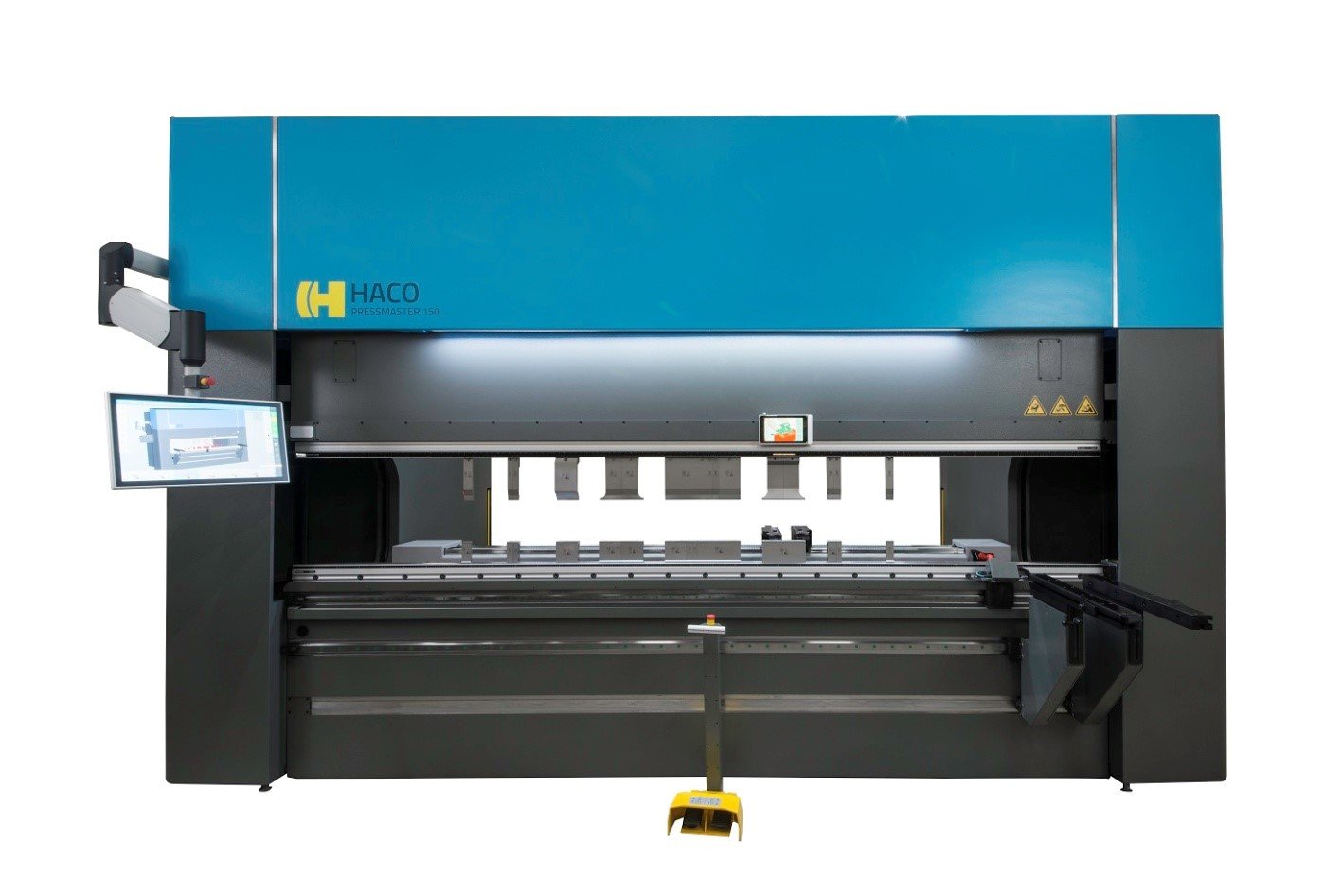

165 Ton X 10’ Hydraulic Press Brake with FastBEND Premium CNC Controller with Multi Touch Function, CNC Crowning, Quick Manual Clamping System for European and USA Tooling, 2-Moveable Front Arm Supports and Laser Light Guard
GENERAL SPECIFICATIONS
Capacity: 165 US Tons
Distance Between Side Frames: 102”
Standard Gap: 15.75”
Daylight Opening (Open Height): 20.47”
Stroke: 10.6”
Table Height: 36”
Fast Approach Speed: 472 IPM
Max. Working Speed: 23.6 IPM
Fast Return Speed: 295 IPM
Motor Power: 20 HP
Total Length: 167”
Total Width: 67”
Total Height: 115”
Approx. Weight: 21,385 LBS
INCLUDES: FastBEND Premium CNC Controller with Multi Touch Function, CNC Crowning, Quick Manual Clamping System for European and USA Tooling, 2-Moveable Front Arm Supports and Laser Light Guard
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
