Description
Inventory No.
0424-006-0005
Manufacturer
Sutherland
Model No.
FTP-160
Name

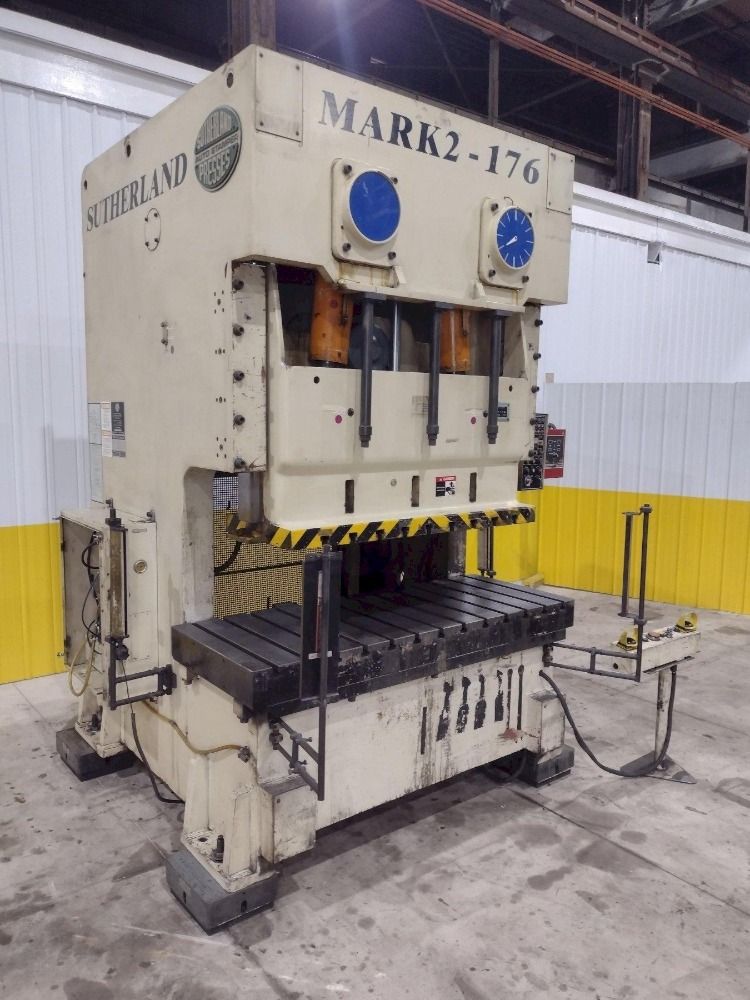

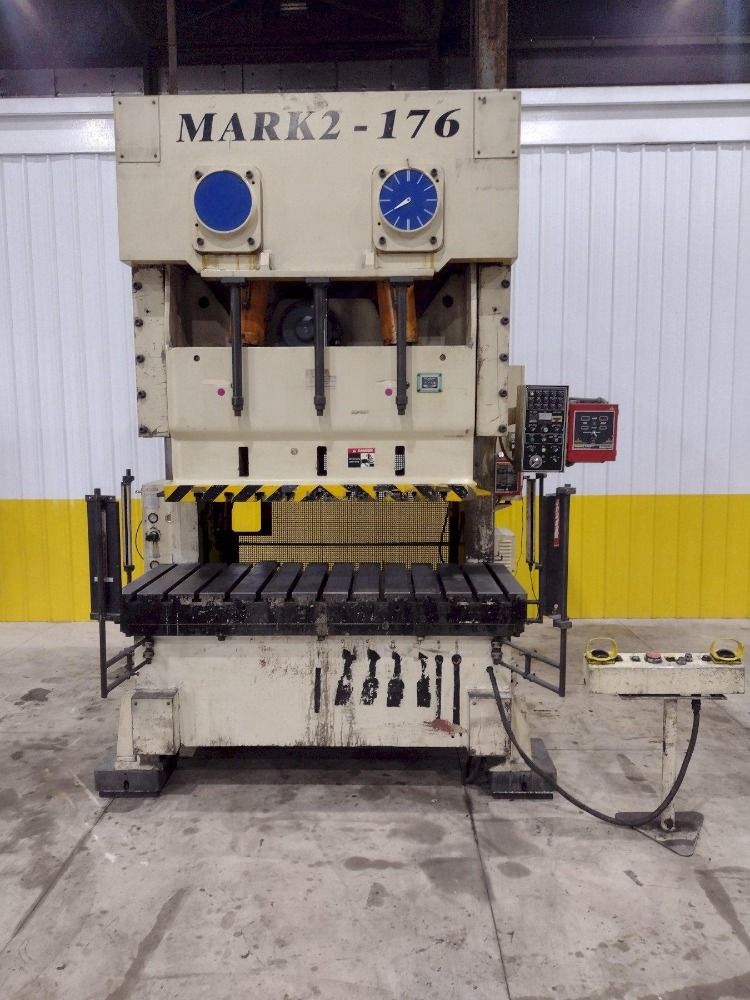

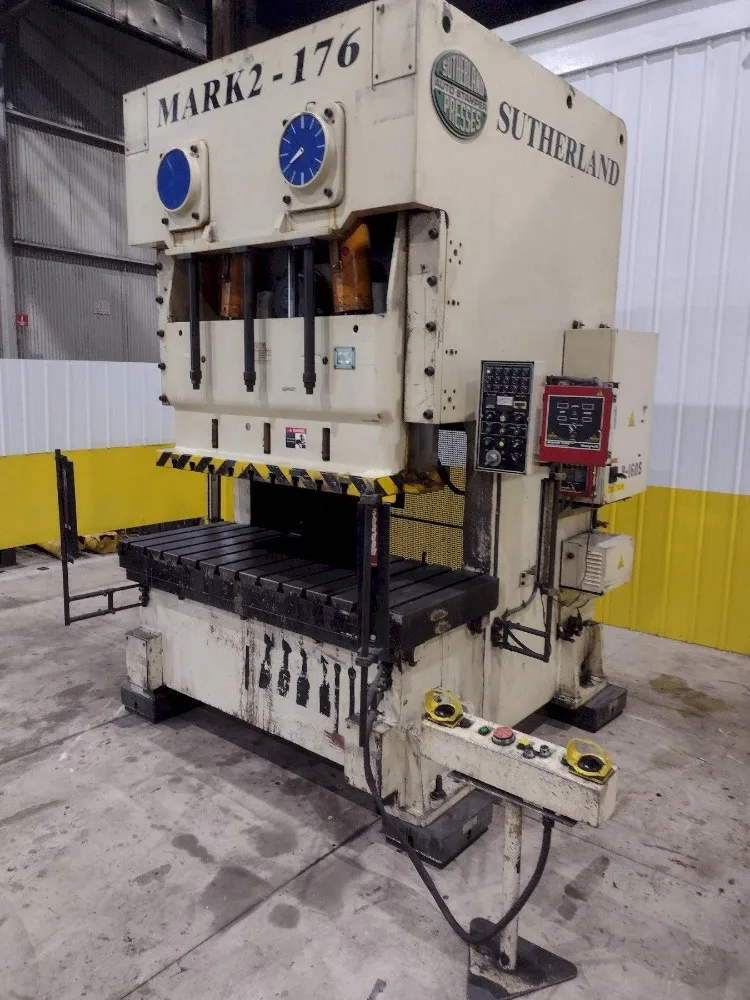

2000 Sutherland Ftp-160 Gap Press
Arrival Date
05-31-2024
Dimensions L x W x H (inches)
Unavailable
Capacity
160 TON
Weight (lb.)
1
Category
Fabrication
Condition
Used
Available Quantity
1
Serial No.
F-1602 6160075
Make Year
2000
Item Details

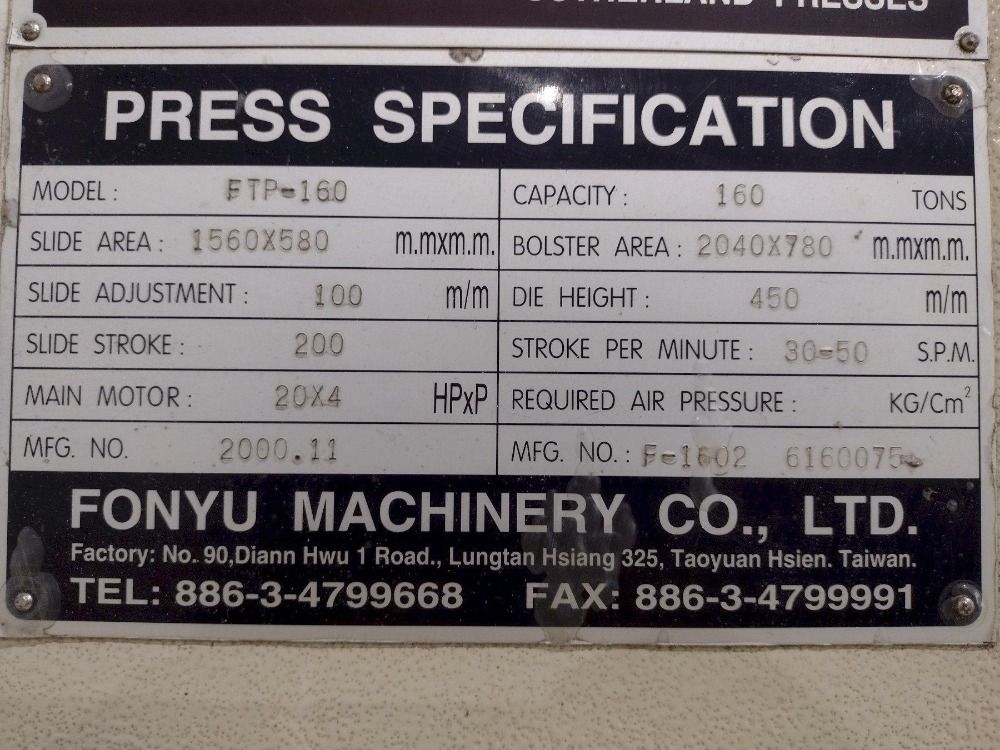

Stroke .7.87" (200 Mm) Slide Adjustment . 3.93" (100 Mm) Slide Adjusment .powered With Read Out Die Height .17.71" (450 Mm) Speed . 30 To 50 Spm Slide Area . 61.42" X 22.83" (1560 Mm X 580 Mm) Bolster Area . 80.31" X 30.7" (2040 Mm X 780 Mm) Bolster Thickness .. 6" Controls .main Motor20 Hp
AIDA 165 TON GAP FRAME PRESS, STOCK# 14486J, 7.87" STROKE, 15.7" SHUT HEIGHT OVER BOLSTER, 3.9" RAM ADJUSTMENT, 30-55 SPM, 27.5" X 22.8" RAM, 45" X 29.9" BED, AIR CLUTCH, AIR BRAKE, AIR COUNTERBALANCE, HYDRAULIC OVERLOADS, PALM BUTTONS, T SLOTS RAM AND BOLSTER, 1999, 57" X 86" X 128" T APPROX., 35,000 LBS APPROX.
Press, Model Number. TM2-160-L, Press Type. Standard, Capacity. 160 Metric Tons (176 U.S. Tons), Torque Capacity from BDC. 6 mm (0.236 in), Approximate Press Weight. 19,500 Kg (42,900 lb), Press Slide, Stroke Length. 200 mm (7.87 in), Speed Range At Full Tonnage. 30 - 55 Stroke/Min, Max No-Load Single Stroke Rate. 12 ...more
SERIAL NUMBER. 10115-0098MODEL. FP XGC-150 SUYEAR NEW. 1983CAPACITY. 150 TONSTROKE OF SLIDE. 7.8"SHUT HEIGHT, SDAU (OVER BOLSTER). 15.7"ADJUSTMENT POWER. 3.3"AREA OF BED (T-SLOTTED). 24.8" X 48.8"AREA OF RAM (T-SLOTTED). 26.3" X 19.6"STROKES PER MINUTE. 45 SPMBED BOLSTER (T-SLOTTED). 24.8" X 48.8" X 5"WIDTH OF HOLE ...more
