Description

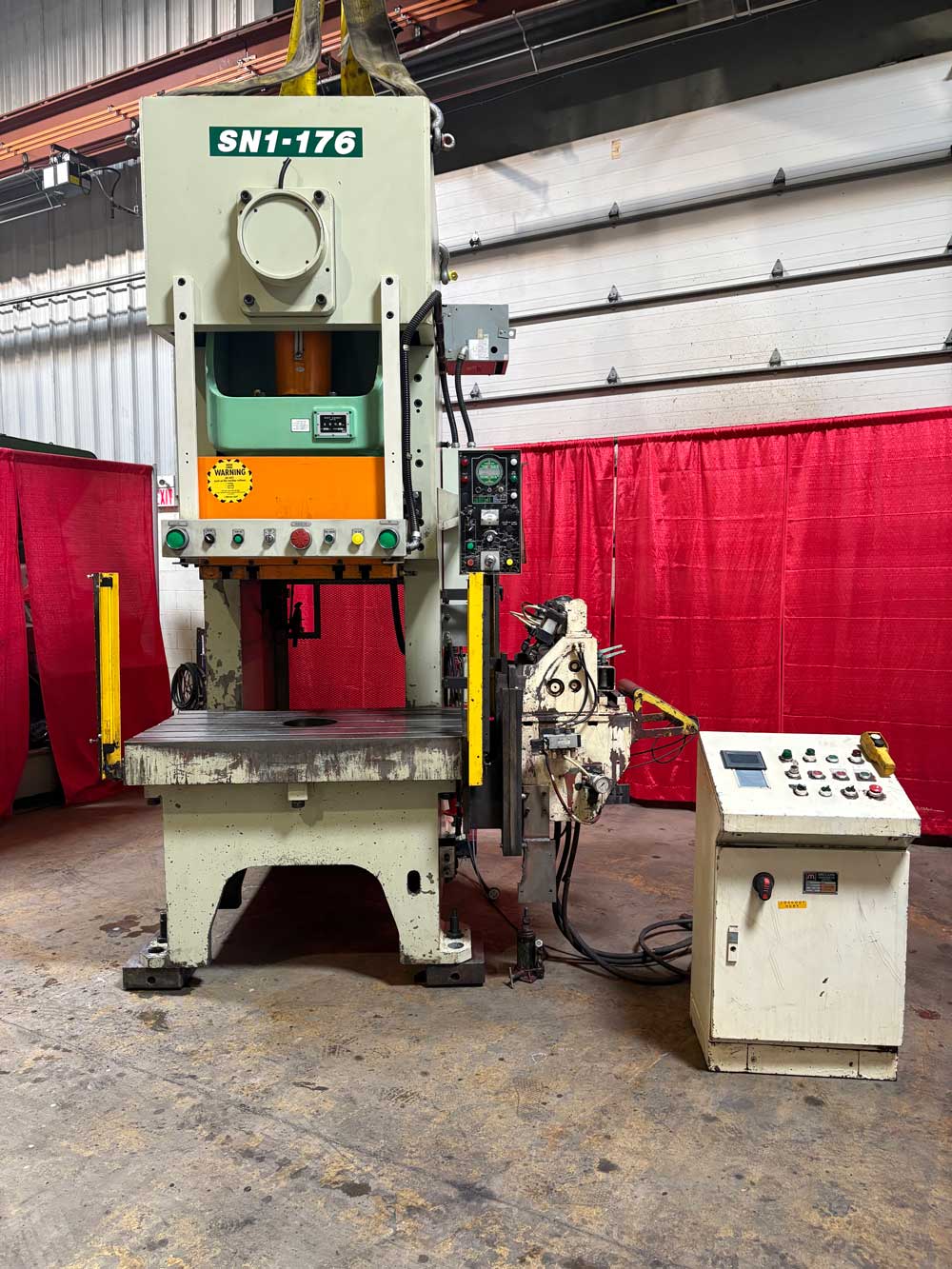

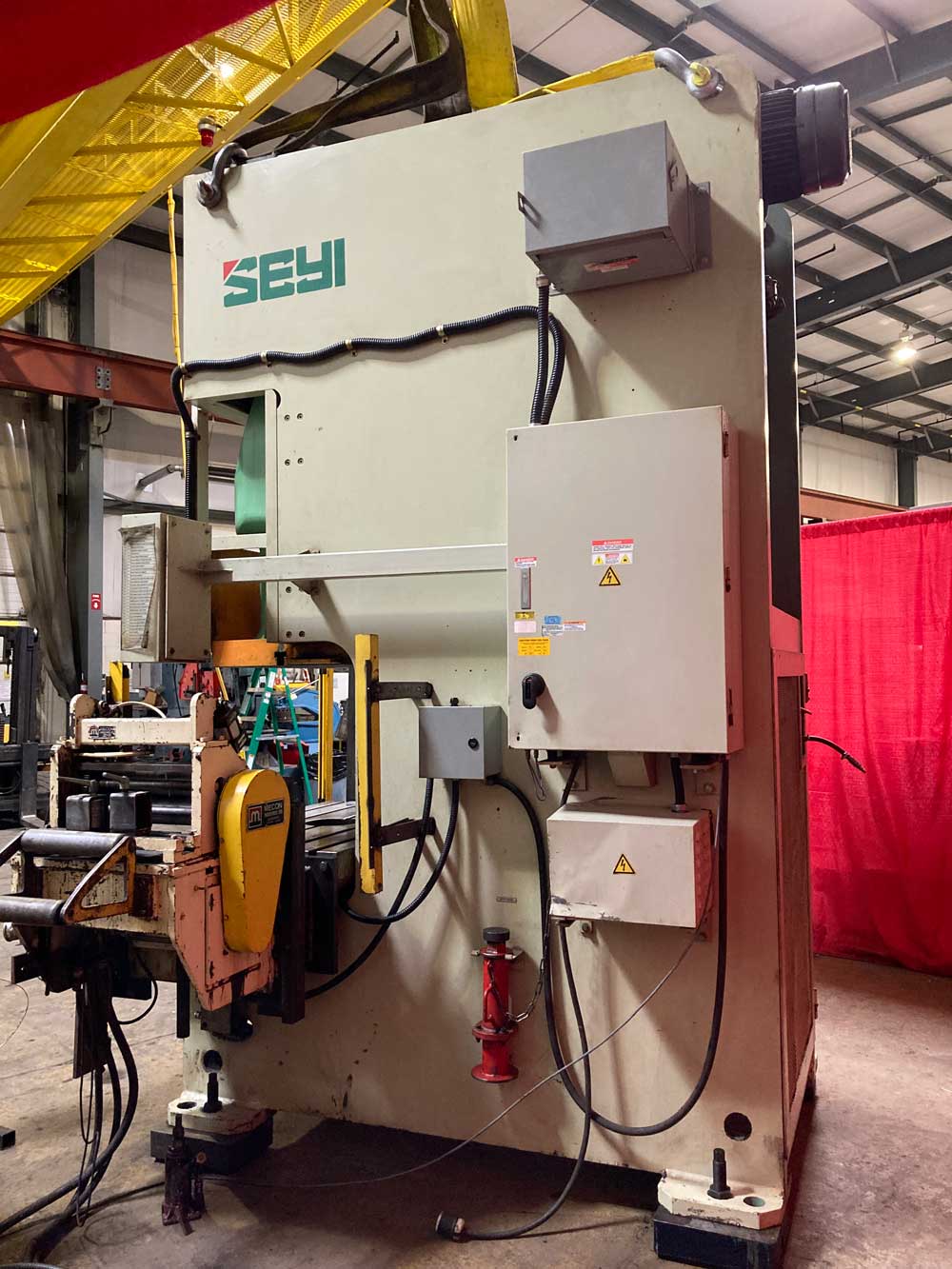

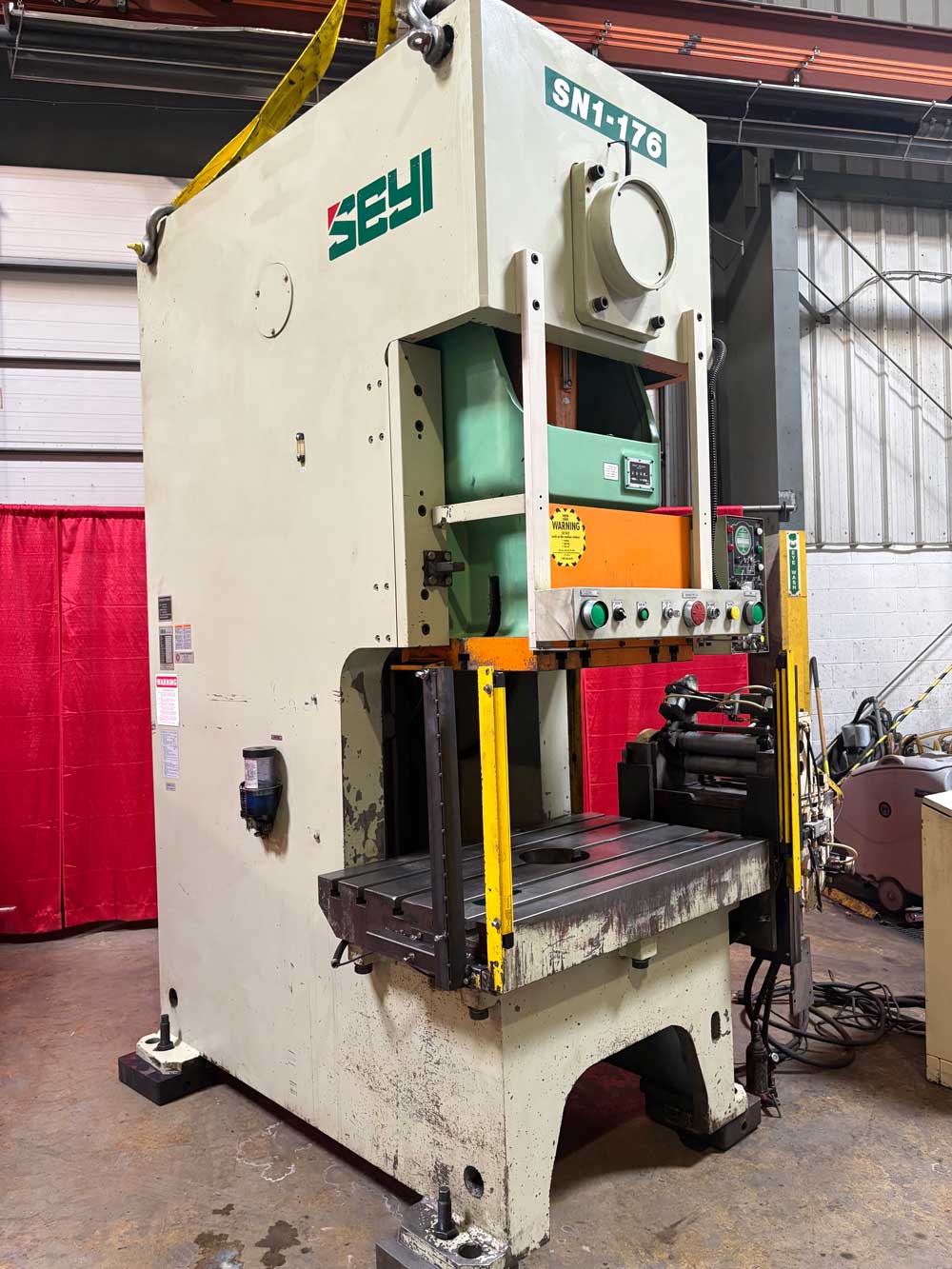

MODEL SN1-176S
FEATURES:
- Safety Interlocked Ram Block
- Seyi Patented Wet Clutch
- Isolation Mounts

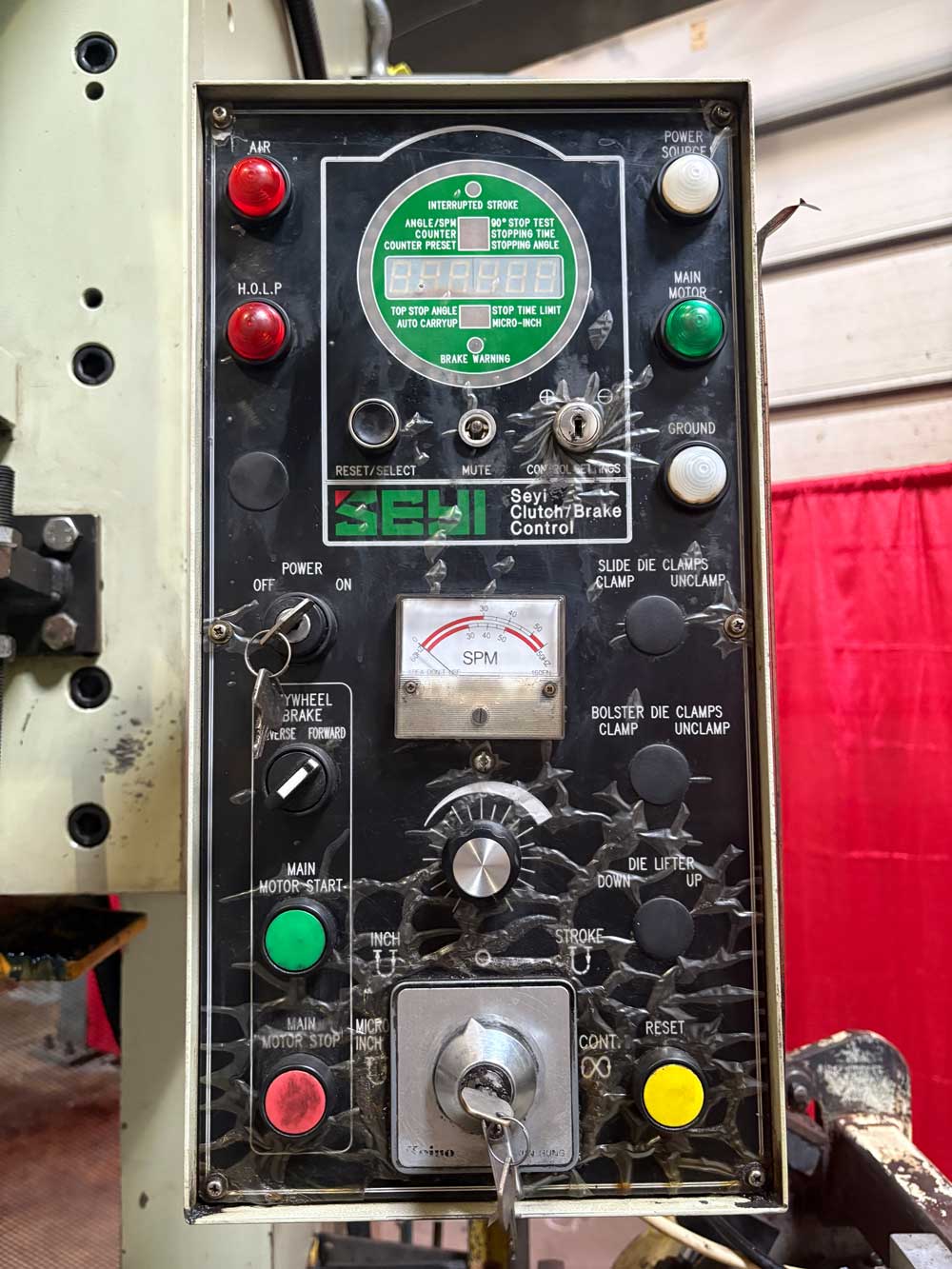

- WPC Wintriss Control
- Hydraulic Overload Protection
- Keyence 24” Safety Light Curtains
MODEL: SN1-176S
CAPACITY: 176 TON
SERIAL#: EW160-1349
STROKE LENGTH: 7.87”
VARIABLE SPEED: 30-50 SPM
TONNAGE CAPACITY RATING POINT: 0.24”
DIE HEIGHT TO TOP OF BOLSTER (SDAU): 15.7”
DIE HEIGHT ADJUSTMENT (MOTORIZED): 3.9”
SLIDE AREA (L-R, F-B): 28.3” x 22.8”
BOLSTER AREA (L-R, F-B): 49.2” x 29.9”
BOLSTER THICKNESS: 6.5”
MAIN DRIVE MOTOR: 20 HP
YEAR: NEW 2010, APPROX.
WEIGHT: 35,000 LBS
DIMENSIONS (LxWxH): 90” x 60” x 130”
FOB POINT: MISSISSAUGA, ON
CONDITION: Pre-Owned
Get Your Price from Westway Machinery Ltd!
Buyers Who Viewed This Listing Also Viewed:
176 Ton, Stock Minster MMC Titan #TM1-160, single point gap press, 7.87" stroke, 15.35"throat, 17.72"Shut Height, 3.94"adj., 20-50 SPM, 2025
Category: Gap Frame Single Crank Press Machines
Seller: Nidec Press & Automation
Location: Macomb, MI
Mfr: Titan
Model: TM1-160
Year: 2025
Tonnage 160 Metric Tons (176 U.S. Tons), S.H. on Bolster, SDAU 17.72" (550 mm), Stroke 7.87" (200 mm), Bolster Size 49.21" x 29.92" (1250 x 760 mm), Speed 20-50 S.P.M., Model Number. TM1-160-L, Press Type. Standard, Capacity. 160 Metric Tons (176 U.S. Tons), Torque Capacity from BDC. 6 mm (0.240 in), Press Slide ...more
176 Ton, Aida #C2-16(2), gap frame press, 7.87" stroke, 17.7" Shut Height, 3.93" motorized slide adjustment, air clutch
Category: Gap Frame Single Crank Press Machines
Seller: Ironside Machinery
Location: Riegelsville, PA
Mfr: Aida
Model: C2-16
JUST ADDED!

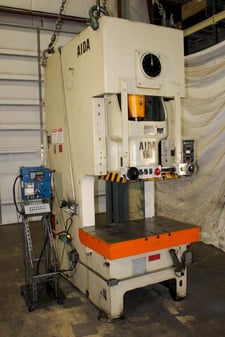

165 Ton, AIDA, Gap Frame Press, 7.87" stroke, 15.7" shut height, 3.9" ram adjustment, 45" x 30" bed, 30-55 SPM, 15 HP
