For Sale by Westway Machinery Ltd
Surplus Record Dealer Since 1978
Location: Mississauga, ON Canada
Contact Sales Dept.
Phone Number: 905...> Show Phone Number 905-803-9999
Let the seller know you found their listing on Surplus Record!

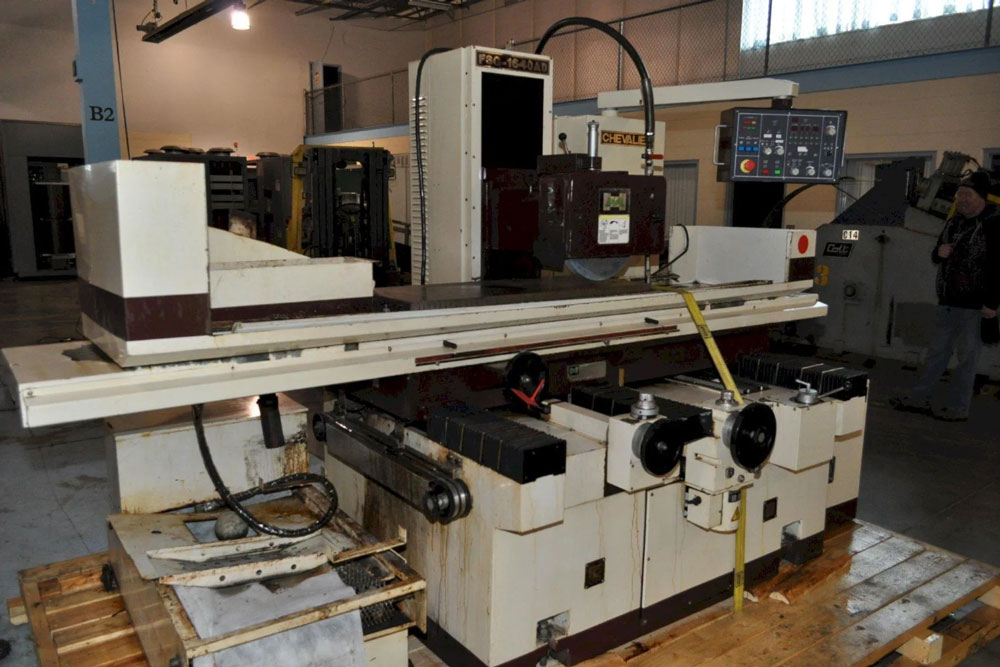

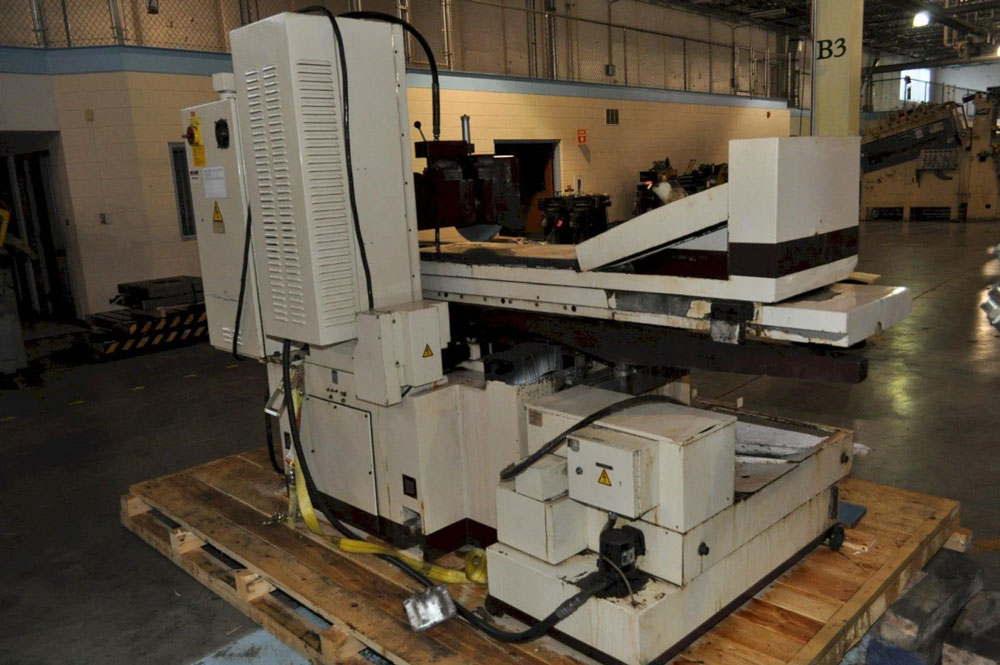

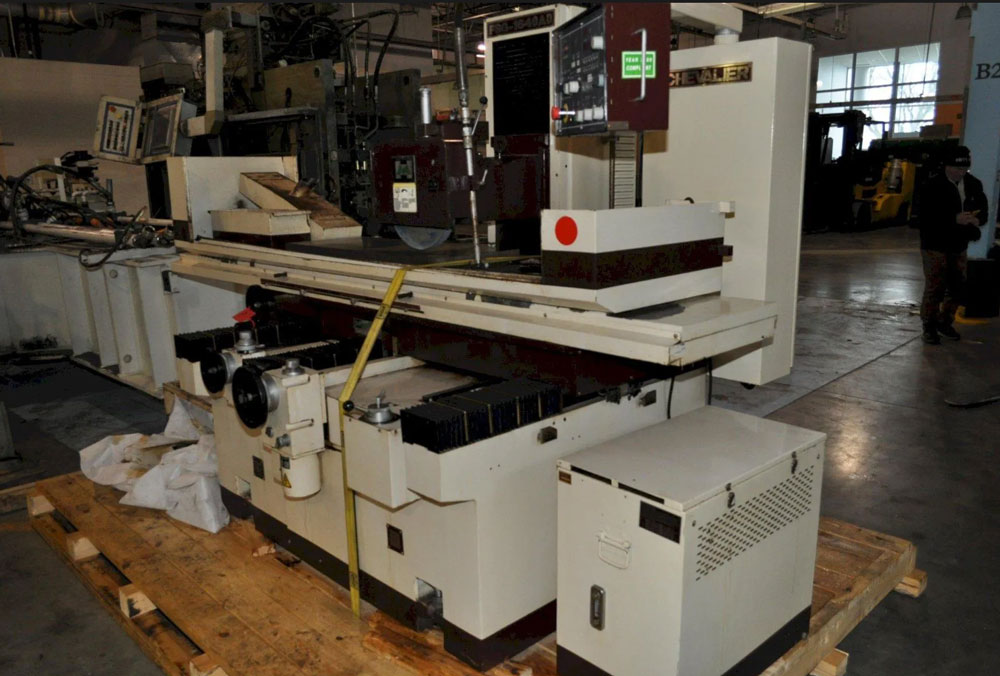

Description
EQUIPPED WITH:

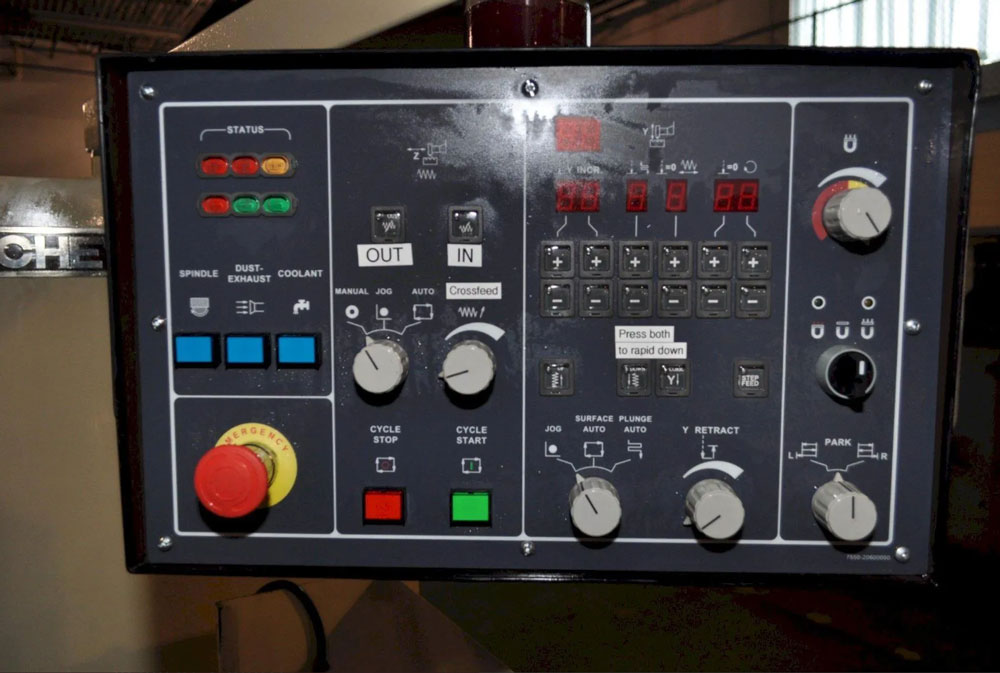

- Electro Magnetic Chuck with Controls.
- Hydraulic Table
- Incremental Downfeed
- Wheel Dresser
- Auto Lube System
- Coolant with paper filter
- Power Elevation
MODEL: FSG-1640AD
ITEM ID: 1640AD-UJ
SERIAL NUMBER: G4857002
TABLE WORKING SURFACE: 16” x 40”
MAGNETIC CHUCK: 15 3/4” x 39 3/8”
MAX. HEIGHT TABLE TO SPINDLE: 18 3/8”
LONGITUDINAL TABLE TRAVEL: 41 5/16”
CROSS TABLE TRAVEL: 16”
TABLE SPEED: 16-82 FPM (variable)
SPINDLE SPEED: 3450 RPM
GRINDING WHEEL: 14” X 2” X 5”
SPINDLE MOTOR: 5 HP
HYDRAULIC MOTOR: 3 HP
DIMENSIONS (LxWxH): 122” x 70” x 74” (including filter & hydraulic tank)
WEIGHT: 10,000 lbs approx.
F.O.B. POINT: North Adams, Michigan.
CONDITION: PRE-OWNED
Get Your Price from Westway Machinery Ltd!
