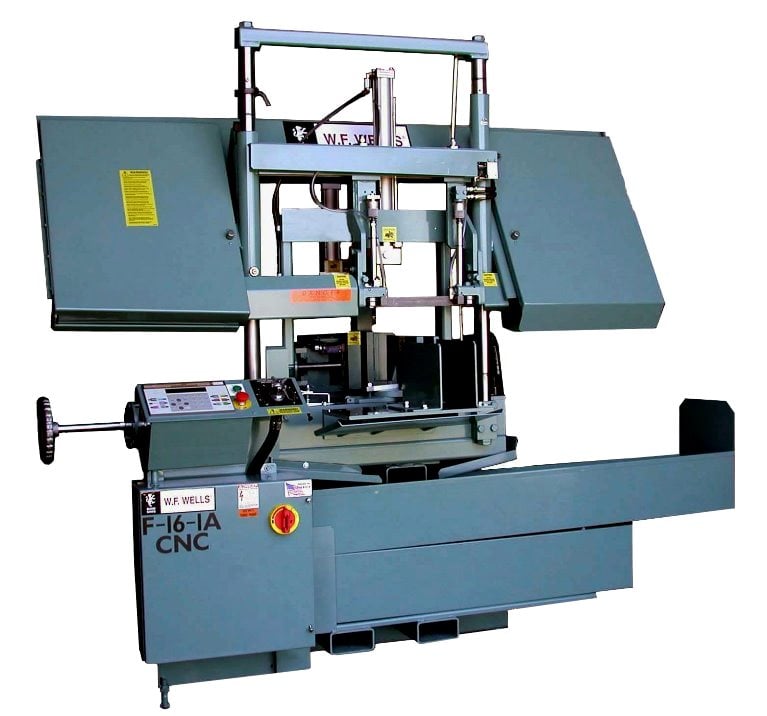

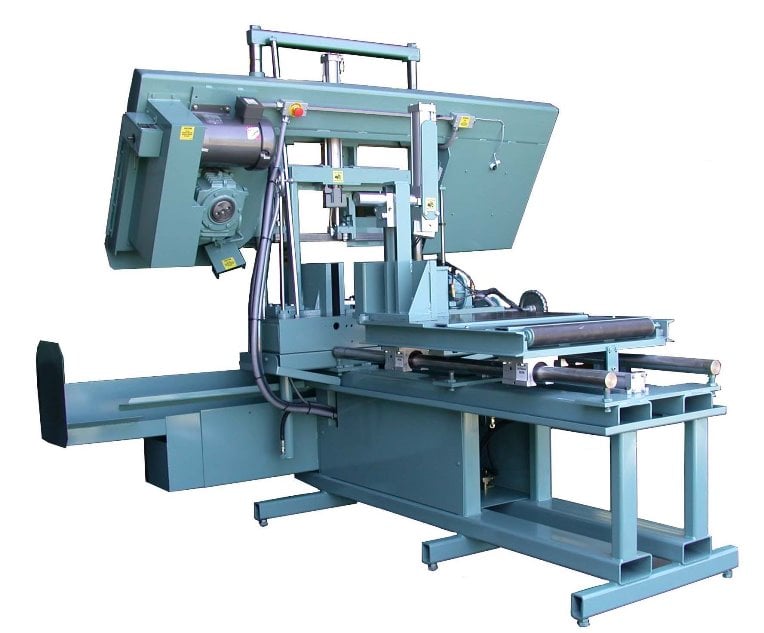

W.F. Wells 16″ x 18″ CNC Automatic “Twin-Post” Band Saw, F-16-1A CNC
Inventory # 5835
Model: F-16-1A CNC
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 16″
Rectangular:
@ 90°: 16″ x 18″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 425 FPM
Blade Size: 180″ x 1 1/4″ x .042″
Vise: Air, 8 1/2″ High
Bandwheel Size: 20″
Sawing Force: 30 – 120 lbs.
Work Height: 35″
Barfeed Projection: Hydraulic 0 – 25″ CNC Controlled
Projection Accuracy: +/- .002″
Remnant End: 12″
Tipoff Worktable: 19 1/2″ x 15 1/2″
Motor: 7.5 HP / 208v, 230v, 460v, 575v / 3ph
Standard Features:
CNC Programmable Controller with Digital Membrane Screen
Machine Diagnostics and Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Fully-Automatic Operation
1 1/4″ Bi-Metal Blade
Built-In Coolant System
Blade Break/Stall Switch
Forklift Pockets in Base
Tip-Off Work Table
All Safety Guards
Fork Lift Pockets in Base
Operator Manual and Parts List
Mechanical Specifications:
Dimensions: 93″ x 90″ x 86″ H
Shipping Weight: approx. 3,250 lbs.
FOB Factory – Contact us for Pricing and Availability
