Description

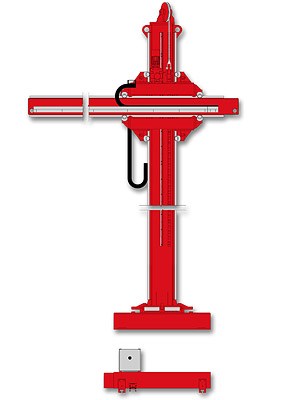

| Model: | RDA HD 16X16 NA |
| Maximum Load: | 1000 lb (454 kg) @ 18 in (457mm) C of G |
| Max. Height Under Ram: | 236.2 in (6000 mm) / 249 in (6325 mm) with travel car |
| Vertical Ram Travel: | 196.8 in (5000 mm) |
| Vertical Ram Speed: | 78.7 in/min (2000 mm/min) |
| Lift Motor: | 0.75 kW with brake |
| Max. Horizontal Extension: | 236.8 in (6014 mm) from CL of mast |
| Horizontal Ram Travel: | 196.8 in (5000 mm) |
| Horizontal Ram Speed: | 3.9 - 78.7 in/min (100 - 2000 mm/min) |
| Ram Motor: | 0.37 kW |
| Rotation: | Manual 360°, lockable |
| Control: | Push button pendant, 100 ft control cable |
| Control Functions: | Up/down/in/stop/out/speed control/emergency stop |
| Primary Input Power: | 380 to 480 V, 3 phase, 50/60 Hz (optional 600 V, 3 phase, 60 Hz) |
| Overall Height: | 295.3 in (7500 mm) / 308.1 in (7825 mm) with travel car |
| Weight: | 14,331 lb (6500 kg) / 17,306 lb (7850 kg) with travel car |
| IP65 Control Box Ingress Protection Rating | |
| UL508 Control Box Electrical Certification | |
| UL2011 Loading Capacity Certification | |
| RDA WMTCHD Travel Car: | Order separately |
| Travel Car Control: | Push button pendant, 26 ft (8 m) control cable |
| Control Functions: | Forward/stop/reverse/speed control/emergency stop |
| Travel Speed: | 3.9 - 78.7 in/min (100 - 2000 mm/min) |
| Input Power: | 110 V, 1 phase, 50/60 Hz |
| Rail Gauge: | 56 ½ in gauge for 90 lb or 85 lb A.S.C.E. and A.R.A.-A rail |
