Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

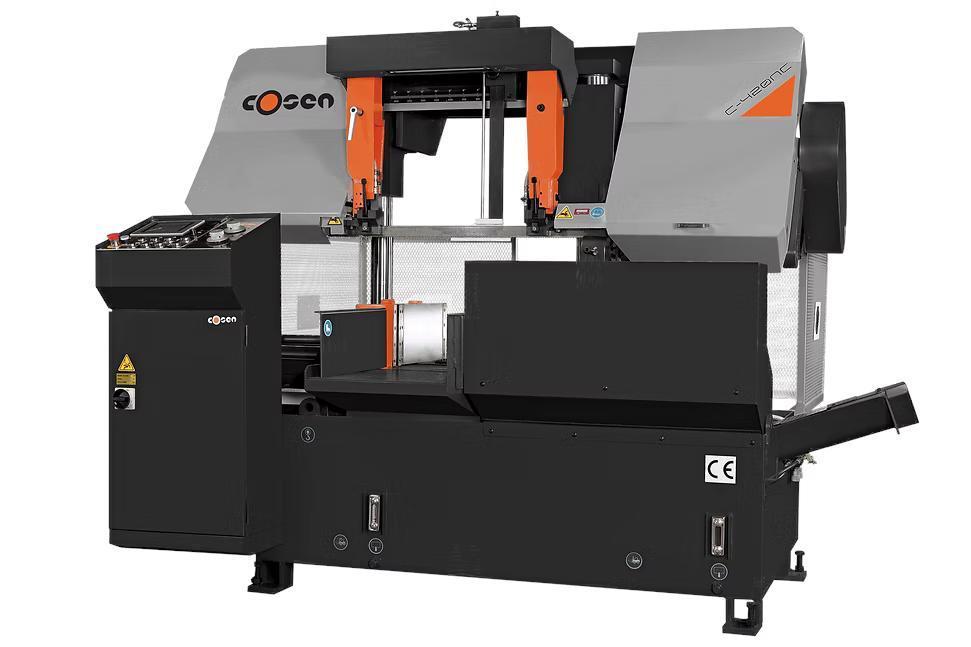

Machine Specifications:
Maximum Cutting Capacity
Round 16.5”
Round 16.5”
Square 16.5” x 16.5”
Rectangular 16.5” x 16.5”
Bundle Capacity Width: 7.4” to 14.1”
w/ Optional Top Clamp Height: 3.9” to 7”
Remnant Piece 2.4”
Blade
Blade
Variable Speed 50 – 383 fpm
Size 15' 7.8" x 1.5" x 0.05"
Motor
Saw Blade 10 HP
Saw Blade 10 HP
Hydraulic 2 HP
Coolant 1/4 HP
Auto. Material Feed System
Job Storage Up to 100 jobs
Job Storage Up to 100 jobs
Single Index Stroke 0” to 19.8”
Multiple Stroke Indexing 0” to 3897”
(Automatic kerf compensation)
Weight 5,183 lbs
Power 230V, 3 PH, 60 Hz (460, 3 PH, 60 Hz Option)
Floor Space 102" x 106" x 62"
Work Bed Height 28.9"
*Please note that machine design and specs can change without notice Max. AMP Draw - 230v: 36.03 460v: 18.02
Machine Features:
Hydraulic dual column design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7” HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999” max length
Computer controlled multiple indexing up to 999” max length
Included Accessories:
CE Certified Upgrade with enhanced safety features
Blade “clip” device eases blade changing when necessary by holding the blade on the band wheel during installation, making it very easy for one person to change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Mitsubishi Touch Screen Control w/ Cosen V_Drive
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full stroke vises
Double retracting vises
Hydraulic powered chip auger
Blade vibration dampener
Saw frame height encoder
Optional Accessories:
Variable Vise Pressure Regulator (Part# AHA-10400KIT) $ 1,395.00
Blade Deviation Detector (Reduces width capacity by 2") C420H-43000A $5,495.00
Blade Deviation Detector (Reduces width capacity by 2") C420H-43000A $5,495.00
Hydraulic Top Clamps for Machine & Index Vises (Part# AHN-2600) $ 4,295.00
Heavy-duty Roller Table 5’ long (Part# GRCW-25-5) Capacity- 4200lbs $ 3,195.00
Heavy-duty Roller Table 10’ long (Part# GRCW-25-10) Capacity- 7700lbs $ 4,895.00
Heavy-duty Roller Table 5’ long (Part# GRCW-25-5) Capacity- 4200lbs $ 3,195.00
Heavy-duty Roller Table 10’ long (Part# GRCW-25-10) Capacity- 7700lbs $ 4,895.00
Micro Droplet Applicator $ 3,895.00
Buck Boost Transformer for incoming power of 208V or below $ 4,995.00
Voltage Change to 460V 3PH $ 995.00
Voltage Change to 460V 3PH $ 995.00
QR Code Reader (Part# EP-QRCODE-1) $ 3,995.00
Cosen Cool Misting Fluid 1 gal $115.00
Cosen Cool Misting Fluid 5 gal $595.00
Cosen Cool Misting Fluid 1 gal $115.00
Cosen Cool Misting Fluid 5 gal $595.00
Get Your Price from Smith Machinery Co!
