15000 lb. Minster #MR15-26S / MSH30-26-7 / MEF5-26, feed line, 26" W x .151" stock, 60" OD, 20"-24" ID, 3-leaf mandrel, (7) 3" diameter rolls

Coil weight capacity: 15000 pounds

Stock Width Capacity 26 inches

Max Stock Thickness Capacity At Full Width .151 inches

Minimum expansion range: 20 inches

Maximum expansion range: 24 inches

Coil O.D. capacity: 60 inches

Minster Complete Coil Feed Line Specifications:
Coil weight capacity: 15,000 Lb
Coil width capacity: 26"
Stock thickness capacity: .151" x 26" Wide
Expansion range: 20" - 24"
Coil O.D. Capacity: 60
Minster Complete Coil Feed Line Equipment and Features:

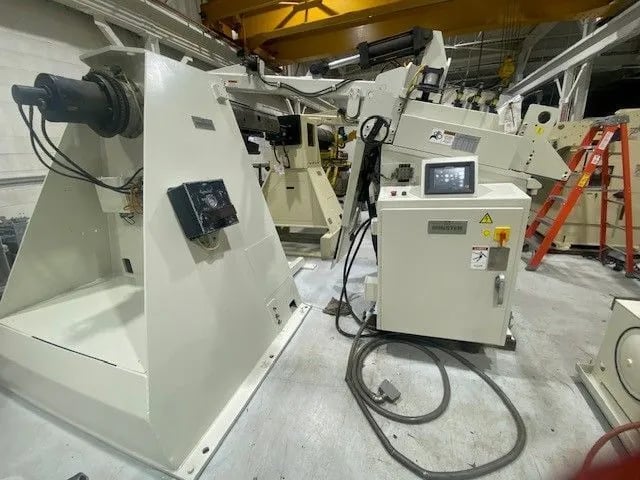

MINSTER Coil Reel Model No.: MRH15-26S, Serial No.13-70494
Three leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse

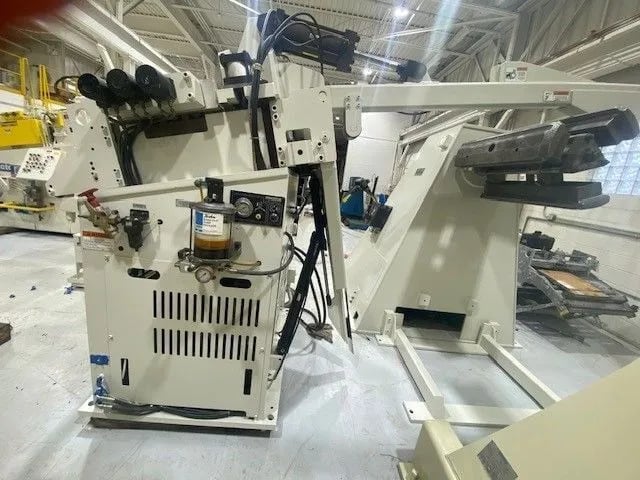

MINSTER Powered Coil Straightener Model No.: MSH-30-26-7, Serial No.: 13-50581
Entry pinch roll assembly x 5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 3" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
Variable speed drive
Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Variable speed loop control

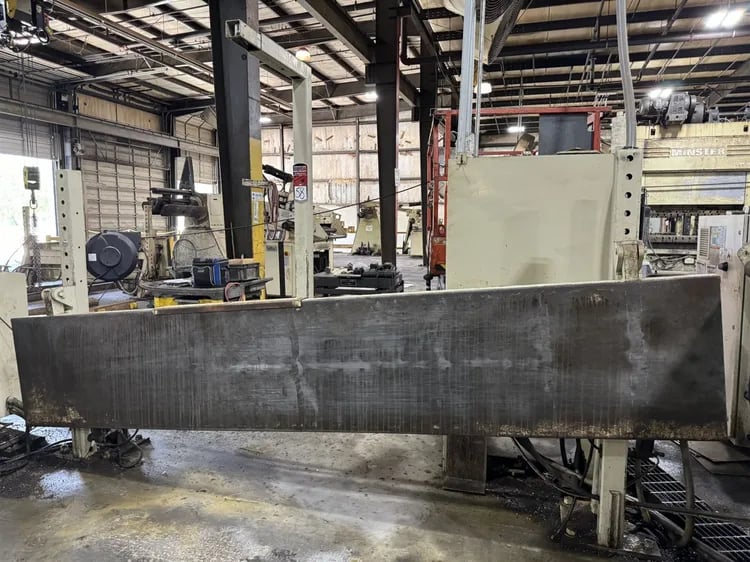

MINSTER Threading Table Model No.: MTT-12-26S
Hydraulic actuated
Bomb bay door design

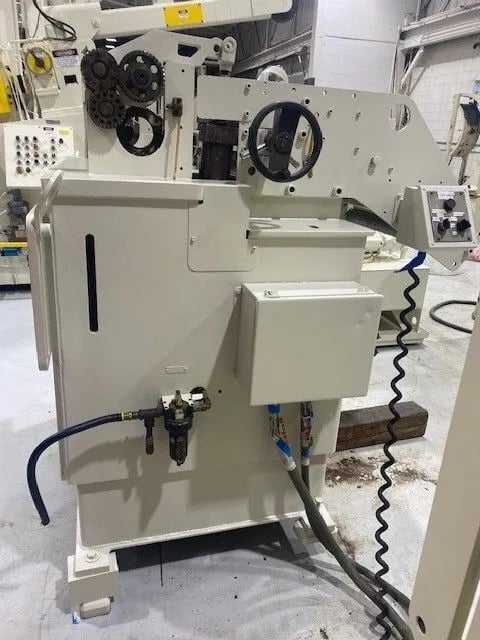

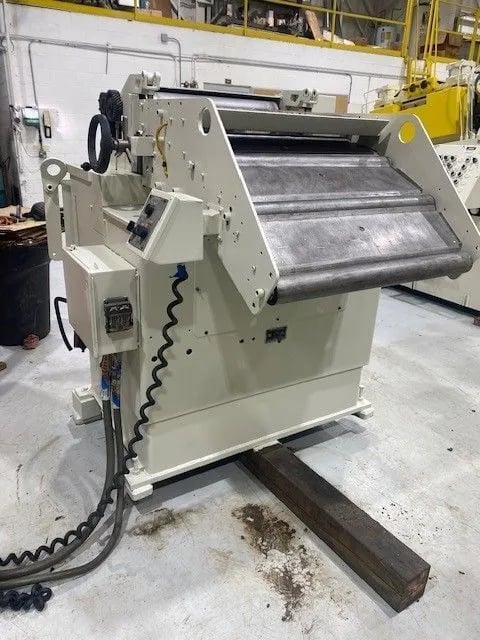

MINSTER Servo Roll Feed Model No.: MEF5-26, Serial No.: 18-50877
5" diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
Optional:
NEW AC servo roll feed drive and controls
Job memory, batch counting, on the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
