Description
Specifications
Tonnage
150
Stroke
6 inches
Shut Height
21 inches
Adjustment
6 inches
Bed Size
50" LR x 30" FB
Ram Area
36" LR x 24" FB
SPM
40-80 VSPM
Standard Specifications Used 150 Ton Minster Press Model G1-150 Open Back Inclinable Mechanical Metal Stamping Press 150 ton Capacity 6" Stroke 21" Shut Height on Bed 6" Motorized Adjustment 50" LR x 30" FB Bed Area 36" LR X 24" FB Slide Area 40-80 Variable Strokes Per Minute
Additional Specifications Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Motorized Adjustment Open Back Inclinable Dual Ross Air Valve Palm Button

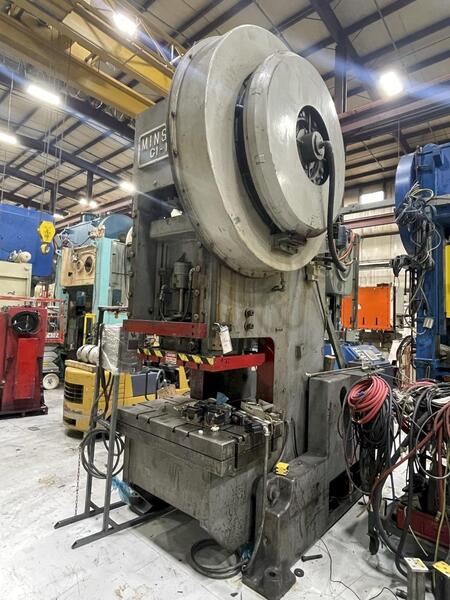

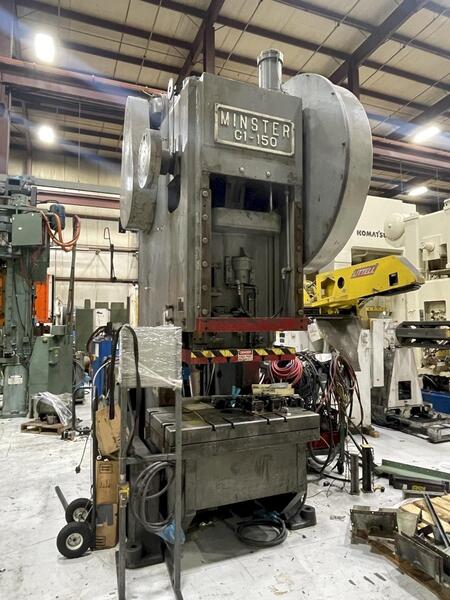

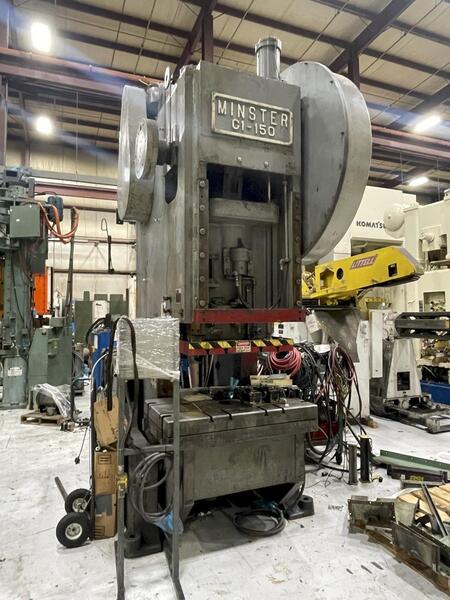

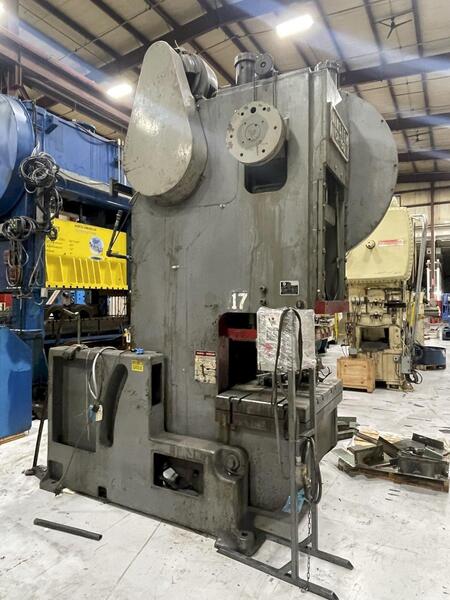

This 150-ton Open Back Inclinable Minster can be seen under power in the S&G Press Livonia Michigan Warehouse!
Used Minster Straight Side / OBI / Gap Frame Press For Sale
150 Ton Minster Rigid Gap Frame Punch Press with Air Clutch and Brake, 10" Stroke, 26.25" Shut Height, 50" X 30" Bed, Air Counterbalances and T-Slotted Ram, Powered Ram Adjustment: 8", Shut Height: 26.25", SPM: 30, Bed: 50" X 30" Bed, Ram: 32" X 24", Dimensions: 72" LR X 103" FB X 175" Tall, Weight: 43,000 LBS ...more
6" Stroke, 20.5" Shut Height, 6" Powered Ram Adjustment, 34" X 24" Ram, 50" X 30" Bed, 40 Spm, Air Clutch, Air Brake, Air Counterbalance, Palm Buttons, Foot Pedal, 64" LR X 110 FB X 174"" Tall, 35,000 Est Weight.
SOUTH BEND JOHNSON 150 OBI PRESS, STOCK# 14054J, MDL# 150 BGAC, S/N# 74050, NEW 1974, CAPACITY 150 TON, STROKE 6", SHUTHEIGHT 22", SLIDE ADJUSTMENT 5", BED AREA 50" LR X 30" FB, SLIDE AREA 34" LR X 24" FB, SPEED 30 - 60 SPM, AIR CLUTCH AND BRAKE, AIR COUNTERBALANCES, ELECTRICAL CONTROLS, PALM BUTTONS, AIR CUSHION ...more
SERIAL. H-3947, MODEL. G1-15048, YEAR NEW. 2000, CAPACITY. 150 TONS, STROKE OF SLIDE. 6", AREA OF BED. 50"X 32", AREA OF RAM. 34" X 28", SHUT HEIGHT. 26", SPEED. 35- 70 SPM, ADJUSTMENT. 6" POWERED, DEPTH OF GAP. 16", OPENING IN BACK. 25", HEIGHT OF GAP. 12", BED OF FLOOR. 34", BOLSTER. T SLOTTED, AIR CLUTCH & ...more
