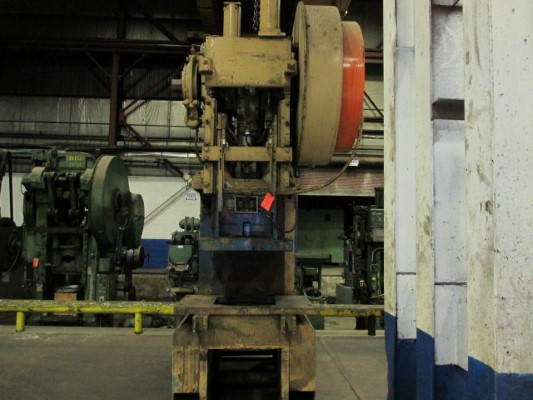

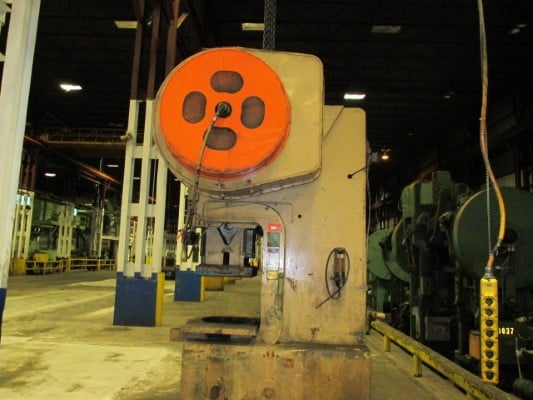

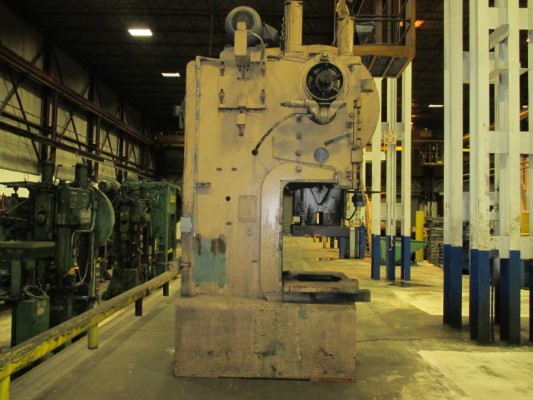

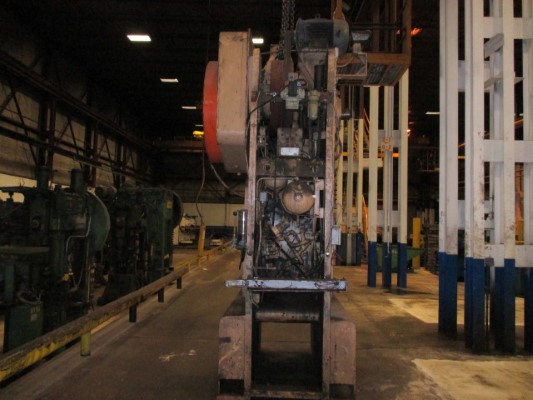

150 Ton, Danly, Gap Frame Single Crank Press, 12" stroke, 50" x 30" bed, 19-1/2" shut height, 35 SPM, 1974

N E W 1 9 7 4
RATED CAPACITY ............(TONS) ............. 150
STROKE ........................................ 12"
ADJUSTMENT OF SLIDE ........................... 4"
BED AREA ..................(L-R) x (F-B) ...... 50" x 30"
SLIDE .....................(L-R) x (F-B) ...... 34" x 24"
SHUTHEIGHT .................................... 19-1/2"
STROKES PER MINUTE ............................ 35
THROAT DEPTH .................................. 16"
BED OPENING ...............(L-R) X (F-B)....... 23" X 17"
WIDTH BETWEEN UPRIGHTS ........................ 26"
O.A. DIMENSIONS .......(L-R) X (F-B) X (HIGH).. 6' X 9'4" X 13'2"
WEIGHT ........................................ 34,000 LBS.
O.A. DIMENSIONS (BOWL FEED ON STAND)
.......(L-R) X (F-B) X (HIGH).. 4' X 6'8" X 7'8"
O.A. DIMENSIONS (CONTROLS)
.......(L-R) X (F-B) X (HIGH).. 6'8" X 2' X 8'5"
EQUIPPED WITH: 36" DIAMETER 12-STATION DIAL FEED
(2)AIR COUNTERBALANCES
KNOCKOUT IN RAM
ARRANGED FOR TIE ROD
15 HP 3/460/60 (1695 RPM) MOTOR WITH CONTROLS
AIR CLUTCH
SINGLE BACK GEARED
DIRECT V-BELT MOTOR DRIVE
