For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

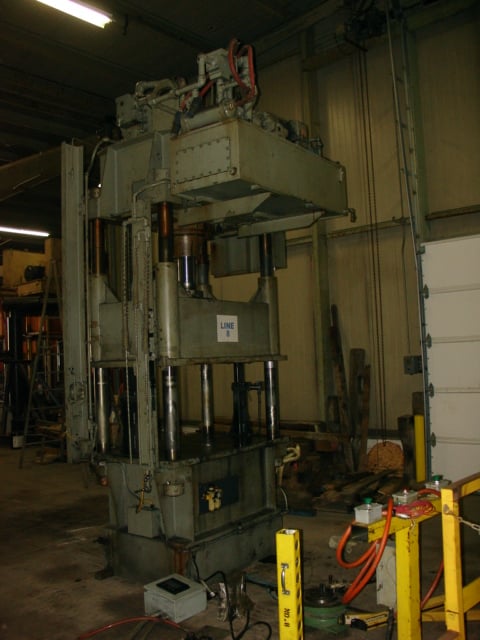

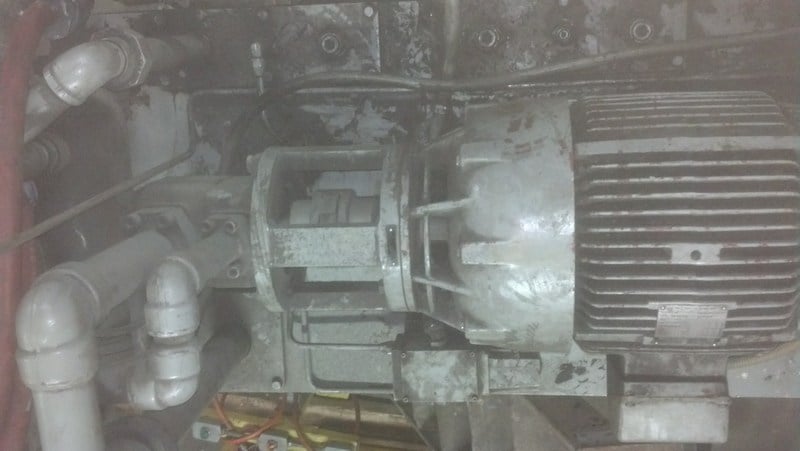

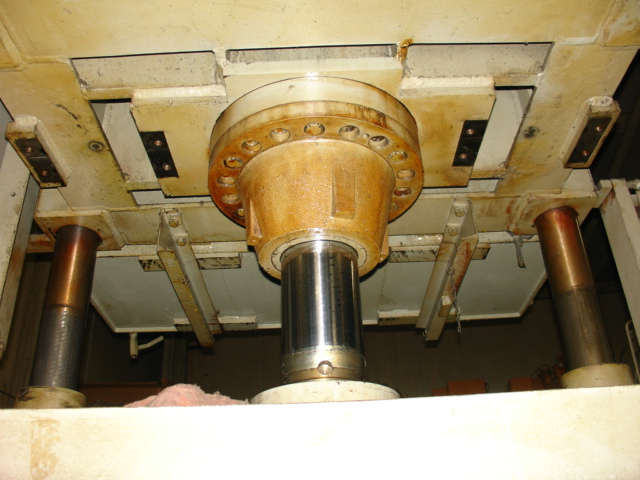

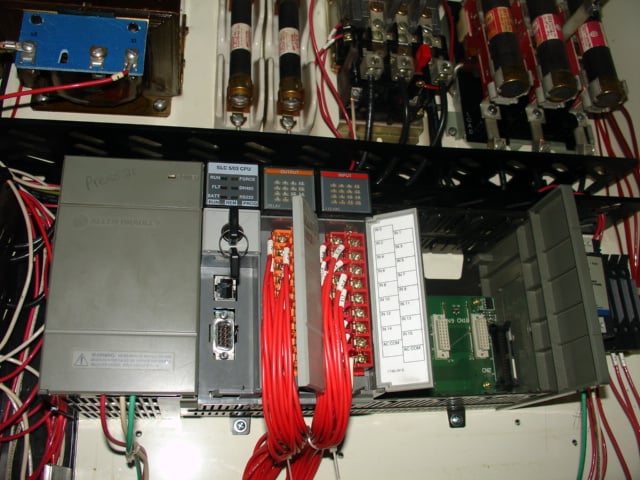

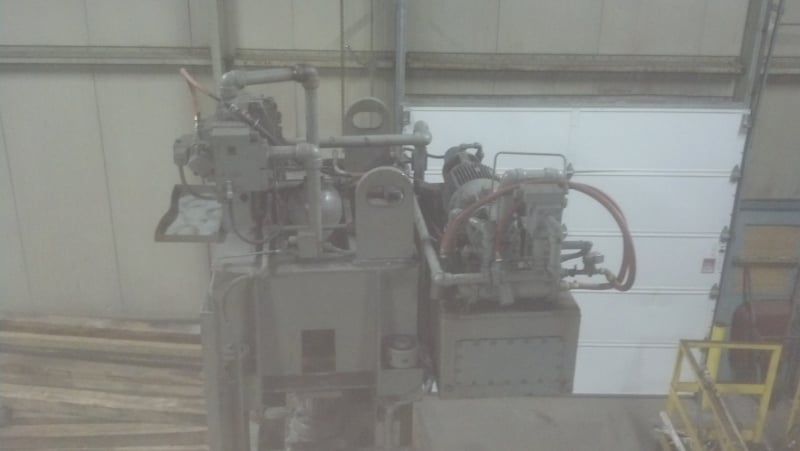

MODEL 27-773. SERIAL #177537. L TO R OVERALL IS 61". F TO B BETWEEN THE POSTS IS 24". THE NOMINAL BED SIZE IS 48" X 38". CLAMP CYLINDER IS 8" BORE WITH A 6" DIAMETER ROD AND 15" MAX STROKE. MAX DAYLIGHT IS APPROX 35". FULLY GUIDED ON 4.5" DIAMETER POSTS WITH 30" BUSHINGS. OPERATOR HEIGHT IS APPROX 40". TWO AIR OPERATED SAFETY LOCKS ON LEFT AND RIGHT OF OPENING. CONTROL SYSTEM BUILT AROUND AN ALLEN-BRADLEY SLC 500 PLC; PANELVIEW 550 HMI; PALM PEDESTAL; ADJUSTABLE LIMIT SWITCHES; ETC… TOP-MOUNTED HYDRAULIC SYSTEM: 20 HP MOTOR (230/460 V; 1800 RPM); DYNEX PF2006-1807 PUMP (6000 PSI; 4.6 GPM); VICKERS 35V25A-1C10-130 PUMP (38.8 GPM); 90 GALLON RESERVOIR; APPROX SPEEDS: 170 IPM FAST CLOSE, 17 IPM PRESSING, 38 IPM BREAK-AWAY, 390 IPM FAST OPEN; 65 TON BREAK-AWAY FORCE; ETC… OVERALL DIMENSIONS APPROX: 80" X 66" (42" WITHOUT OVERHANG) X 176" TALL. APPROX 18,000 POUNDS. SOME PAPERWORK. ITEM #2346.
Get Your Price from Icon Industries, Inc!
