For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$6,500 USD
Description

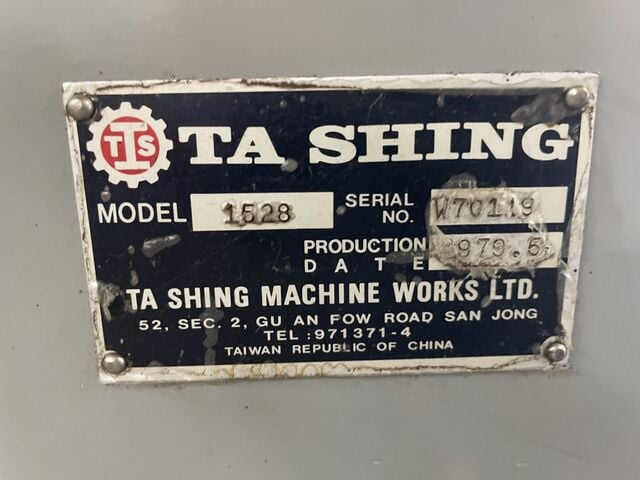

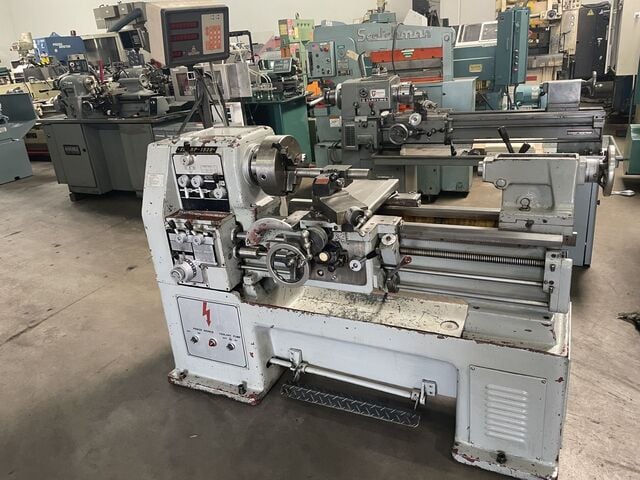

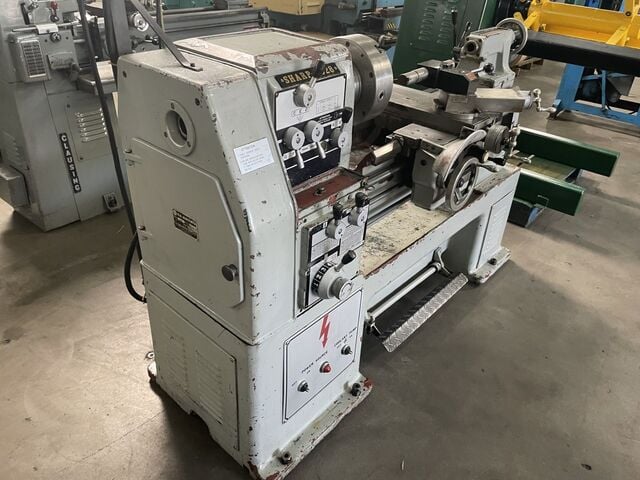

SHARP 1528 Engine Lathe #8353 #1
Capacity & Dimensions
Swing Over Bed: 15 inches
Swing In Gap: 20 inches
Swing Over Cross Slide: 8.25 inches
Distance Between Centers: 28 inches (Working center-to-center with chucks)
Bed Width: 10.25 inches
Total Machine Weight: Approximately 2,640 lbs.
Floor Space Dimensions: 86" L x 29" W x 47" H
Headstock & Spindle
Spindle Bore (Hole Diameter): 1.5 inches
Spindle Nose Mount: D1-6 Camlock
Number of Spindle Speeds: 12 geared changes
Spindle Speed Range: 83 to 1,800 RPM
Threading & Feeds
Gearbox Type: Quick-change universal gearbox (Inch/Metric dual system)
Inch Threading Range: 4 to 56 TPI (32 different thread changes)
Metric Threading Range: 0.5 to 9 mm pitch (32 different thread changes)
Longitudinal Feed Range: 0.002 to 0.033 IPR (Inches Per Revolution)
Tool Slide & Tailstock
Cross Slide Travel: 7 inches
Compound Rest (Top Slide) Travel: 3.5 inches
Tailstock Quill Travel: 5.5 inches
Tailstock Quill Taper: MT3 (Morse Taper 3)
Tailstock Quill Diameter: 1.75 inches

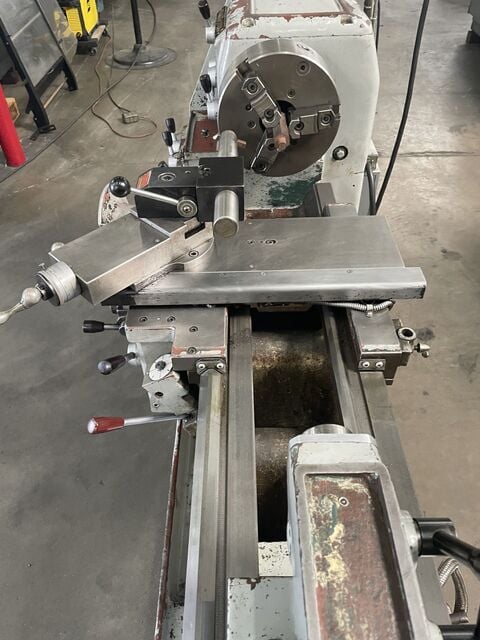

EQUIPPED WITH:
Anilam Wizard DIgital Read Out
KDK Tool Holder
3-Jaw Chuck
Tailstock
Capacity & Dimensions
Swing Over Bed: 15 inches
Swing In Gap: 20 inches
Swing Over Cross Slide: 8.25 inches
Distance Between Centers: 28 inches (Working center-to-center with chucks)
Bed Width: 10.25 inches
Total Machine Weight: Approximately 2,640 lbs.
Floor Space Dimensions: 86" L x 29" W x 47" H
Headstock & Spindle
Spindle Bore (Hole Diameter): 1.5 inches
Spindle Nose Mount: D1-6 Camlock
Number of Spindle Speeds: 12 geared changes
Spindle Speed Range: 83 to 1,800 RPM
Threading & Feeds
Gearbox Type: Quick-change universal gearbox (Inch/Metric dual system)
Inch Threading Range: 4 to 56 TPI (32 different thread changes)
Metric Threading Range: 0.5 to 9 mm pitch (32 different thread changes)
Longitudinal Feed Range: 0.002 to 0.033 IPR (Inches Per Revolution)
Tool Slide & Tailstock
Cross Slide Travel: 7 inches
Compound Rest (Top Slide) Travel: 3.5 inches
Tailstock Quill Travel: 5.5 inches
Tailstock Quill Taper: MT3 (Morse Taper 3)
Tailstock Quill Diameter: 1.75 inches
EQUIPPED WITH:
Anilam Wizard DIgital Read Out
KDK Tool Holder
3-Jaw Chuck
Tailstock
Inquire Further with Wheeler Machinery Sales!
