Manufacturer: Espec
Model: ETH3-9-CWA
Width: 15.00
Depth: 15.00
Height: 30.00
Min. Temp C: -20
Max. Temp C: 177
Stock # 13331-03
For Sale by Frank Bacon Machinery Sales
Surplus Record Dealer Since 1956
Sales Team
586-75...> Show Seller's Phone Number 586-756-4280 Let the seller know you found their listing on Surplus Record!
Description

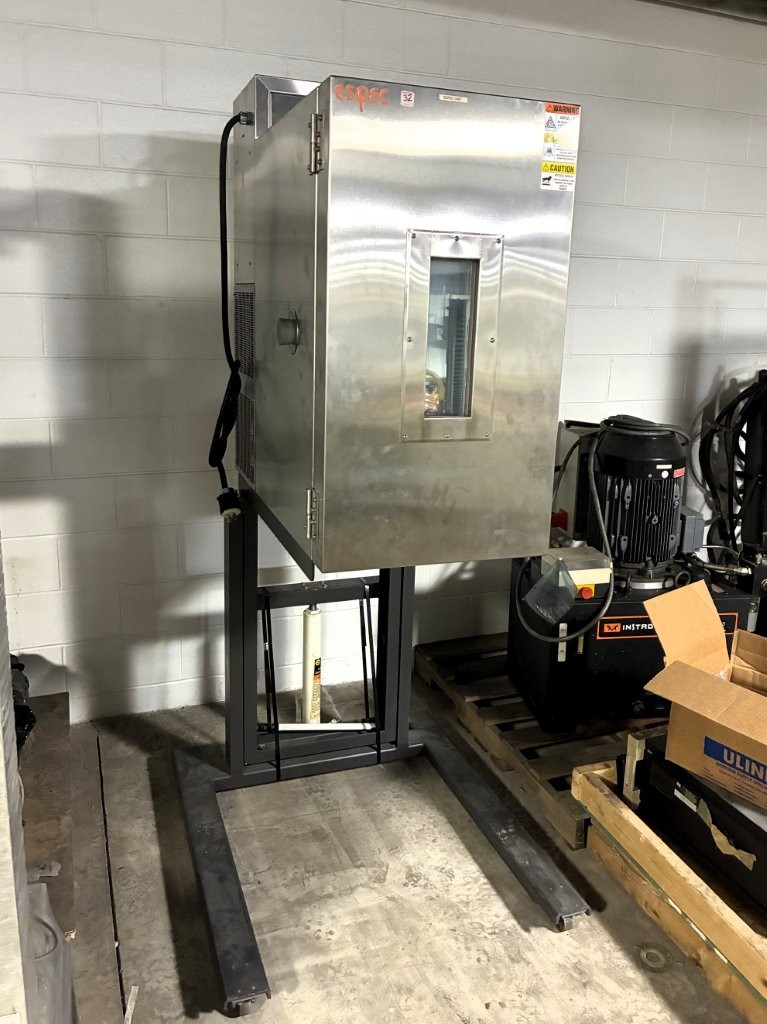

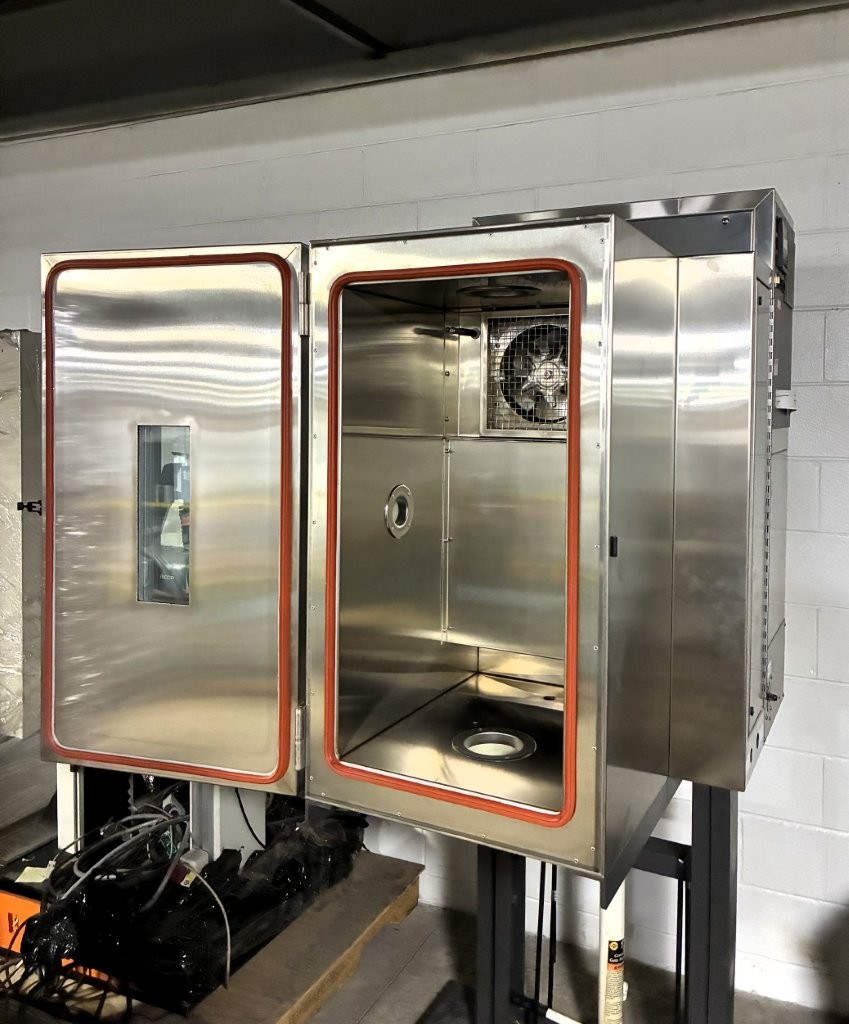

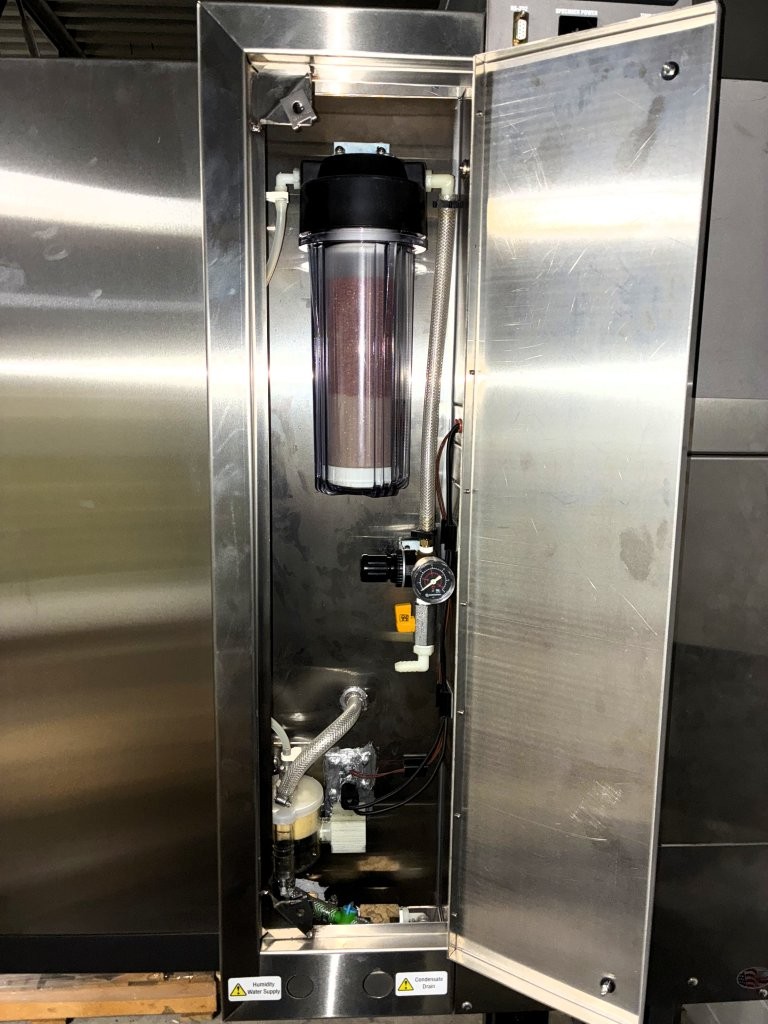

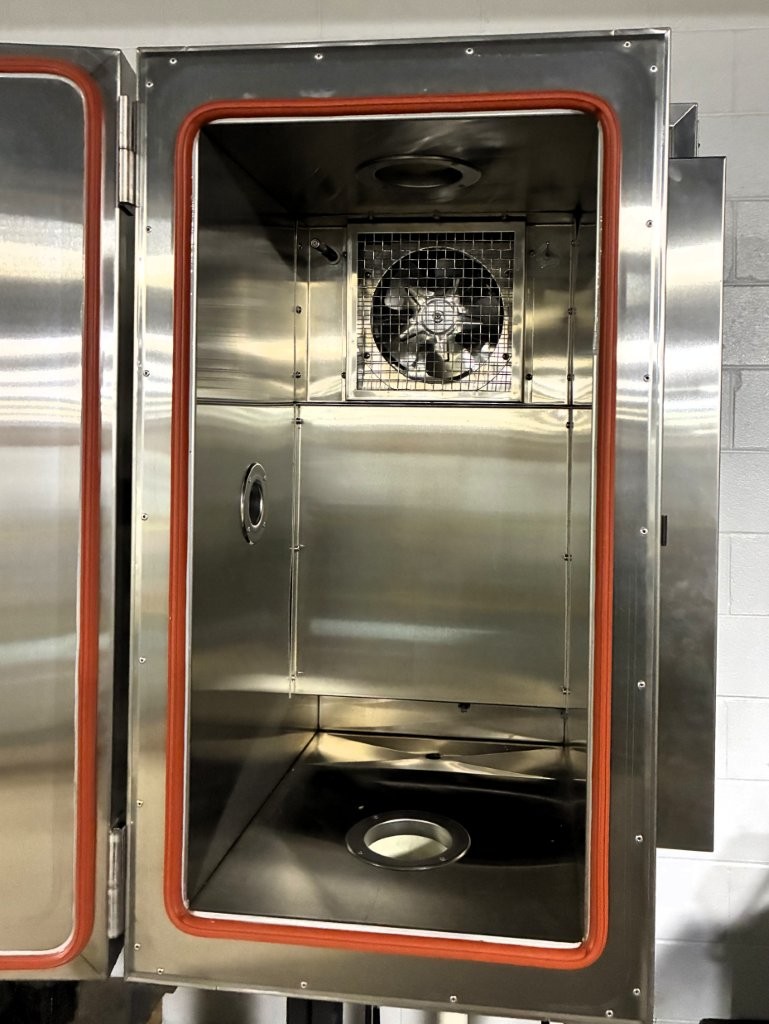

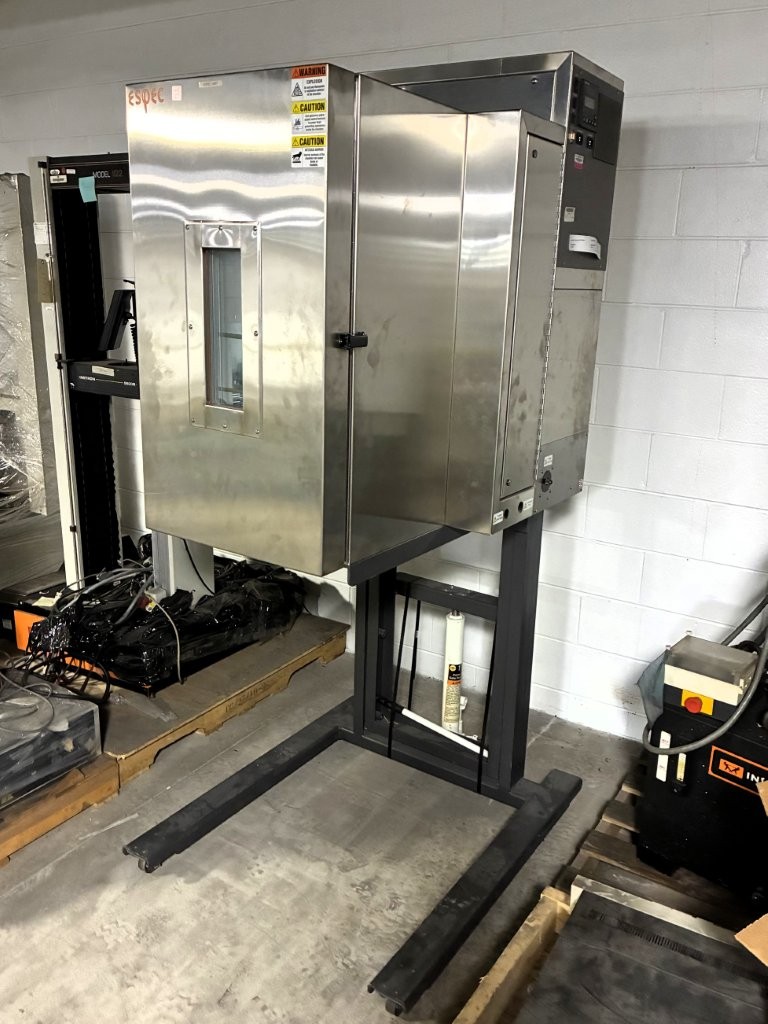

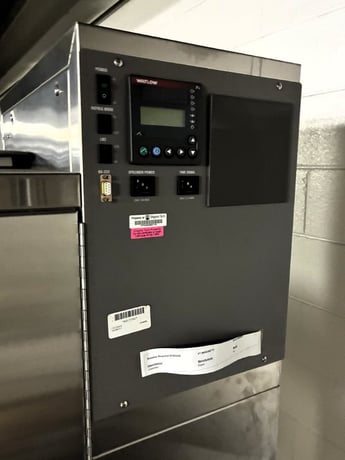

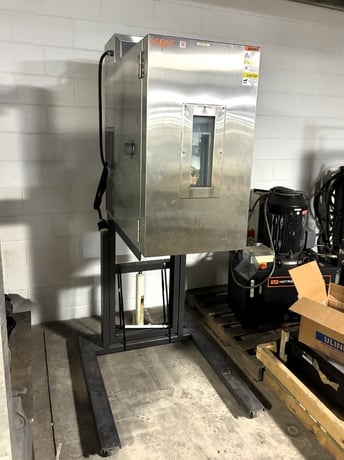

ESPEC Model ETH3-9-CWA Temperature and Humidity Chamber
Condition: Excellent
ESPEC Model ETH3.9-CWA
SPECIFICATIONS:
Model: ETH3.9-CWA
S/N: 406839
Lowest temperature: -20°C to 177°C ( -4°F to 350°F)
Highest temperature: 180°C (354°F)
Humidity Range: 20% to 95%
Approximate Inside Dimensions (W x D x H): 15 x 15 x 30
Approximate Outside Dimensions (W x D x H): 37 x 42 x 83 with Lift
Approximate Chamber Weight (Lbs): 310
Electrical Requirement (V, Hz, Ph,): 230, 60, 3
EQUIPPED WITH:
- Floor/Ceiling Ports Two 4" Dia., each with two Silicone Plugs.
- Cable Port One 2" Dia., with two Silicone Plugs.
- Tapping Plates Two on Bottom of Chamber (see drawing C-406839-001)
- Lift Cart Adjustable height stand/cart for chamber.
- Cart arms attach to bottom of chamber.
- (see drawing C-406839-001 for vertical travel dimensions).
- Liquid Nitrogen Boost Extends low temperature range to -70°C (-94°F) and Increases Pull-Down Rate.

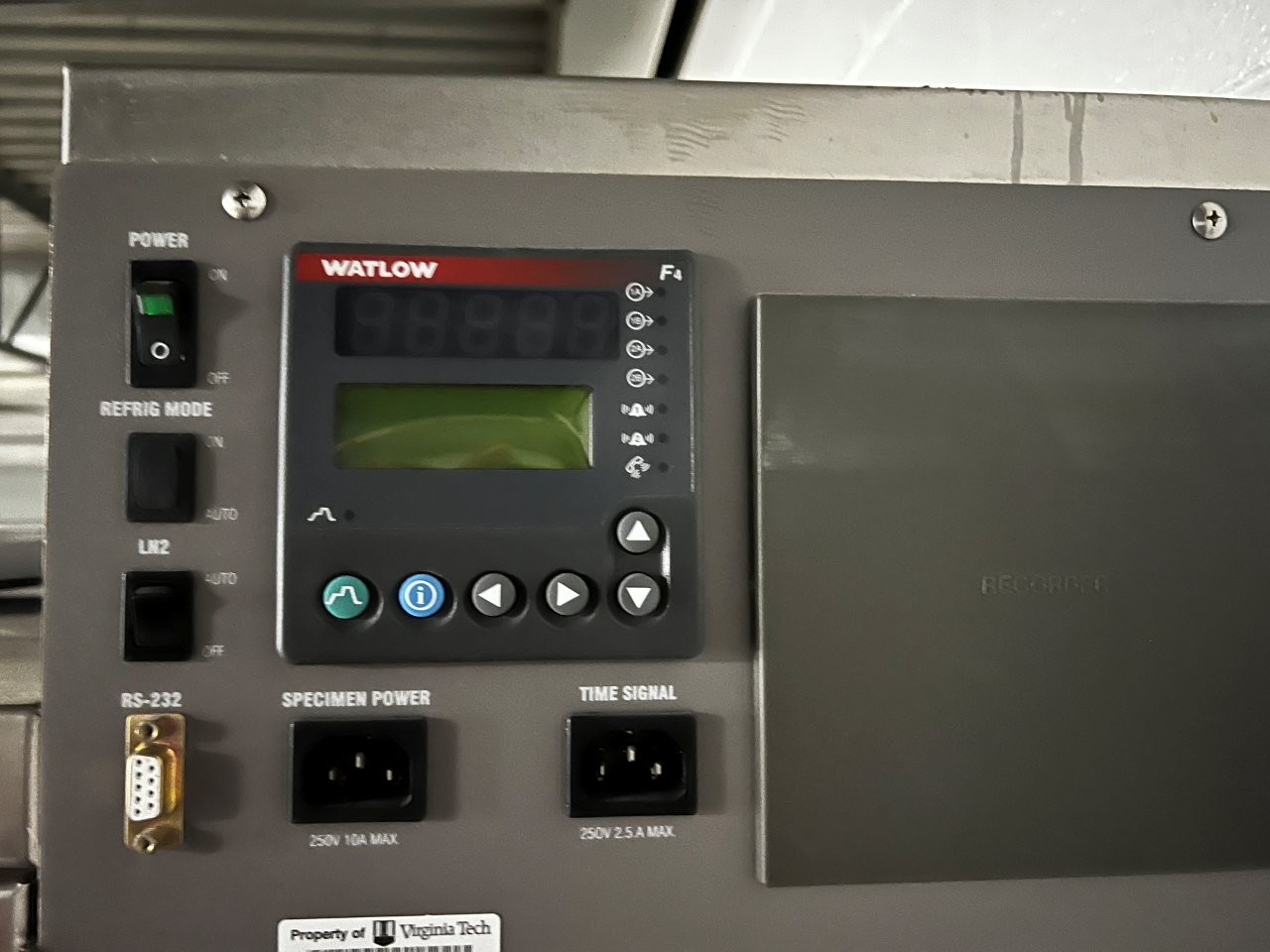

- GPIB Interface Converts GPIB to RS-232 for Watlow F4 communication port.
- LabView™ Drivers LabView™ drivers for GPIB interface.
FOB Warren, MI
Cleaned & Serviced
30 Day Satisfaction Guaranteed Return Privilege
*Actual Images
| #13331-03
DOWNLOAD SPEC SHEET
