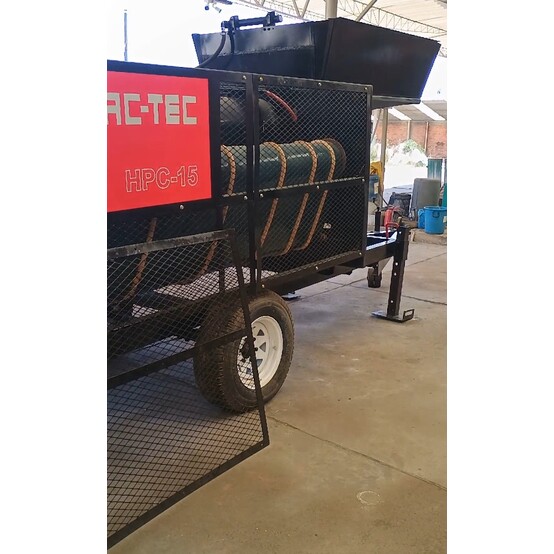

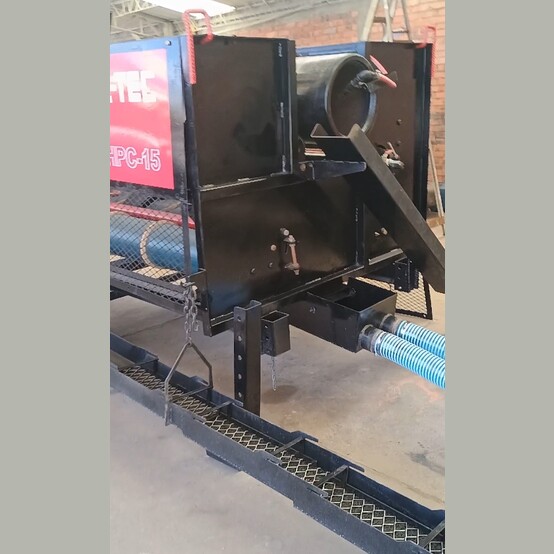

Extrac-Tec HPC-15 Trommel
- Make: Extrac-Tec
- Model: HPC-15
- Year: 2014
- Condition: Used, Reported in Working Condition
- Portable/Stationary: Portable, Trailer Mounted
- Feed Materials:
- Max Size: 6in (150mm)
- Recommended Size: 3in (75mm)

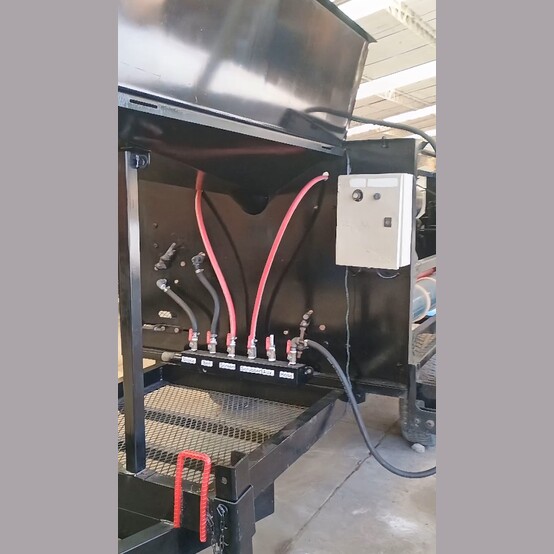

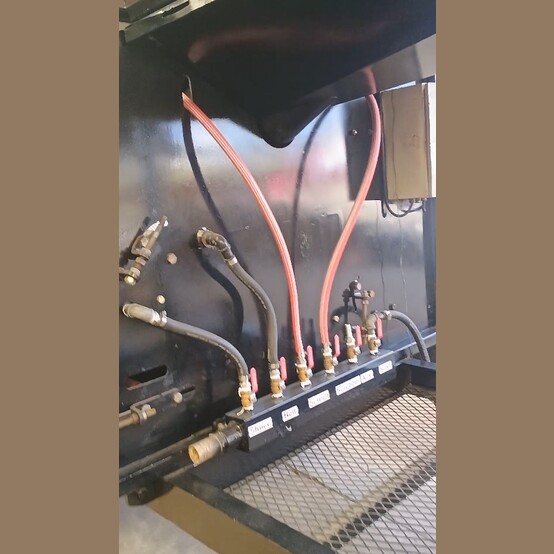

- Water Supply Requirements: 40gal/min (160L/min) @ Approx. 45psi (310kPa)

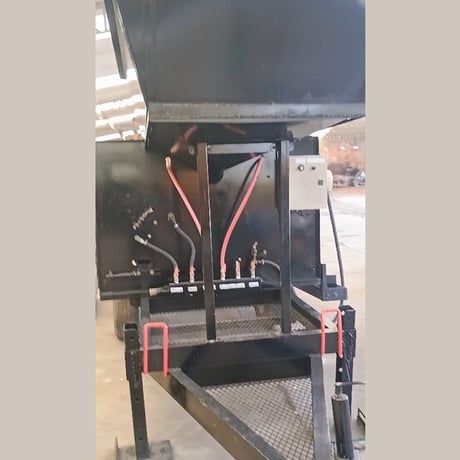

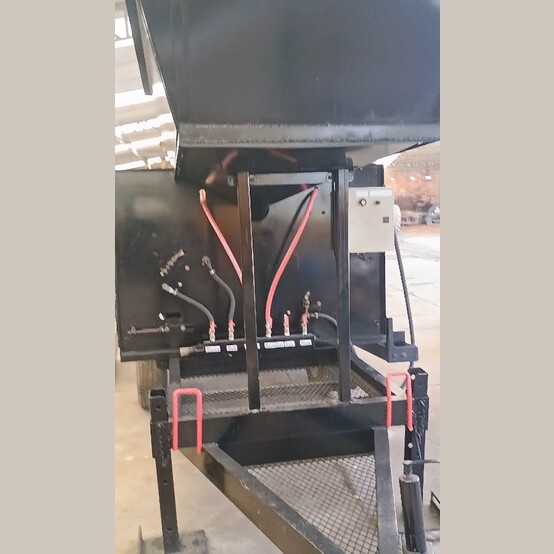

- Manual Feed Hopper: 1.83m Long x 1.4m Wide x 0.6m Tall
- Capacity: 1.83m³
- 5-Outlet Chute for Feeder
- Trommel: 15.8in Dia. x 110in Long 2-Stage Scrubbing & Screening Drum
- Screen Mesh: 1/3in (150mm)
- Concentrator Belt

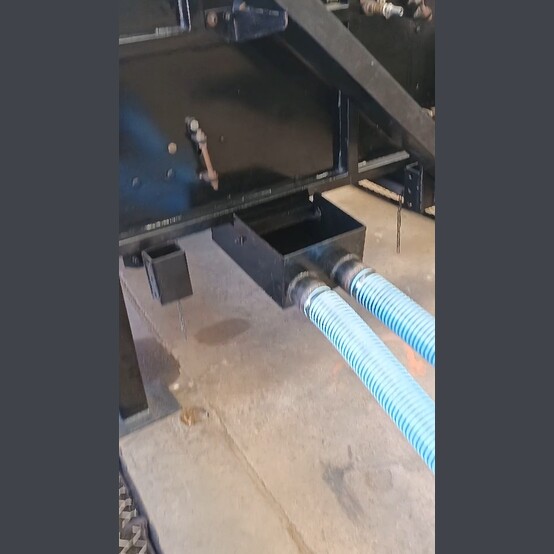

- Fines Discharge Tray: 4in Steel Tube Outlet, connects to Fines Sluices with 2m Hoses
- Sluices:
- Main Sluice

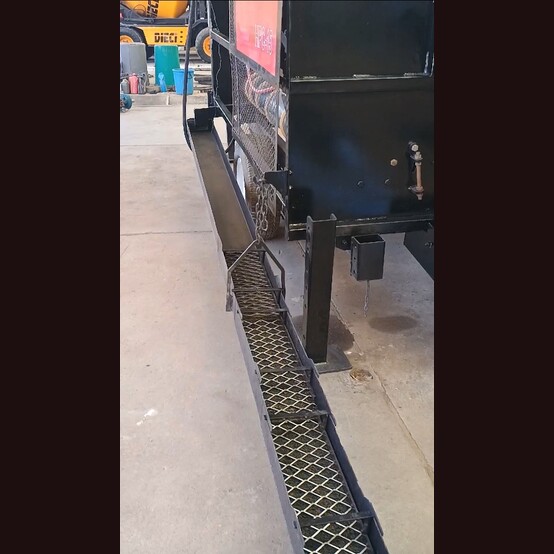

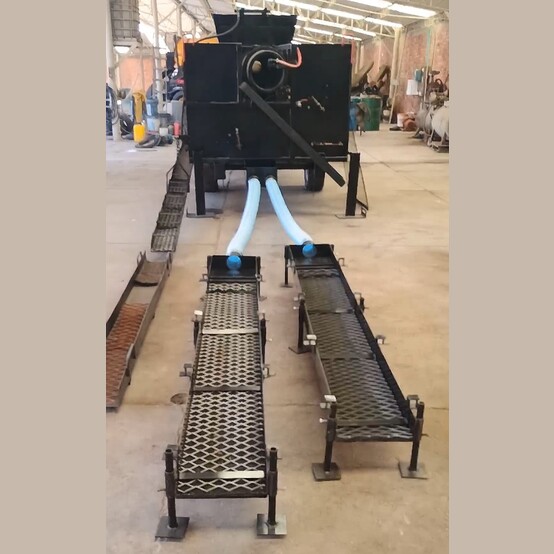

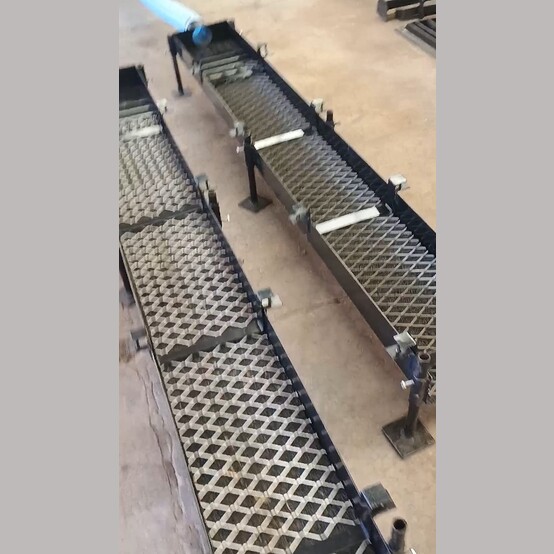

- Fines Sluices:
- Qty: 2
- Size: 2.4m Long x 0.3m Wide x 0.1m Tall
- Drive: Electric Motor-Reducer
- Power Output: 2HP
- Voltage: 220 Volts
- Frequency: 50-60Hz

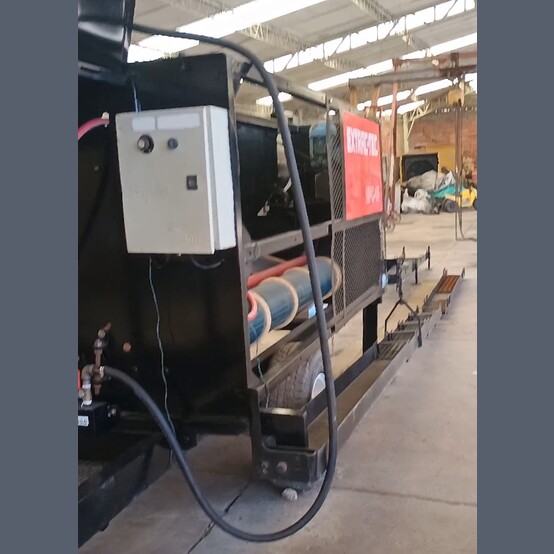

- Control Panel:
- Includes: WEB VFD, On-Off Switch and Potentiometer
- Trailer: Single Axle
- Overall Dimensions:
- Width: 1.76m
- Height: 2.4m
- Weight: 2,600kg Approx.
- Location: South America
