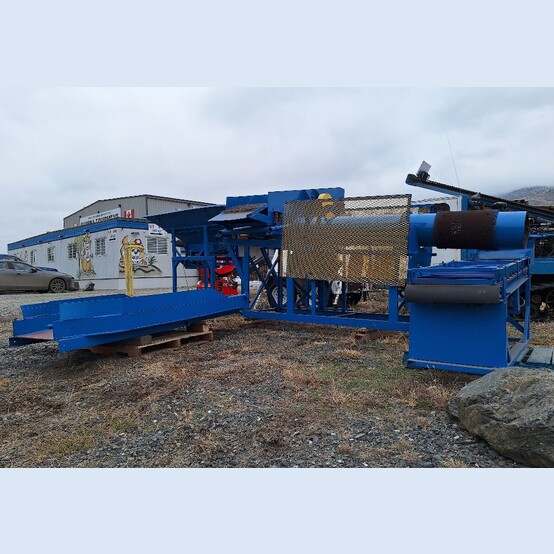

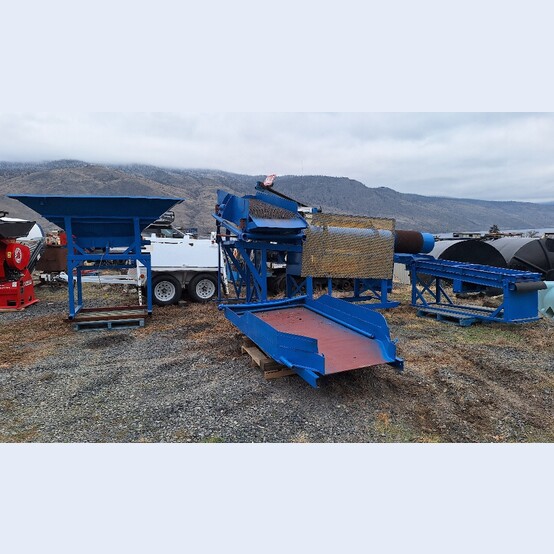

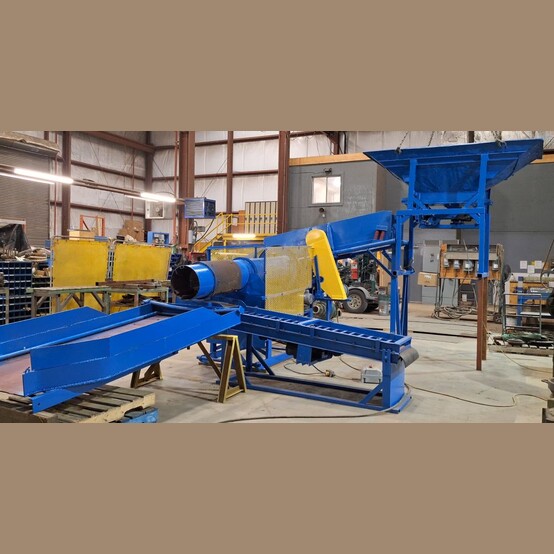

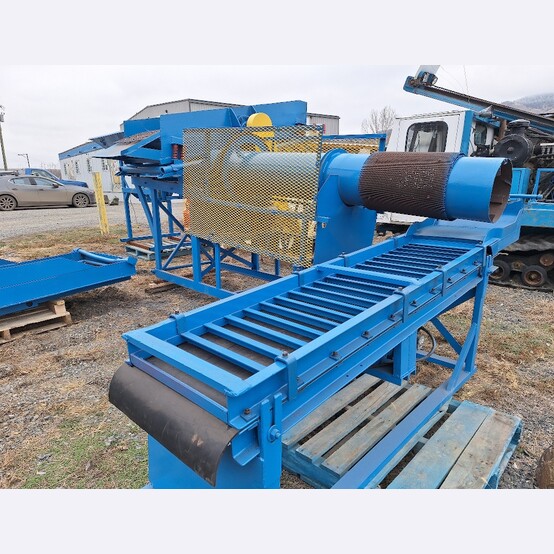

16" dia. x 9.5' long trommel wash plant

16in Dia. x 9.5ft Long Trommel Wash Plant

• Type: Trommel Wash Plant
• Condition: Used Condition - Recently Refurbished

• Feed Pan:
  • Size: 48.5in Wide x 8ft Long
  • Discharge: 29-5/8in Wide
    • 1ft Tall Side Walls Near Discharge
  • Top Spray Bar: 2in Threaded
  • Lower Spray Bar: 1.5in Hose Barb Connection
  • Support Legs: 74-5/8in Tall x 32.5in Wide Frame x 43.5in Wide Base
  • Module Dimensions: 8ft Long x 55in Wide x 20in Tall

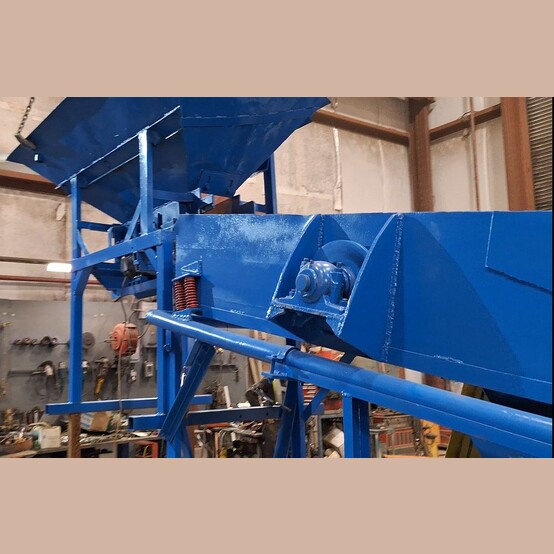

• Screen:
  • Type: Inclined Screen
  • Size: 31in Wide x 8ft Long
  • Decks: Single Deck
  • Screen Spacing:
    • Top Mesh: 0.5in Spacing
    • Bottom Mesh: 2in Spacing
  • Spray Bars: (2) 2in Plastic Pipe Spray Bars
  • Bearing Housings: (2) Steyr S 611
  • Drive Pulley: 8in Dia.
  • Module Dimensions: 109in Long x 52in Wide x 35in Tall

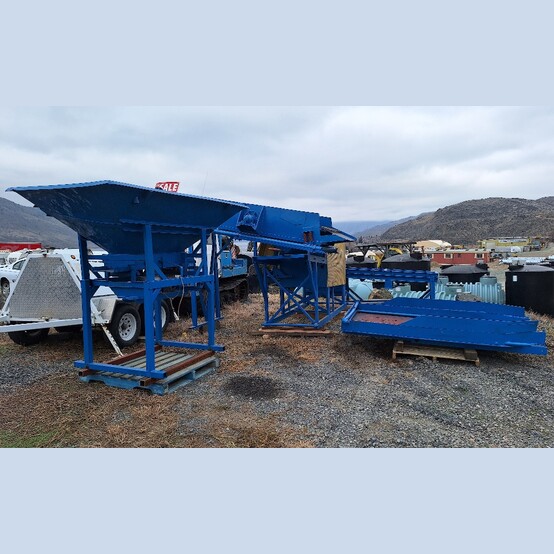

• Hopper:
  • Hopper Dimensions:
    • Top: 34in Wide x 8ft Long
    • Bottom: 10in Wide x 34in Long

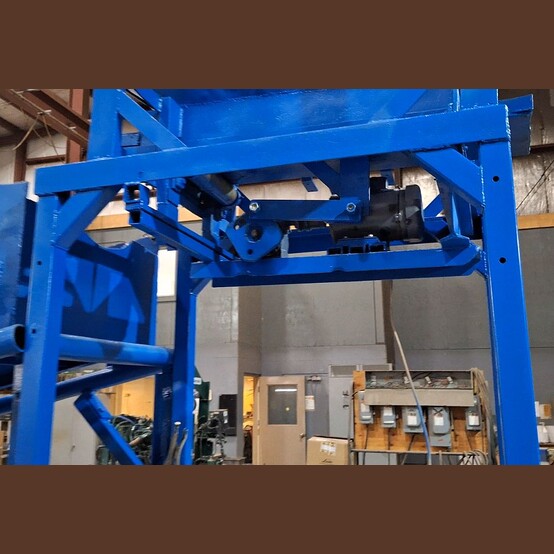

  • Reciprocating Plate Feeder Discharge
  • Discharge Opening: 6in x 10.5in
  • Speed Reducer
  • Hose Inlet: 2in Threaded
  • Hose Outlet: 1in Barbed Hose Fitting
  • Module Dimensions: 8ft Long x 50in Wide x 47in Long

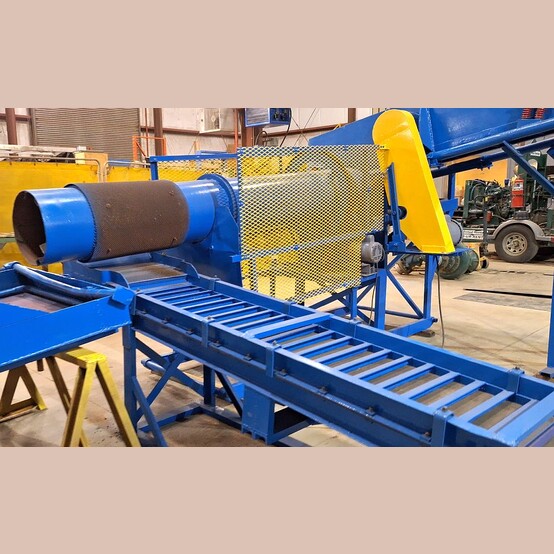

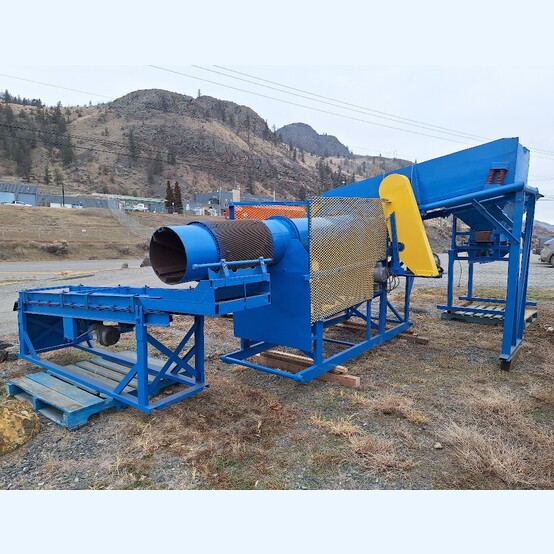

• Trommel:
  • Feed Trough: 11in Wide x 38in Long
  • Barrel Size: 15-3/8in Dia. x 114in Long
  • Screen Section: 18in Long
  • Drive: Baldor Electric Motor To Chain Drive
    • Power Output: 0.5HP
  • Sprocket: 4in Dia., 16-Tooth
  • Module Dimensions: 160in Long x 70in Wide x 71in Tall

• Sluice Box:
  • Feed Pan: 23.5in Wide x 21.5in Long
  • Sluice: 20in Wide x 7ft Long
  • Legs: 5in Height Adjustment Front and Back Legs
  • Spray Bar: Steel, 1in Threaded Connection
  • Drive: Electric Motor
    • Power Output: 1/3HP
  • Module Dimensions: 112in Long x 31in Wide x 49in Tall

• Location: Savona, British Columbia, Canada
