For Sale by Machine Tool Technologies
Surplus Record Dealer Since 2011
Location: Milwaukee, WI
Contact Joe Ryan
Phone Number: 414...> Show Phone Number 414-486-9700
Let the seller know you found their listing on Surplus Record!
Description
Spec
Tonnage: 165.346 T
Type: HYD
Overall Length: 10.17′
Between Housings: 102.36″
Stroke: 10.8″
# Axis: 6
Dimensions: 192.91, 84.65″, 104.33″
Weight: 18500

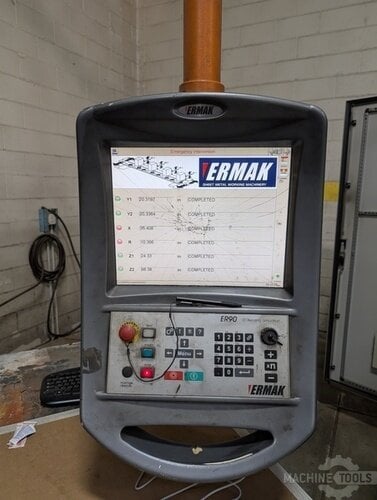

Control: CNC (TASK 84 3D)

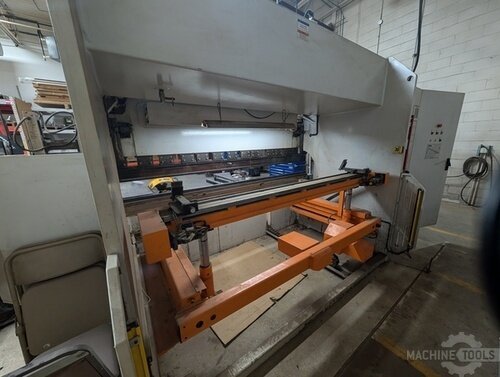

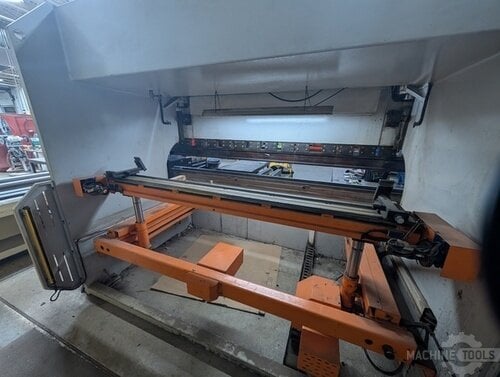

Tonnage: 149 US Tons Bending Length (A): 122.05” Inches Distance Between Housings (B): 102.36” Inches Stroke (C): 10.83” Inches Daylight (Open Height) (D): 20.87” Inches Throat Depth (E): 16.14” Inches Table Height (F): 35.43” Inches Table Width (G): 3.54” Inches Approach Speed: 472 IPM Bending Speed: 28.2 IPM Return Speed: 450 IPM Back Gauge Travel (X Axis): 31.5” Inches Back Gauge Travel (R Axis): 9.84” Inches Max Noise: 70 dB Main Motor: 14.75 HP Oil Capacity: 79.26 US Gallons Machine Length (L): 192.91” Inches Machine Width (W): 84.65” Inches Machine Height (H): 104.33” Inches Weight: 18,050 lbs
Description

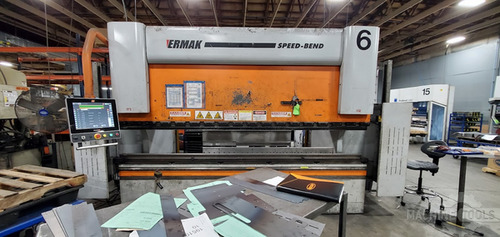

Brand – ERMAKSAN
Get Your Price from Machine Tool Technologies!
