Description

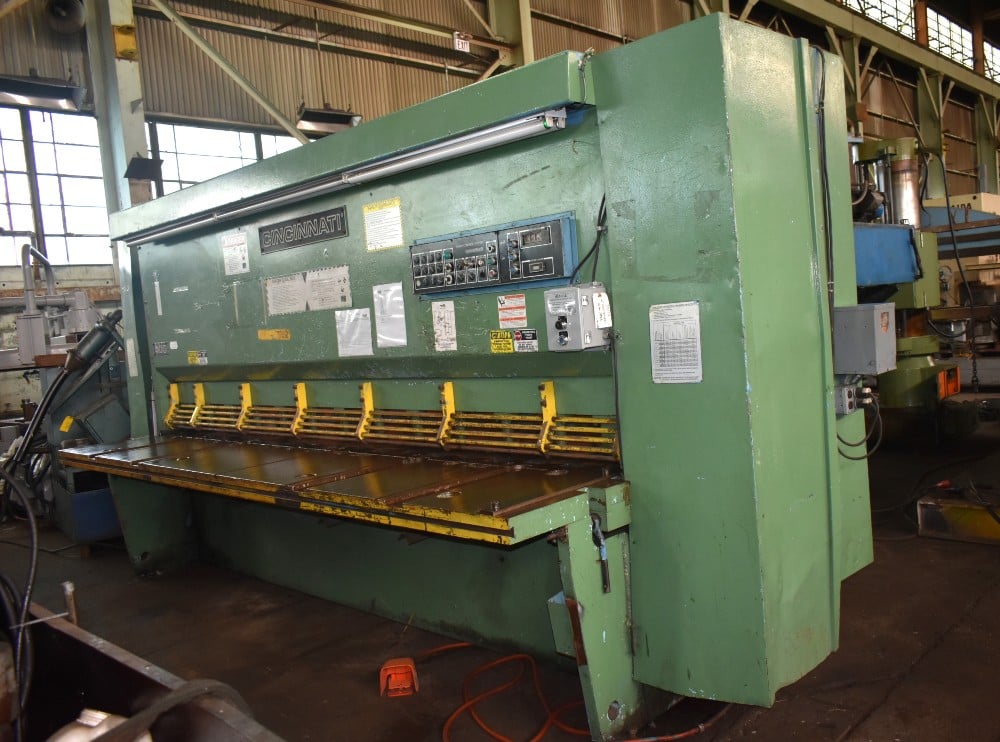

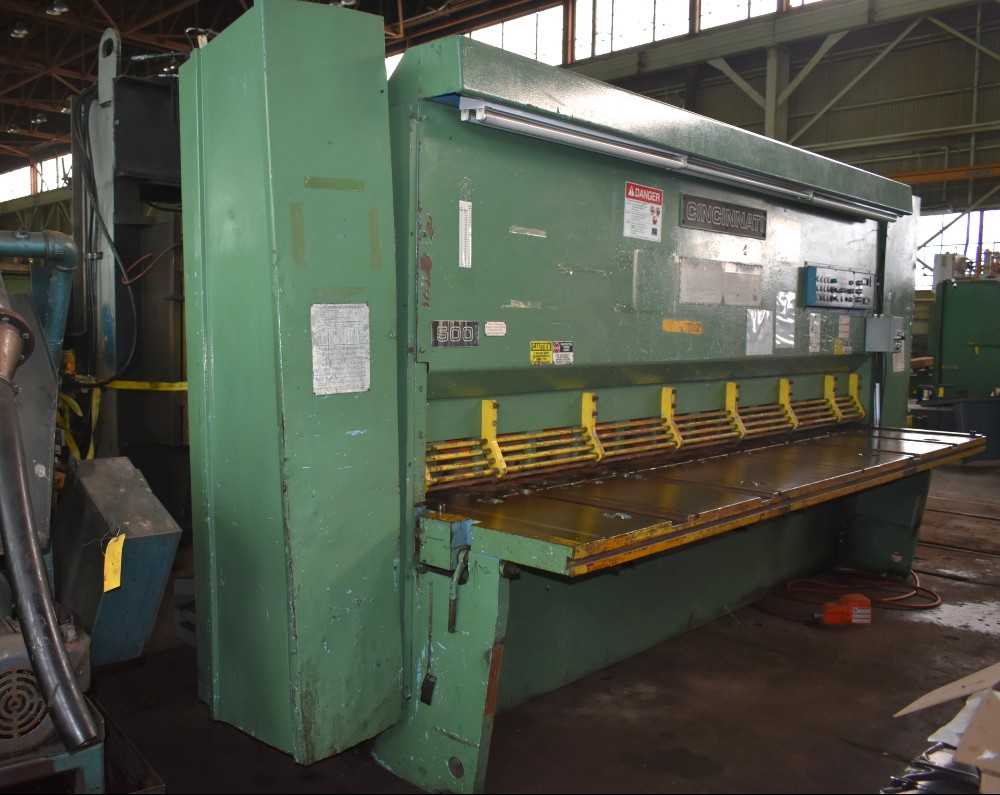

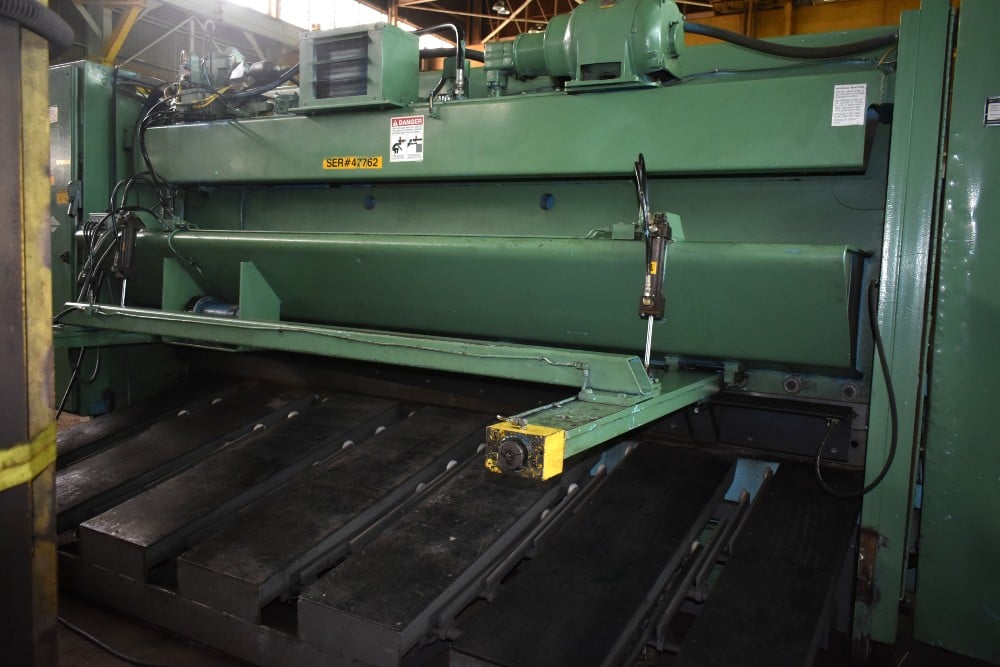

12' X 1/2" CINCINNATI-INC HYDRAULIC POWER SQUARING SHEAR Serial No 47762, Model 500HS x 12

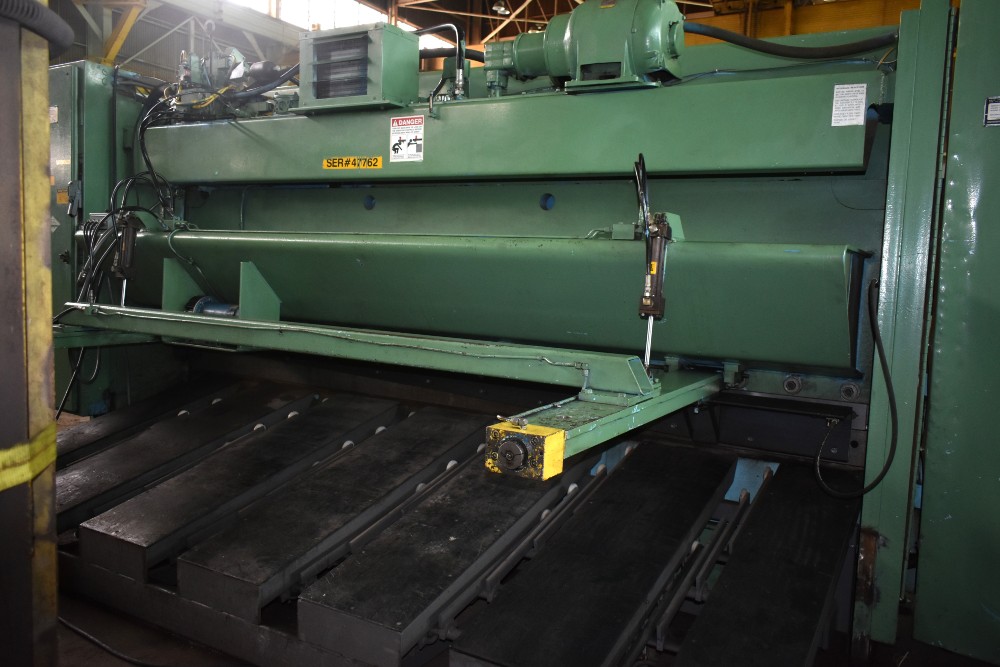

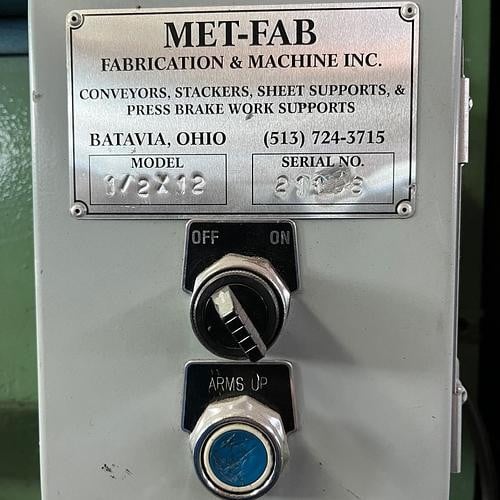

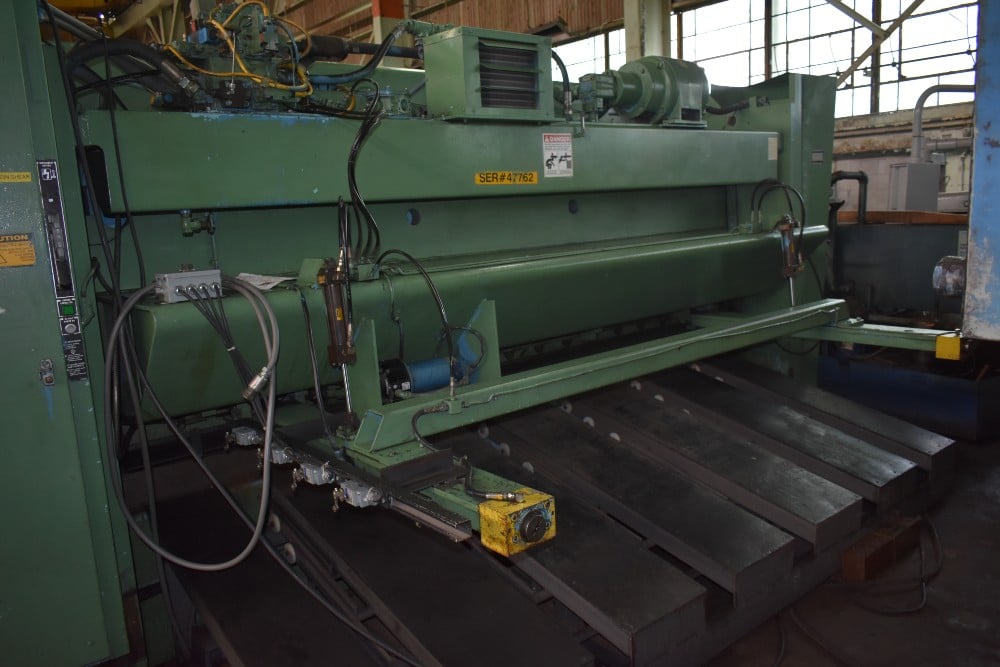

EQUIPPED WITH: 48" Power Back Gauge (Front Operated) Met Fab Pneumatic Rear Sheet Support Power Swing Up Back Gauge Ball Transfers In Table (15) Hydraulic Holddowns Power Adjustable Rake Foot Pedal - Automatic Lubrication System

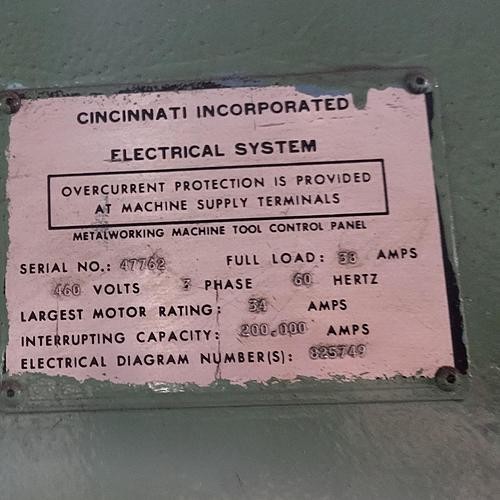

CATALOG SPECIFICATIONS: Shearing Capacity, Mild Steel 12' X 1/2" Material Thickness, Minimum 20 GA Knife Size 1 x 4 x 148 Maximum Rake, In/Ft .500 IPF Total Hold-Down Pressure 23.8 TONS Distance Under Hold-Down 1" Strokes Per Minute, Maximum 50 SPM Strokes Per Minute, Minimum 17 SPM Back Gauge Speed 60 IPM Main Motor, Horsepower 40 HP Electrical System 230-460/3/60 Overall Dimensions, W x D 198" x 106.5" Overall Height 99" Weight, Approximately 28,600 LBS
