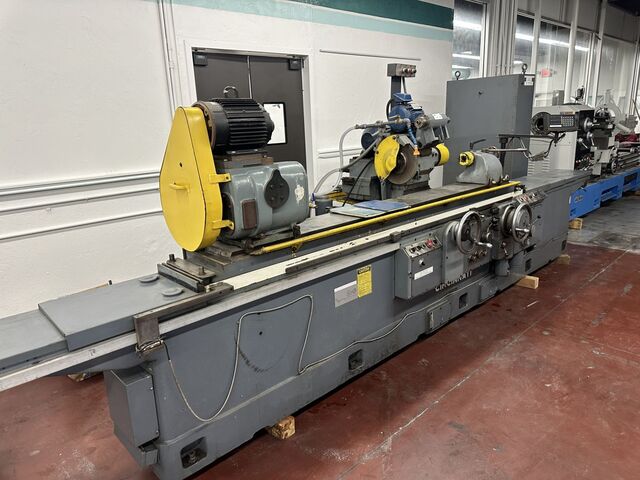

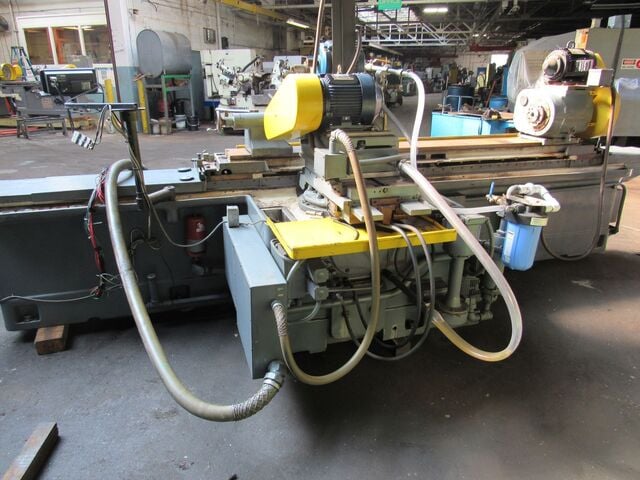

14" x 72" Cincinnati #14HX72, universal cylindrical grinder, 24" x 3" x 12" wheel, variable speed headstock, 1969

Cincinnati 14H X 72 Universal Cylindrical Grinder, 14" Swing Over Table, 72" Between Centers, Variable Speed Headstock, Free Standing Electrical Panel
14"H x 72" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
S/N 35324F5V-0001 YEAR:1969
SPECIFIC SPECIFICATIONS
Maximum swing over table……………………………………………… 14 15/16"
Maximum diameter machine will grind with:
Full size wheel…………………………………………………………… 24"
Minimum diameter machine will grind with:
Either full size or worn out wheel...……………………………………… 0
Nominal distance between centers...………………………….………….. 72"
Distance from floor to centers……...…………………………………….. 42 1/4"
Swivel table graduated to angle of:
Toward wheel head………………………………………………..……... 10 degrees
Away from wheel head………………………………………..……..…… 3 degrees
Swivel table graduated to taper per foot of:
Toward wheel head…………………………………………………….… 4 1/2 degrees
Away from wheel head…………………………………………………... 1 1/4 degrees
STANDARD CATALOG SPECIFICATIONS
Swivel range: (lower swivel, right & left).…………………………….…. 90 degrees
(upper swivel, right & left)……………………………….… 30 degrees
Grinding wheel (dia. x face. x hole)………………………………….….. 24" x 3" x 12"
CROSS FEED
Automatic in feed at table reversal
Diameter reduction…………….(low)…………………………….…..… .0002" to .005"
(high)……………………………..……. .005" to .0125"
Wheel head movement per turn of cross feed
Hand wheel……………………(low)…………………………………… .050"
(high)……………………………………. .250"
HEAD STOCK & FOOT STOCK
Taper hole in head stock & foot stock spindles……………………..…. #9 B & S
Head stock spindle nose, American lathe standard……………………... 5"
Head stock swivel: (toward wheel head)………………………………... 90 degrees
(away from wheel head)……….…………………… 30 degrees

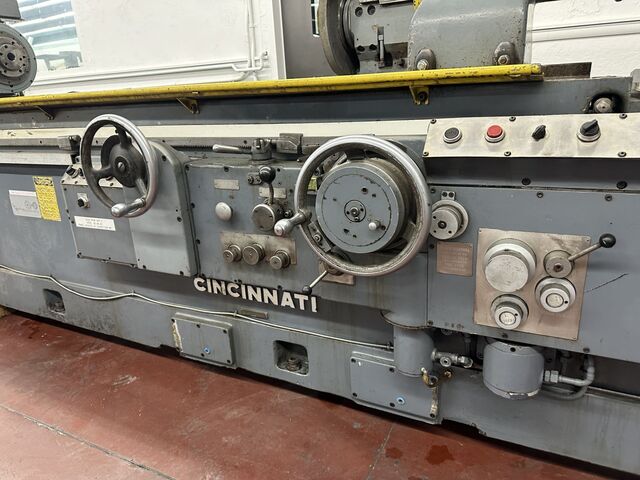

TABLE
Number of table traverse speeds………………………………………… Infinite
Range of table traverse speeds (in per min)……………………………... 3 – 240
Minimum movement required to reverse table….………………….…… 3/32"
Accuracy of table reversal at all traverse rates…..………………..…….. .004"
Independent right hand and left hand tarry, seconds……...…………..…. 0 to 5
Mechanical hand table traverse per revolution of hand wheel:
Rapid…………………………………………………………….……… 15/16"
Slow………………………………………………………………..……. 0.2"

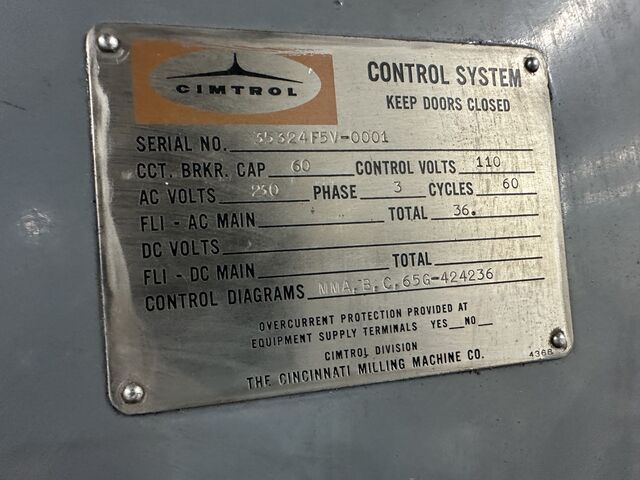

POWER REQUIREMENTS
(Electrical equipment included with machine)
Wheel head motor…………………………………….. 7 1/2 HP – 1730 RPM 220/440
Hydraulic pump motor…………………………………………….……. 1 HP
Head stock motor…………………………..……………………….…… 3/4 HP
Cutting fluid pump motor…………………………………………..…… 1/4 HP
EQUIPMENT & FEATURES
Lever operated tail stock.
Left and right tarry.

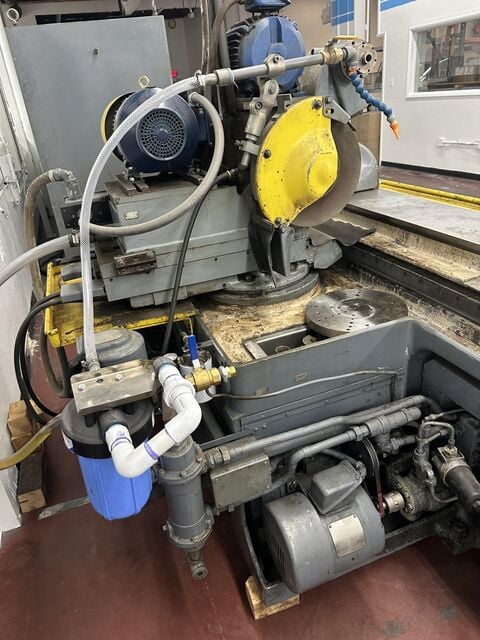

Self contained coolant and hydraulics.
Traverse.

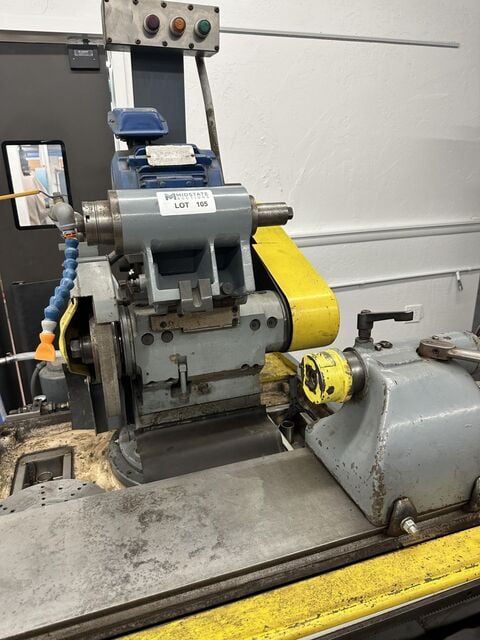

Tail stock dresser.
Pick feed.

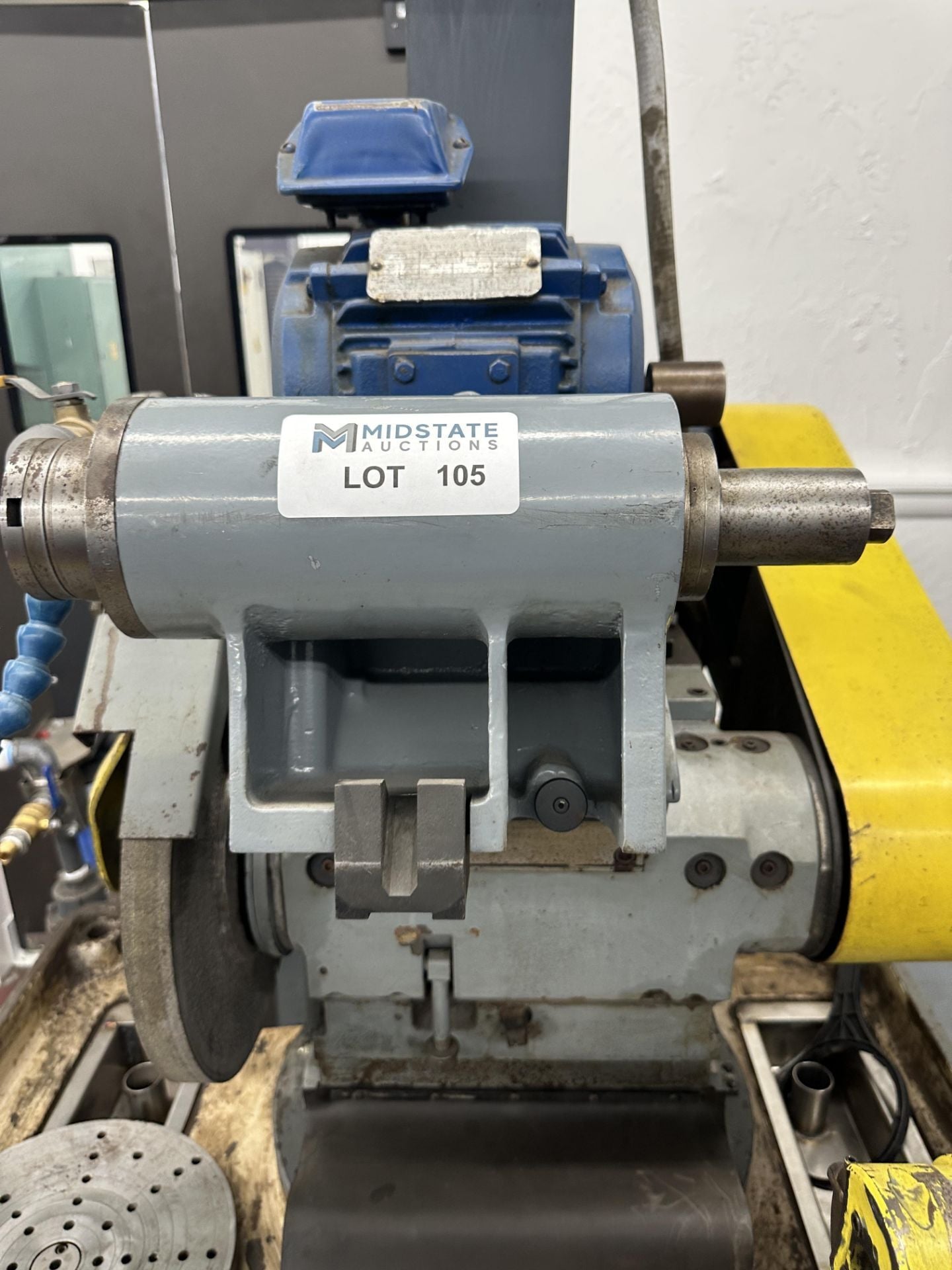

Swing down internal spindle.
Live & dead center head stock.
Variable speed headstock.
Free standing electrical panel.
