Description

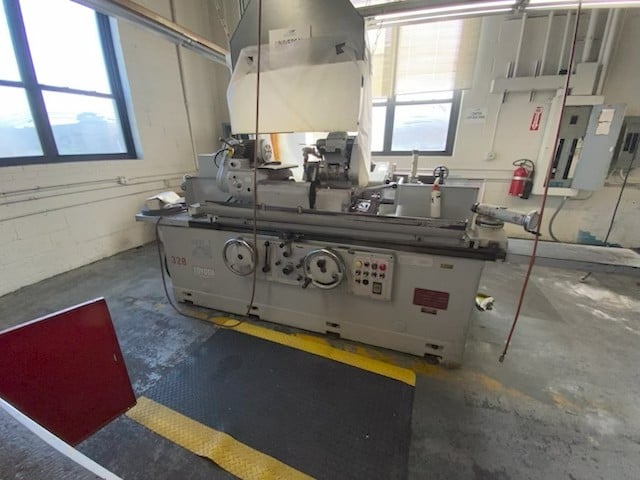

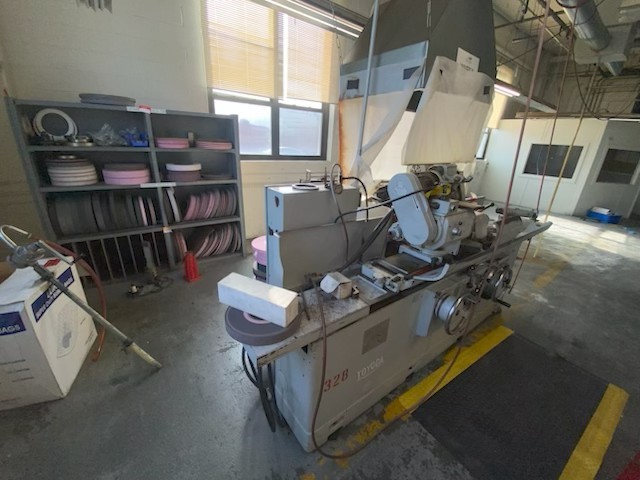

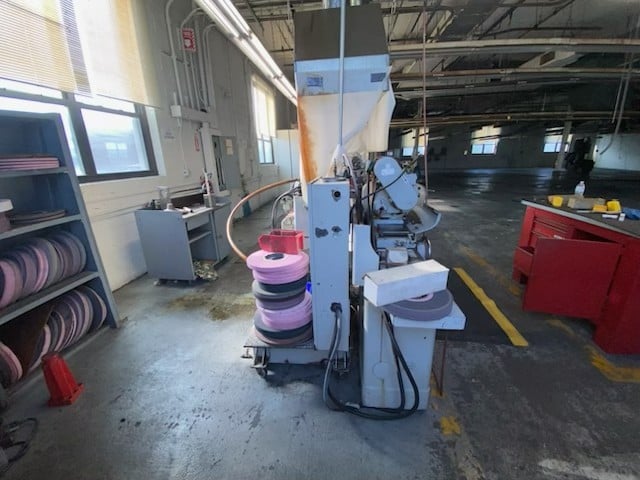

12.6" X 40" TOYODA
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
*** HIGH-PRECISION JAPANESE MADE MACHINE TOOL! ***
MODEL:GUP32X100… S/N: RB″933… NEW: DECEMBER, 1979
CAPACITY:…
MAX. SWING OVER TABLE ................ 12.6"…
DISTANCE BETWEEN CENTERS ............. 40"
MAX. LOAD BETWEEN CENTERS ............″30 LBS.

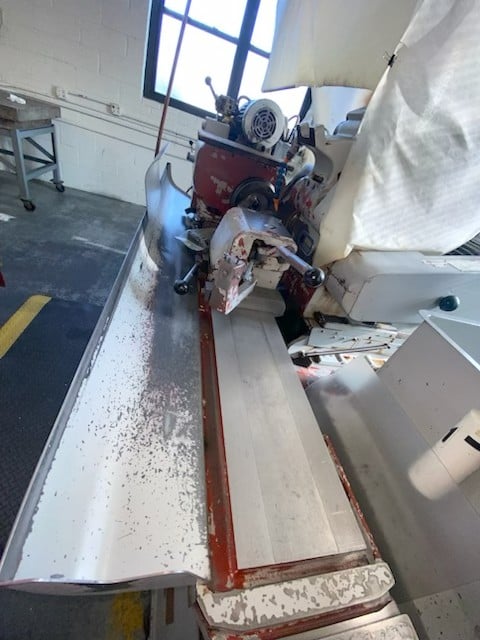

TABLE:
TABLE SWIVELS, COUNTERCLOCKWISE ...... 10°…
LONGITUDINAL TABLE TRAVERSE SPEED .... 2" TO 157" IPM
WHEELHEAD:
WHEELHEAD SWIVELS LEFT… RIGHT .......″0°…
GRINDING WHEEL SIZE .................. 14" x 2" x 5"…
WHEEL SPEEDS (2) ..................... 1650/2150 RPM
TOTAL STROKE ......................... 11.6"
HANDWHEEL INFEED STROKE .............. 6.3"…
ADDITIONAL STROKE BY SLIDING ON…
SUB-SLIDE BASE ......................″.7"…
AUTOMATIC RAPID INFEED STROKE ........ 1.6"…
AUTOMATIC INFEED AT TABLE REVERSALS .. 0.0001" TO .0016"
AUTOMATIC PLUNGE INFEED .............. YES…
AUTO PLUNGE INFEED W/POSITIVE STOP ... 0 TO .0315"…
MOVEMENT PER GRAD. OF HANDWHEEL ...... 0.0001"
MOVEMENT PER TURN OF HANDWHEEL ....... 0.040"

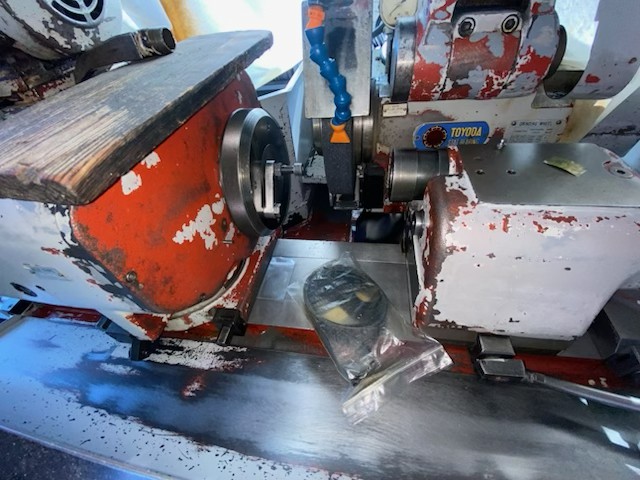

WORKHEAD:
WORKHEAD SWIVELS,
COUNTERCLOCKWISE .................... 90°…
CLOCKWISE ...........................″0°…
WORKHEAD SPINDLE TAPER ................ #4 MT…
INFINITELY VARIABLE SPINDLE SPEEDS .... 16 TO 250 RPM
TAILSTOCK:…
TAILSTOCK SPINDLE CENTER .............. #4 MT…
TAILSTOCK QUILL TRAVEL ................ 1"
APPROX. MACHINE WEIGHT ................ 6,820 LBS.…
APPROX. MACHINE DIMENSIONS ....... 98" x 64"W x 57"H
MACHINE FEATURES:…

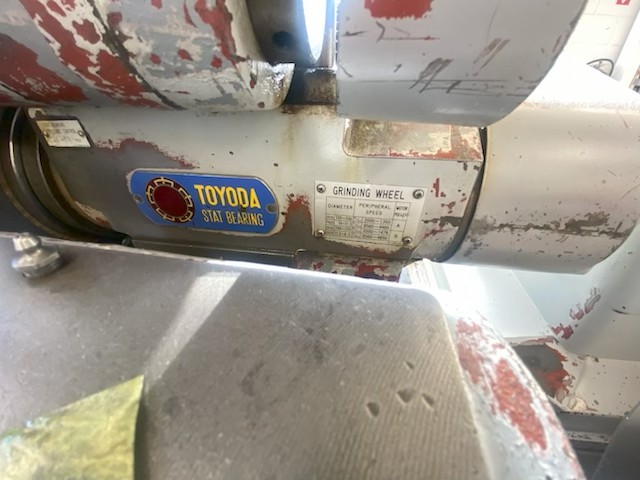

TOYODA…"STAT" HYDROSTATIC WHEELHEAD BEARINGS…
FULLY AUTOMATIC GRINDING CYCLE FEATURING:…
HYDRAULIC TABLE TRAVERSE…
AUTOMATIC INFEED…
AUTOMATIC PLUNGE INFEED…
POWER RAPID WHEELHEAD ADVANCE… RETRACTION… \
SPARKOUT TIMER…
ADJUSTABLE TABLE TARRY…
EXTERNAL HYDRAULIC SYSTEM…
DUAL LIVE/DEAD WORKHEAD SPINDLE
ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)…
MOTORS ARE FOR″/60/220-440 VOLT ELECTRICS
EQUIPPED WITH:…
SWING DOWN I.D. GRINDING ATTACHMENT
(1) TOYODA I.D. SPINDLE.
TABLE MOUNTED DRESSER
TABLE MOUNTED ANGLE DRESSER
EXTRA WHEEL HUB
MANY GRINDING WHEELS
BACK PLATE
T-SLOTTED FACE PLATE
DIAL INDICATOR FOR TABLE SWIVEL
EXTERNAL COOLANT SYSTEM
MACHINE IS PRESENTLY WIRED FOR″/60/220 VOLTS…
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** HIGH PRECISION JAPANESE MADE GRINDER **
** - EXCELLENT CONDITION… APPEARANCE - **
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed:
12.6" x 40" Shigiya #GUA-30-100 automatic infeed hydraulic universal cyl grinder w/internal attach
Seller: Machinery Central
Location: Cincinnati, OH
Mfr: Shigiya
Model: GUA-30-100
, Used Shigiya GUA30-100 automatic infeed hydraulic universal grinder with internal attachment. s 12.6" swing, 40" centers, and 287 lb capacity. auto grinding cycle, swiveling workhead, coolant system. 230/460V power required., Spec Sheet:, 12.6" x 40" SHIGIYA AUTOMATIC INFEED HYDRAULIC, UNIVERSAL CYLINDRICAL GRINDER ...more
12.6" x 40" Shigiya #GUA-32-100, automatic universal cylindrical grinder, swing down internal attach, 5" hole, #4MT, 5 HP
Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
Mfr: Shigiya
Model: GUA-32-100
12.6" x 40" SHIGIYA AUTOMATIC INFEED HYDRAULIC, UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT, Serial No 5976, Model GUA30-100, 12.6" x 40" SHIGIYA AUTOMATIC INFEED HYDRAULIC, UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT, Serial No 5976, Model GUA30-100, Swing Down Internal Attachment, Automatic Grinding ...more
JUST ADDED!
12" x 36" Cincinnati Filmatic #12", Universal Grinder, 3 HP, 50-500 RPM, 12" x1" x5" wheel
Seller: Inter-Plant Sales
Location: Hugo, MN
Mfr: Cincinnati
Model: 12
Cincinnati Filmatic Universal Grinder - 12" x 36", Model: 12", S#: 2U3D1Y-45, Swing: 12", Distance between centers: 36", Grind wheel: 12" x 1" x 5" (14" max), Swivel range: Lower 90 deg. - Upper 30 deg., 3hp Wheel head motor, No. 9 B&S Headstock & footstock spindles, Headstock speeds: 50 to 500 rpm, Table traverse ...more

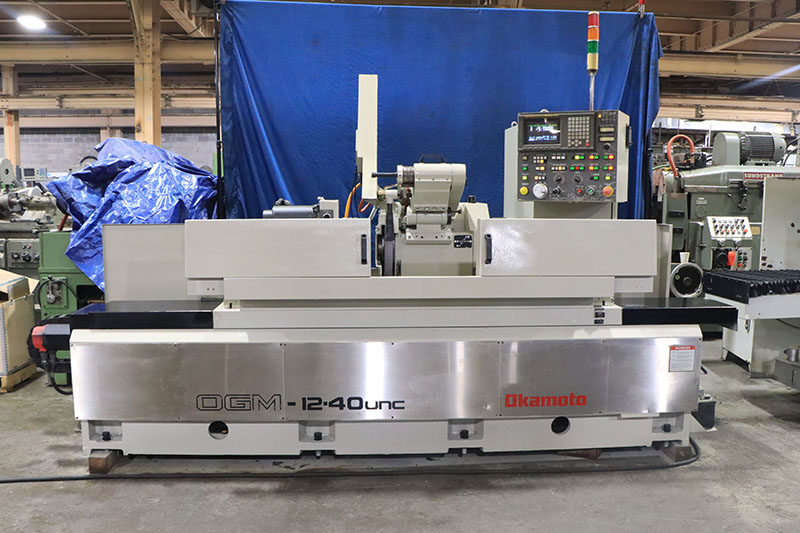

12" x 40" Okamoto #OGM-1240UNC, universal ID/OD cylindrical grinder, 14" x 1.5" x 5" wheel, Fanuc 18-GC CNC, 7.5 HP, ID attch., coolant, 1995
