For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With

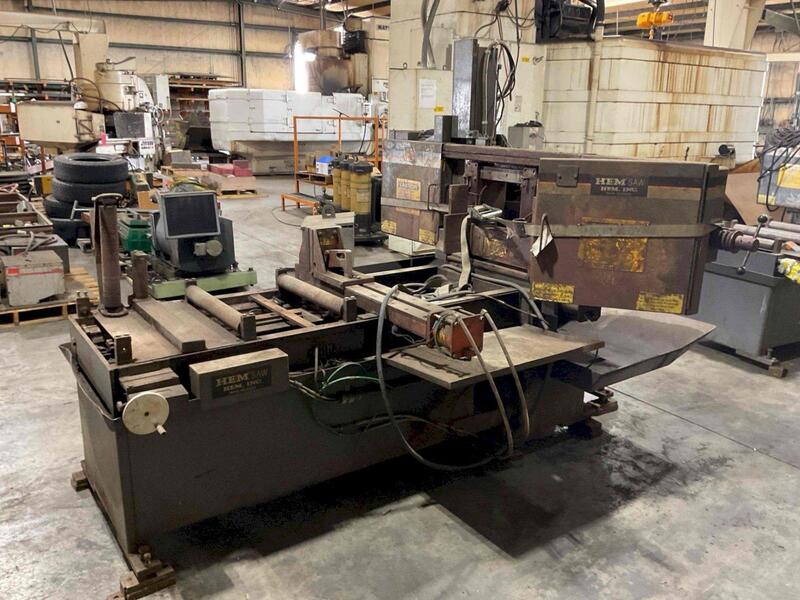

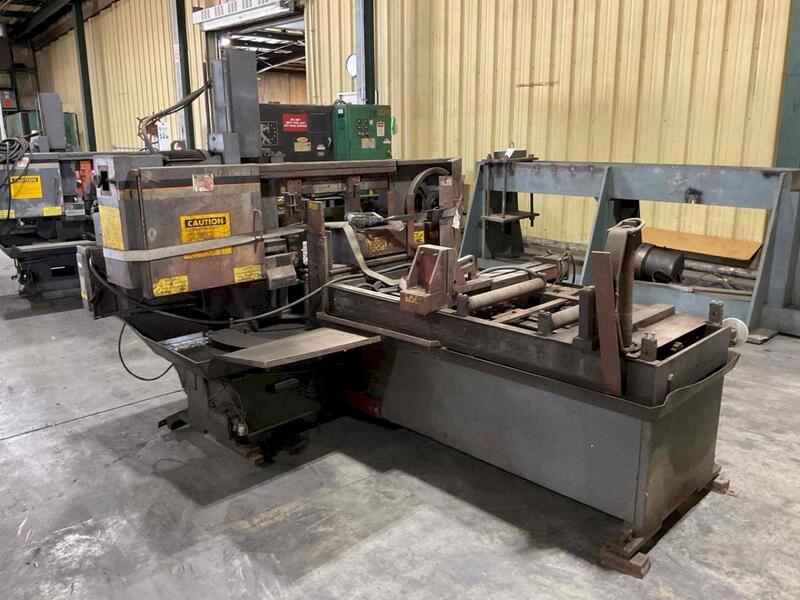

| Saw | Horizontal/Single Column/Miter Arm Heavy Duty Production Bandsaw Saw |
| Capacity | 14" High x 20" Flat @90, 14" High x 15" Flat @ 45, 14" High x 10" Flat @ 60 (Miter one direction only) |
| Arm Miter | Remove locking pin and arm is manually moved to desired degree of cut - locking pin is re-inserted in hole and arm is manually locked in place. Each hole is spaced 15 apart. Degrees are read on a protractor. |
| Arm Lift | Powered from control console. |
| Wheel Size | 18 diameter wheels. |
| Blade Size | 1-1/4 x 15 0 x .042 thick |
| Blade Drive | 5 HP., 220/440V ac, 3 Phase, 1,800 RPM, Ball Bearing TFC. |
| Blade Speed | Infinitely variable speed drive 60-300 SFPM |
| Air Requirements | 85 PSI, 3-5 CFM, Equipped w/air filter/lubricator |

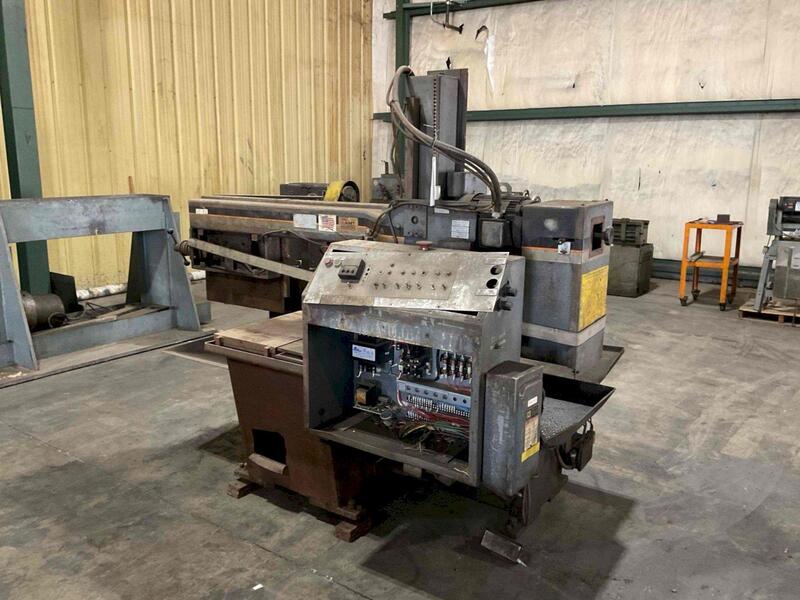

| Operator Control | Control console is located in front of saw for operator convenience. Saw may be operated in manual mode. Motor will shut off at the end of cut and the arm stays in the down position. |
| Motor Start Interlock | Control is equipped with a safety feature of motor start interlock. |
| Clamping Vise | Main clamping vise is powered and is non-cocking |
| Cutting Pressure | Adjustable cutting pressure 0-800 lbs. |
| D Rate | Adjustable 0-3/second |
| Clamping Pressure | Adjustable 0-1,000 Lbs. |
| Blade Guide System | Side and back guides are flat carbide inserts. |
| Coolant System | Machine is set-up for flood style coolant system with 17 gallon capacity. |
| Safety Guards | Machine is equipped with blade guards and awareness barriers for safety purposes. |
| Load Table | 24 roller load table is part of machine base and is fully coolant panned. |
| Discharge Table | 24 solid plate discharge table is part of machine base and is fully coolant panned. |
| Weight | 3000 pounds |
Equipped With
Equipped With
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
