Description
Spec
Material Type: Pre-Painted Galvanized Steel Sheet
Tensile Strength: 220 ~ 350 MPa
Material Thickness: 0.3 mm – 0.5 mm
Number Of Profiles: 4
Speed Of Roll Forming: 20 m/min
Estimated Line Dimensions: 30 m x 4 m
Total Power Estimated: 25 kW
Power Supply: 3 phases 480 VAC
Control Voltage: 24 VDC
Estimated Stations: 14
Shaft Diameter: Ø 85 mm
Minimum Length: 100 mm
Cutting Tolerance: +/- 0.5 mm on 6000 mm
Colors: RAL9002 (White) / RAL2008 (Orange)
Description

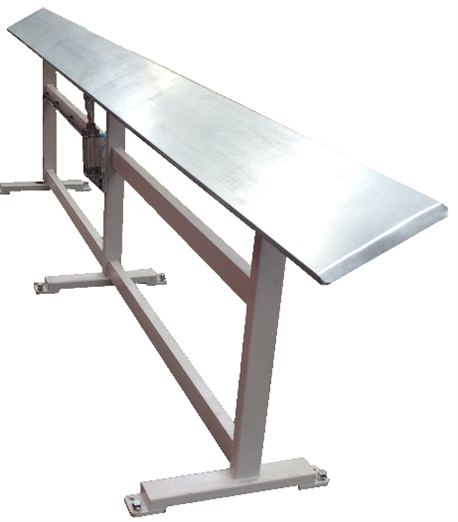

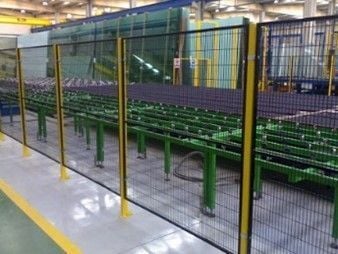

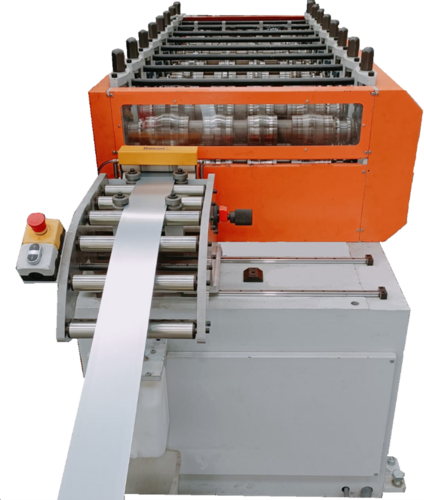

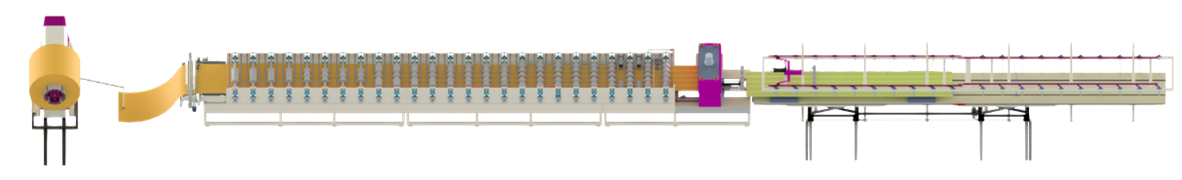

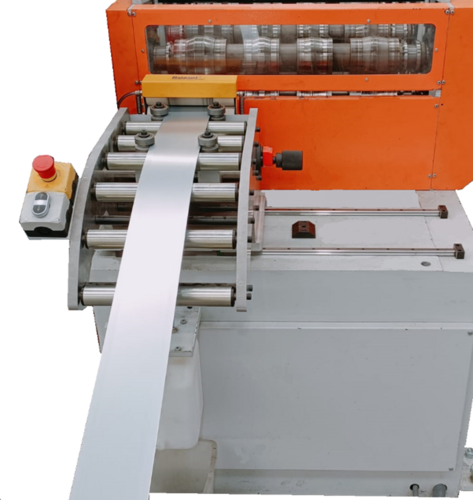

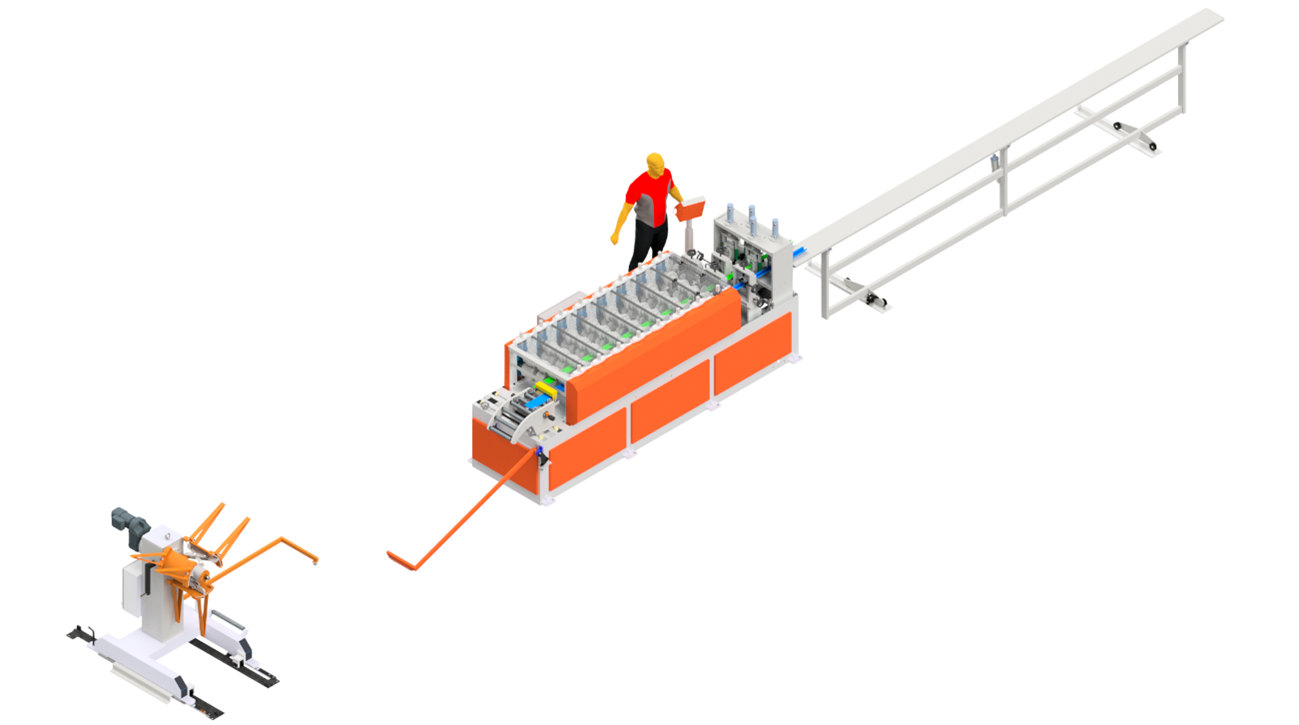

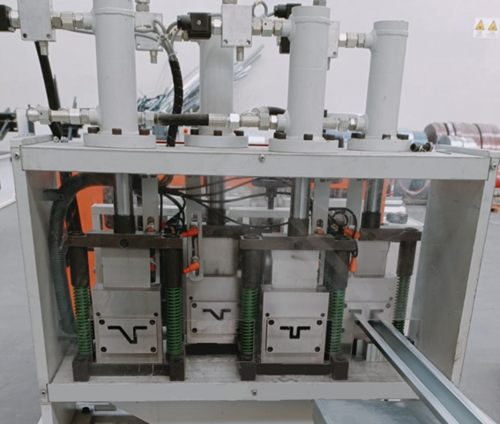

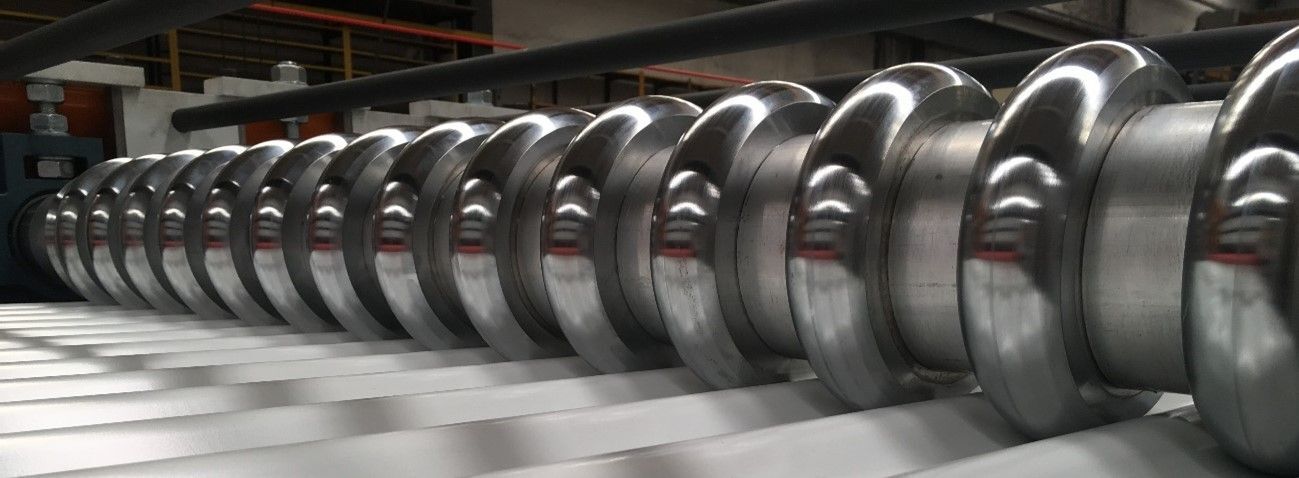

Stefa roll forming line designed to cold form 4 different roofing profiles. The system includes fixed shears with shaped profile blades, a 6 m discharge table to support material, and a touch screen command to control and program all machine functions. Protective barriers surround the roll former line for operator safety. The system is engineered for efficient, repeatable production in sheet metal environments.
