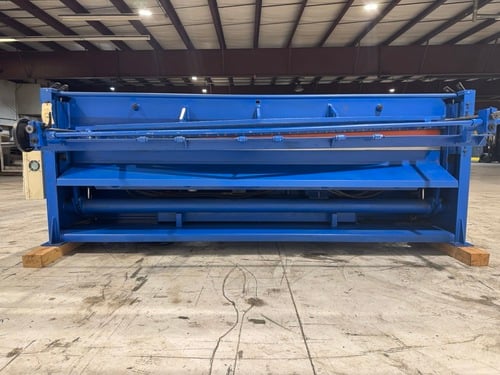

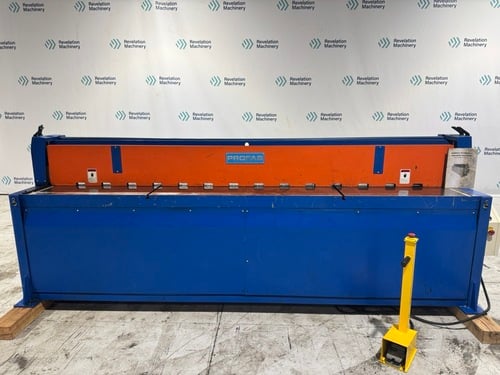

14 gauge x 10' Profab #H-12014, Hydraulic Power Squaring Shear, 24" back gauge, 2023

2023 PROFAB H-12014 hydraulic sheet metal shear built for HVAC and fabrication shops, offering 120″ cutting length, 14-gauge mild steel capacity, hydraulic operation, spring hold-downs, foot-pedal control, and front support arms.

Manufacturer PROFAB / Production Products Inc.
Model H-12014
Year 2024
Machine Type Hydraulic Sheet Metal Shear
Cutting Length 120″ / 10′
Mild Steel Capacity 14 gauge
Stainless Capacity Common comparable rating: approx. 18 gauge stainless, verify data plate
Operation Fully hydraulic control system

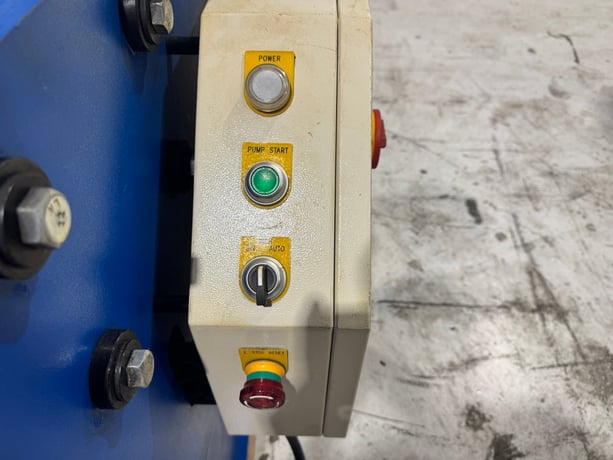

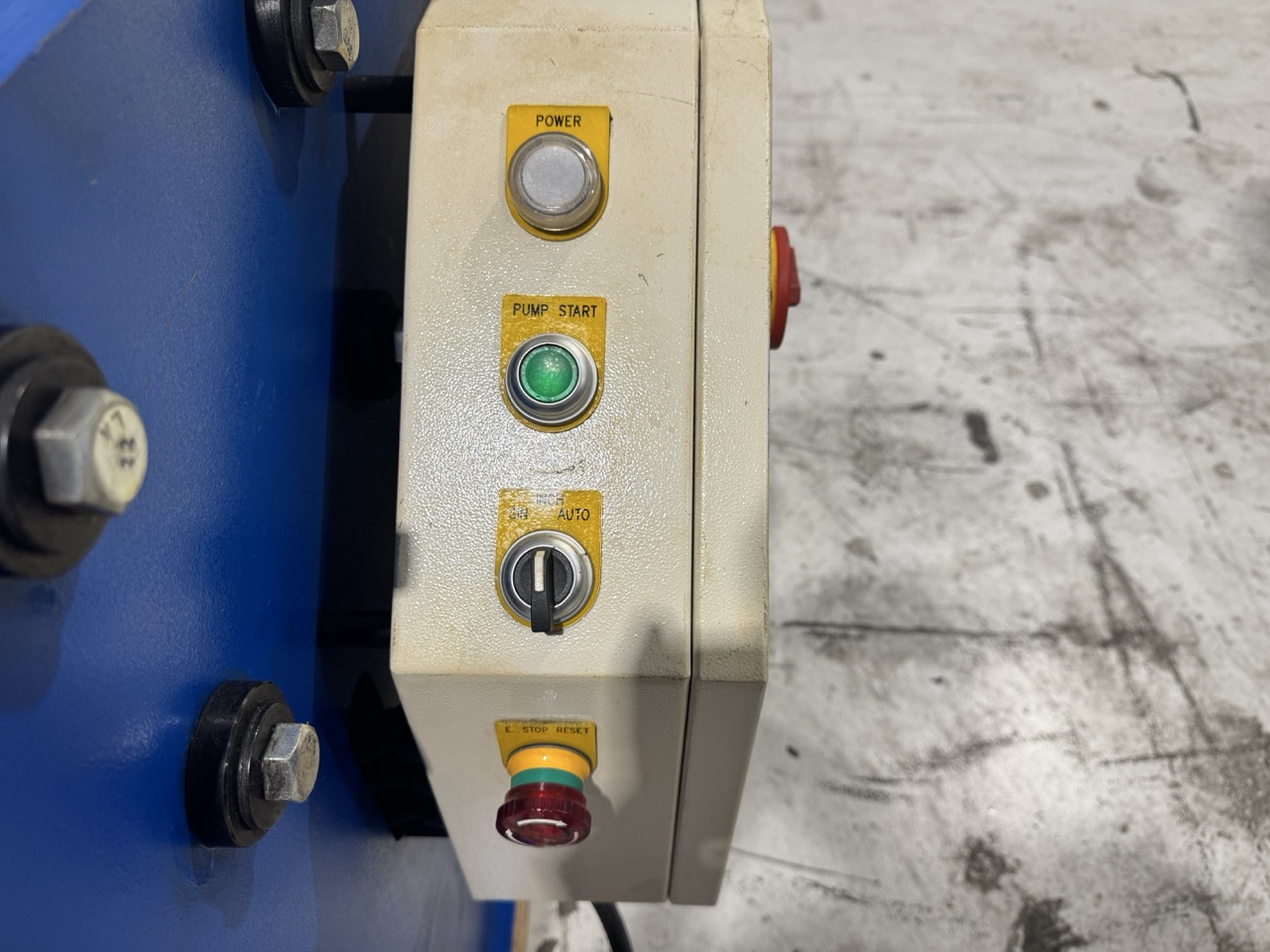

Control Mode Single / continuous mode electric selection

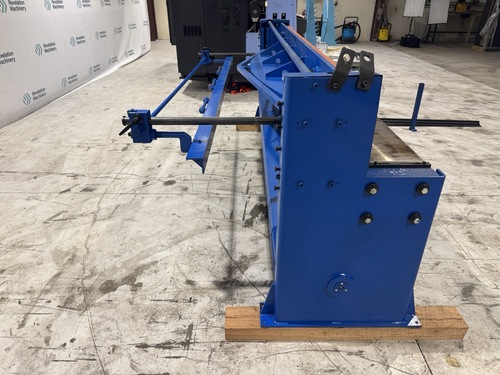

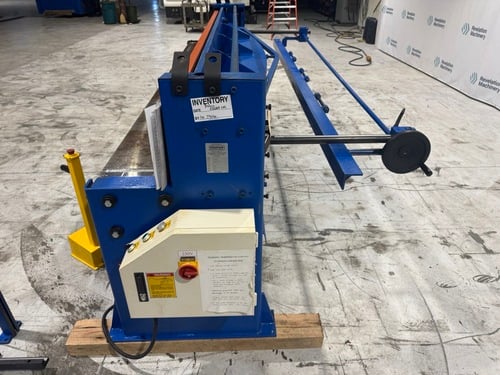

Back Gauge 24″ manual back gauge with wheel

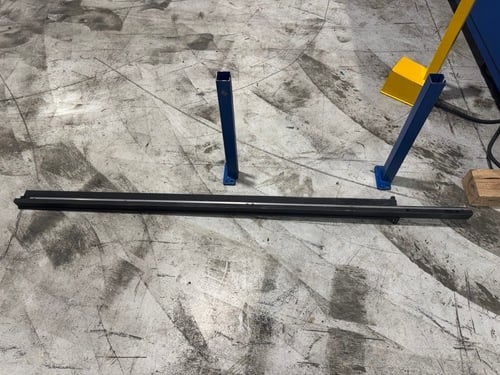

Front Support Two 24″ front support arms
Side Gauges Two 14″ side gauges, right and left, with dual scales
Hold Downs Spring hold-downs
Foot Control Removable foot control pedal with safety protection
Blade Style 2-edge upper blade and 4-edge bottom blade
Blade Hardness 60 HRC
Safety Features Full-length finger guard, hydraulic safety protection, guarded foot pedal
Included Accessories Toolbox and leveling pads
Typical Applications HVAC ductwork, sheet metal shops, fabrication, mild steel and galvanized sheet cutting

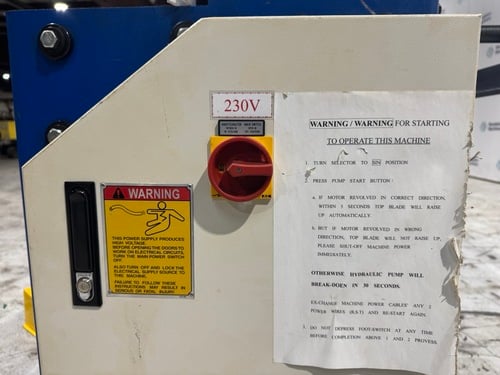

Power Verify data plate; comparable 120″ x 14 ga hydraulic shears commonly use 220V / 3-phase power
Estimated Weight Approx. 5,000–5,300 lbs based on comparable 120″ x 14 ga hydraulic shears; verify before shipping
Estimated Shipping Dimensions Approx. 150″ L x 40–72″ W x 56″ H depending on support arms/accessories; verify actual footprint
