14 gauge x 10' GMC #EPS-1014E, Mechanical Shear, 26 SPM, 30.5" H Worktable, 24" Support Arm, 36" Electric Back Guage, 7.5 HP, new

Description

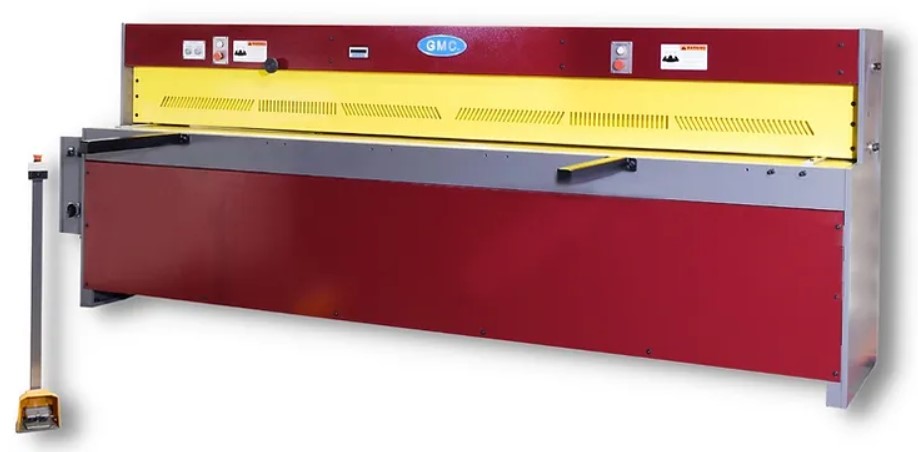

GMC 10′ x 14 Gauge Mechanical Shear with Electric Back Gauge, EPS-1014E

Inventory # 9613

Model: EPS-1014E

Specifications:

Blade Length: 10′ 1″

Cutting Capacity:

Mild Steel: 14 Gauge

Stainless Steel: 18 Gauge

Strokes per Minute: 26 SPM

Worktable Height: 30 1/2″

Front Support Arm: 24″

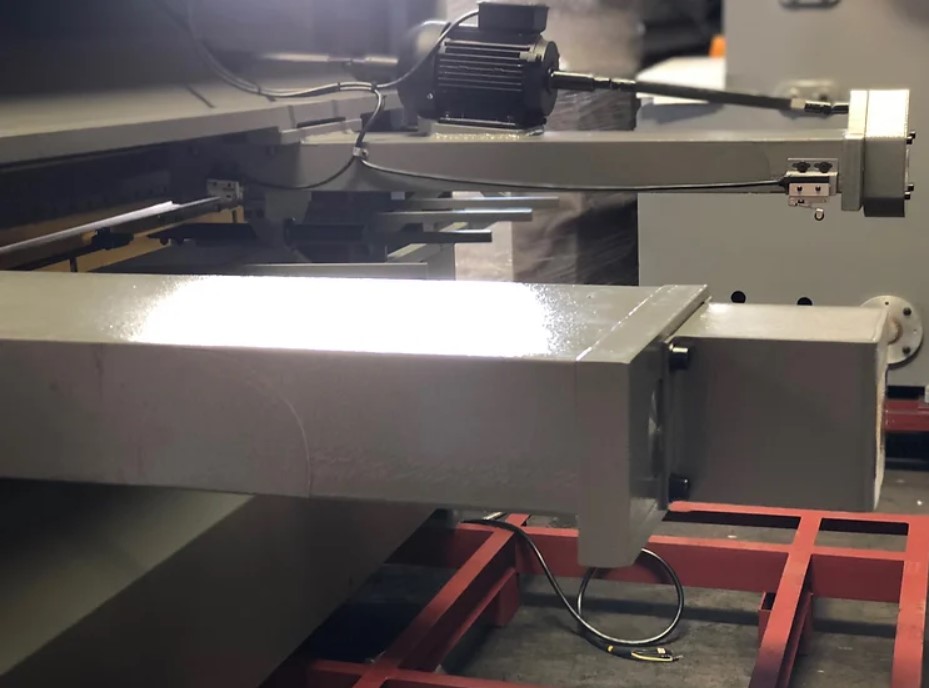

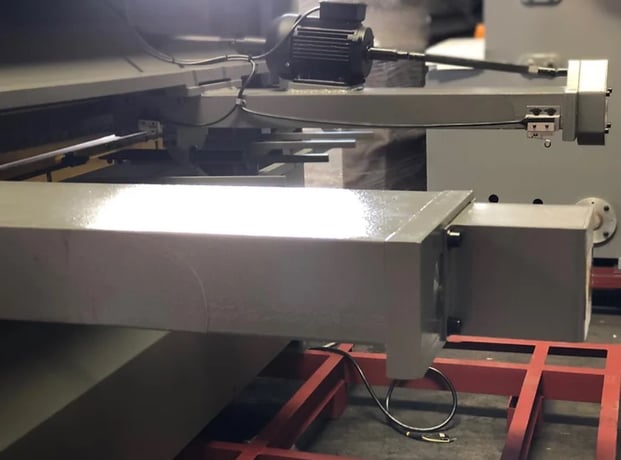

Back Gauge: 36″, Electric

Blade Rake Angle: 2°

Motors:

Back Gauge Motor: 3/4 HP / 220v or 440v / 3ph

Main Motor: 7.5 HP / 220v or 440v / 3ph

(Please Specify Desired Voltage at Time of Order)

Standard Features:

ISO 9001 Certified

HD All Steel Construction for Maximum Rigidity

Precision Driven Gearbox

Spring Hold-Downs

Jog, Single Continuous Auto Operation Modes

One-Year Warranty for Parts

Standard Equipment:

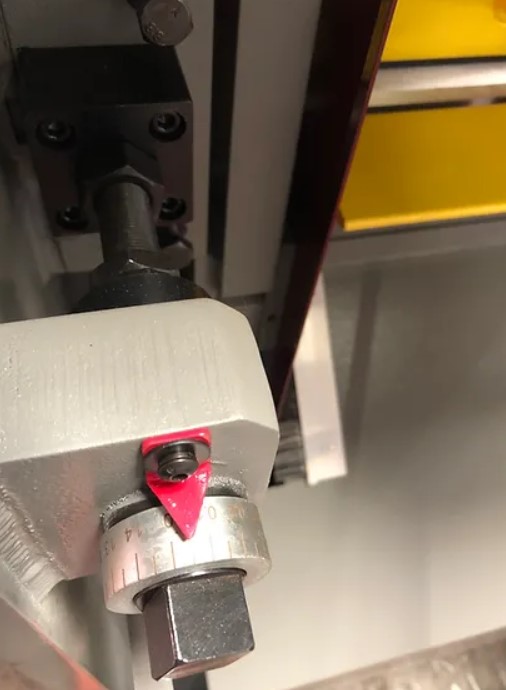

36″ Front Operated Power Back Gauge with German SIKO Digital Readout and Fine Adjustment Wheel

60″ Squaring Arm with Inch/Metric Scale, Mounted on Right Side of the Machine

Rear Lifting Support for Thin Sheet Metal

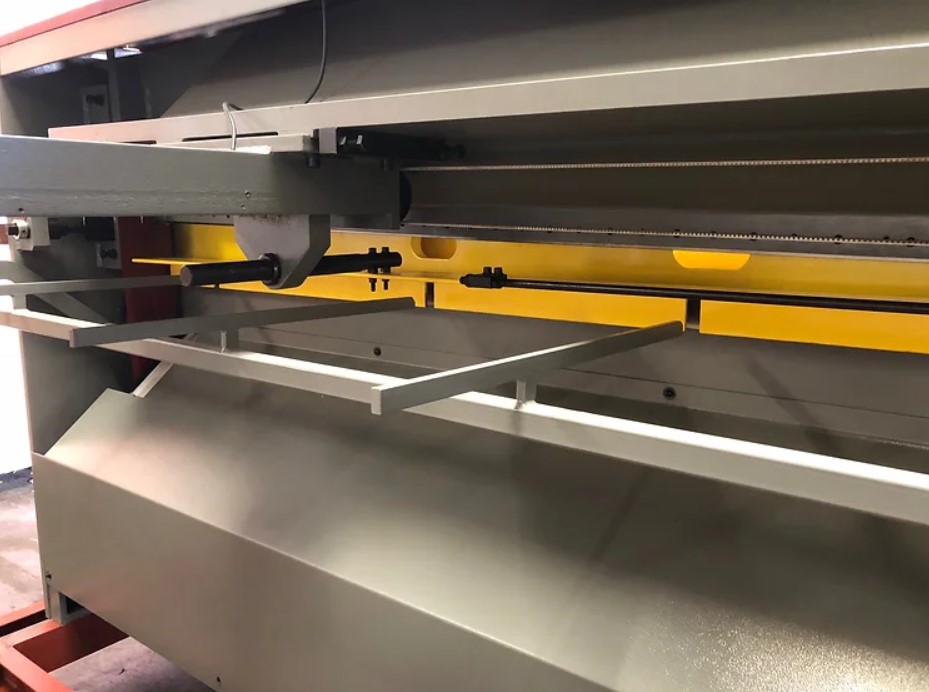

Two 24″ Front Support Arms

Full-Length Finger Guard

Removeable Safety Foot Pedal Control

2-Edge Indexable Upper Blade and 4-Edge Indexable Bottom Blade (High-Grade Carbon/Chrome Alloy Steel Blade and Hardened to 62 HRC)

Mechanical Specifications:

Dimensions: 147″ x 57″ x 53″ H

Weight: approx. 7,350 lbs.

FOB Factory – Contact us for Availability

Optional Equipment:

Safety Fence for Enclosure for Back of Shear

Material Front Out Tray
