For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Base Dimensions | 12.5" x 19.75" |
| Column Diameter | 3.625 inches |
| Drilling Capacity | 1 inches |
| Max Distance Spindle to Table | 14.5 inches |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Quill Diameter | 2.44 inches |
| Range of Spindle Speeds | 110 - 2,580 RPM |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 3.5 inches |
| Swing | 14.5 inches |
| T-Slot Centers | 1.81 inches |
| T-Slots Number and Size | 4 and 9/16 |
| Table Longitudinal Travel | 14 inches |
| Table Size (L x W) | 7.5" x 23" |
| Work Table Weight Capacity | 350 pounds |
| Overall Dimensions (L x W x H) | 38" x 37.5" x 42" |
| Weight | 440 pounds |
Equipped With
Equipped With
DETAILS:

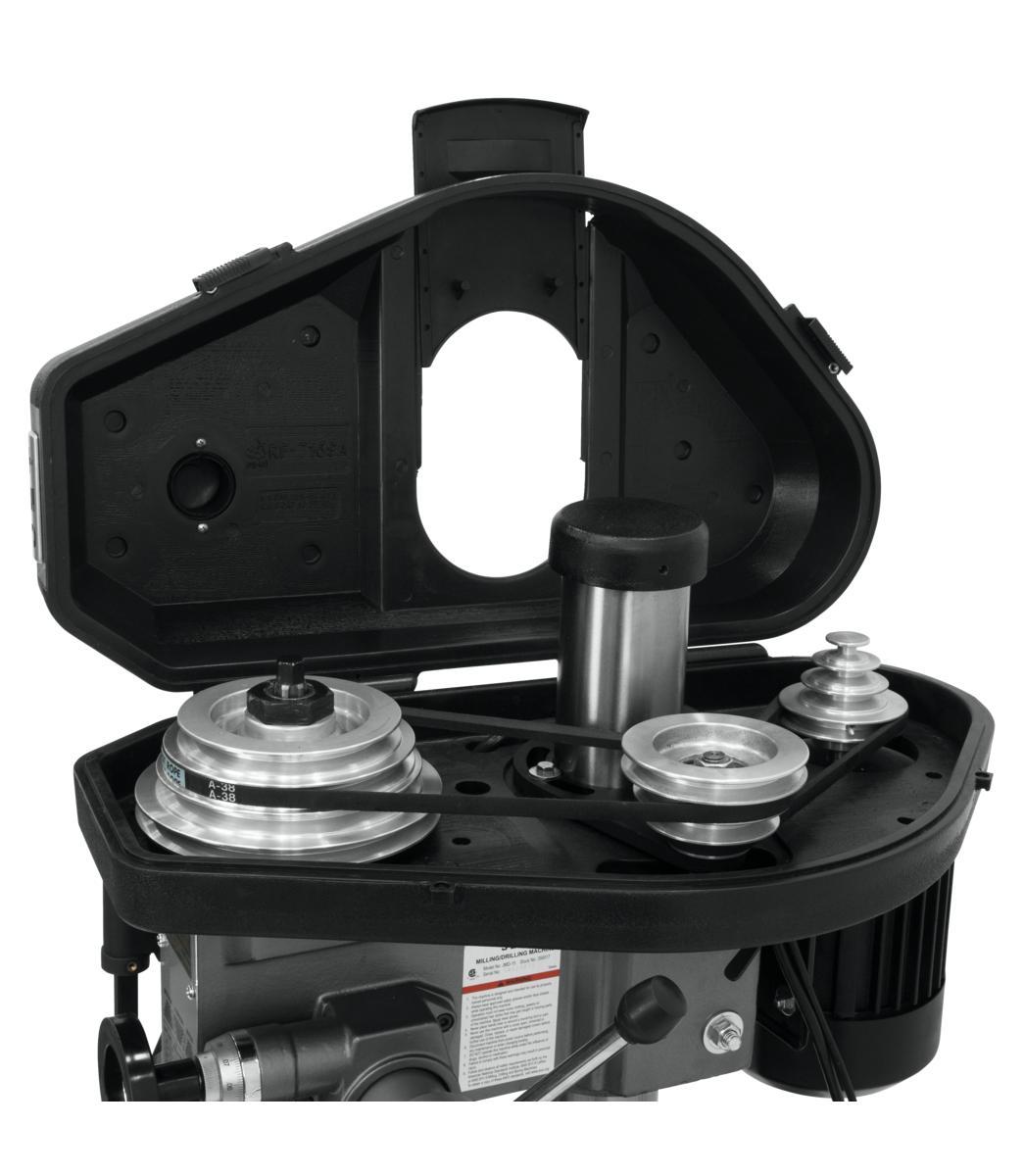

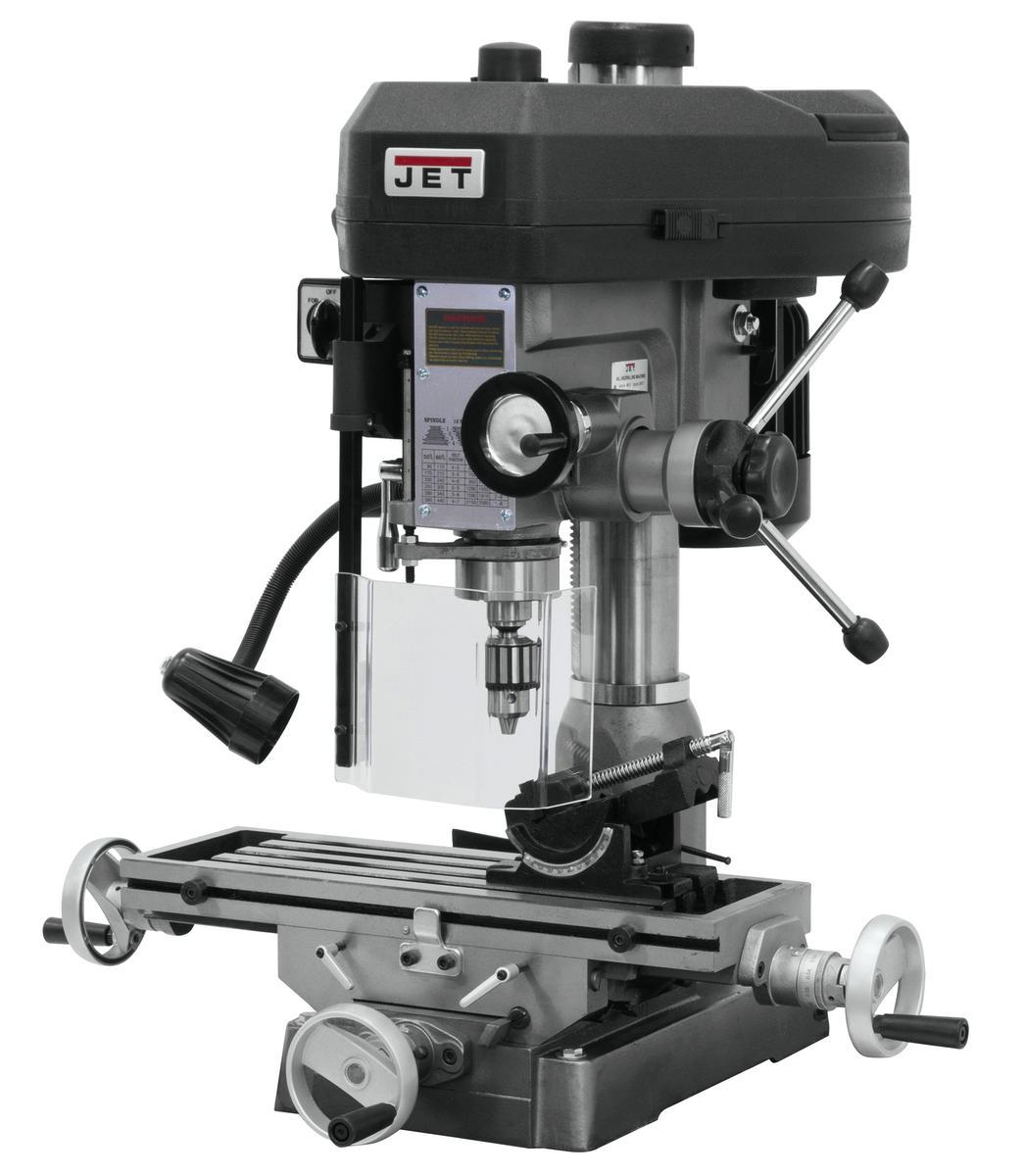

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
FEATURES:
* 1/2” Drill chuck, chuck arbor
* 360° head swivel
* Adjustable carbide facemill
* Base taper allows for easier clean up

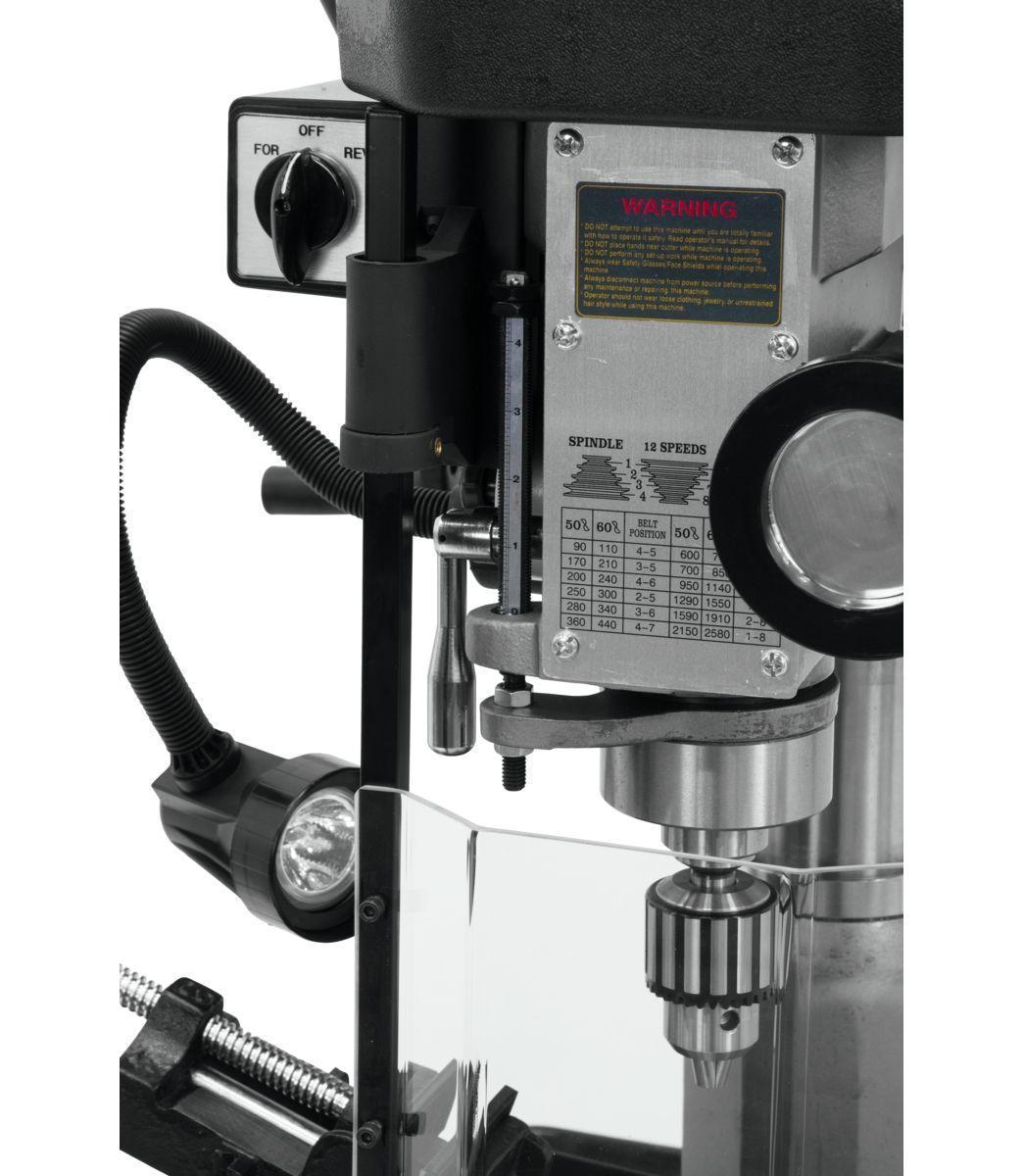

* Easy to read external depth gauge
* Mill Drill Stand, p/n 350045, shown in some images, is optional
* One-piece cast iron column for added support
* UL Listed
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
FEATURES:
* 1/2” Drill chuck, chuck arbor
* 360° head swivel
* Adjustable carbide facemill
* Base taper allows for easier clean up
* Easy to read external depth gauge

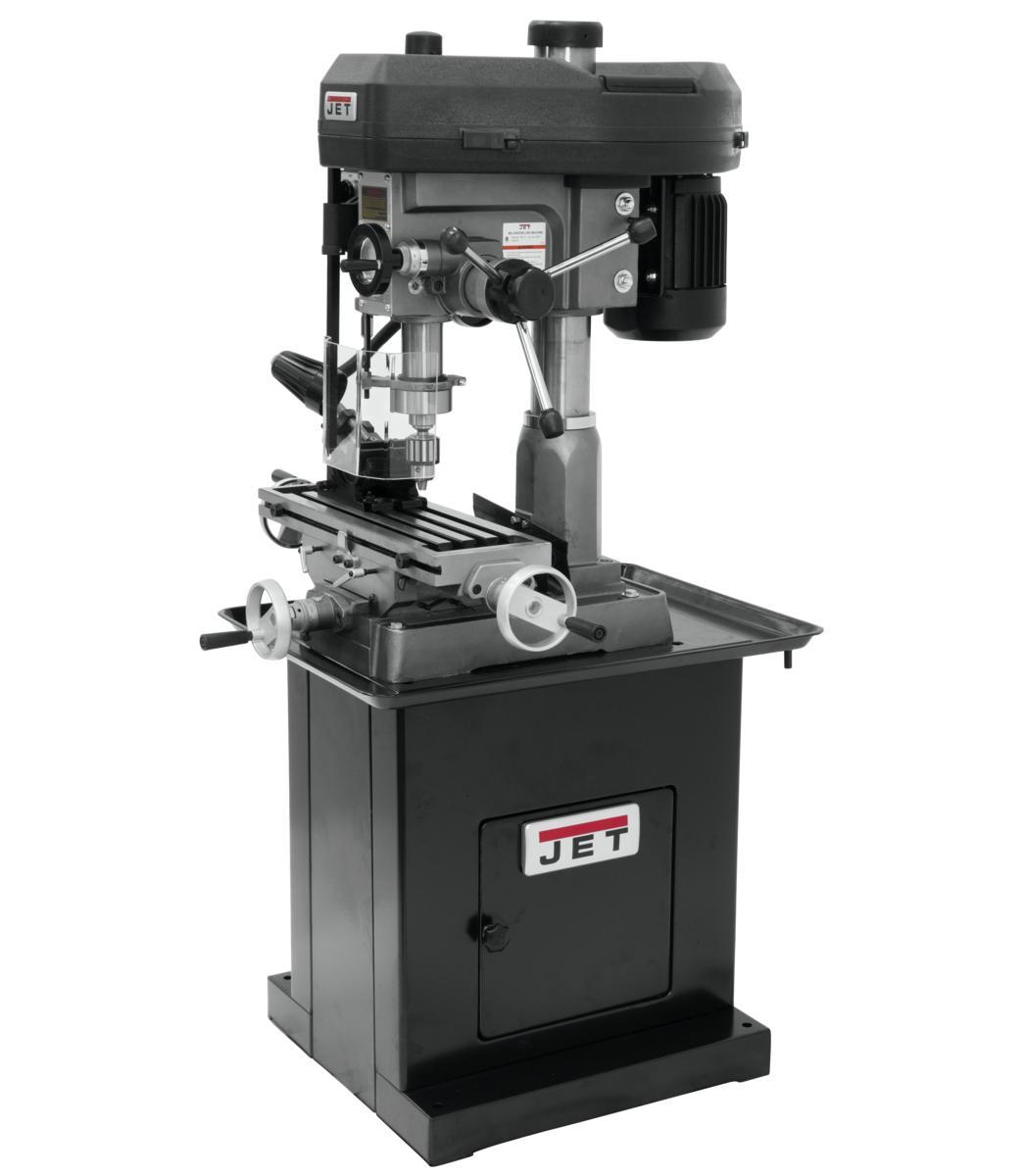

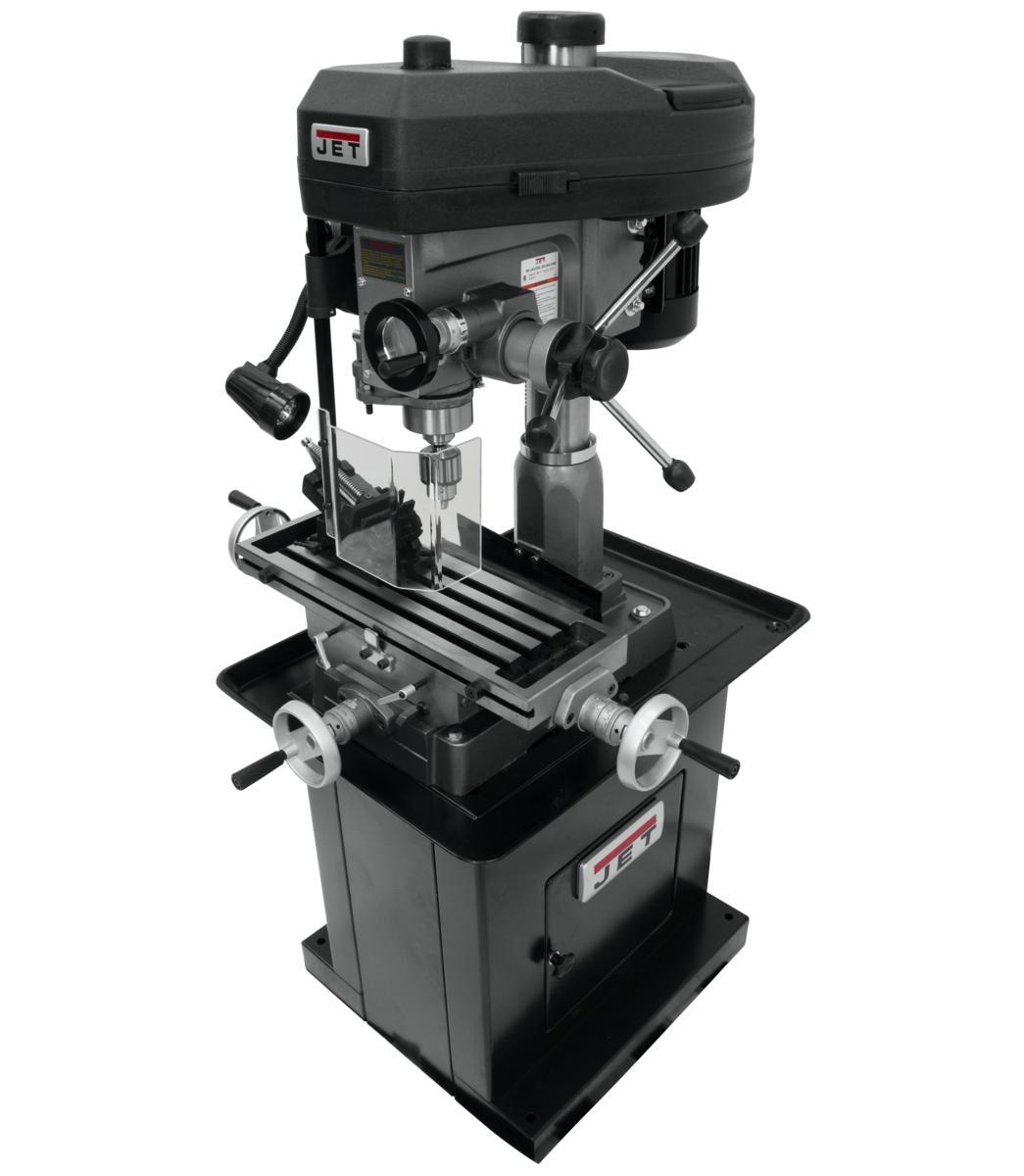

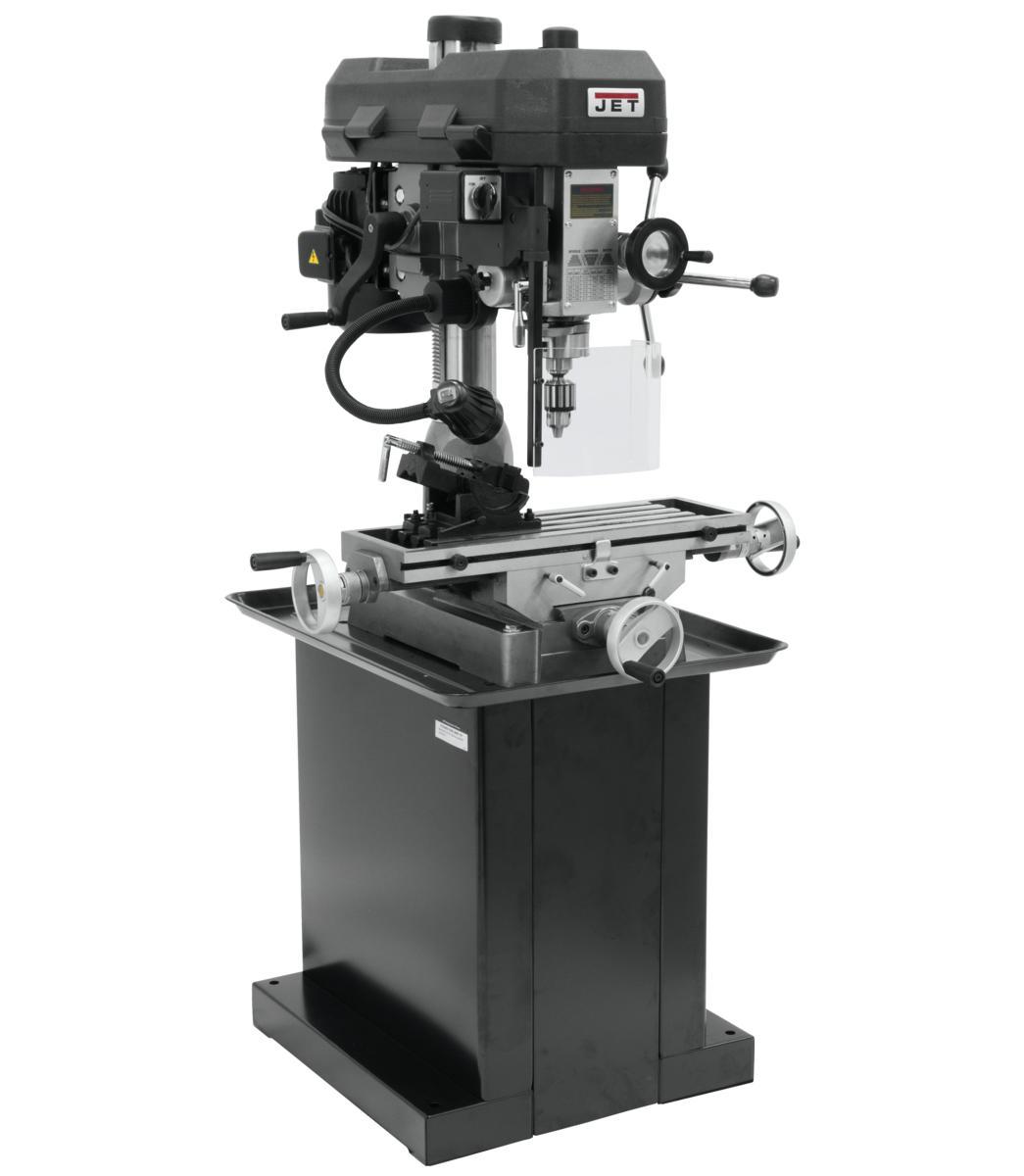

* Mill Drill Stand, p/n 350045, shown in some images, is optional
* One-piece cast iron column for added support
* UL Listed
