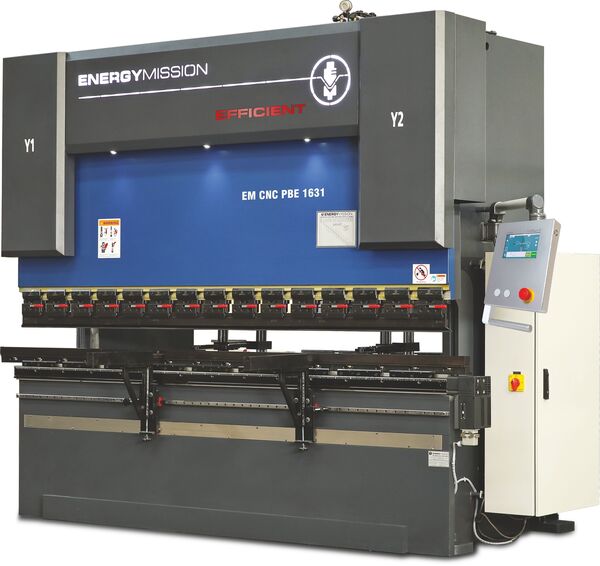

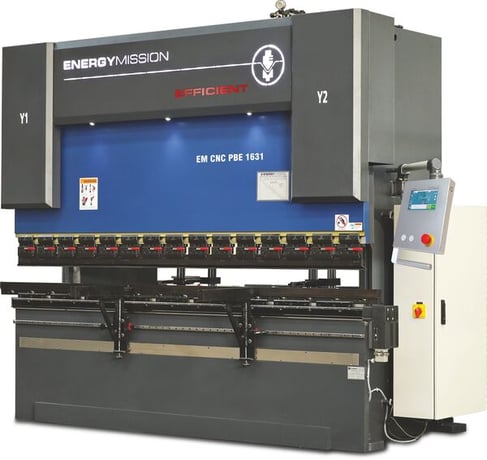

For Sale by Bud's Machine Tools
Description
Specifications
| Tonnage | 138 T |
| Type | HYD |
| Stroke | 11.81" |
| # Axis | 3 |
| Bending Length | 8' |
| Table Width | 3.54" |
| Clear Pass | 80.71" |
| Ram Stroke | 11.81" |
| Open Height | 19.09" |
| Throat Depth | 15.75" |
| Approach/Pressing/Return Speed | 3.94/.24/2.56 IPS |
| Dimensions L x W x H | 118x83x118" |
| Control | CNC (Cybelec 8) |
| Weight | 17199 |
• Press Beam Depth Accuracy: ± 0.01mm
• Press Beam Depth Repeatability: ± 0.01mm
• Back Gauge Accuracy: ± 0.1mm
• Back Gauge Repeatability: ± 0.1mm
Equipped With
• 3 Axis machine with automatic, accurate & fast back gauge
• CybTouch 8PS Controller from CYBELEC Switzerland
• Rigid upper beam guide on 12-point roller bearings
• Ultrasonically & tensile tested IS:2062 grade steel structure ensures the rigidity & avoid deflection.
• The frame is machined on Floor Boring Machine ensuring single reference accurate machining.
• Quick release clamps
• Back gauge assembly included ball screw, AC Servo drive, LM guides & timer belt
• Back gauge fingers mounted on LM guide
• Quick V′ groove change over with self-centred die with rail.
• Hardened & grounded 2V′ / 4V′ die & semi gooseneck punch
• Front sliding sheet support with LM guides for easy movement
Get Your Price from Bud's Machine Tools!
