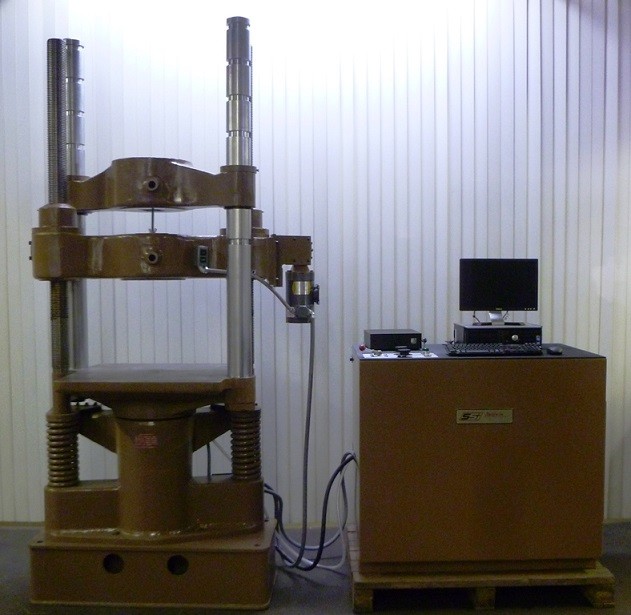

135000 lbf (600kN) Satec Baldwin #BTE, Servo hydraulic tension & compression testing machine, 48" testing opening, reconditioned / retrofitted

(1) Reconditioned 135,000 lbf (600 kN) Capacity Satec/Baldwin Model BTE Hydraulic Tension and Compression Testing Machine.

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 30"

Testing Stroke: 9"

Table Size (W x D): 30" x 30"

Testing Speed (IPM): 0 – 4

Crosshead Adjusting Speed (IPM): 10

Approximate Overall Dimensions:

Standard Console (W x D x H): 41" x 33" x 40"

New Servo Hydraulic Console (W x D x H): 36" x 24" x 38"

Load Frame (W x D x H): 56" x 30" x 108"

Weight (lbs.): 6,500

Electrical Requirements (V,Hz,PH): 220/440, 60, 3

EQUIPPED WITH:

• New Computer System
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• MTGenius, Material Testing Software for Data Acquisition (load, position & 2 strain) Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB cable.
• Celesco, High Resolution TTL compatible incremental quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
• Precision Pressure Transducer for Load Values with Signal Cable and Mounting.
• Reconditioned Satec Servo Hydraulic Power Supply for Precision Computer Controlled Testing (Load, Position and Strain Control)
• Adjustable Top Crosshead

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
