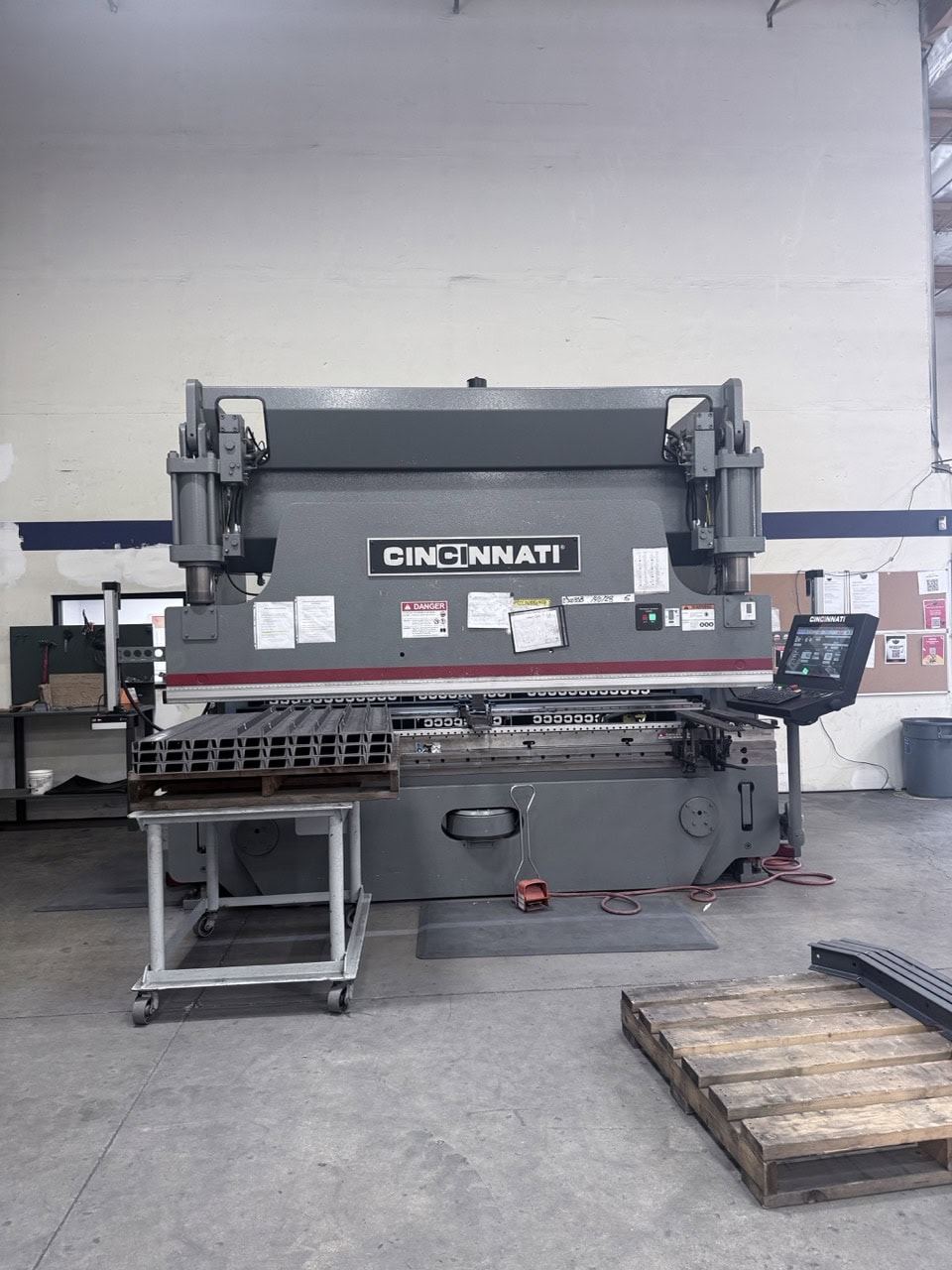

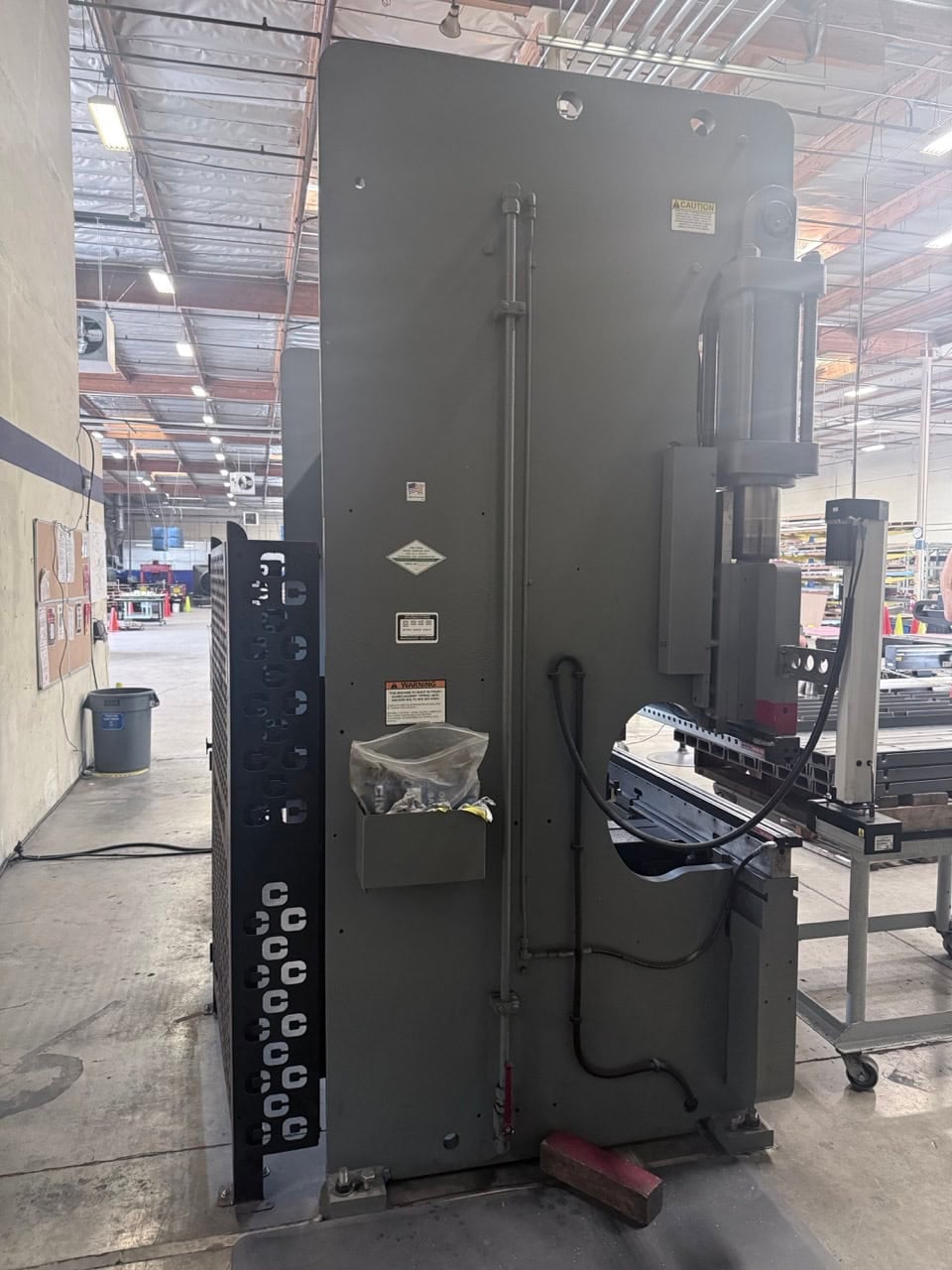

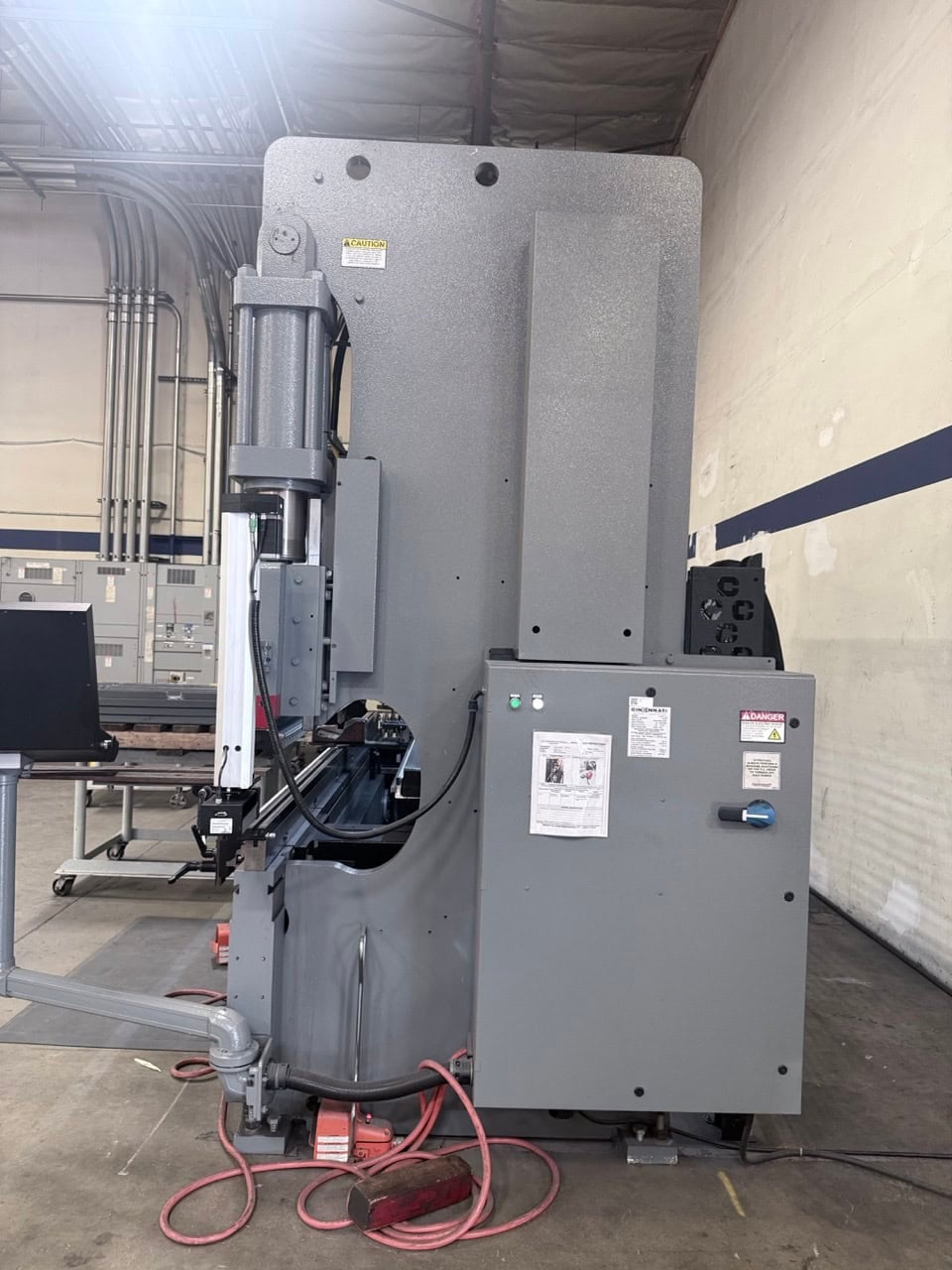

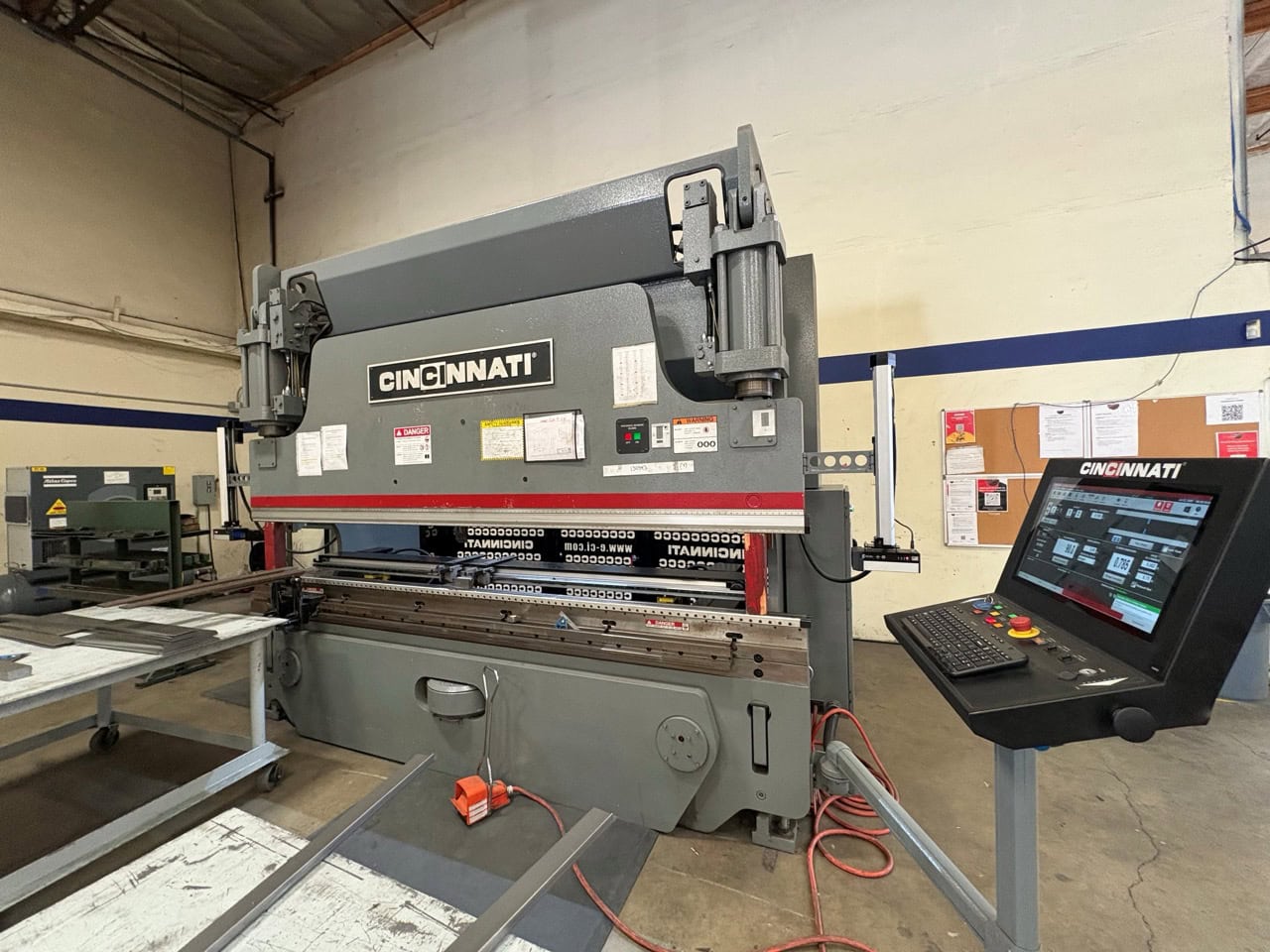

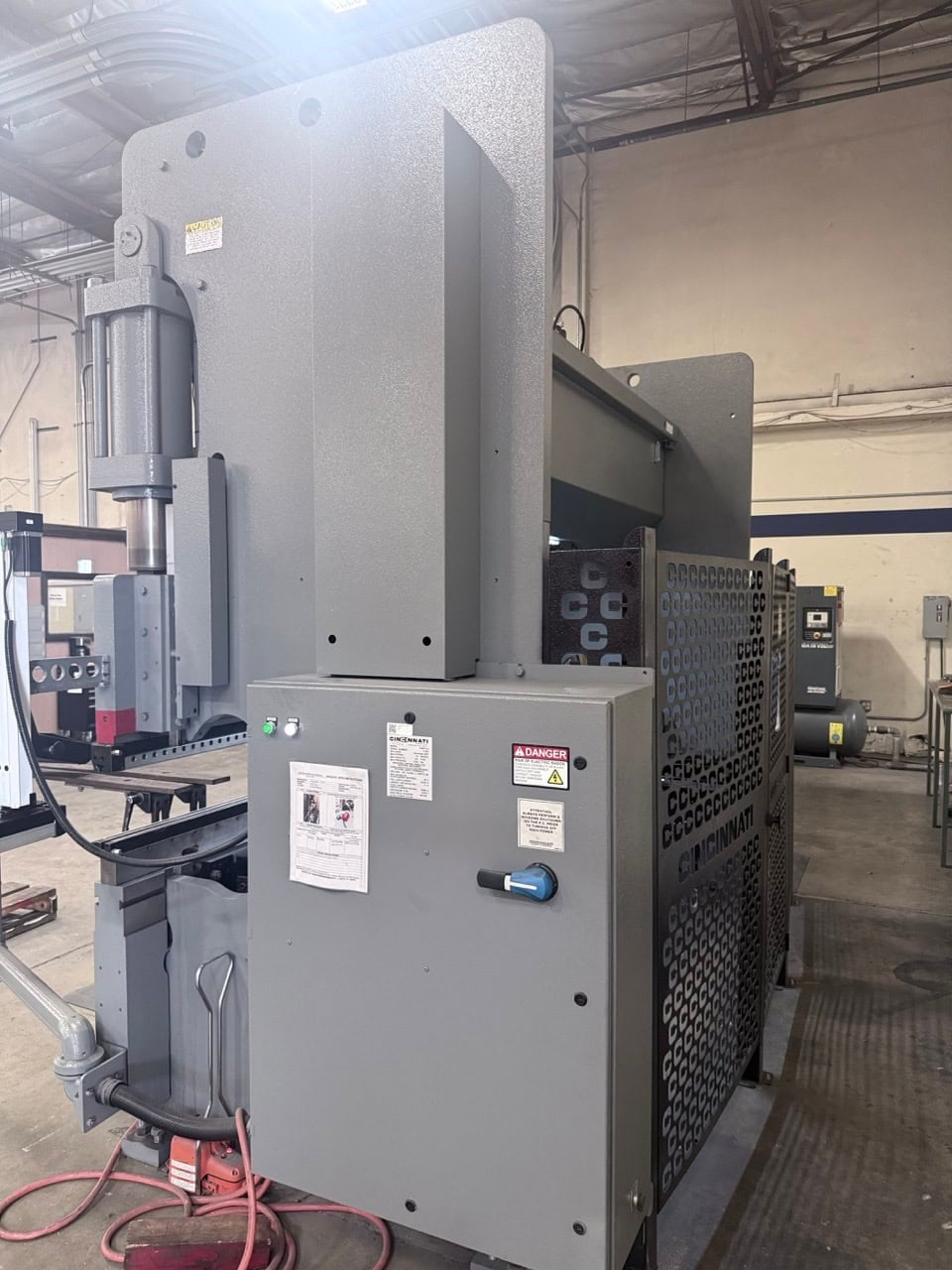

135 Ton, Cincinnati #135PF-10-Proform, CNC press brake, 12' overall, 6" stroke, 18" throat, 24" 5-Axis backgauge, Auto Crown, Lazersafe IRIS, 2021

Manufacturer: Cincinnati Incorporated (CI)
Model: 135PF+10 PROFORM+ CNC Press Brake
Overall Bed/Ram Length: 12′ (Twelve Feet)
Tonnage Capacity: 135 Tons
Condition: Very Good (Fully operational, well-maintained, precise to factory spec)
Official Machine Utilization Statistics

Main Drive On Time (Pump Hours): 5,710.40 Hours
Total Active Cycle Time: 525.96 Hours
Total Machine Strokes: 286,761
Stroke Counter: 284,585
Continuous Parts Counter: 126,113
Power On Time (Control Idle): 35,093.04 Hours
Premium Factory Upgrades & Configuration

Backgage System: 24″ CNC 5-Axis Backgage
Deflection Compensation: Factory Auto Crown® System
Ram Configuration: 6” Increased Stroke (Upgraded from standard)
Throat Depth: 18” Deep Throat (Upgraded from standard)
Upper Tool Clamping: Wilson Hydraulic Upper Clamp APH-2 (1/2″ Tongue, 77 tons/ft.)
Lower Tool Clamping: Wilson Hydraulic Lower Clamp HCS-D (5.075″ total height)
Primary Safety System: Lazersafe IRIS with Auto Tool Alignment & Rapid Bend Ultimate
Safety Brackets: Lazersafe SmartLink Motorized Brackets (for automated IRIS height adjustment)
Physical Guarding: Steel Rear Guarding equipped with Electrically Interlocked Safety Gate
Leveling System: Automatic leveling control system with dual linear encoders (.0002″ Resolution)
Foot Controls: Additional Standard / Hold-to-Run Footswitch Assembly
Material Handling: Fast Setup Work Supports (Two 15″ work supports on 10′ of floor track)
Electrical Requirements: 460V / 3 Phase / 60Hz
Factory Paint Finish: Original CI Laser Gray
Control & Software Specifications

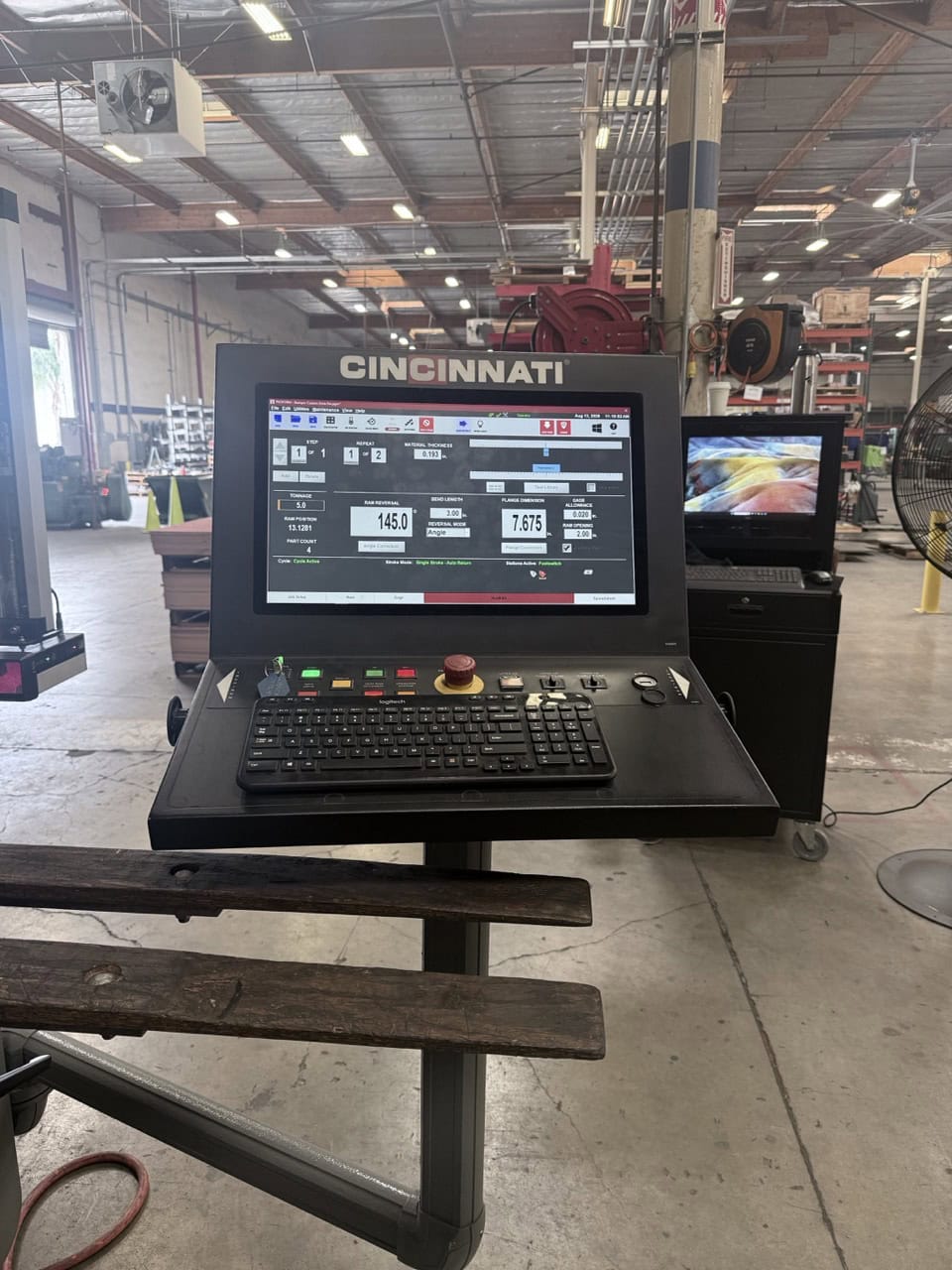

Interface PC: CI PC-based Operator Control running Windows OS
Display Hardware: 22″ TFT LCD Flat Panel Touchscreen with integrated Keyboard and Trackball
Connectivity: USB and Ethernet Convenience Outlets
Networking: Configured for Remote Monitoring via company server/web browser
Software Suites:
Graphical Tool Library & Automatic Tool Load Tonnage Calculation
Multiple Forming Modes (Angle, Tonnage, Position, Absolute Position)
Quick Bend Mode & Interactive Job Setup Screens (Material, Notes, Tool Lists)
CAD Part Shape Design featuring Flat Blank Size Calculation
Comprehensive Machine Diagnostics & Management Information (Maintenance Tracking/Parts per min)
Programmable Ram Tilt, Clamp, Retract, and Variable Speeds (Forming/Return)
