For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| Center width | 39.37 in |
| Turning diameter over bed | 13 in |
| Turning- over support | 8 in |
| Turning diameter over gap bridge | 19 in |
| Gap bridge length | 8 in |
| Bed width | 7 in |
| Travel X-axis | 6.7 in |
| Travel Z1-axis | 4 in |
| Swing range of top slide | 360 |
| Spindle speed | (8) 70 - 2,000 rpm |
| Spindle bore | 1 in |
| Spindle mount | Camlock D1-4 |
| Spindle taper | MT 5 |
| Feed X-axis | 0.00055 - 0.01496 in/R |
| Feed Z-axis | 0.00205 - 0.0548 in/R |
| Tapping, metric | (26) 0.02-0.3 mm |
| Tapping, withworth | (34) 4-56 TPI |
| Tailstock quill diameter | 1 in |
| Tailstock taper | MT 3 |
| Tailstock quill stroke | 4 in |
| Tailstock traverse adjustment | 0.5 in |
| Motor rating main drive | 2 Hp |
| Overall dimensions (length x width x height) | 73x27x52 in |
| Weight | 1,144 lbs |
| Part No. | 300815 |
- Hardened and ground headstocks gears
- Gap bridge
- Max. spindle speed 2000 rpm
- Adjustable headstock bearing
- Cast-iron bed, double v-guide, hardened and ground
- Interlocking feature prevents simultaneous advance of lead screw and feed shaft
- Oil-bath lubricated main drive and feed gear
- Double-walled apron box with oil-bath lubrication
- All guide ways are adjustable
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 3-jaw chuck 6"
- 4-jaw face plate chuck 8" (not for Basic 180 V)
- face plate 11"
- quick change tool holder head WE
- quick change tool holder WED 20100
- steady and follow rests
- fixed splash guard (wall)
- chuck guard
- foot brake pedal
- base
- work lamp
- dead center
- operating tools
- operator instructions
Get Your Price from Blumberg Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
13" x 40" Hercules #C62362E-1, engine lathe, 7.5" swing over cross slide, 3-jaw 8" chuck, 5 HP, foot brake
Category: Engine Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hercules
Model: C62362E-1
SERIAL. 42148/94570MODEL. C6232E-1SWING OVER WAYS. 13"SWING OVER CROSS SLIDE. 7.5"SWING IN GAP. 21"DISTANCE BETWEEN CENTERS. 40"SPINDLE SPEEDS (VARIABLE). 40 TO 1800 RPMDIAMETER OF SPINDLE HOLE. 1-7/8"FEEDS ENGLISH. 0025 TO.122 IPRTHREADS (ENGLISH). 4 TO 160 IPRTHREADS (METRIC).025 TO 10 MMPRCHUCK. 8" 3 JAWHARDEN ...more
JUST ADDED!

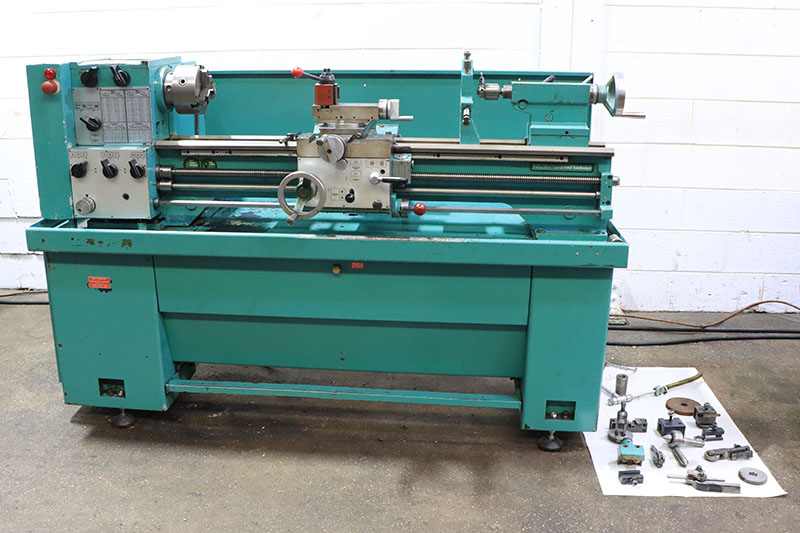

13" x 40" Harrison #M300, engine lathe, 1-1/2" bore, D1-4, 40-2500 RPM, inch/metric, taper attachment, 3-jaw chuck, Steady Rest, Dorian QCTP, 3 HP
Category: Engine Lathes
Seller: Machinery Values Inc
Location: Harrison, NJ
Mfr: Harrison
Model: M300
13" X 40" HARRISON ENGINE LATHE MODEL: M300, S/N:″11075, NEW: 1980's :SWING OVER BED. 13-1/8"SWING OVER SADDLE. 8-1/4"DISTANCE BETWEEN CENTERS. 40"HOLE THROUGH SPINDLE. 1-1/2"SPINDLE NOSE, CAMLOCK, SIZE. D1-4"SPINDLE SPEED RANGE(12). 40 - 2,500 R.P.M.LONGITUDINAL FEED ...more
JUST ADDED!

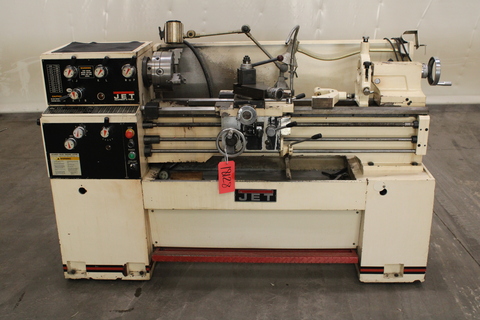

13" x 40" Jet #GH-1340W, Geared Head Engine Lathe
Category: Engine Lathes
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: Jet
Model: GH-1340W
13" x 40" KBC Machinery #Grip-1340G, engine lathe, 7-3/4" swing over carriage, 1-1/2" bore, D1-4, 70-2000 RPM, 2 HP, 230 V., 1 Ph., 3 MT tailstock
Category: Engine Lathes
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Kbc Machinery
Model: GRIP-1340G
KBC MACHINERY Grip 1340G Engine Lathe #8345 #1, Swing Over Bed: 13", Swing Over Carriage: 7-3/4", Distance Between Centers: 40", Inch Threads: 28 TPI, Metric Threads: (32) 0.4 to 7mm, Motor: 2 HP, 230V, 1 PH, Spindle Bore: 1-1/2", Spindle Mount: D1-4, Spindle Speeds: (8) 70 to 2,000 RPM, Tailstock Taper: 3MT ...more

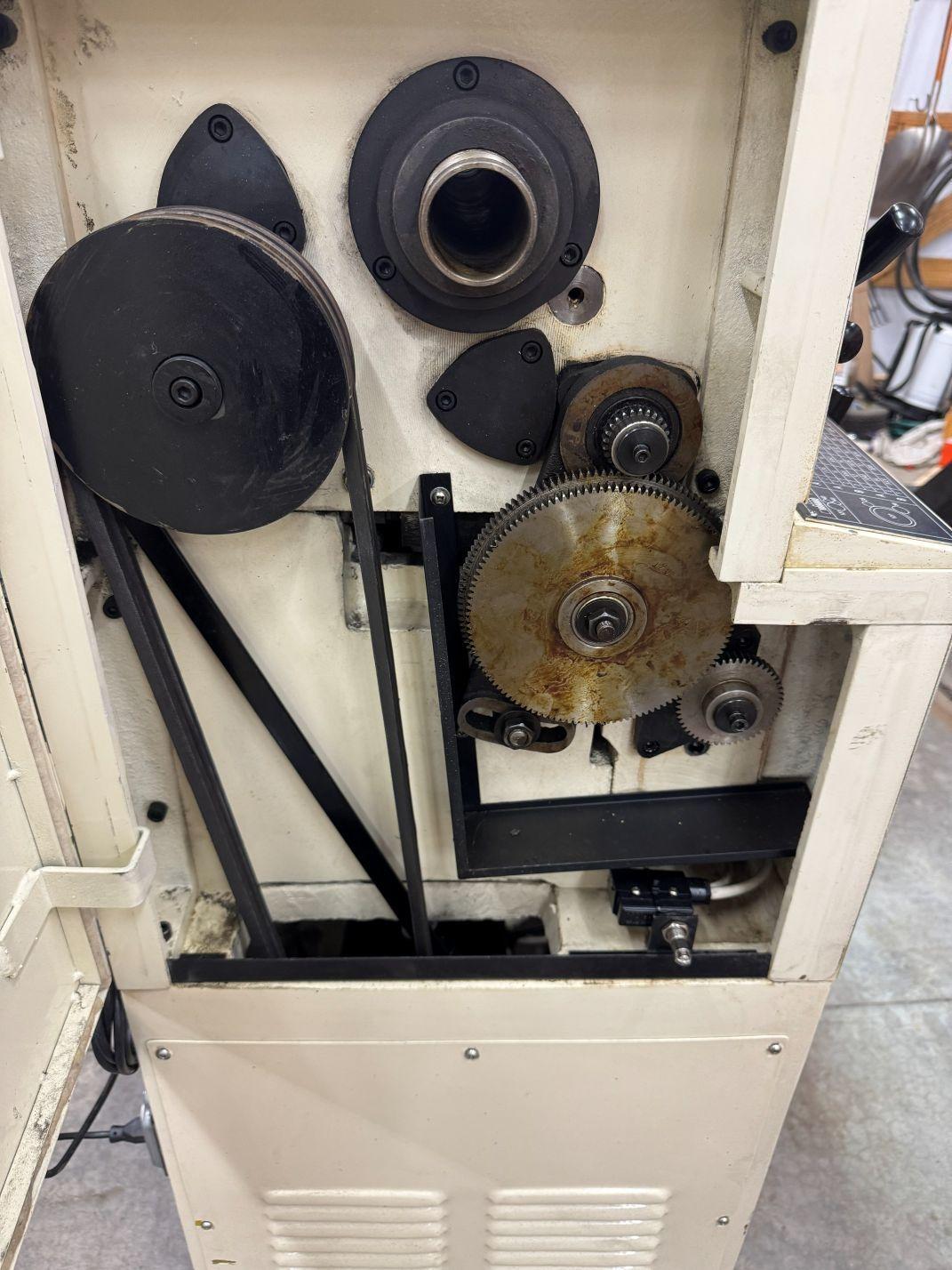

13" x 40" JET #GH-1340W-3, geared head engine lathe, 1.5" spindle bore, 6" chuck, 1800 RPM, 2.2 kW, 54" bed, 6.5" center height
