Manufacturer: M.g.
Model: MH-345-G
Year: 2014
Length': 10.20
CapacityInches or Gauges: 1.75000
Stock # 017003
Price: $225,000 USD
1 / 6
Click to zoom in
1 / 6
For Sale by SOMINN Machinery Sales
Surplus Record Dealer Since 1991
Location: Dodge Center, MN
Contact J.J. Francis
Phone Number: 507...> Show Phone Number 507-374-6346
Let the seller know you found their listing on Surplus Record!
$225,000 USD
Description

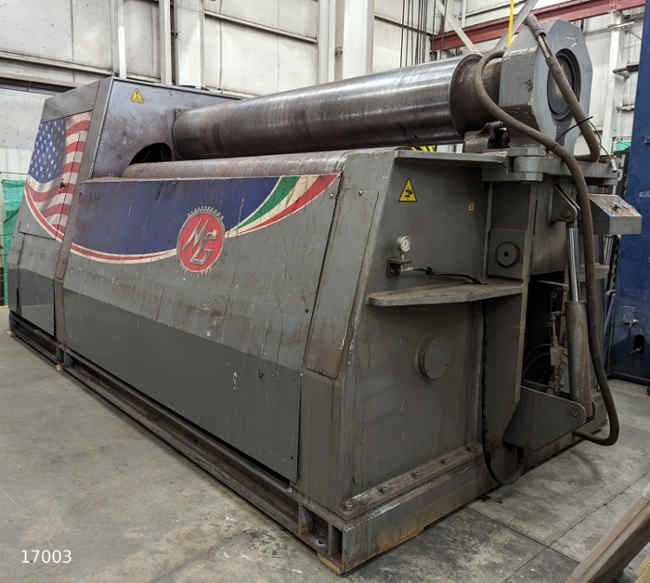

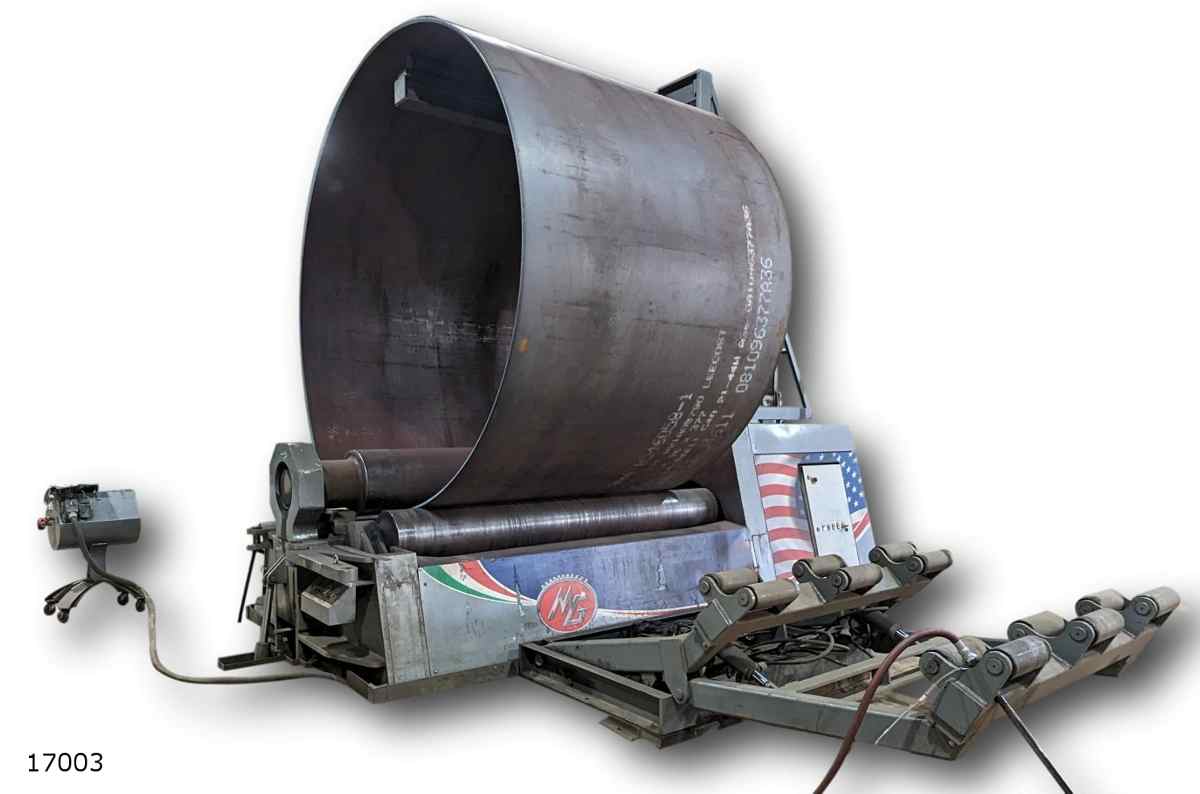

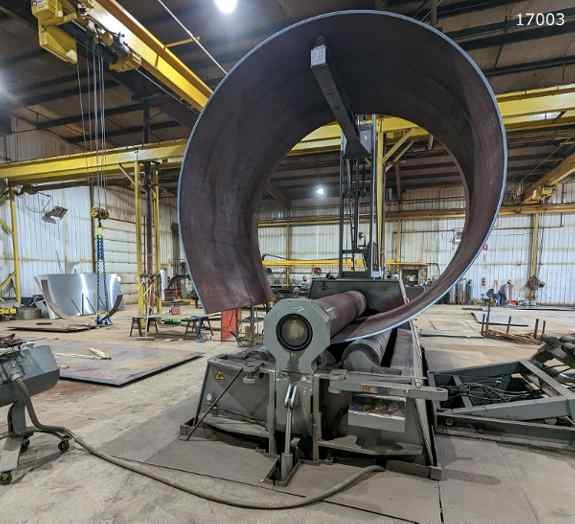

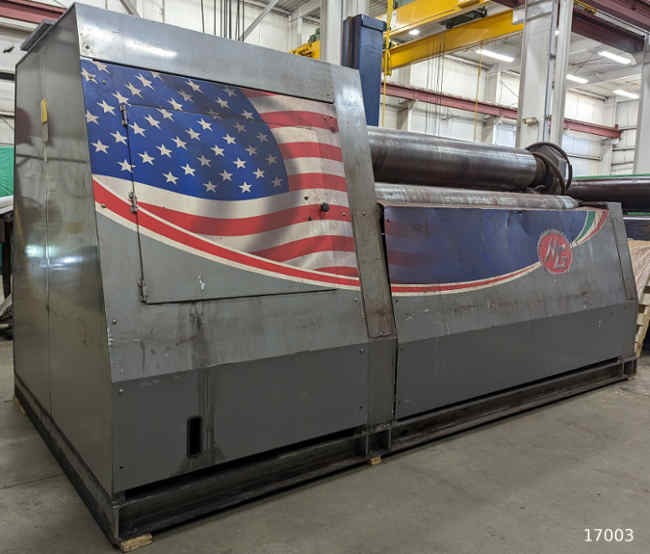

MG (USED) MODEL MH 345 G DOUBLE PINCH HYDRAULIC
4-ROLL BENDING ROLL
122" WORKING LENGTH
1-3/4" ROLLING THICKNESS
1-3/8" PRE-BEND THICKNESS
18.1" TOP ROLL DIAMETER
17.3" LOWER ROLL DIAMETER
14.6" SIDE ROLLS DIAMETER
40 HP

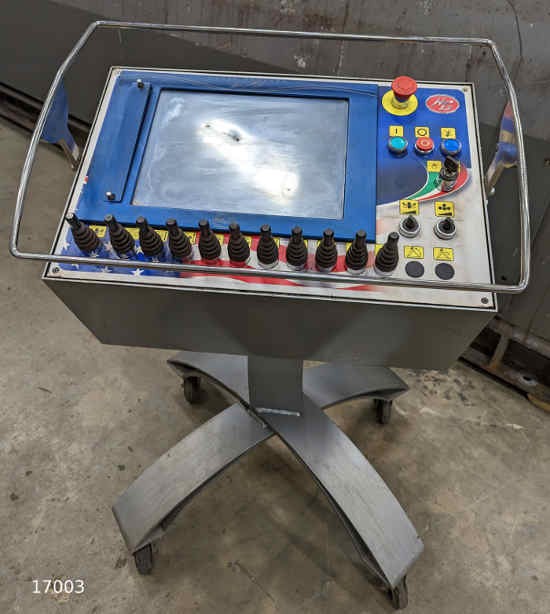

MOBILE CONTROL CONSOLE
HYDRAULIC SYSTEM FOR OPENING MACHINE/REMOVING TUBE
SAFETY SYSTEM CONFORMS TO EC RULES
EQUIPPED WITH
- TOUCH COMMAND EVO CNC CONTROL

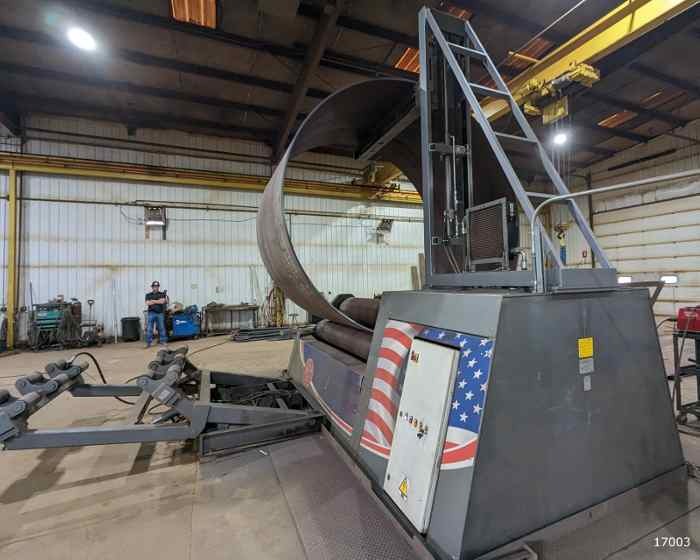

- OVERHEAD SUPPORT
- SIDE SUPPORT
NOTE: MAXIMUM PERFORMANCES LISTED ABOVE REFER TO
SHELLS OF DIAMETER GREATER THAN OR EQUAL TO 3
TIMES THE TOP ROLL DIAMETER AND WITH MATERIAL WITH
A YIELD POINT OF 38,500 PSI.
Inquire Further with SOMINN Machinery Sales!
