For Sale by Frank Bacon Machinery Sales
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Team
Phone Number: 586...> Show Phone Number 586-756-4280
Let the seller know you found their listing on Surplus Record!
Description

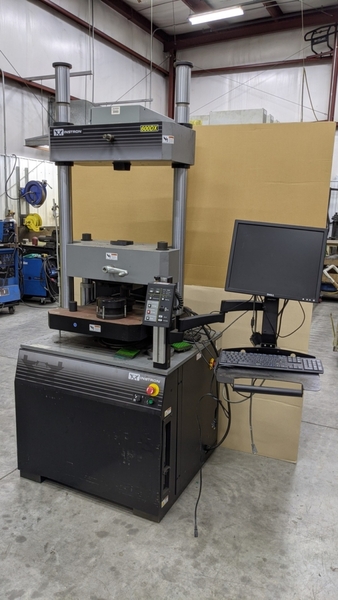

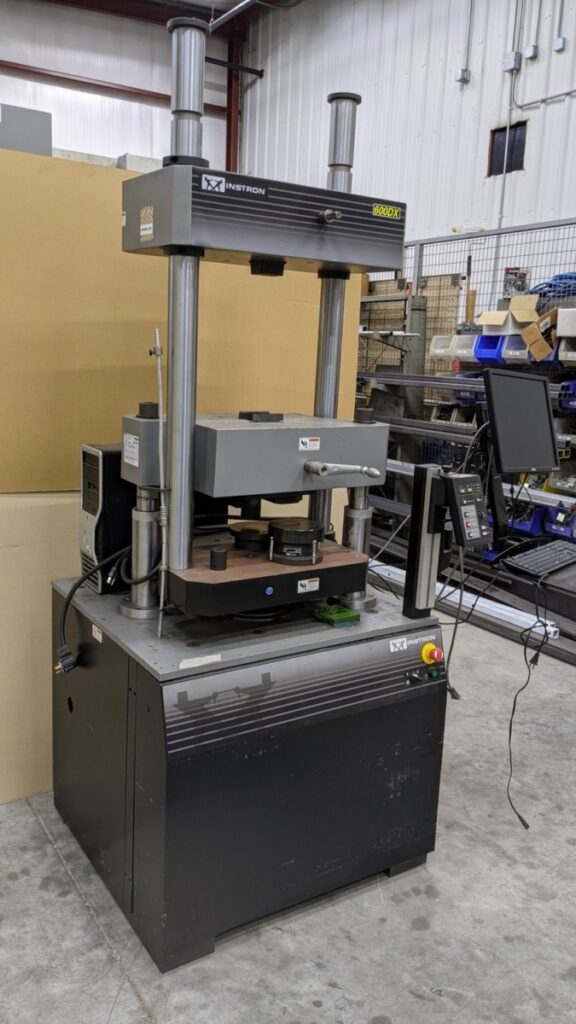

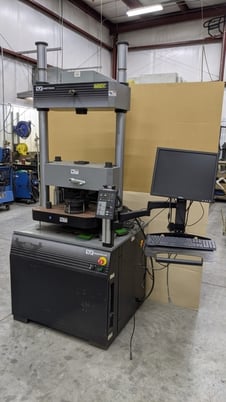

120K (600kN) Instron Model 600DX
Instron 600DX
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 24"
Compression Testing Opening (Less Tooling): 24"
Distance Between Columns/Screws: 20"
Testing Stroke: 6"
Table Size (WxD): 20" x 22"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM): 5
Approximate Overall Dimensions:
Load Frame (WxDxH): 45" x 38" x 97"
Approximate Weight (Lbs): 4,000
Electrical Requirements (V,Hz,PH): 200-240V, 60Hz, 1Ph, 15A
EQUIPPED WITH:
- Computer System with Keyboard and Mouse
- MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
- High Resolution TTL Compatible Incremental Quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
- Reconditioned Built-In Instron Servo Hydraulic Power Supply for Closed Loop Computer Controlled Testing and Space Saving Design
- Load Cell Based Force Indicating System
- Precision Encoder for Displacement and Speed Feedback
- Control Modes: Load, Displacement and Strain Control
- Adjustable Top Crosshead

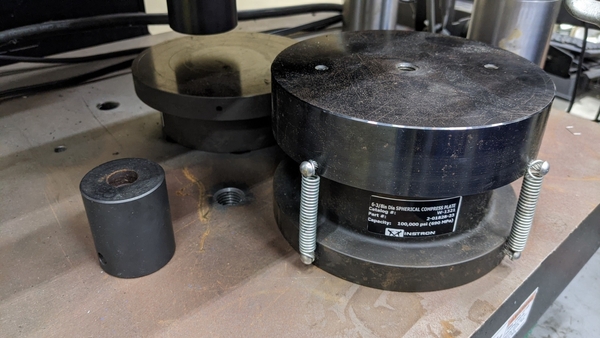

- Compression Platen
- 1 Set of (4) Flat Grips
- 1 Set of (4) V Grips
- 1 Set of (2) Grip Pinions
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
*Actual Images Before Reconditioning
| #13200-00
DOWNLOAD SPEC SHEET
Get Your Price from Frank Bacon Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

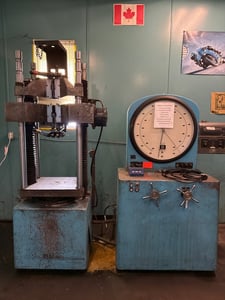

120,000 lbf. Tinius Olsen #Super-L, universal testing machine, 4-column
Category: Tensile Testers
Seller: Aucto
Location: Hamilton, ON
Model: SUPER-L
THE TINIUS OLSEN SUPER L IS A HYDRAULICALLY POWERED UNIVERSAL TESTING MACHINE DESIGNED FOR HIGH-CAPACITY TENSION, COMPRESSION, FLEXURE, AND SHEAR STRENGTH TESTING. IT S A RUGGED FOUR-COLUMN CONSTRUCTION FOR EXCEPTIONAL LOAD FRAME RIGIDITY AND A PATENTED DUAL-PRESSURE HYDRAULIC LOADING SYSTEM. IT'S CAPACITY IS ...more
JUST ADDED!

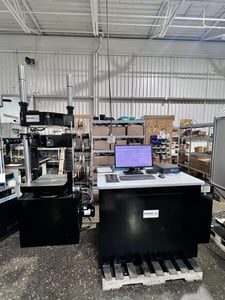

120000 lbf. (600kN) Satec #HVL, industrial tensile & compression testing with precision load cell indicating system & adjustable top crosshead, reconditioned
