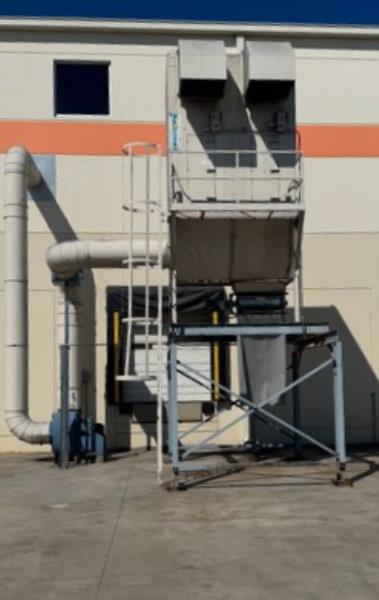

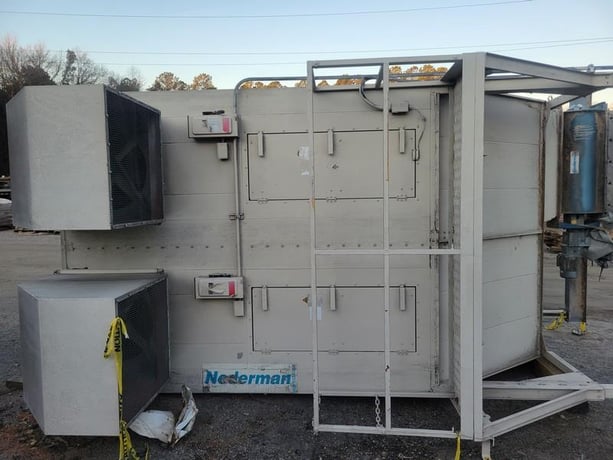

12000 cfm Nederman #NFSZ-3000, baghouse dust collector, reverse fan, 1830 sq.ft., 100 filter bags, 2014

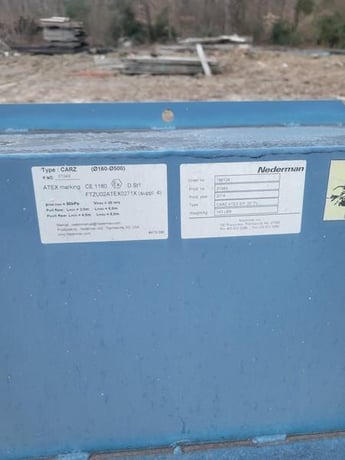

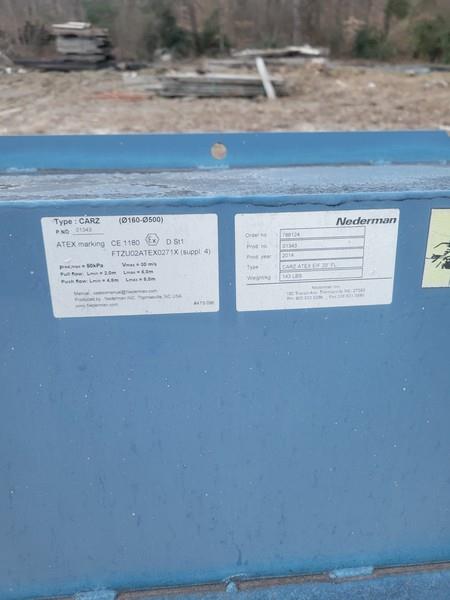

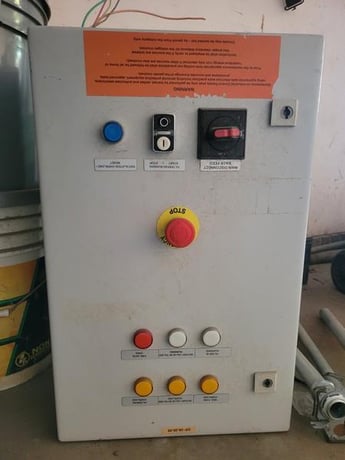

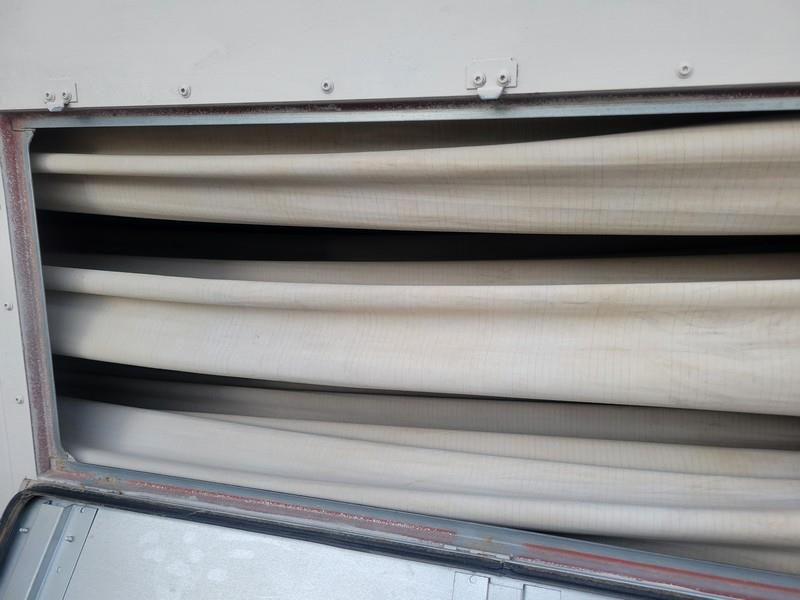

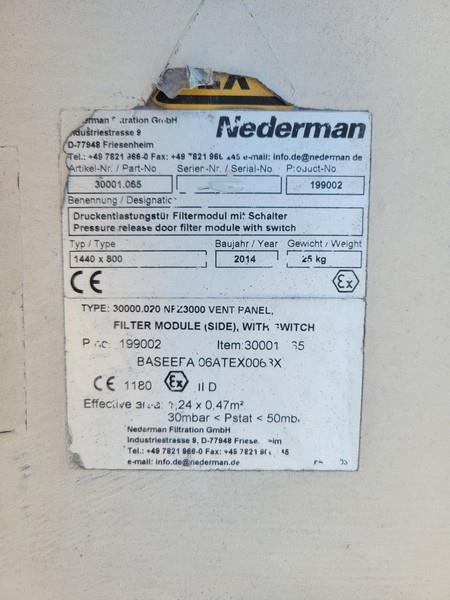

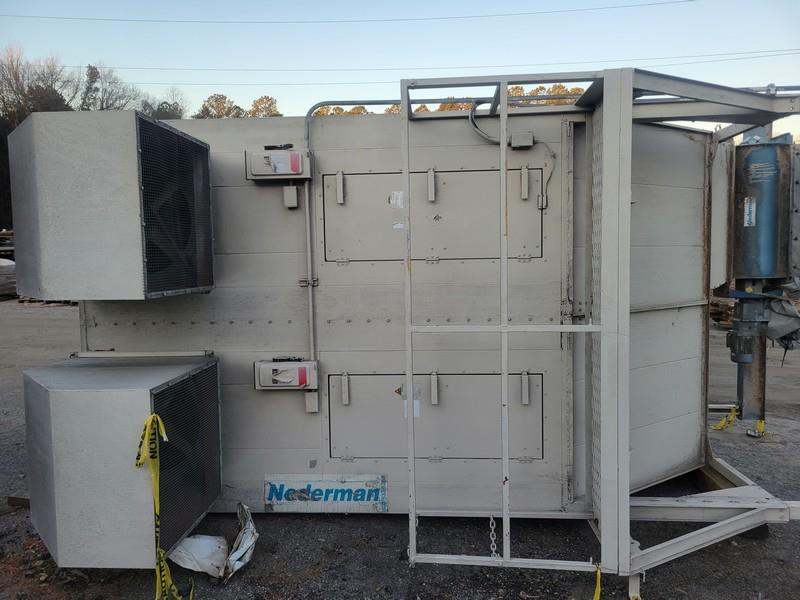

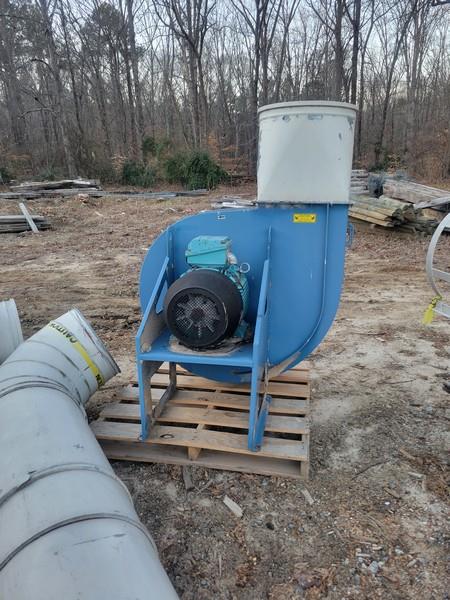

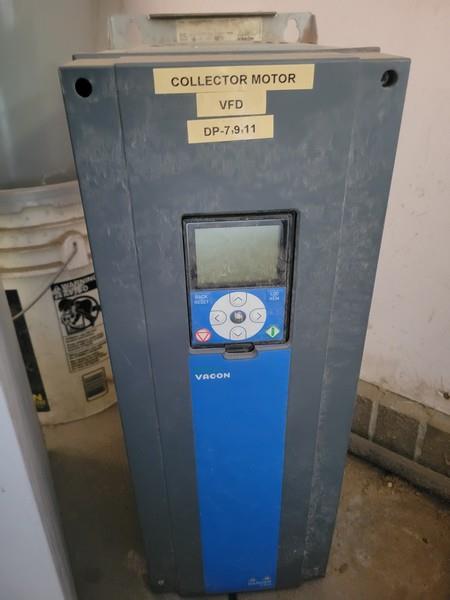

NEDERMAN - NFSZ 3000: Modular Filter with Variable Frequency Drive & Rotary Air Lock Waste Discharge 12,000 CFM Approx. @ 6.56 to 1 air-to-cloth ratio; negative pressure; expandable Heavy-Duty Baghouse Dust Collector System.Designed for: Small to medium-sized air flows with large material concentration (dust loading).Specifications -- Total 1,830 sq./ft. (170 sq./m) of filter area; total of (100) filter bags. - Each module contains: (50) Filter bags @ 915 sq./ft. filter area per module. -- Consists of (2) Filter module sections with: Combined explosion & access door in each section; each with: 2 HP Regenerative Fans for cleaning of filter media. -- Unit is ATEX rated. Hopper for collected material to Rotary Air Lock (RAL) discharging into a waste bin (bin not included). -- Equipped with: (1) Ground-mounted 50 HP - 1,800 RPM TEFC direct drive motor with: VAGON Variable Frequency Drive & NEDERMAN "R56-500-0" Blower Package with: 20" Inlet pipe to fan inlet box.Filter housings are under negative pressure and fan is mounted on the clean air side. -- Fan Capable of approx. 14,600 CFM; motor & fan are a common steel base/frame with ground level installation. -- Features & Includes: Variable Speed motor drive; includes: Certificate of Conformity for Components (USDecla034US-B); Support Stand. -- Complete with: (2) Separate electrical panels. - For VFD Drive & Control panel: Remaining starters and controls. Drain with plug: Quick open access doors and inlet flange. -- Includes: Approx. 22" outside pipe filter header to fan inlet; square to round fan discharge adaptor; approx. 10' high support steel structure. -- Baghouse Dimensions are: 94-1/2" Square (2,400 x 2,400 mm) for each module.Height of baghouse shell: Approx. 167" (4,250 mm), not including support legs. -- Actual model: NFSZ 3000 2HJ
