Manufacturer: General Electric
Model: PVDB2 25.8-25-0
Year: 2001
Amps: 1200
Type: pvdb2 25.8-25-0
Stock # CB-18097
1 / 4
Click to zoom in
1 / 4
For Sale by Belyea Company Inc
Surplus Record Dealer Since 1926
Location: Easton, PA
Contact Shepard Belyea
Phone Number: 610...> Show Phone Number 610-515-8775
Let the seller know you found their listing on Surplus Record!
Description
CB-18097:

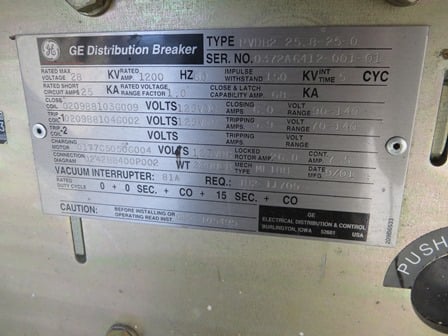

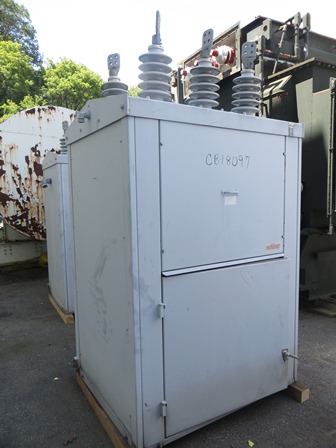

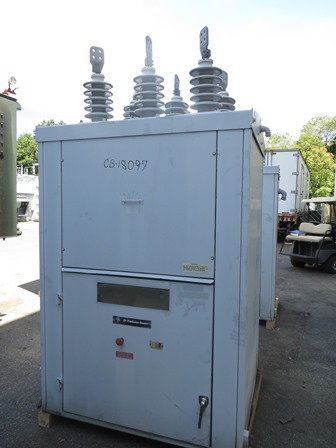

ONE (1) 1200 AMP GENERAL ELECTRIC PVDB2 25.8-25-0 VACUUM BREAKER
OUTDOOR SUBSTATION TYPE
27 KV
28 KV MAX.
60 HERTZ
25 KA SHORT CIRCUIT
150 KV BIL
5 CYCLE INTERRUPT
1.0 VOLTAGE RANGE FACTOR
68 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR
26.0 LOCKED ROTOR AMPS
CONNECTION DIAGRAM 0242B8400P002
2500 LBS.

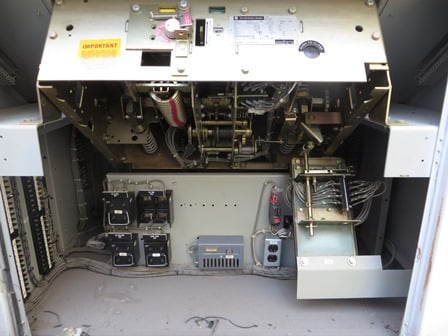

ML18H MECHANISM
MFG. 09/2001
VACUUM INTERRUPTER 81A
INST. BOOK GEK-105495
2000:5 MRCT'S, C800
S/N 0372A6412-001-01
238 OPERATIONS
OPTIONAL RELAY PANEL AVAILABLE AT ADDITIONAL COST:
1 X GE TYPE IAC TIME OVERCURRENT RELAY MODEL 12IAC53B811A
1 X SCHWEITZER TYPE SEL-351S RELAY
1 X BITRONICS, AMP & PEAK DEMAND METER, TYPE TRIPLE DEMAND METER II
1 X BREAKER CONTROL SWITCH W/OPEN & CLOSE INDICATION LIGHTS
ONE (1) 1200 AMP GENERAL ELECTRIC PVDB2 25.8-25-0 VACUUM BREAKER
OUTDOOR SUBSTATION TYPE
27 KV
28 KV MAX.
60 HERTZ
25 KA SHORT CIRCUIT
150 KV BIL
5 CYCLE INTERRUPT
1.0 VOLTAGE RANGE FACTOR
68 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR
26.0 LOCKED ROTOR AMPS
CONNECTION DIAGRAM 0242B8400P002
2500 LBS.
ML18H MECHANISM
MFG. 09/2001
VACUUM INTERRUPTER 81A
INST. BOOK GEK-105495
2000:5 MRCT'S, C800
S/N 0372A6412-001-01
238 OPERATIONS
OPTIONAL RELAY PANEL AVAILABLE AT ADDITIONAL COST:
1 X GE TYPE IAC TIME OVERCURRENT RELAY MODEL 12IAC53B811A
1 X SCHWEITZER TYPE SEL-351S RELAY
1 X BITRONICS, AMP & PEAK DEMAND METER, TYPE TRIPLE DEMAND METER II
1 X BREAKER CONTROL SWITCH W/OPEN & CLOSE INDICATION LIGHTS
