Manufacturer: Gmc
Model: EFM-1014CNC
Overall Bending Length: 120.00
Stock # 7258
Price: $7,385,000 USD
1 / 5
Click to zoom in
1 / 5
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$7,385,000 USD
Description

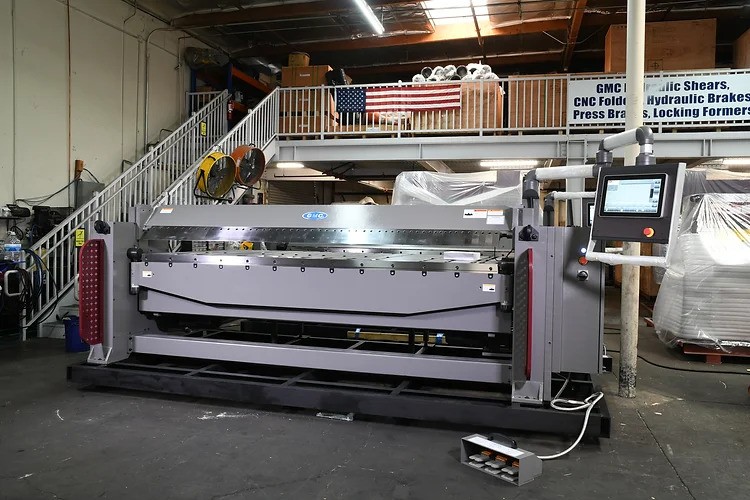

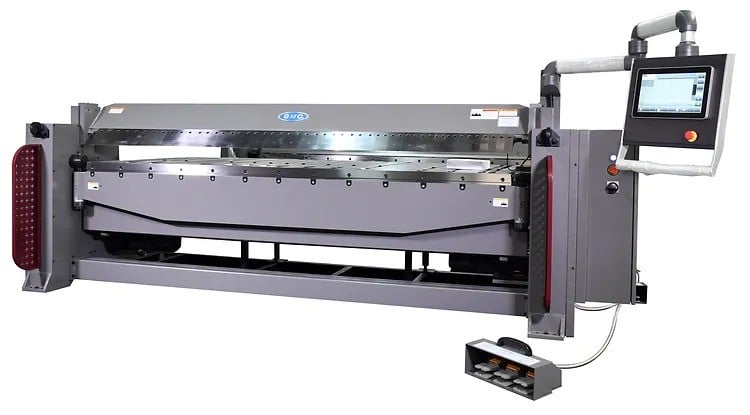

CNC folding machine with an Italian ESA CNC control. 11" touch screen finger brake. 2000 jobs memory capacity.
ISO 9001 certified
Designed in US and Taiwan quality Machine
Meet OSHA and CE safety standard

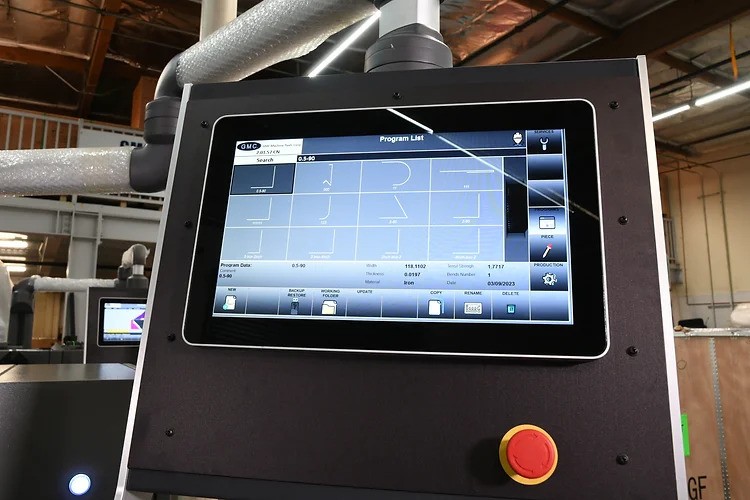

ESA S840 CNC control, made in Italy
16 large Digital glass touch screen
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct

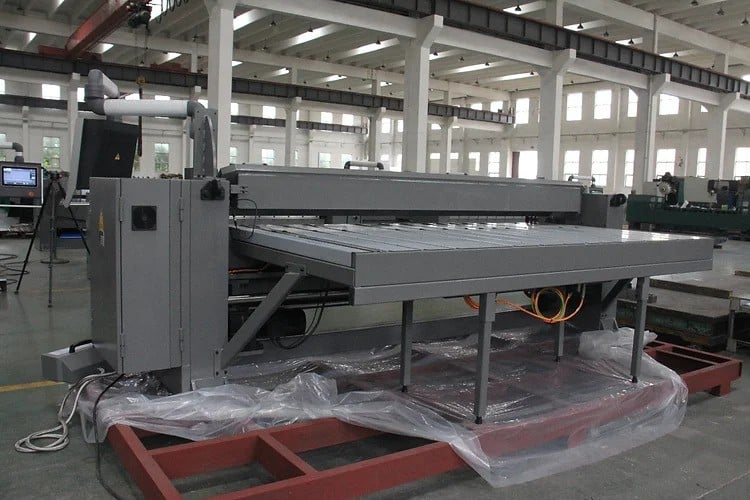

48 CNC back gauge with table and fingers
One piece 10' long straight finger
Comes with one 1 Insert Bar and one Insert Bar
Yaskawa Servo motors and Drives
Schneider electrical components
All steel construction for maximum rigidity
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
Power supply is 220V, 3 phase or 208V, 3 phase
One year industrial warranty for parts
Specifications: GMC EBB-1014CNC
Capacity
Mild Steel
Stainless Steel
Close hemming with one piece finger
Open hemming
14Ga.
18Ga.
26Ga.
24Ga.
Bending length capacity 101
Bend Angle Degree, programmable 0- 135 degree
Max depth of box or pan 4
Large Beam Opening/clamping opening 4-7/8
Min. Reverse Bend 1/2
Max. Table Back Gauge Distance
Min. Table Back Gauge Distance 48-3/8
1/2
Back Gauge Repeatability 0.0039
Back Gauge Table height 35-3/4
Motor for bending leaf 4HP, 220V,3phase
Servo motor for back gauge
Clamping motor 2HP ,220V, 3phase
1-1/2HP , 220V, 3phase
Amperage Draw 35A
Machine weight , LBS
Shipping weight
Machine dimensions, LWH
Shipping dimensions 9,850 LBS
10,150 LBS
168x79x67
174x80x71
ISO 9001 certified
Designed in US and Taiwan quality Machine
Meet OSHA and CE safety standard
ESA S840 CNC control, made in Italy
16 large Digital glass touch screen
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct
48 CNC back gauge with table and fingers
One piece 10' long straight finger
Comes with one 1 Insert Bar and one Insert Bar
Yaskawa Servo motors and Drives
Schneider electrical components
All steel construction for maximum rigidity
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
Power supply is 220V, 3 phase or 208V, 3 phase
One year industrial warranty for parts
Specifications: GMC EBB-1014CNC
Capacity
Mild Steel
Stainless Steel
Close hemming with one piece finger
Open hemming
14Ga.
18Ga.
26Ga.
24Ga.
Bending length capacity 101
Bend Angle Degree, programmable 0- 135 degree
Max depth of box or pan 4
Large Beam Opening/clamping opening 4-7/8
Min. Reverse Bend 1/2
Max. Table Back Gauge Distance
Min. Table Back Gauge Distance 48-3/8
1/2
Back Gauge Repeatability 0.0039
Back Gauge Table height 35-3/4
Motor for bending leaf 4HP, 220V,3phase
Servo motor for back gauge
Clamping motor 2HP ,220V, 3phase
1-1/2HP , 220V, 3phase
Amperage Draw 35A
Machine weight , LBS
Shipping weight
Machine dimensions, LWH
Shipping dimensions 9,850 LBS
10,150 LBS
168x79x67
174x80x71
Inquire Further with Wheeler Machinery Sales!
