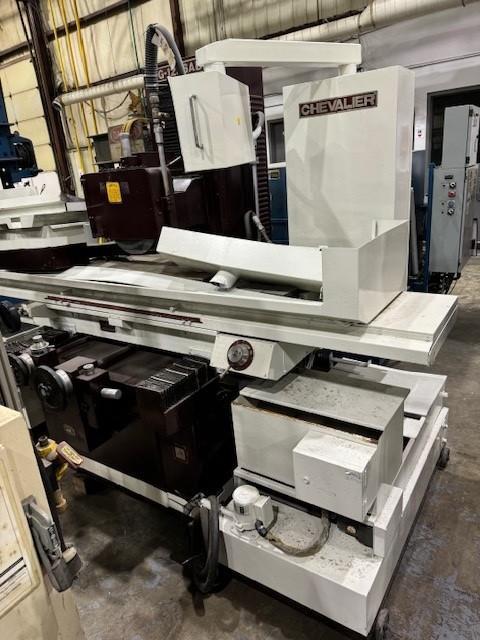

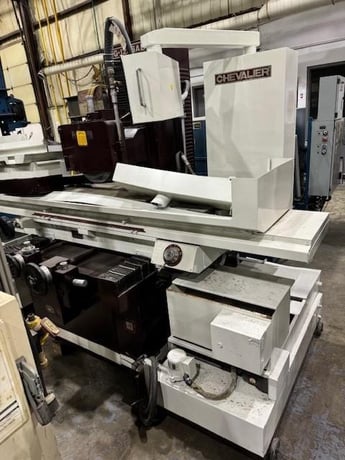

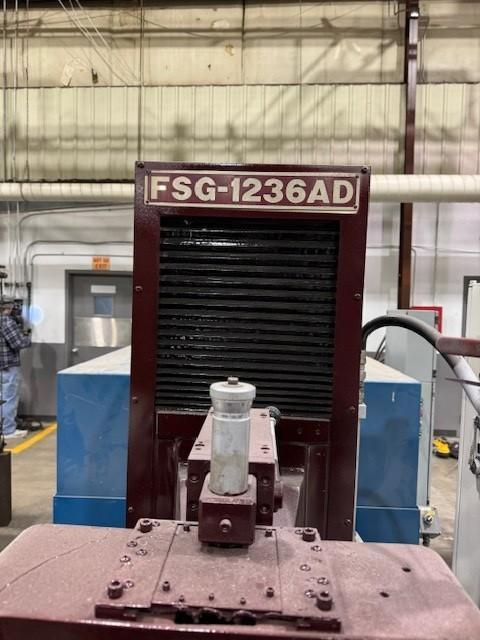

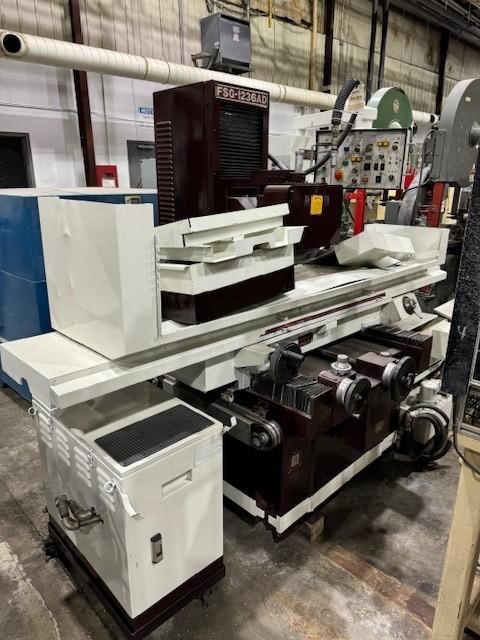

12" x 36" Chevalier #FSG-1236AD, Surface Grinder, 82 FPM, 14" diameter Wheel, 5 HP, 440 V.

SPECIFICATIONS:
MAXIMUM GRINDING LENGTH ---------------- 36 in
GRINDING WIDTH ------------------------- 12 in
MAX. DISTANCE, TABLETOP TO CENTERLINE OF SPINDLE ---------------------------- 24-3/8 in
LONGITUDINAL TABLE TRAVEL (HYDRAULIC) -- 37-1/2 in
(MANUAL) -- 38-5/16 in
TABLE SPEED (INF. VARIABLE) ------------ 16 TO 82 FPM
INCREMENTAL CROSS TRANSVERSE TRAVEL OF TABLE ------------------------------ 1/8 in TO 1-1/4 in
HANDWHEEL CROSS FEED PER REVOLUTION ---- 0.25 in
INCREMENTAL VERTICAL HEAD FEED --------- 0.00005 in TO 0.002 in (AUTOMATIC)
GRINDING SPINDLE DRIVE SPEED ----------- @ 60HZ - 1750 RPM
STANDARD GRINDING WHEEL SIZE ----------- 14 in DIA. X 2 in WIDTH X 5 in BORE
MOTOR ---------------------------------- 5 HP.

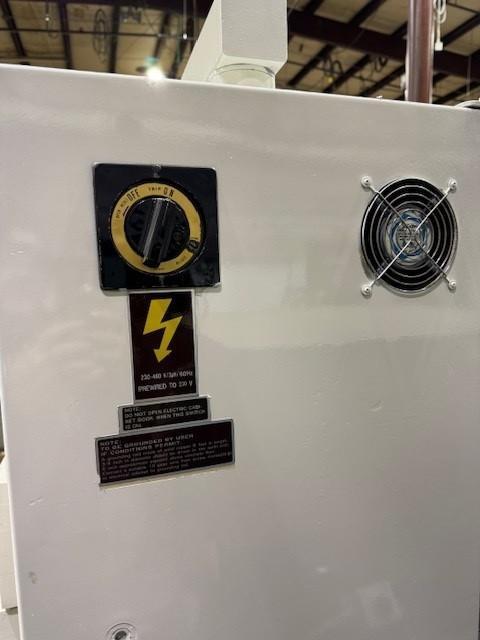

ELECTRICS ------------------------------ 3/60/220/440
FLOOR SPACE REQUIRED ------------------- 132 in X 68 in X 76 in
WEIGHT (APPROX.) ----------------------- 7,500 LBS.
EQUIPPED WITH:

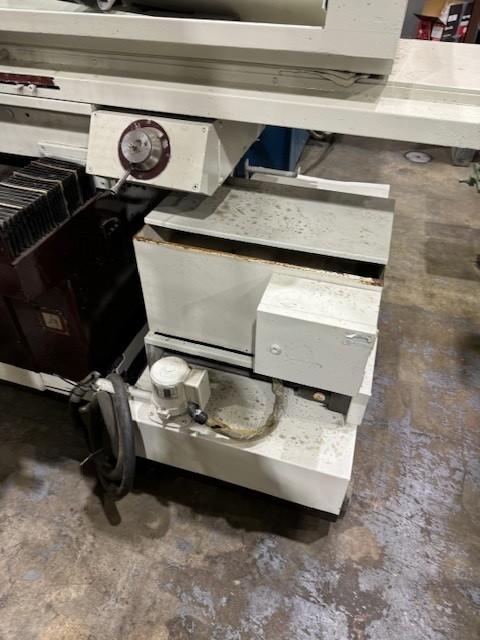

* Chip Conveyor
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
