Description

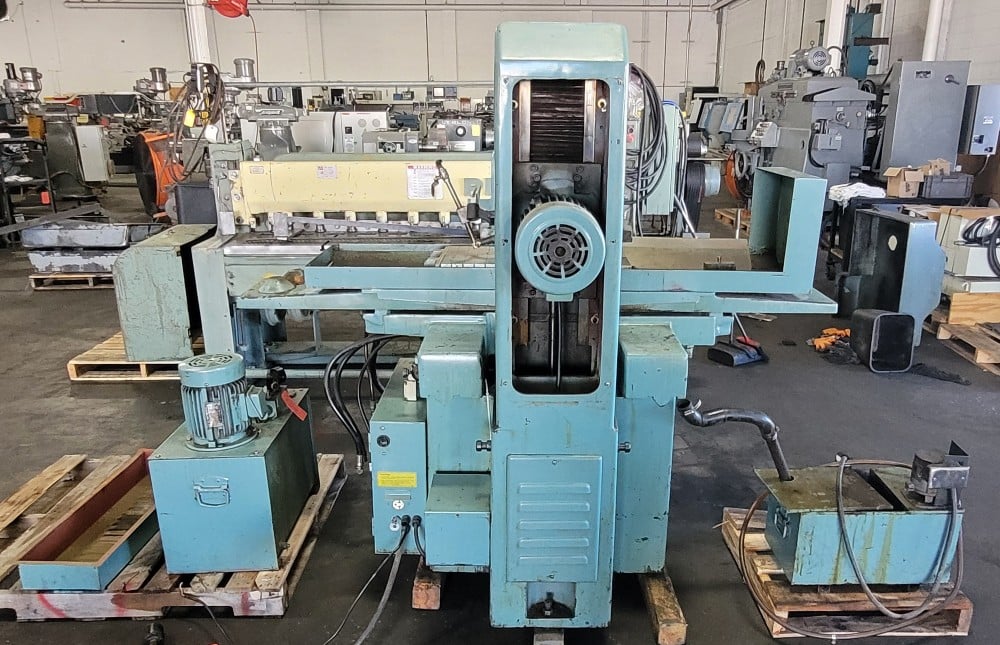

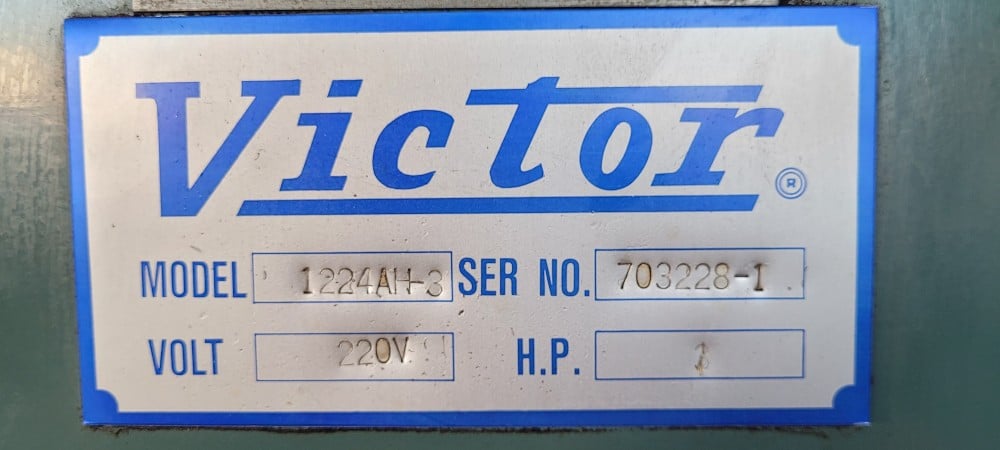

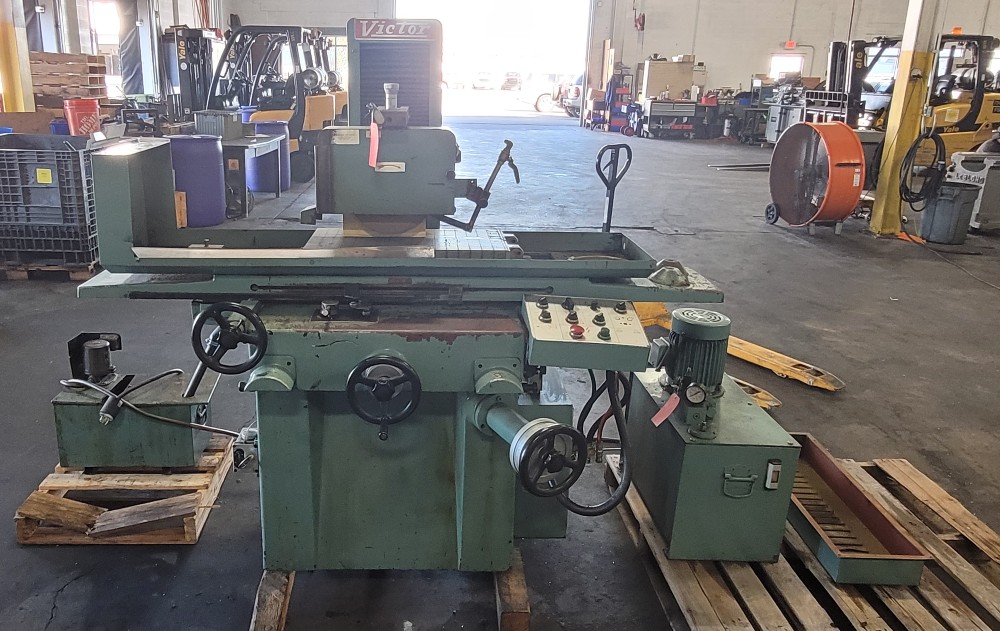

Spec Sheet: 12 x 24 Victor 1224AH-3 Surface Grinder Brand: Victor Model: 1224AH-3 Serial Number: 703228-1 HP: 3 Volts: 220 Table size: 12" x 24" Max. table travel: 13" x 27" Max. surface ground: 12" x 24" Max. distance from spindle center to table: 20" Chuck size: 12" x 24" (Electromagnetic chuck) Grinding Wheel Size: 14" x 1.5" x 5" Spindle Wheel Speed: 1750RPM Over the Wheel Dresser Operational & Technical Specifications Table & Cross Feed: Table speeds range from 200" 1,000" / min on V & Flat Turcite ways, with a power cross feed of 44" / min and auto cross feed increments of 0.004" 0.8". Down Feed: Features a vertical handwheel feed of 0.0001" per graduation and 0.05" per revolution, alongside auto down feed options on applicable models. Grinding Wheel & Spindle: Utilizes a 14" x 1.5" x 5" max wheel size running at a spindle speed of 1,750 RPM. Power Motors: Driven by a 3 HP spindle motor, 1 HP hydraulic pump motor, 1/5 HP cross feed/elevation motors, and a 1/8 HP coolant pump. Weight & Dimensions: Features an approximate net weight of 3,740 lbs and shipping dimensions of 90" x 71" x 83". Specifications subject to verification.
Lot 190: Okamoto ACC 12.24DX 3-Axis Hydraulic Surface Grinder with Incremental Down Feed, Heidenhain DRO for Cross Feed, 12"x24" Chuck, Coolant System with Paper Filtration, Electrics:, 230/460 Volt, 3 Phase, Main Unit Approx Weight: 5280.00 lbs, Main Unit Dimensions (in inches): Length: 109.00" Width: 72.00" Height: ...more
, Manufacturer: Chevalier, Model Number: FSG-3A1224H, Serial Number: P3865006, Model Year: 2005, Stock Number: 14050, s:, - High precision cartridge type spindle 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding, - 3-Axis fully automatic with surface and plunge grinding cycles, - ...more
KENT #KGS-63A11D 12” x 24” Hydraulic Surface Grinder 1997’ #8457, KENT #KGS-63A11D 12” x 24” Hydraulic Surface Grinder 1997’ #8457, Reference #8457, Model # KGS-63AIID, Serial # 97066313, Year of Manufacture- 1997, Overall working area- 12” x 24”, Longitudinal travel- ...more
