12" x 15" Hydmech #DM-12/15, Double Miter Band Saw, 49-377 SFM, 12' 4" x 1" Blade, 16 Gal. Coolant, 34-1/8" H Table, 3 HP, 480 V, new

Description

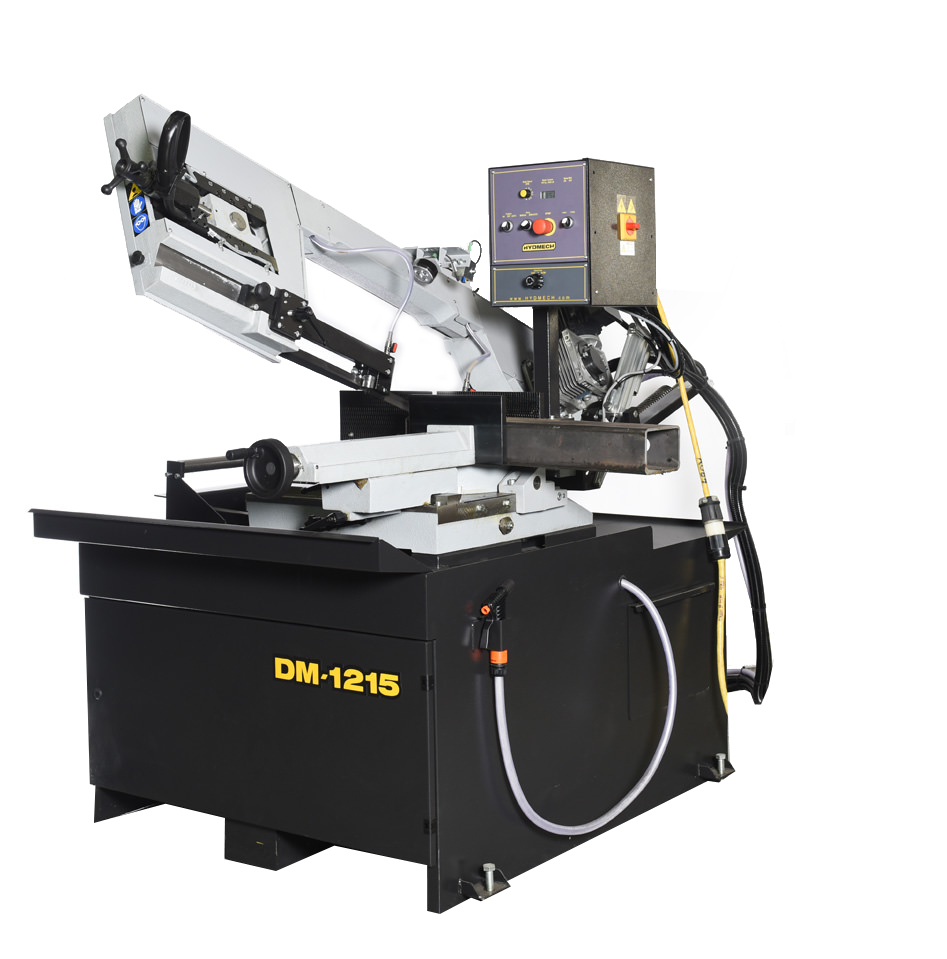

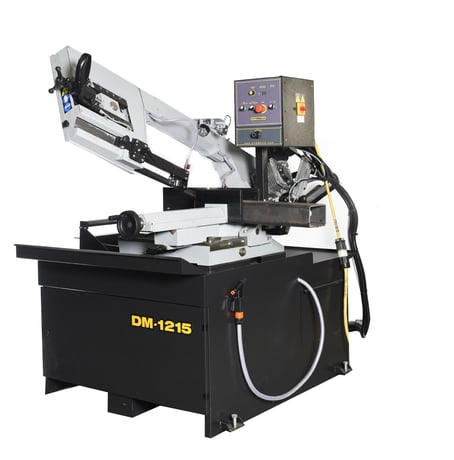

Hydmech 12″ x 15″ Double Miter Band Saw, DM-12/15

Inventory # 9052

Model: DM-12/15

Description:

This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces

A rotating table with single cut line allows head and blade groove to move together for a smooth, accurate mitering

From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-12/15 double miter band saw is solidly built to provide maximum productivity

Specifications:

Capacity:

Rectangular:

@ 90°: 10 1/4″ x 15″

@ 45° Left: 7 3/4″ x 10 1/4″

@ 45° Right: 7 3/4″ x 11 1/4″

@ 30° Right: 7 3/4″ x 6 1/2″

Round:

@ 90°: 12″

@ 45° Left: 10 1/2″

@ 45° Right: 11 1/4″

@ 30° Right: 7 3/4″

Blade Size: 12′ 4″ x 1″

Blade Speed: 49 – 377 SFM

Coolant Tank Capacity: 16 Gallons

Table Height: 34 1/8″

Motor: 3 HP / 480v / 3ph (208v, 240v, or 575v power sources will require a transformer)

Standard Features:

Manually operated, double miter easy swing, cast saw head

Quick release cast-iron material vise with dovetail ways

Direct, Variable Frequency Drive (VFD) using no belts or pulleys

Adjustable speed range from 49 – 377 SFM

Rotating table with replaceable wear strips; cut slot moves in tandem with sawing head

Band tension indicator

Infinitely adjustable gravity feeding head feed

Replaceable blade brush

Small footprint

Robust steel base

Easy to read angle scale

Adjustable guide arm

Pre-set, replaceable carbide guide inserts

Mechanical blade tensioning

Safety door interlocks

Flood coolant

Work stop

Storage in saw base

Work light

Laser light

Mechanical Specifications:

Dimensions: 48″ x 88″ x 83″ H

Weight: approx. 1,740 lbs.

FOB Factory
