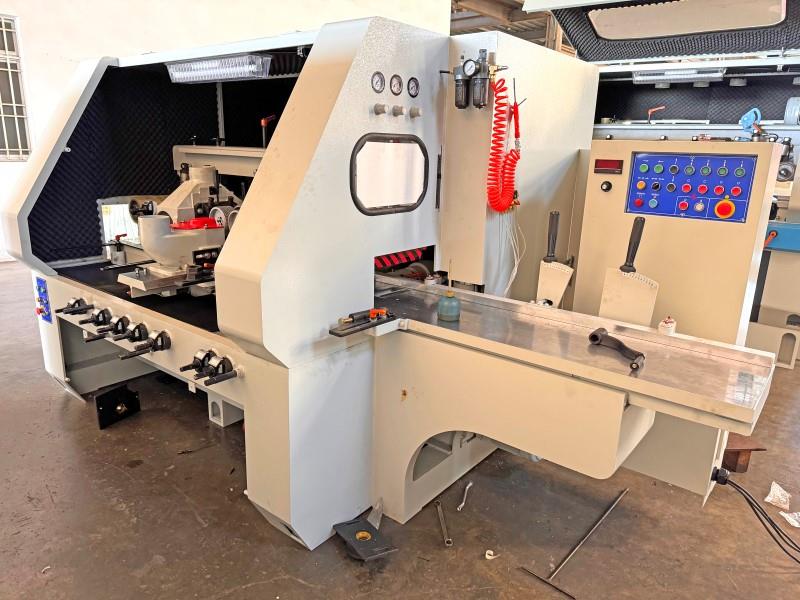

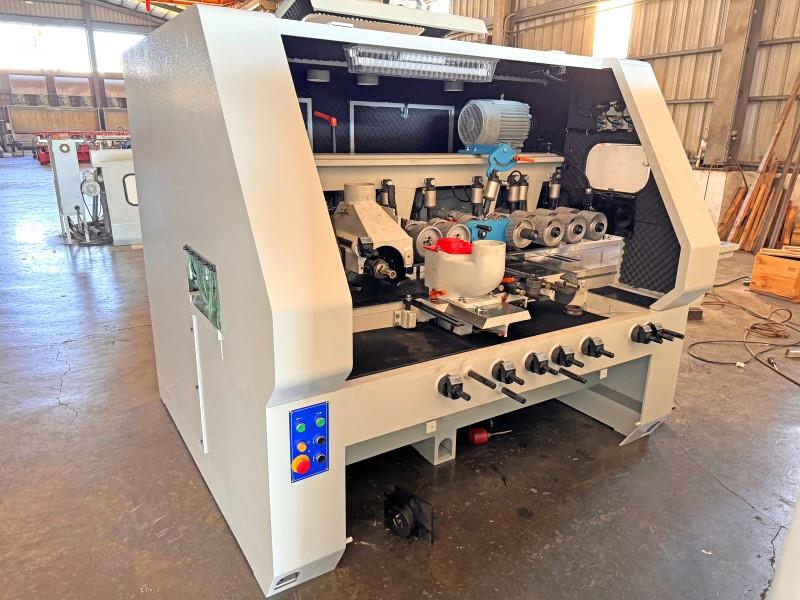

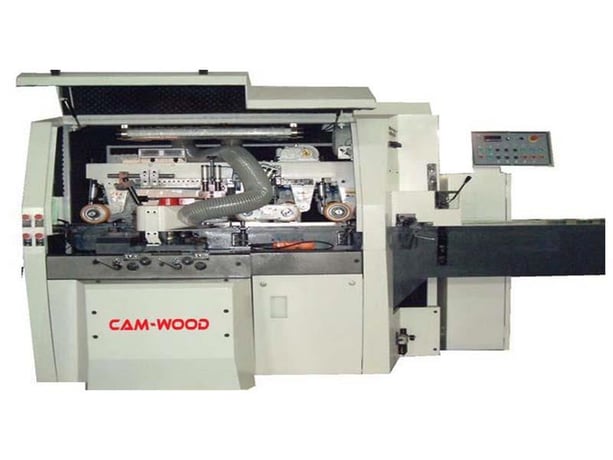

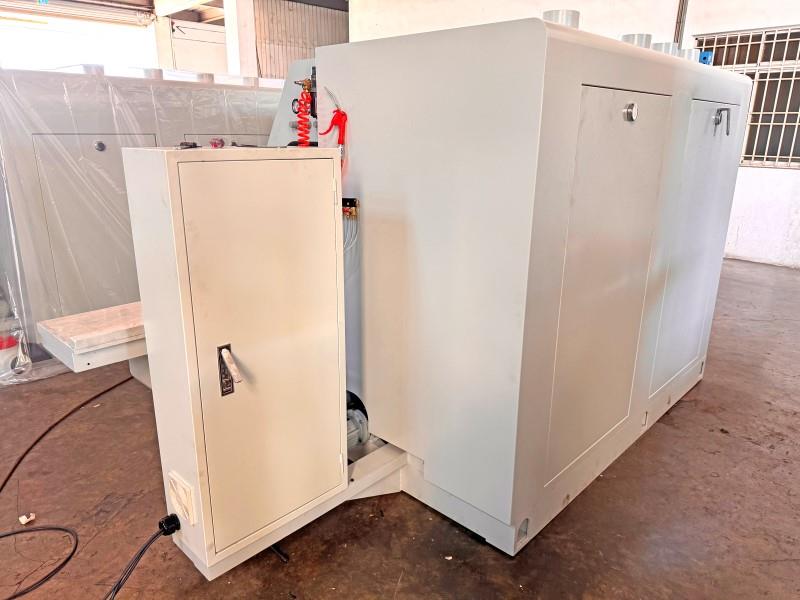

12" x 4-3/4" Cam-Wood #SM-324D, 4-Sided Planer for L-Shape Moulding, 9-1/2" min. L, 7-1/2 HP feed, 40 mm spindle, 6500 RPM, 16-82 FPM, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

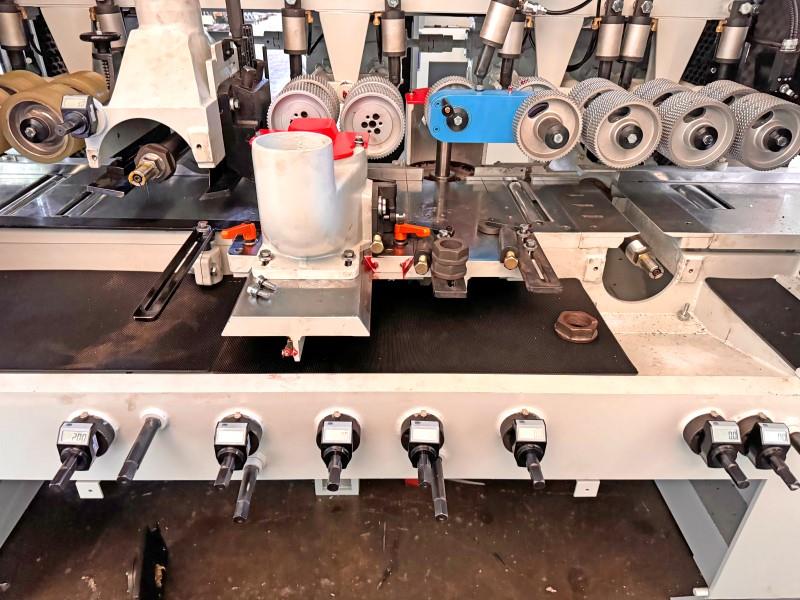

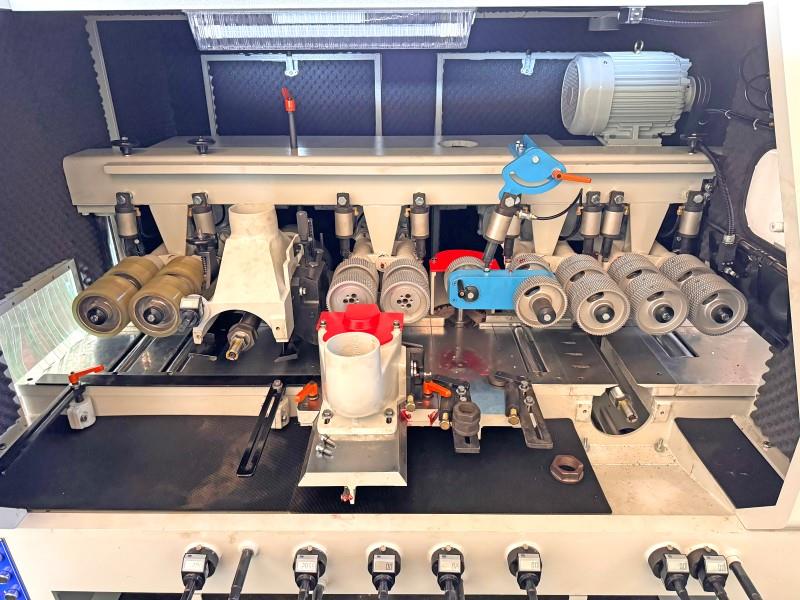

CAM-WOOD SM-324D 4-Sided Planer Specifications: -- Maximum Working Width 12";, Max. Thickness 4"; -- Hard chrome-plated table for maximum wear resistance. -- Anti-impact plate for over-width and over-thickness protection. -- Oversized top and bottom rollers run synchronized, ensuring smooth feeding. -- FRP plastic steel safety guard provides maximum durability and impact resistance. -- The three independent sections; pneumatic pressures for the infeed rollers, in-process rollers, and outfeed rollers can be set with individual pressure allowing for consistent feeding and outstanding results. -- The smooth initial feeding of the stock is achieved by the independently powered infeed rollers. -- Specifically designed template inserted pressure plate suits various stock thicknesses and profile variations. -- A special pressure plate based on the table feeding roller design provides smooth and precise cutting of dry and wet wood, reducing the possibility of material jams.Features: -- The base is machined by CNC machine equipment to ensure the utmost working accuracy. -- The first bottom horizontal spindle can be fitted with a trimming cutter for trimming a groove on the workpiece side to achieve perfect straightness. -- The specially designed short stock feeding mechanism combined with auxiliary pressure wheels permits the machine to perform machining on extra short stocks. -- All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. -- Each spindle is equipped with a mechanical digital readout giving accurate adjustment. -- Every cutter spindle can be adjusted "up and down" and "in and out" for quick setup. -- Industrial full-power motors for maximum cutting capacity.Capacity and Heads: -- Max. Working Width 12"; -- Max. Working Thickness 4-3/4" -- Min. Working Length 9½" -- Vertical stroke of side head 30 mm (1.18") -- 1st Spindle Horsepower 10 HP -- 2nd, 3rd, 4th Spindle Horsepower 10, 10, 10 HP -- Feed Motor 7½ HP -- Elevation motor 1 HP -- Spindle arbor Diameter 40 mm -- Cutter Speeds (RPM) 6,500 -- Variable Feed Speeds (FPM) 16 ~ 82Cutterhead Diameter -- 1st Bottom Head 6"; Dia x 12"; L -- 2nd & 3rd Vertical Head 6"; Dia x 3"; L -- Top Head 6"; Dia x 12"; L -- Pneumatic Air 90 PSI (CFM) 5 -- Dust Outlets Diameter 5" x 4 outlets -- N.W. (Lbs) 9800Option: -- Sound enclosure Add ...$10,900
