12.8" x 15" Cosen #C-325NC, Horizontal Band Saw, Automatic, Scissor Style, 150.4" x 1.25" x 0.042" Blade, 28.7" H Workbed, 50-328 FPM, 5 HP, new

Description

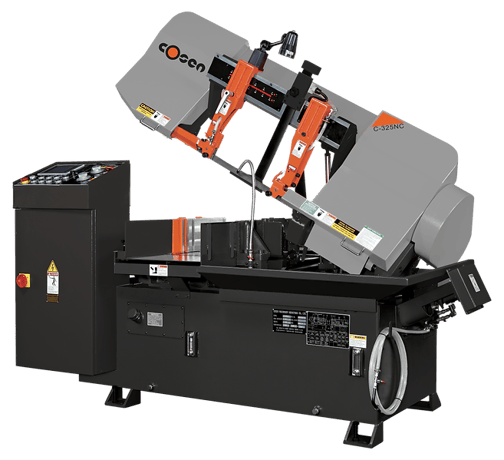

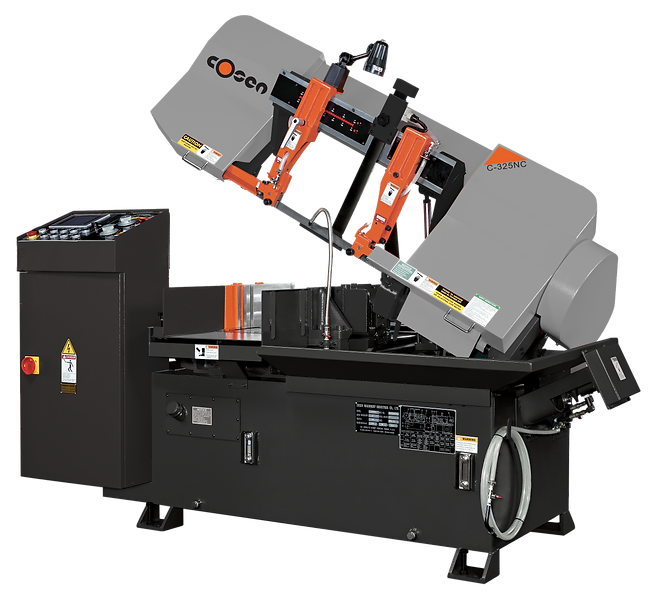

Cosen 12.8″ Automatic Horizontal Scissor Style Band Saw, C-325NC

Inventory # 7549

Model: C-325NC

Description:

Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen’s C-325NC production machine. Making it the perfect saw for mass production settings

Specifications:

Capacity:

Round: 12.8″

Rectangular: 12.8″ x 15″

Blade Speed: 50 – 328 FPM

Blade Size: 150.4″ x 1 1/4″ x .042″

Workbed Height: 28.7″

Coolant Tank Capacity: 19.8 Gallons

Hydraulic Tank Capacity: 9.2 Gallons

Motor: 5 HP

Standard Features:

Hydraulic cylinder supports the saw head with ball joint

Gearbox designed to accept high lateral pressure (no thermal distortion)

Inverter blade drive system which allows infinitely variable blade speed

5.7″ HMI touchscreen

Adjustable flood coolant system

Motor driven, synchronized wire blade brush

Carbide blade guides and bearing provides additional blade support

Rigid cast iron guide arms

Automatic hydraulic blade tensioning device

Cast iron hydraulic vise

Split vise jaw for reduced burr

Save-A-Blade feature

Precision feed pressure and feed rate dual valve system for optimal cutting performance computer-controlled multiple indexing up to 999″ max. length

Mechanical Specifications:

Floorspace: 90″ x 82″ x 54″ H

Weight: approx. 3,828 lbs.

FOB Factory – Contact us for Availability
