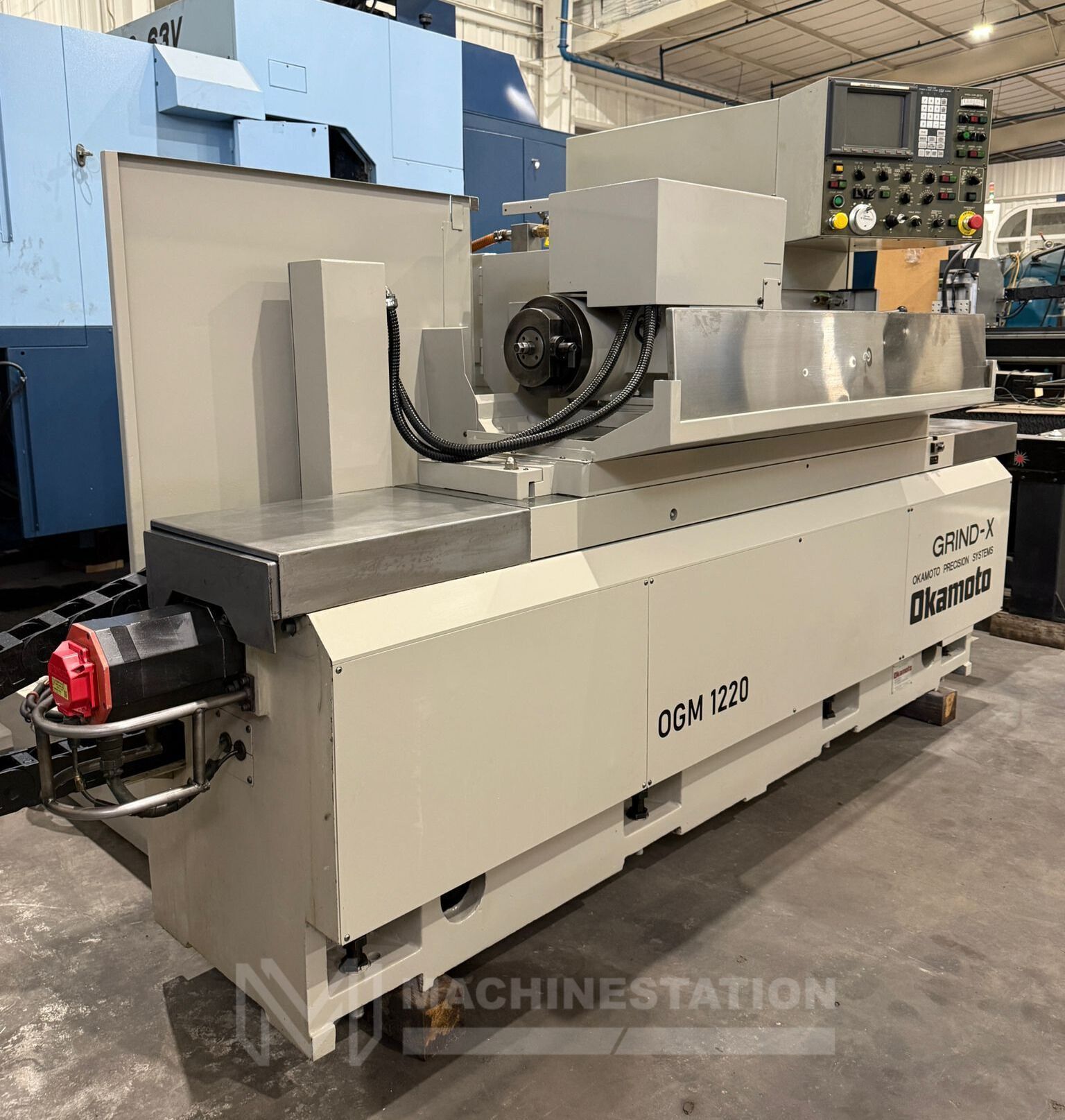

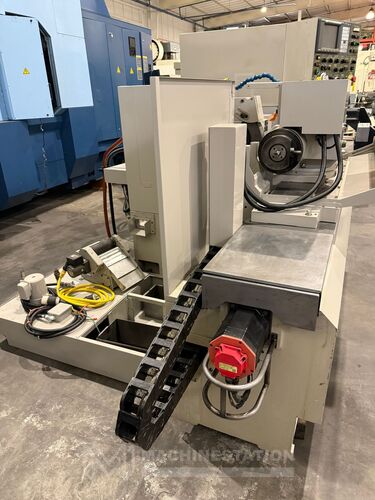

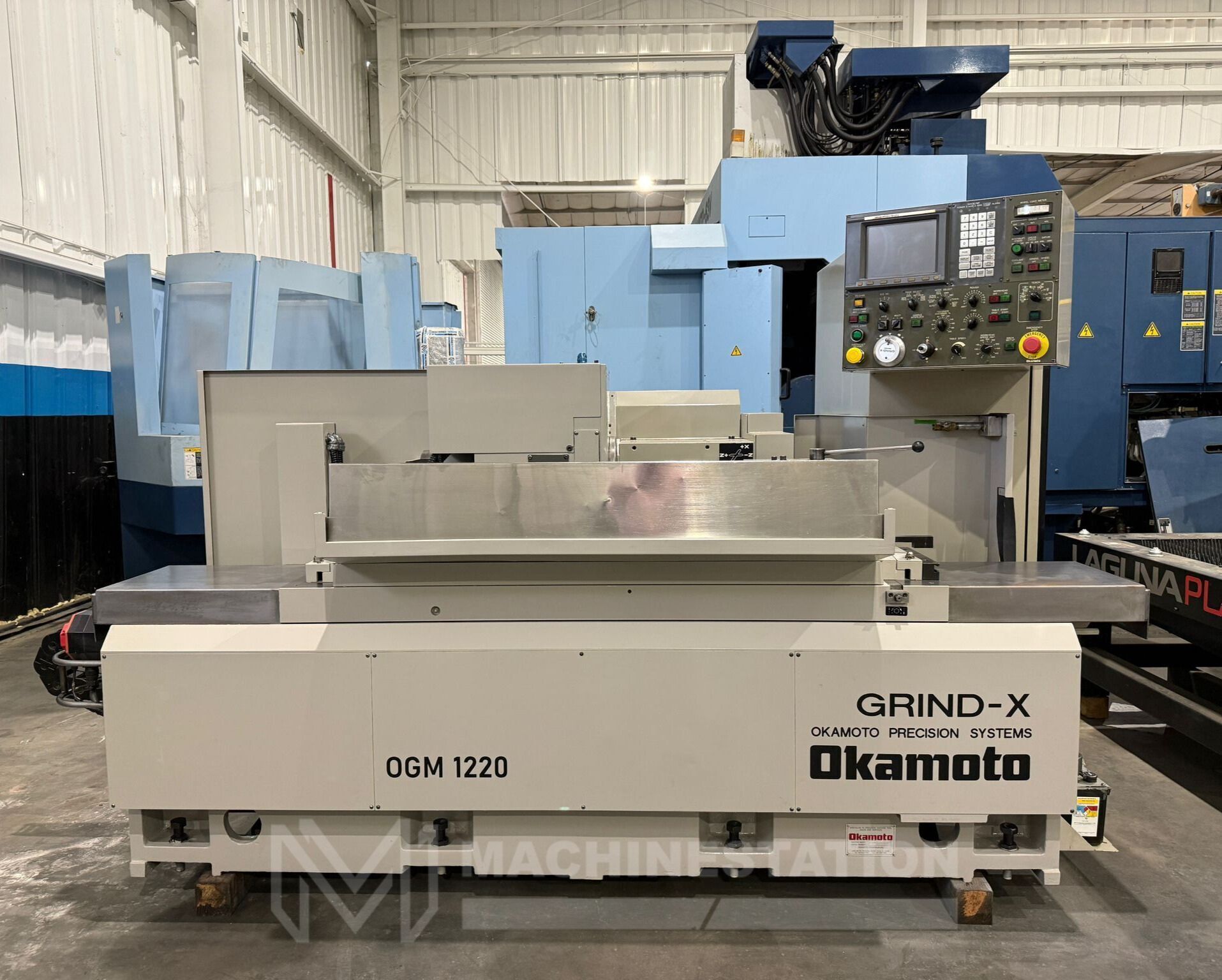

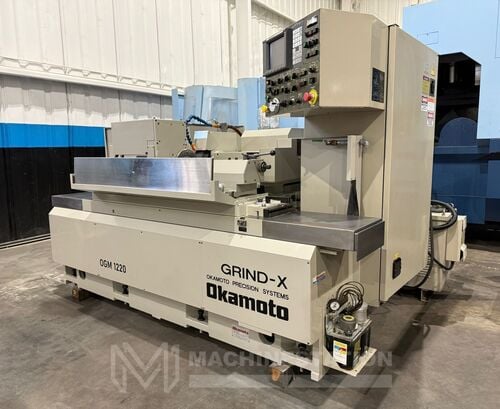

12.6" x 20" Okamoto #OGM-12-20PB, CNC cylindrical grinder, 16" x 2" x 5" wheel, Fanuc Oi-TB, tailstock, 2007

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

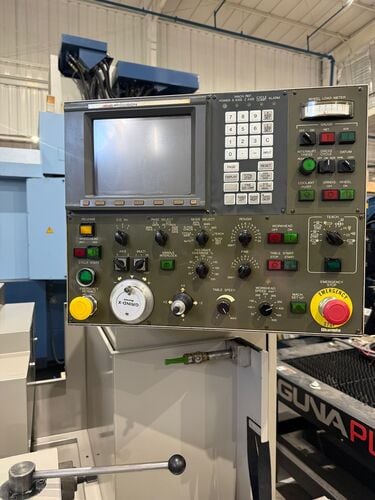

Fanuc Oi-TB CNC Control
Absolute/Incremental Combined Programming
Swivelable Table
MPG Control
Inch / Metric Conversion
Auto Reference Point Return

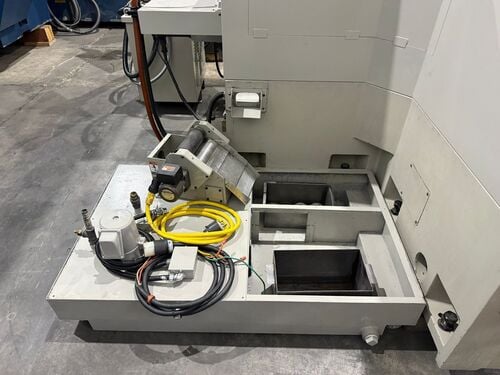

Coolant System
Capacity:
Max Grinding Diameter: 12.0"
Max Grinding Length: 19.68"
Max Weight Between Centers: 330 lbs
Swing Over Table: 12.6"
Distance Between Centers: 20.0"
Grinding Wheel:
Speed: 1845 RPM
wheel Size: 16" x 2" x 5"
Grinding Wheel Spindle Motor: 5 HP

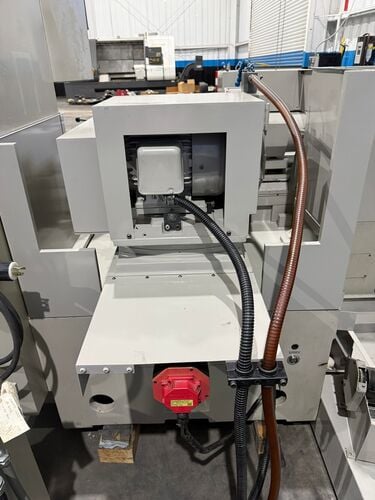

Wheelhead:
Total Stroke (X-Axis): 11.8"
Automatic Infeed: 0.00001" 0.004"
Minimum Increment: 0.00001"
Continuous Feedrate: 160 IPM
Manual Pulse Feed (x.1 , x1, x10) : 0.00001" , 0.0001" , 0.001"
Wheelhead Rapid Retract: 1.5"
Grind Feed Override: 0 200%

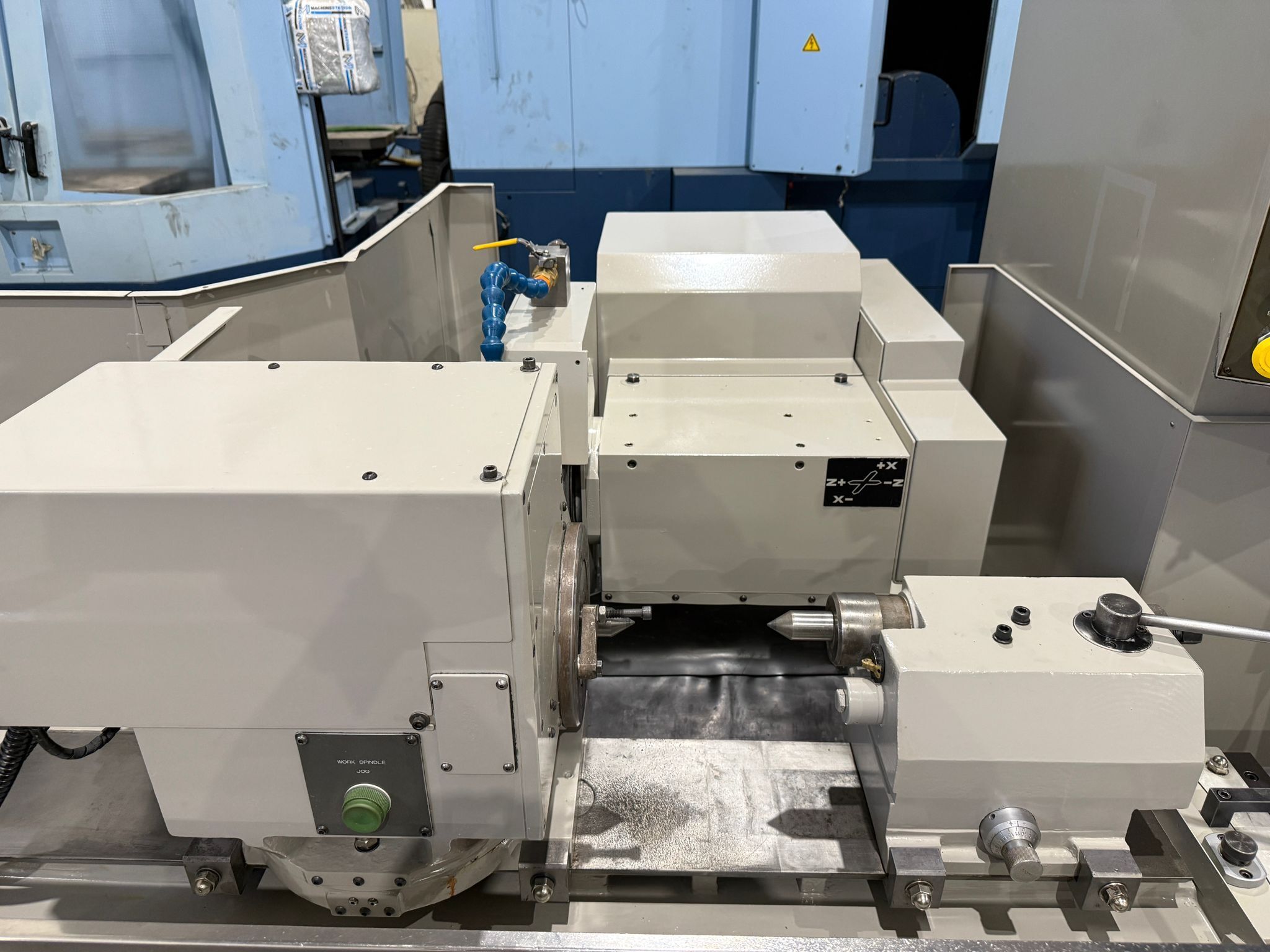

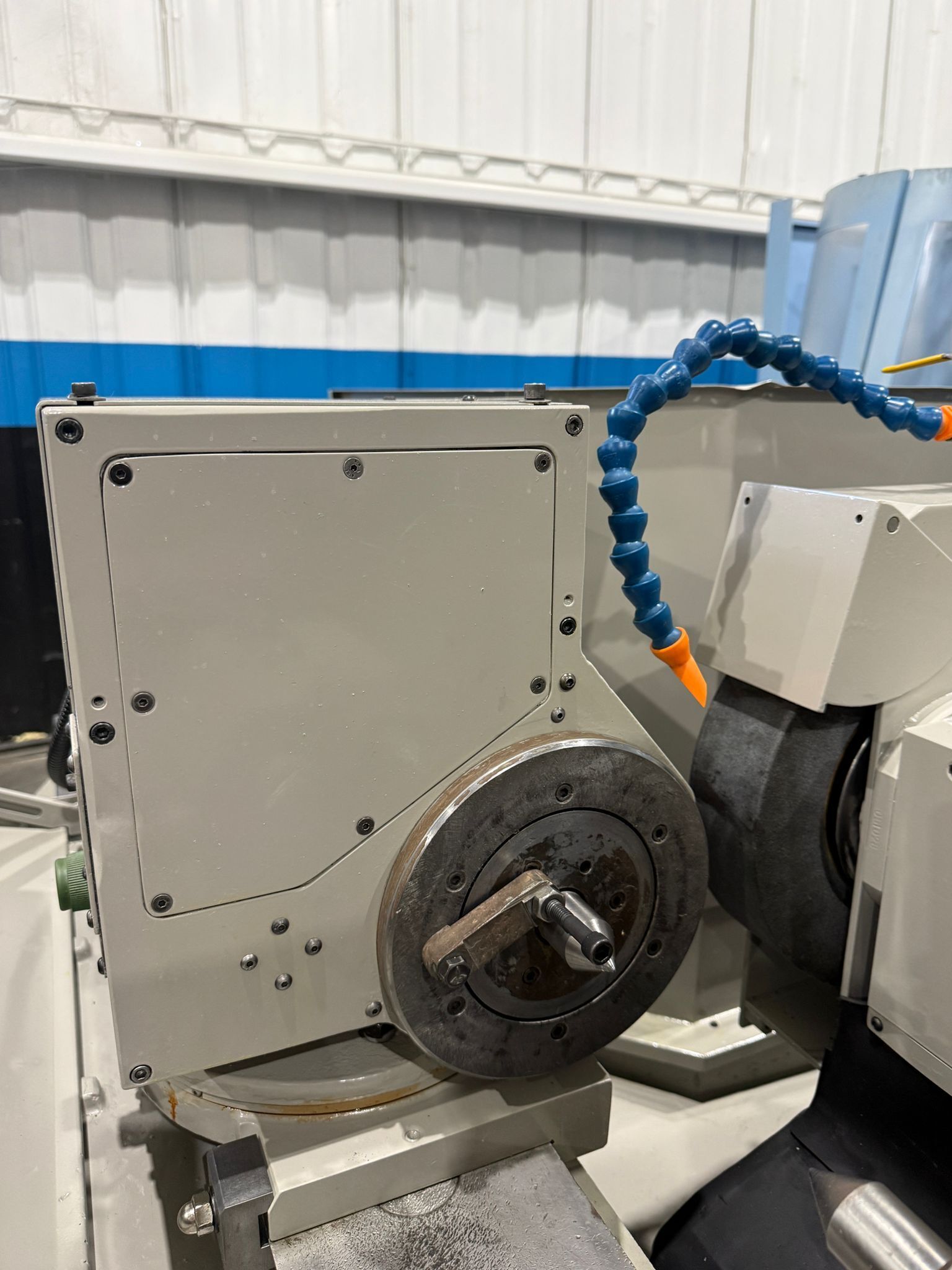

Workhead:
Center Taper: MT-4
Speed: 10 500 RPM
Motor: 1 HP
Table:
Maximum Table Travel: 34"
Swivel Angle: 0 to .10°
Traverse Speed: 0 400 IPM
Manual Pulse Feed (x.1 , x1, x10) : 0.00001" , 0.0001" , 0.001"
Rapid Feedrate: 400 IPM
Feedrate Override: 0 200%
Tailstock:
Tailstock Quill Stroke: 1.2"
Tailstock Taper: MT-4
General:
Power Source: AC 200 V Three Phase 60 Hz
Power Requirement: 20 kva
Overall Dimensions: 143" x 76" x 67" High
Weight : 7700 lbs Approx.
