Description
12' x 26" Carlton Model 5A Radial Drill
Specifications: Column Diameter 26" Arm Length 12' Face of Column to Center of Spindle 16.5" - 12' Spindle Radius 34" - 13'6" Spindle to Base 20.5" - 8'4" Working Surface of Base 4'9" x 12'6" Height 12" Vertical Travel of Spindle in Head 24" Bearing of Head on Arm 23 1/4" Bearing of Arm on Column 52" Height over Head, Max. 14' 8" Height over Column Capacity 14' 5" Spindle Diameter 4" Morse Taper in Spindle #6 Traverse of Arm on Column 4' 7 1/2" Traverse of Head on Arm 10'8" Drills to Center of Circle 24' Swing of Arm 14' 9" Feed and Tap Leads (18) .004" to .125" Number of Spindle Speeds (16) Weight 64,250 lbs.
Preliminary Specifications - Subject to Verification
SERIAL. 4847, MODEL. 5A AREA OF BASE. 130" X 58" SPINDLE SPEEDS. (8) 8 TO 800 RPM THREADS. (5) 6, 7, 8, 11-1/2, 18 DISTANCE SPINDLE TO BASE. 18-1/2" TO 98" MAXIMUM SPINDLE TRAVEL. 24" FIXED BASE DRILLS. 14' TAPER IN SPINDLE. #6 MT DIAMETER OF SPINDLE. 4" TRAVEL OF ARM ON COLUMN. 54" TRAVEL OF HEAD ON ARM. 105" ...more

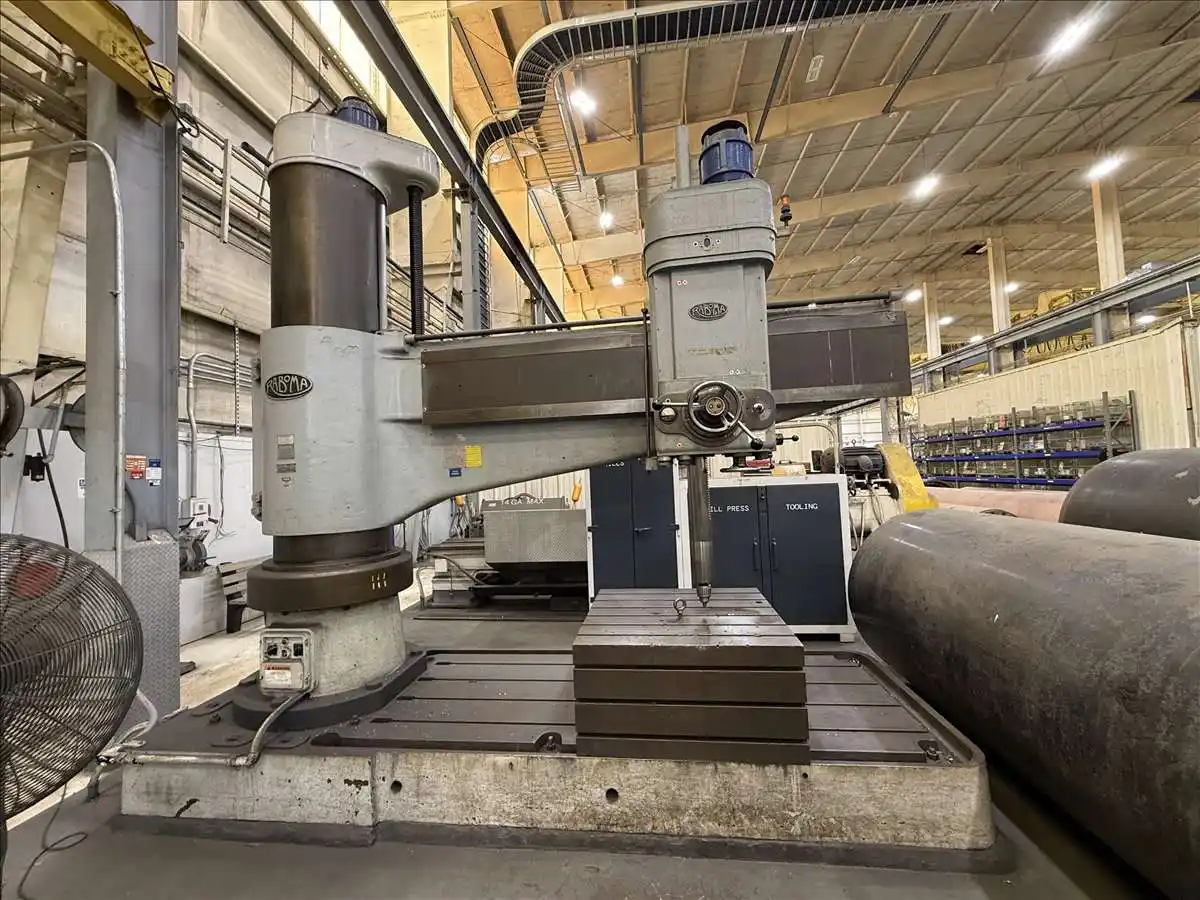

Arm Length: 120"Column Diameter: 24"Working Surface Of Base: 45" x 95"Distance From Face Of Column To Spindle: 20" - 113"Minimum Spindle to Base: 41"Horizontal Traverse Of Head On Arm: 93"Vertical Traverse Of Arm On Column: 43"Spindle Speeds: 60-1200 RPMSpindle Feeds:.004 IPR -.125 IPRTap Leads: 8 - 27 TPISpindle ...more
