Ton: 118.0
Stroke: 12.00
Stock # 2440
1 / 4
Click to zoom in
1 / 4
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

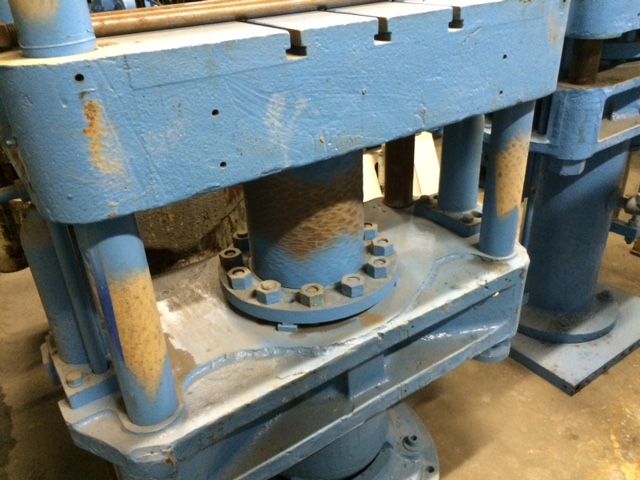

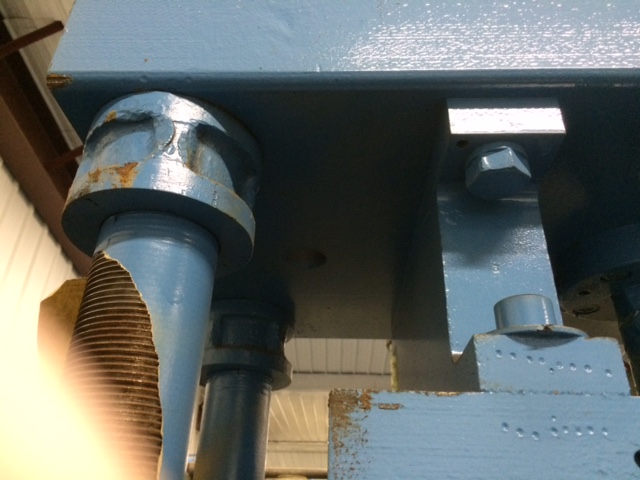

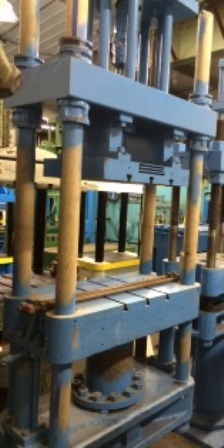

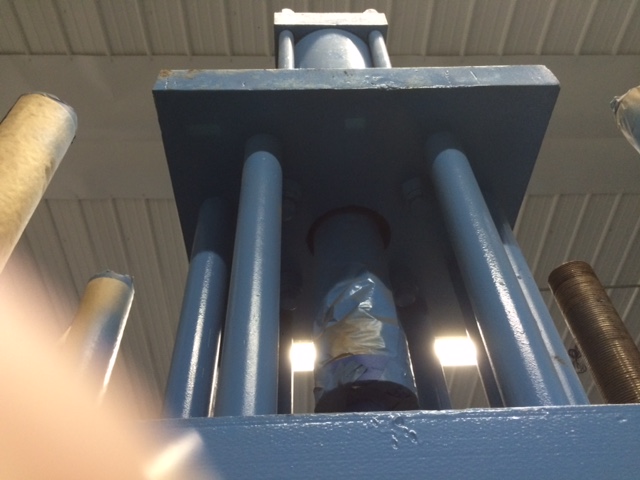

BED IS NOMINAL 30.5" X 20.5". TOP PLATE UNDER TRANSFER POT IS 24" X 18.5" X 3.5". T-SLOTS TOP AND BOTTOM. MAIN RAM APPROX 10" BORE WITH APPROX 12" MAX STROKE. SIDE PULL-BACK CYLINDERS: APPROX 3" BORE; 1.75" ROD AND 12" STROKE. OPENING BETWEEN BED AND TRANSER POT IS ADJUSTABLE FROM APPROX 4" TO 40" (ADD 11.5" TO BOTH IF POT IS REMOVED). FULLY GUIDED ON 3.5" POSTS WITH 8" BUSHINGS. APPROX 48" OPERATOR HEIGHT. OPTIONAL TOP TRANSFER CYLINDER: APPROX 8" BORE; 2" DIA ROD TIP; 12" STROKE. APPROX 6.5" VERTICAL CLEARANCE IN POT AREA WITH ROD RETRACTED. APPROX OVERALL DIMENSIONS: 48" X 30" X 132" TALL. APPROX 10,000 POUNDS (MISSING ONE PULLBACK FLANGE). ITEM #2440.
Get Your Price from Icon Industries, Inc!
Buyers Who Viewed This Listing Also Viewed:
118 Ton, French Oil, 30.5" x20", 3.5-23" DL, 12" stroke, trans cyl str.is 12", qty avail, #62
Category: Molding Compression Transfer Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
36" L TO R OVERALL. 11" F TO B BETWEEN THE POSTS. THERE ARE TWO REMOVABLE STRIPPER BARS ON BED OF PRESS 18.5" APART. THE TOP PLATE (BELOW THE TRANSFER POT) IS 24" L TO R X 18.5" F TO B AND IS T-SLOTTED ALONG WITH THE BED. NOMINAL BED IS 30.5" X 20" (CROWN IS APPROX THE SAME IF TRANSFER POT AND PLATE IS REMOVED). CLAMP ...more
120 Ton, I.m.i.inland I.M.I. Inland, 15" x20", 9.5" DL, 9" stroke, vert.or horizontal, 12" elec.pltns, #185
Category: Molding Compression Transfer Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: I.m.i.inland
I.M.I. INLAND MODEL A060 915. SERIAL #165. PRESS CAN BE OPERATED VERTICALLY OR HORIZONTALLY. TWO 12" X 12" X 2 3/8" ELECTRIC PLATENS (CARTRIDGE). 22" MAX. DAYLIGHT. 9 \u00bd" DAYLIGHT WITH TRANSFER POT AND PLATENS INSTALLED. APPROX 9" STROKE ON MAIN CLAMP. APPROX 14" STROKE ON TRANSFER. RATED TO 3000 PSI. OVERALL ...more
JUST ADDED!

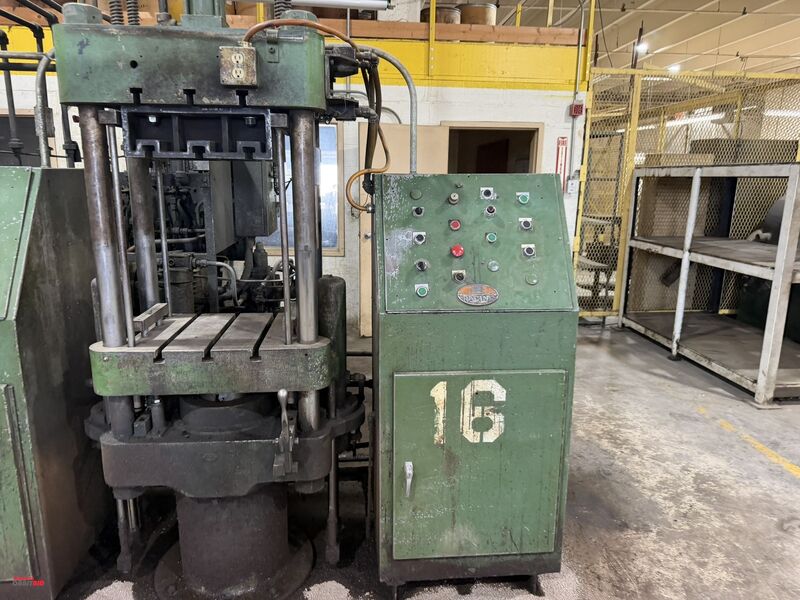

75 Ton, Williams White/Racine, Hydraulic Transfer Compression Molding Press, 20" x 22" platens, 16" x 13" x 18" T-slotted rise, 16" stroke, up acting bed, top side ram
