Ton: 117.0
Stroke: 16.0
Daylight: 24.5
Stock # 697
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

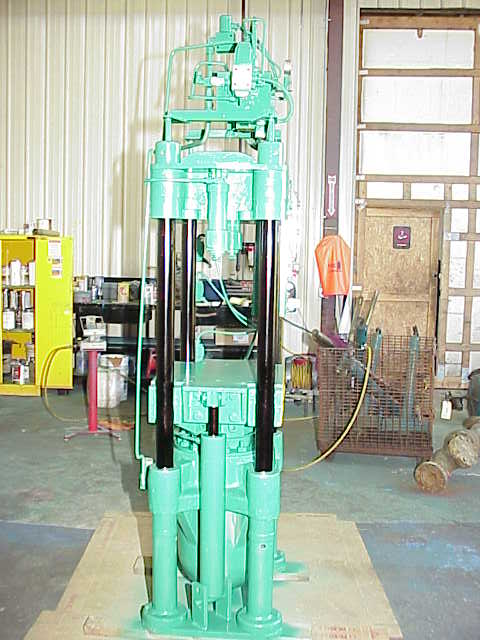

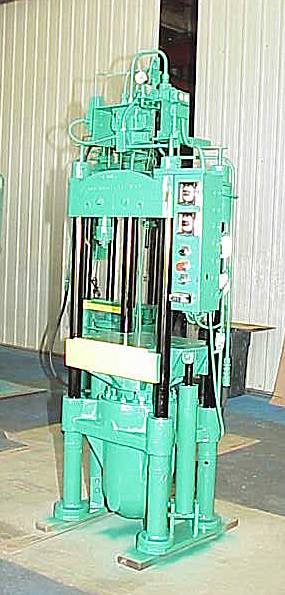

24 \u00bd" DAYLIGHT. APPROX STROKE 16". 10" DIAMETER SINGLE-ACTING MAIN RAM RATED AT 3000 PSI. 1" NPT PORT. 2 \u00be" DIAMETER POSTS. HALF SURROUND GUIDES ON MOVING BOLSTER. OVERALL PLATEN SIZE 20" X 20". DISTANCE BETWEEN POSTS 21 \u00bc" L to R X 12" F to B. TWO PUSH BACK CYLINDERS: 2" BORE, 1 \u00bc" ROD, 6" STROKE. TWO PULL BACK CYLINDERS: 3 \u00bc" BORE, 1 \u00bd" ROD, 18" STROKE. OPERATOR HEIGHT 39". HYDRAULIC SOLENOID VALVES AND PRESSURE CONTROLS MOUNTED ON TOP OF PRESS. SMALL CONTROL PANEL WITH 3 LIMIT SWITCHES AND 2 TIMERS. OVERALL DIMENSIONS: 45" L to R X 32" F to B X 100" TALL. APPROX WEIGHT: 6500 LBS. (ITEM #697)
Get Your Price from Icon Industries, Inc!
